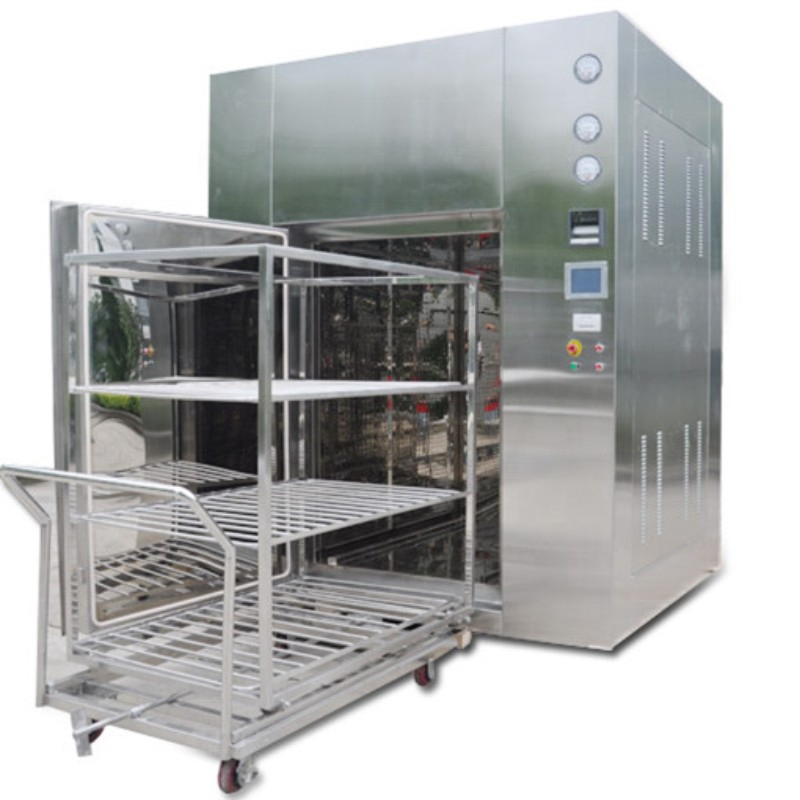

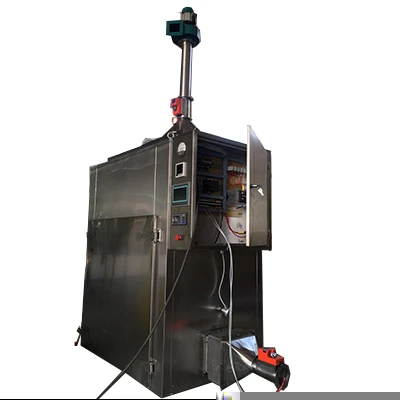

Торговая гарантия от поставщика Gold Plus, двухдверная стерилизация, циркулирующая горячим воздухом сушильная печь с ампулами и стеклянными флаконами, сушильная печь

This machine is suitable for all kinds of rubber stopper, aluminum lid and bottle sterilization, drying. The use of stainless steel heating rod heating, direct cooling fan hot air circulation, heating up fast, high efficiency sterilization; can automatically display and set their own control, record temperature, over temperature, time to timely alarm; hot air circulation area with high temperature 100 clean devices, in line with GMP specifications; two-door design, and interlock device to ensure that the region clean requirement

Function
⑴ oven work area maximum temperature of 300 ℃.
⑵ operating temperature of 121℃~250 ℃.
⑶ normal work, the first heating temperature, while the air duct valve automatically open, so that the moisture from the discharge; to set the temperature into the insulation phase, the door closed; to set the time, it will automatically enter the forced air cooling phase The
⑷ forced air cooling: cooling, into the outlet valve with the open, high temperature exhaust fan is also open (circulating fan normal work, not closed), the box of hot air was slowly replaced by the air outside the box, the box was compared Fast cooling. Among them, the entry and exit of the wind have a hundred filter, the wind of the hundred filter is to prevent the insulation phase or usually do not work outside the dirty air into the outside.
⑸ circulating fan, exhaust fan, heating pipe, inlet valve, the outlet valve can be displayed on the touch screen its immediate working condition.
(6) PLC and HMI with UPS system(can add this function)

The main technical parameters

      Sterilized material: ampoule glass bottle/ vials bottles
      Bottle size: 1ml Ampoule vials, 5ml/8ml/20ml vials
     Trolley Dimensions: 1060 × 900 × 1000mm (L × W × H)
     Tray Dimensions: 423x302x37 mm (L × W × H)
     Full load tray number: 72; total 12 layers, each layer will put 6 trays
     Full load bottle Number: about 14000 (based on 20ml vials)
     Pallet material: 316L stainless steel
     Temperature adjustment range: 40 ℃ ~ 350 ℃
     Cycle time: 100~120 min
     Timing range: 0 ~ 24 hours
     Power: 380V 50Hz three-phase four-wire
     Power: ≤ 20Kw
    Box size: 1500 × 1000 × 1800mm

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3)LAF trolley can hold the bottle after drying and sterilization, keep the bottle clean, and without bacterial.
