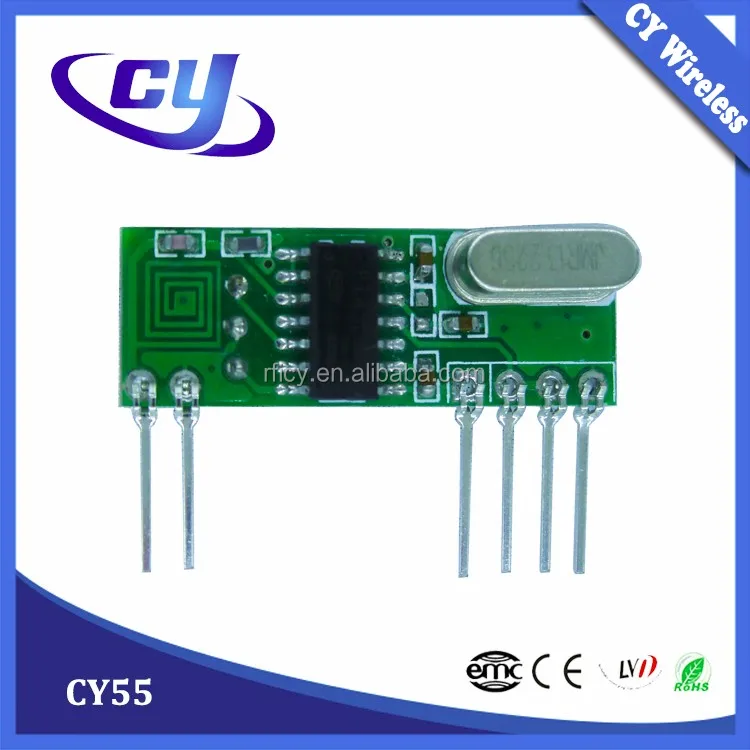

Модуль приемника CY55 с низким энергопотреблением 433,92/315 МГц, приемник ASK/OOK

Описание и отзывы

Характеристики

DESCRIPTION:

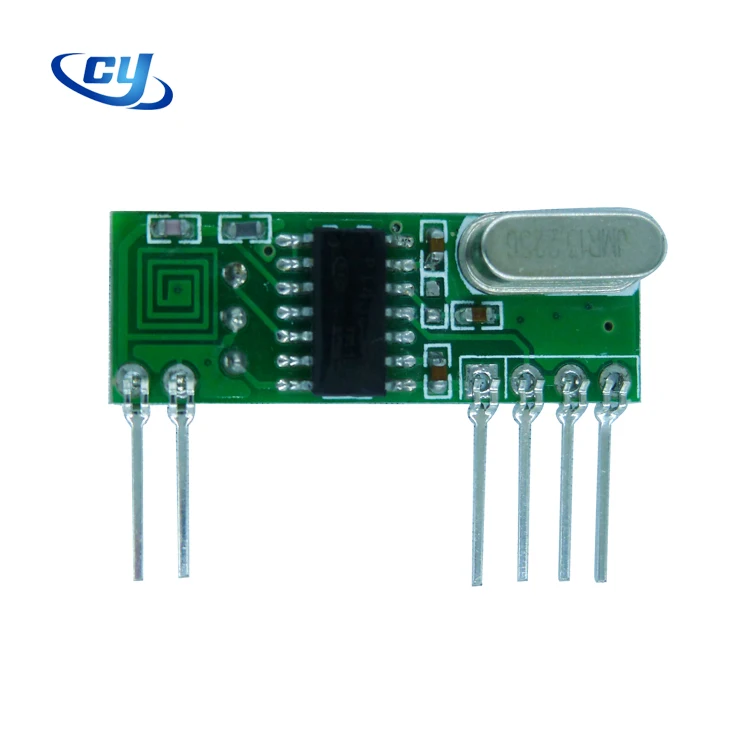

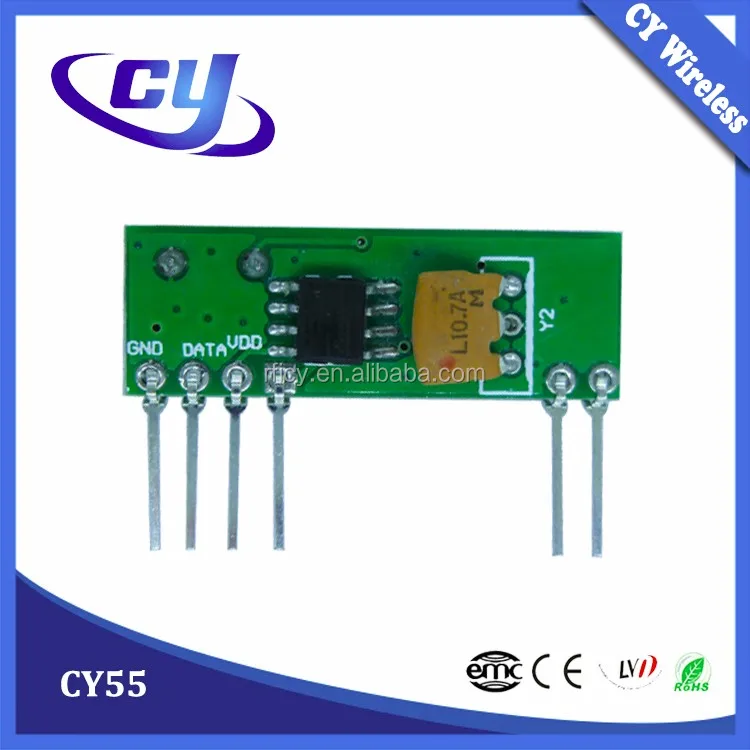

The CY55 is a ASK/OOK Super Heterodyne receiver module, which can be used to receive un-decoded data from the range of CY’s Transmitter modules. The module is very simple to operate and offer a very low current consumption. This item has high receiver sensitivity and strong anti-interference ability. User can easily achieve the development of wireless products by adding a simply data decoding circuit.

FEATURES:
Frequency: 315MHz/433.92MHz(custom frequency is available)
ASK/OOK modulation
Data Rate: 2.4Kbps.
Supply Voltage: 2.4V-5.0V
Low Current Consumption, 2.7mA when working and standby current is 400Ua (315Mhz)
Good selectivity and stray radiation inhibition ability, it’s easy to go through the international standard such as CE/FCC.
It can work with multiple receiving modules (single transmitter with multiple receivers) and do not interfere with each other and use them together will not affect the receiving distance.
Temperature range: -30-85℃
High Sensitivity : -106dBm

APPLICATION:
Wireless Security Systems
Garage Door Controller
Remote Gate Controls
Data Communications
RKE (Remote Keyless Entry)
Wireless Curtain

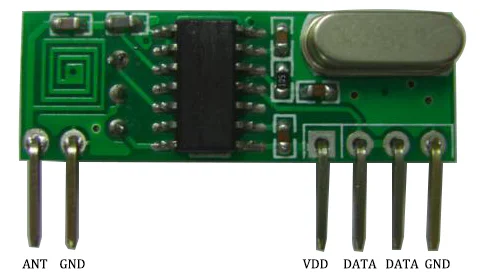

PIN DEFINITION:

Note: ANT pin is a 50 ohm antenna input. The length is about:
23cm for 315MHz ,
17cm for 433.92MHz

ELECTRICAL CHARACTERISTICS:

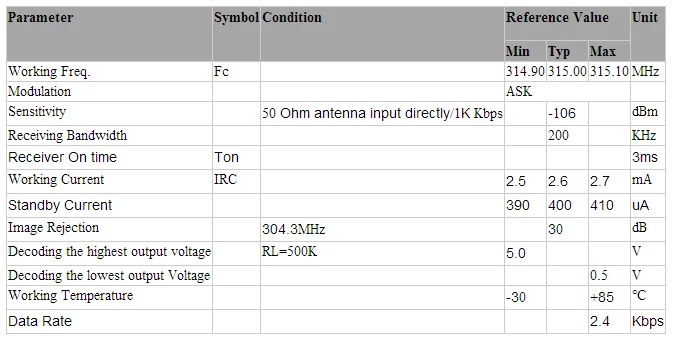

Condition: Ta=25℃ Vcc=5.0V Frequency=315MHz

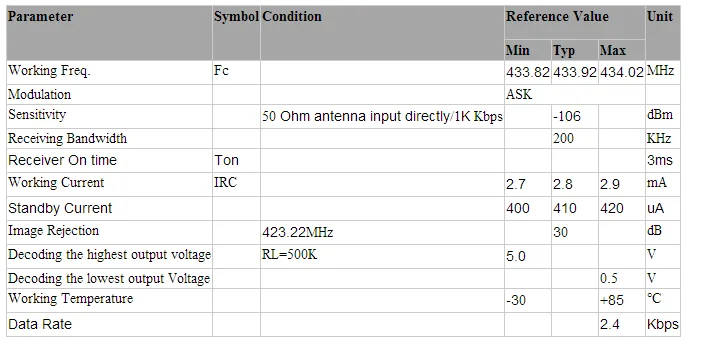

Condition: Ta=25℃ Vcc=5.0V Frequency=433.92MHz

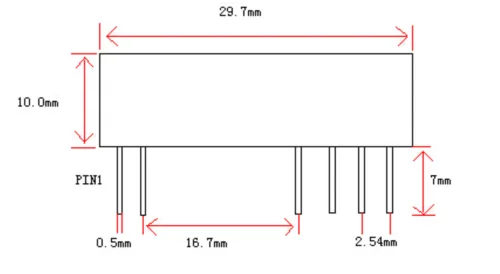

MECHANICAL SIZE: (UNIT: mm)
