Новая машина скорой помощи с дизельным двигателем
US $24000-$26000
SY-K029-1 медицинские спасательные автомобили, первоочередные аварийные автомобили
- Категория товара: Скорая помощь >>>
- Поставщик (Оптовый магазин): Sunny,Medical,Equipment,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description

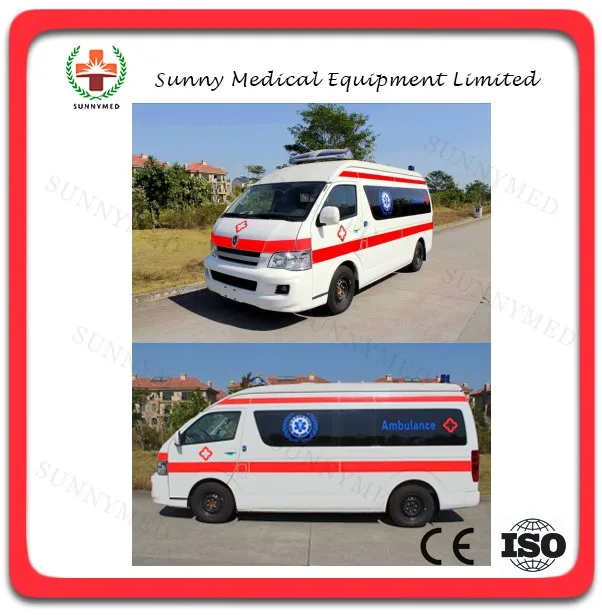

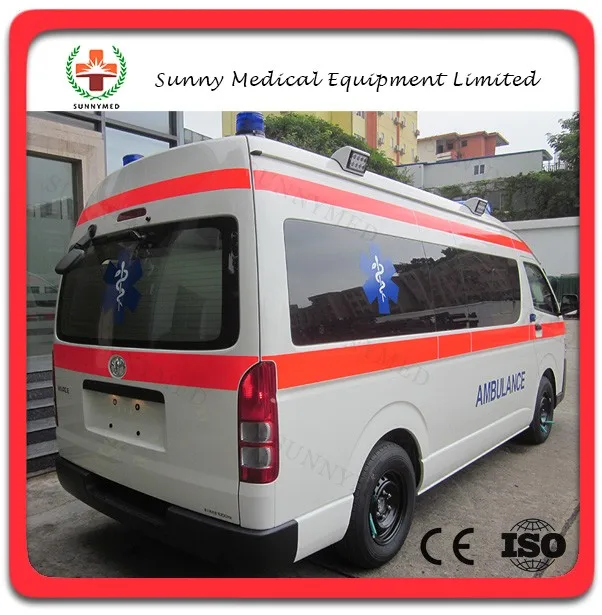

SY-K029-1 Medical Rescue Vehicles First Priority Emergency Vehicles
Vehicle specifications
| Wheelbase (mm): | 3110 |
| Turning circle (M): | ≤13 |
| Overall vehicle dimensions L×W×H (mm): | 5420 x 1880 x 2435 |
| Overall treatment dimensions L×W×H (mm): | 3380 x 1750 x 1625 |
| Overall vehicle weight kg: | 2055 |
| Engine type: | 4RB2 |
| Fuel type: | Gasoline |
| Engine displacement cm3: | 2.438 |
| Emissions standards: | CHN IV |
| Cylinder bore x stroke mm: | 95.0x 95.0 |
| Rated power kw(hp)/rpm: | 102 |
| Max torque Nm/rpm: | 217 |
| Gear box: | 5 speed MT |
| (ABS) | |
| Two seats in driver cab. | |
| Full range of airbags | |
| Automatic windows | |
| CD player | |
| Remote central locking system | |
| ultraviolet ray intercepting glass | |
Medical cabin specification:
Electric system
1. Intelligent automatic charging system. The system includes: Main and vice storage batteries, sinusoidal inverter and intelligent regulator.
1)Main storage battery is charging vice storage battery for supporting power use in treatment cabin through intelligent regulator during engine is working.
2)To connect 220V outside outlet charges both of batteries during engine switch off.
AC/DC transition system.
2. Sine wave inverter: Inverter will begin at charging both of Main and vice storage batteries together through outside 220V electronic connecting.
3. Two sets outlets of 220V and 12V
4. Outside 220V outlet and coordinate 15M moveable cable.
5. Two-pass switch and touched panel installation for driver cab and treatment each.
The panel is able to control lighting system, A/C system, AC/DC transition system and ventilation system. Meanwhile, the screen is able to approve important information include: time, temperature and so on.
Warning lights system
6. 100W siren apparatus
7. Warning speaker system
8. Outside siren loudspeaker
9. LED Warning light bar.
10. Rear warning LED Blue spotlights
11. Emergency restart button: To press restart button while active vehicle to consequence driving during main battery expected loss of loading.
Electronic
12. Intercom communication system
13. Sterilization system: inserted ultraviolet sterilization lamp
14. Independent Air condition with heating function in medical cabin
15. Medical cabin two-way ventilation sys
Body labels
16. Customized 3M body safety label

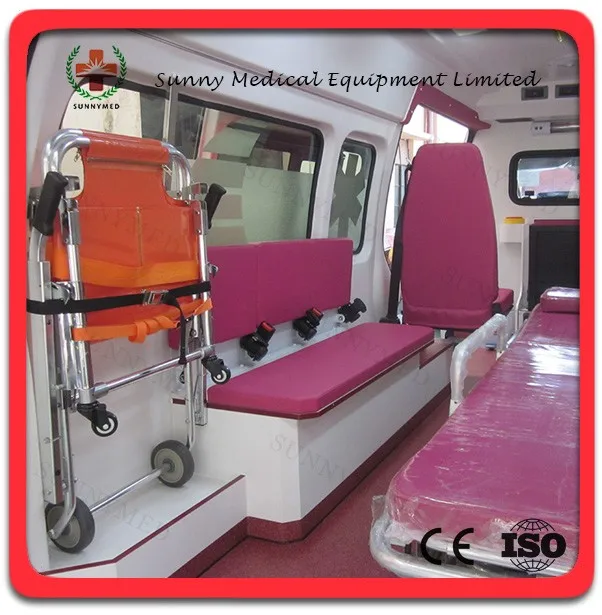

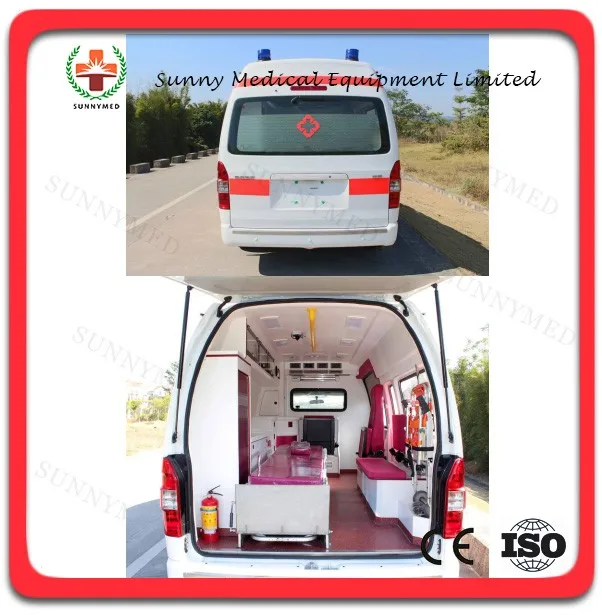

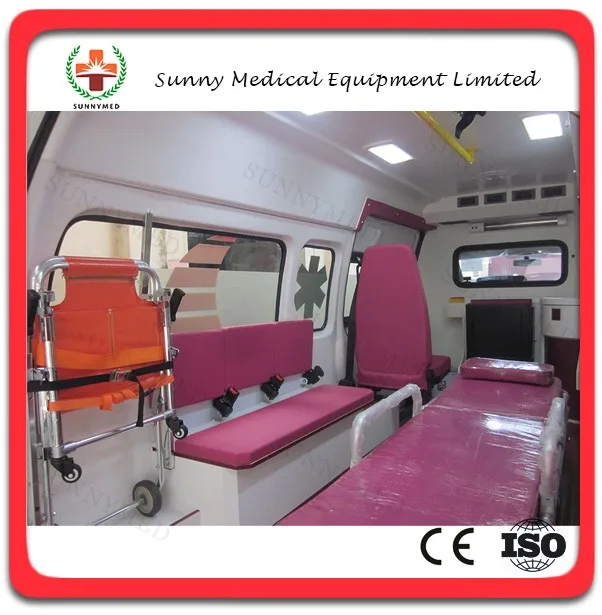

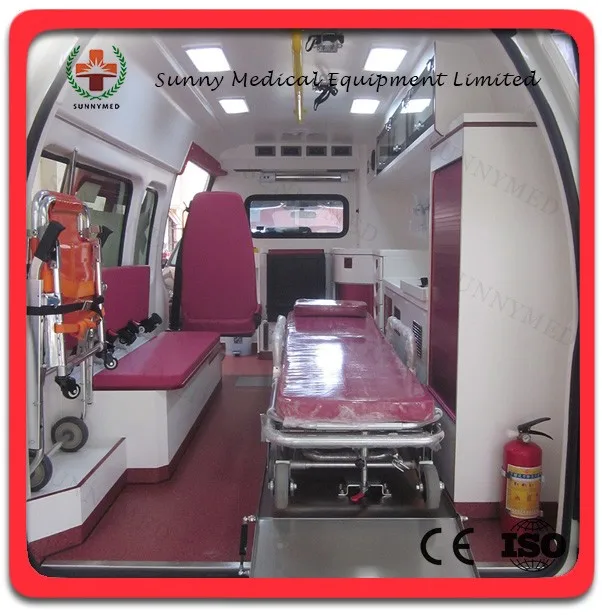

Medical cabin specification
17. Partition panel to separate driver and treatment cabins with sliding window

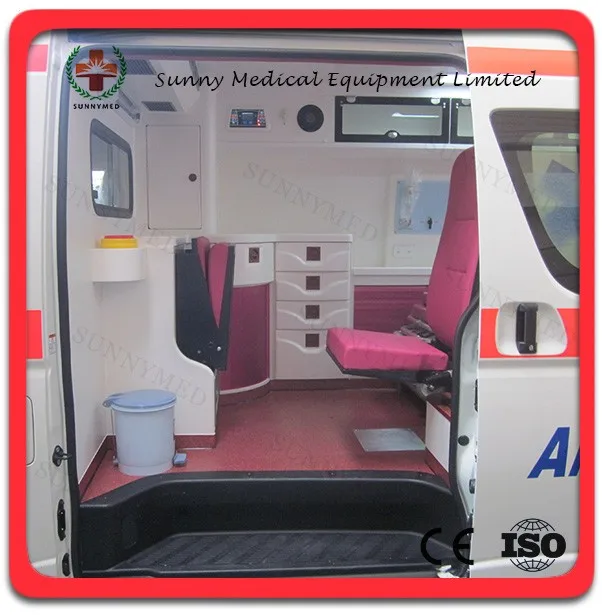

18. Independent rotating doctor seat
19. Comfortable bench seats with seat belt
20. To construct structure of medical cabin apply in ABS vacuum forming module manufacturing
21. Imported LG Chemical Floor: Corrosion protection, fireproofing, waterproofing, environmental
22. Medical wall cupboard:Tempered glass sliding door
Automatic lock approval all of cabinets
23. All of cabinets were made by 15mm lighting PVC Foam board
24. Medical bench table to install equipments
25. 10L oxygen bottles:Reducing pressures valve, cylinder fixed device
26. Hidden metal oxygen connecting tube
27. Overhead hidden infusion hook
Safety handrail in ceiling
28. Able to lash first aid chest near of sliding door
29. Customized 3M body safety label
30. 2KG Fire extinguisher

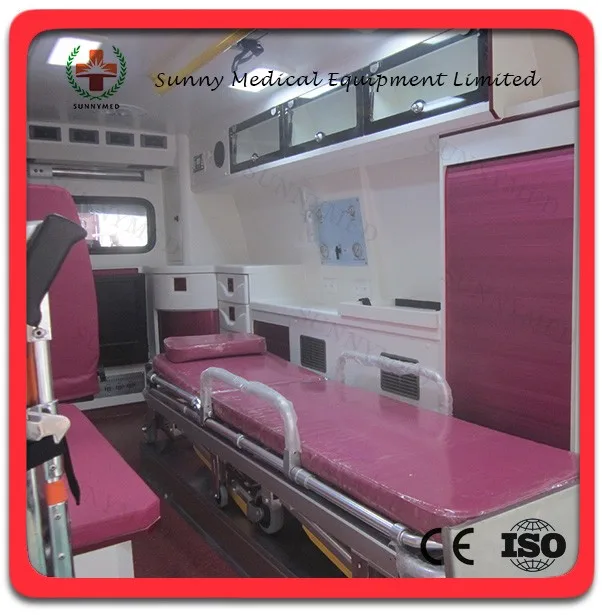

Stretcher system
31. Automatic loading stretcher
32. Stretcher platform
33. Scoop stretcher
34. Stair stretcher
Our Services
1. For all your inquires about us or our Emergency Vehicles , we will reply you in detail within 24 hours
2. We own professional team have professional attitude to recommend products and services, introducing the Emergency Vehicles for you.
3. Our Emergency Vehicles have various type and function , We will recommend to you that according to your requirements ;
4. We offer OEM services. Can print your own logo on the Emergency Vehicles .
5. We have very experienced engineers, can help you better use our Emergency Vehicles
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Our Advantage:
1. Top Quality: We have strict quality control system and enjoy good reputation in the market.
2. Excellent Service: We treat clients as friend and aims at building long term business relatiionship.
3. OEM Accepted : We Can print your own logo on the products.
4. Unbeatable Price: We always ensure high price performance to benefit our customers.
5. Timely Delivery: Your order shall be shipped once finished .
Packaging & Shipping
Delivery detail:
1.We ship the Emergency Vehicles by air or sea for you.
2.Our Emergency Vehicles with standard export packing.
3.No matter what delivery way , all depending on your actual requirements.
