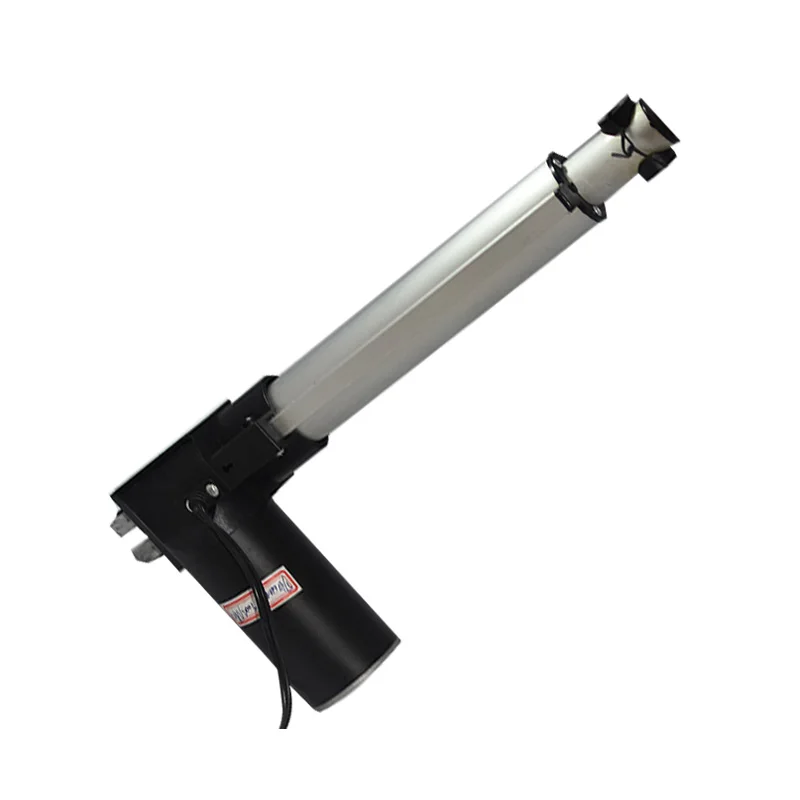

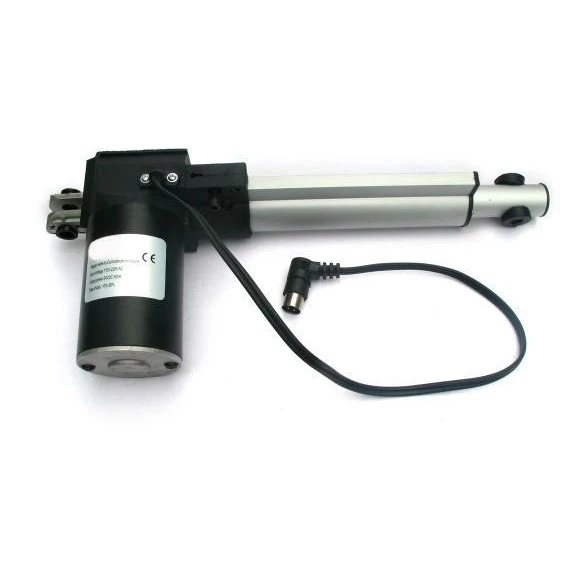

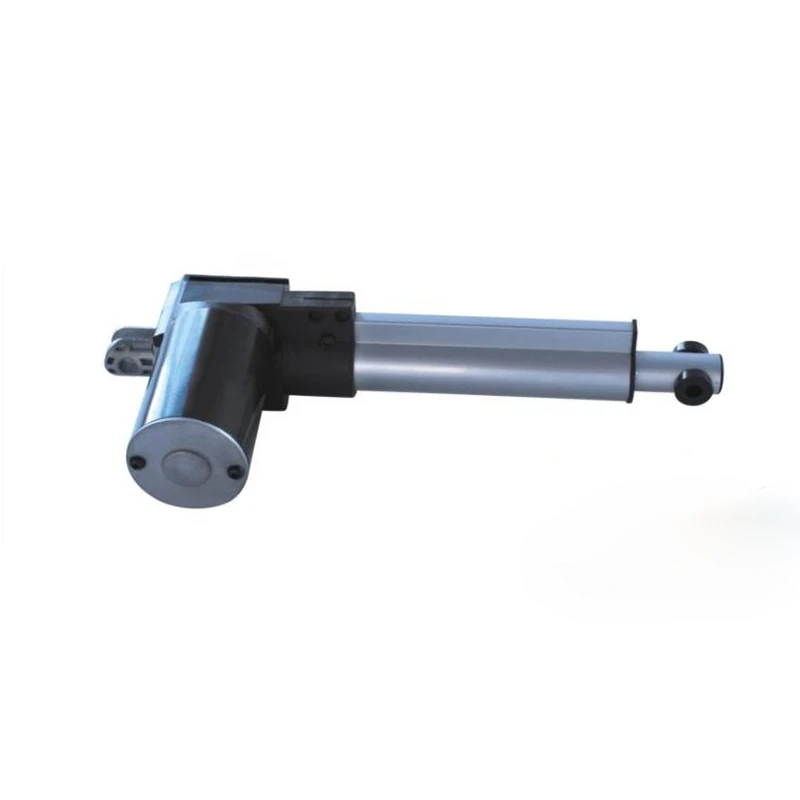

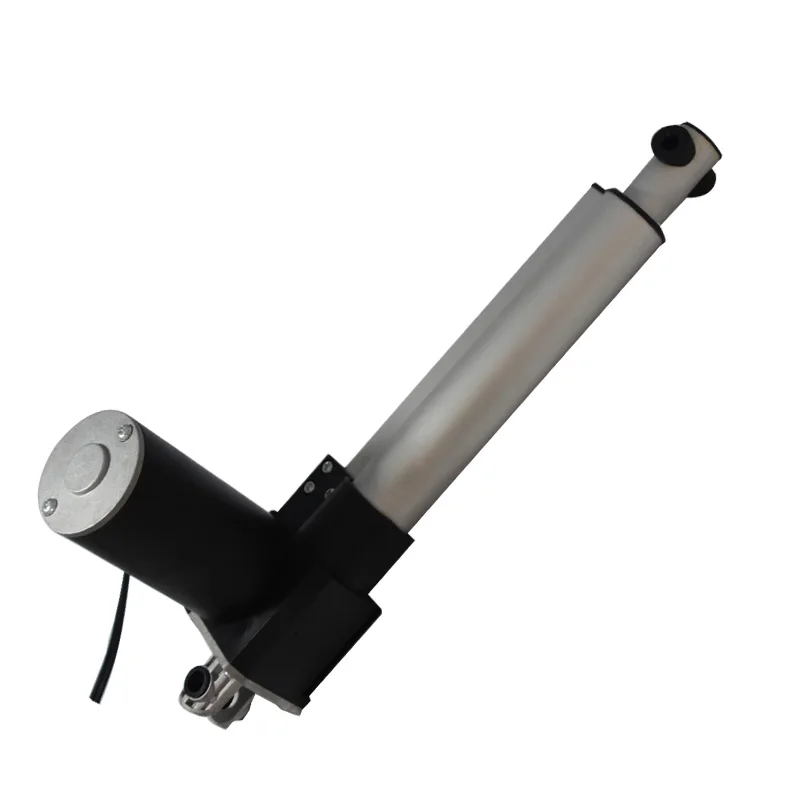

Китайский производитель alibaba, Линейный Электрический привод 12 В/24 В, цена
- Категория товара: Chair Mechanisms >>>
- Поставщик (Оптовый магазин): Wenzhou,Huifeng,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Feature:
Model | TGB
|
Input Voltage | 12VDC/24VDC |
Max Load Capacity | 6000N |
Stroke Length | 25mm-1000mm |
Speed at No Load | 1/4"(6mm/s) ---- 3 ”/sec (80mm/s)
|
Duty Cycle | 20% |
Operation Temperature Range | -26ºC~65ºC (-15ºF~150ºF) |
Limit Switch | Built-in (Factory Preset) Not movable |
IP Grade | IP54 |
Optional | Hall Sensor |
Specification:
MODEL | TRANSMISSION | THRUST(N) | PULL (N) | Lock up force | NO LOAD SPEED/ MM/S |
TGB-6 | SUWPG | 6000 | 4500 | 4500 | 6 |
TGB-12 | SUWPG | 3000 | 2250 | 2250 | 12 |
TGB-25 | SUWPG | 1500 | 1125 | 1125 | 25 |
TGB-30 | SUWPG | 1000 | 750 | 750 | 30 |
TGB-38 | SUWPG | 750 | 550 | 550 | 38 |

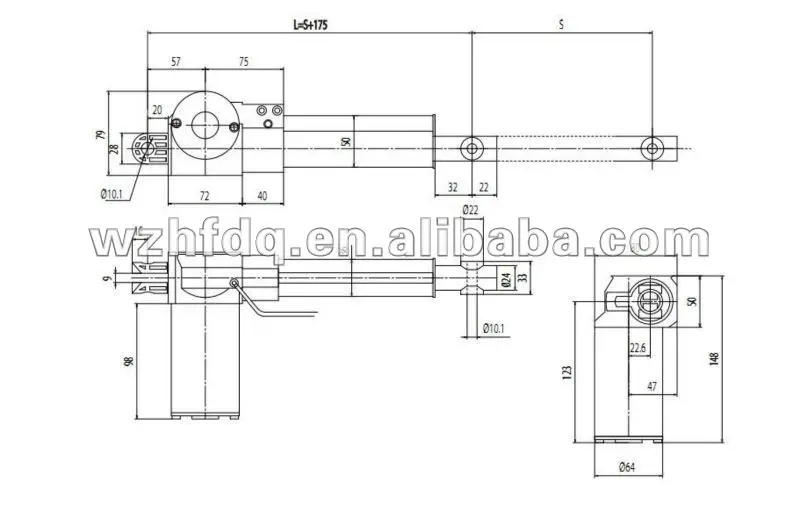

Drawing:

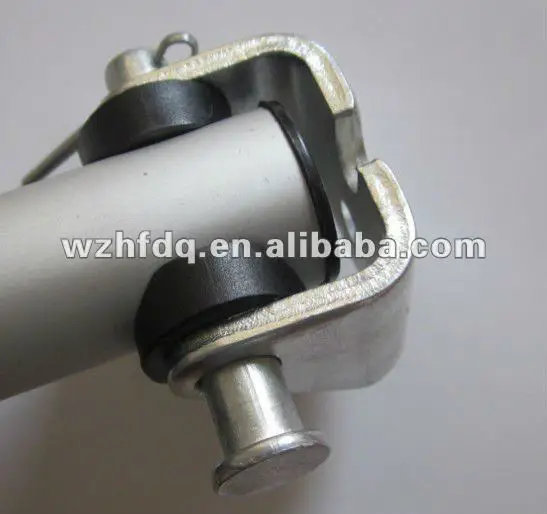

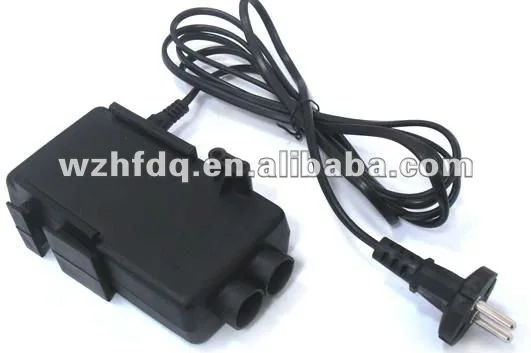

Accessories
Application
Linear actuator Application | Automatic hospital bed |
Household appliances | |
Home care facilities | |
Massage chair, Recliner chair | |
Traffic facilities | |
TV lift | |
Hospitals and rehabilitation centers | |
Nursing homes | |
Automatic PC desk |
Notes
Before placing an order, please let us know the detailed requirements. Our engineer
can give you reasonable solution.
Write in the sheet as below.
Stroke | Voltage | Speed | Load | IP Grade | Color | Application |
