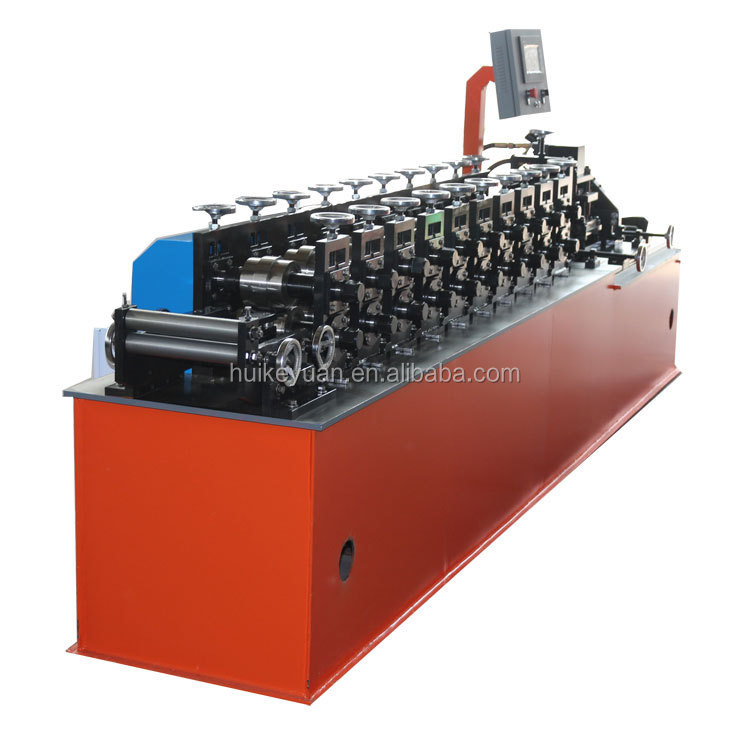

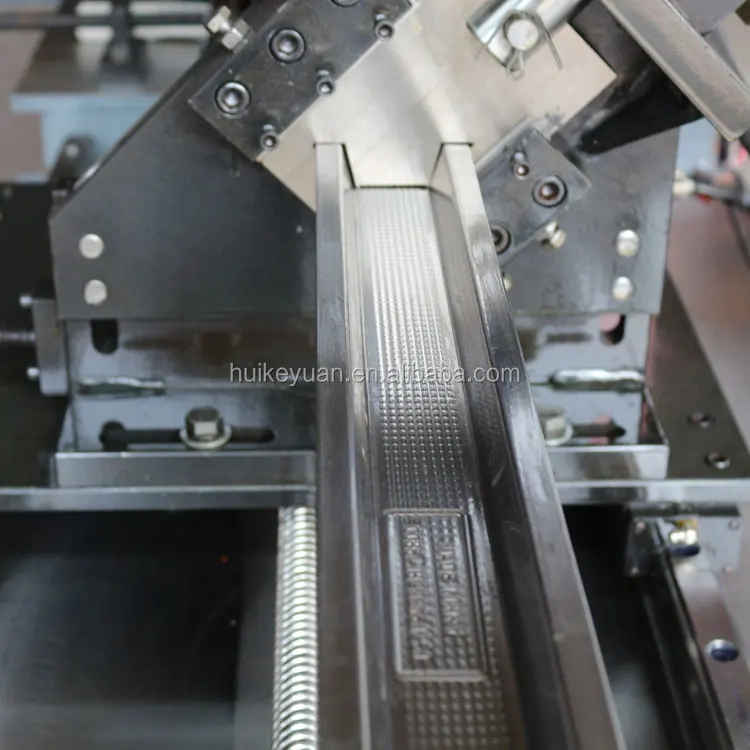

Формовочная машина для формования рулонных рамок из нержавеющей стали

Формовочная машина для формования рулонных рамок из нержавеющей стали

Категория товара: Обрешечивающие машины и машины для стальной рамы >>>
Поставщик (Оптовый магазин): Botou,Huikeyuan,Engineering,Control,Co.,Ltd.

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Our Purlin Machine include Precutting PrePunching Machine and interchangeable CZ purlin machine

CZ Interchangerable Purlin Machine

Features:

Fast Change cutting system,Stepless fast size change

1.The picture machine:

Automatic fasty interchangeable C /Z Purlin Roll Forming Machine

through the manual simple stepless regulation different kinds of size, when the size change does not need to replace the forming roller. The production process selects the automatic control method, may according to parameters input purlin length, longitudinal pitch of holes, quantity and so on to carry on the automatic punch holes, the cutting and roll forming.

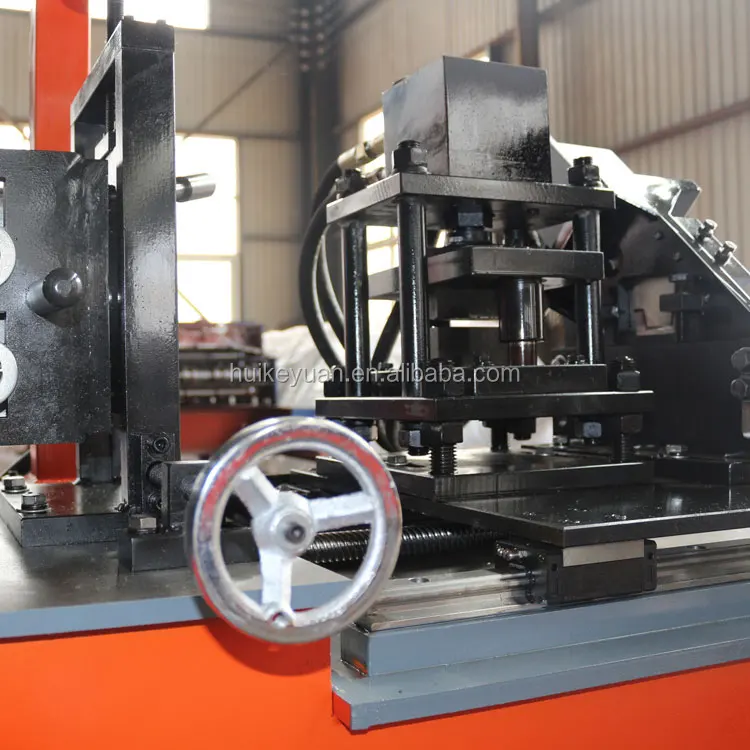

The Quick Purlin Roll Forming Machine consists with the guider, leveler, 2 hydraulic hole punch device, the hydraulic cutting device, fast roller exchange forming machine.

The complete machine contour artistic, production efficiency high, (the forming speed can reach 20m/min)

Pre-cutting and pre-punching purlin machine

feature:

easily operation,change size don't need change cutting mould

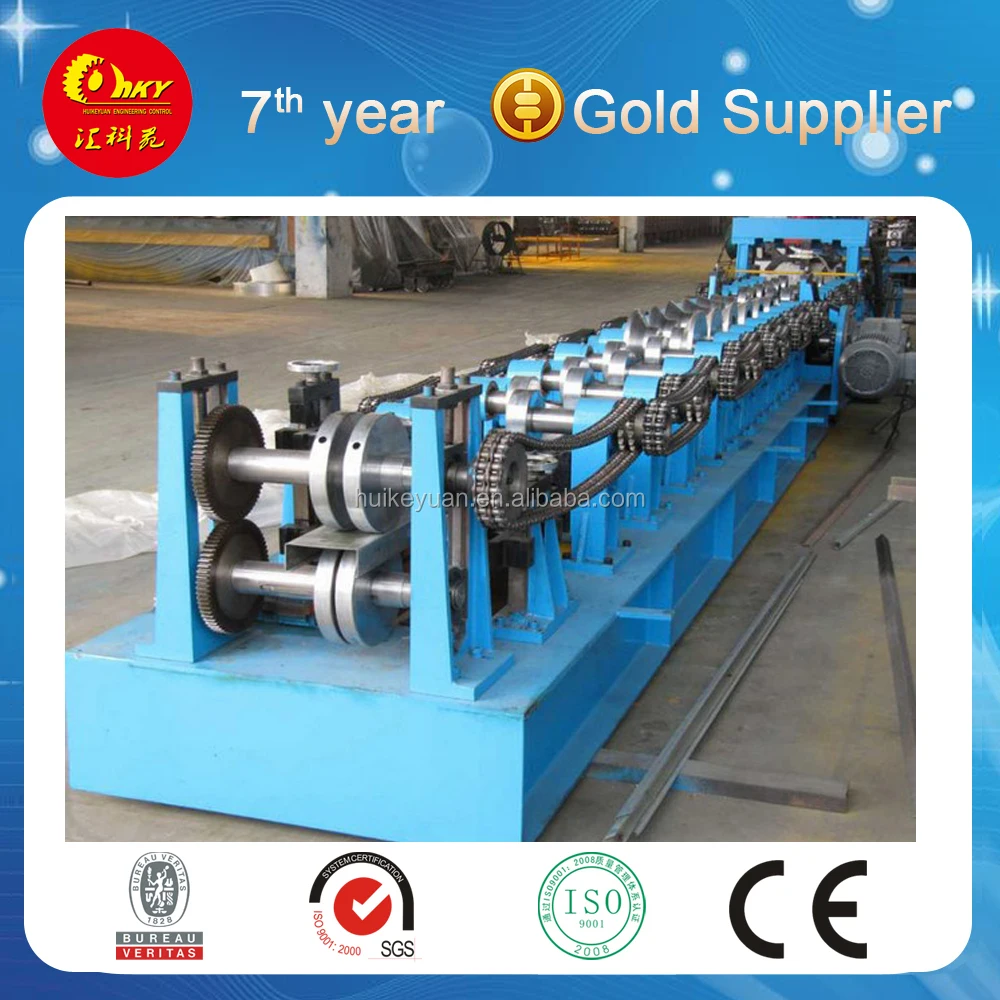

purlin purlin.jpg

2.Product information

Technical parameters:
2	Main motor power	11kw, 3 phase or as your request
3	Hydraulic motor power	4kw
4	Hydraulic Pressure	10-12MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC Delta Inverter
7	Main Frame	300mm/350mm H-Beam or 350mm
8	Backboard Thickness	20mm
9	Chain Size	20mm
10	Feeding Material	color steel coils
11	Feeding Thickness	0.3-0.6mm
12	Feeding Width	1200mm
13	Effective width	1000mm
14	Productivity	0-6/min
15	Roll Station	14 roll steps(according to different design)
16	Roller Diameter	80mm(depend on different design)
17	Roller material	45# steel
18	Cutter material	Cr12 , quenched
19	Cr-Plating Size	0.05mm
20	Overall Size	7500×1400×1500mm
21	Total Weight	4.0T
22	Components	Manual Uncoiler-------------------1 set
		Guiding Platform------------------1 set
		Coil Strip Leveler------------------1 set
		Main Machine of Roll Forming------1 set
		Electric-Motor---------------------1 set
		Cutting Device--------------------1 set
		Hydraulic Station------------------1 set
		PLC Control-----------------------1 set
		Supporter Table-------------------1 set
24	Package	nude in the container
All technical parameters can be changed, according to user's need.

3.The production process

Decoiler→Flating→Feeding →Forming→Cut to length→Colletion

4.Production Flow

Detailed parts and process

5.Company Information

About company

We have developed more than 10 series of steel roof metalic sheet machine which can meet the requirements of all steel construction, such as production lines for wall &roof sheet, color steel tile, C&Z&Wshape purlin and floor decking sheet as well as production line for all kinds of sandwich panels, curving machines for roof sheets. We also supply production lines of guardril sheet for expressway, shutter doors,garages doors downpipe. Besides, we devoted to the research and development of various kinds of other products related to steel structure, such as hydraulic press brake machine, shearing machine, slitting machine lifting machine, gas cutting machine, drilling machine, etc

At recent years,large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Malaysia,Nigeria, Rumamia and Albania etc,more than 50 countries and regious.our machine has win high reputation

because of HIGH QUALITY AND REASONABLE PRICE.

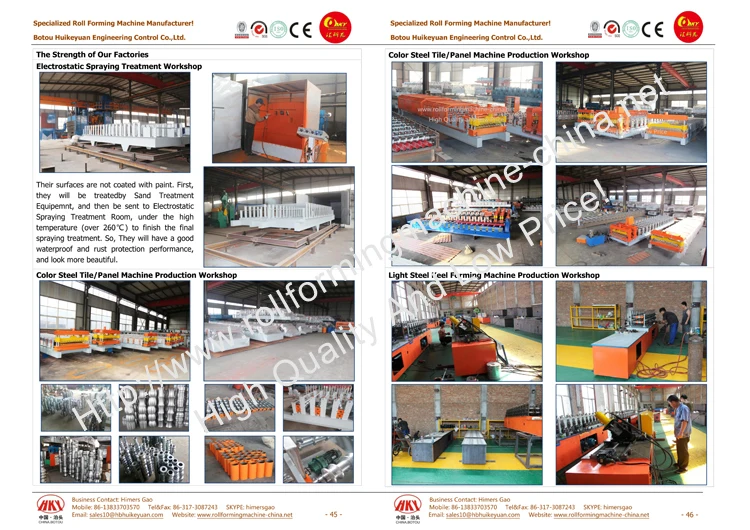

Our workshop

our customer

foreign customer.jpg

Packing & Shipment

> Plastic Packing / Common Packing. Water-proof, Rust Prevention and Dust Prevention.

> By sea or other ways. In general, by sea, the port of loading is XINGANG PORT. It is only need 2 hours from our

Company and Factory to Xingang Port, Tianjin City.

Warranty&After-Sale

> Warranty: 2 Years.

During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,

those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.

> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it’s not free.

> We will provide the technical support for the whole life of the equipment.

Our certification( BV CE SGS ISO)
