Product Description

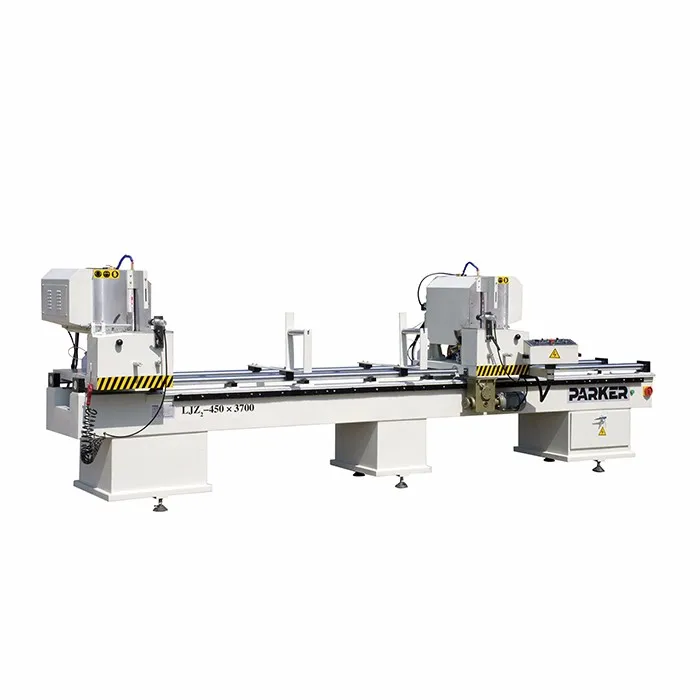

LJZ2-450*3700 Aluminium Profile Double Mitre Saw
INTRODUCTION
LJZ2-450×3700 double head cutting machine is used to process aluminum and plastic profiles. The saw king features pneumatic drive, linear and steady feeding. The movable saw head is dragged by the motor with easy operation. This double head saw has an alloy saw plate with high precision and long service life. It is also well received for sturdy structure and stable cutting capability. The double head cutting machine is also used for PVC profile cutting processing with saw head adjusting to 45° to 90°.
FEATURES
1. It uses imported carbide saw blade that gives accurate processing and high endurance.
2. The double head cutting machine is equipped with high accuracy main spindle, so the saw blade rotates smoothly.
3. Due to air-hydraulic damping cylinder, Parker double head saw achieves uniform speed feeding and smooth motion.
4. The safety device is designed specially. When power is cut off suddenly, the safety of operators can be assured.
5. LJZ2-450×3700 double head cutting machine can cut off the required length at one time processing.
6. This double head saw also features wide cutting range and high productive efficiency. It is suitable for mass, continuous and multiple productions.
TECHNIQUE PARAMETERS
1.Model : LJZ2-450×3700 Double Head Cutting Machine
2.Power : 380V 50 Hz (Three Phase, Four Wire)
3.Motor Power : 2 × 1.5 kW
4.Rotary Speed : 2800 rpm
5.Trailer Motor : 0.55 kW
6.Air Pressure : 0.4 to 0.6 Mpa
7.Air Consumption : 200 L/min
8.Cutting Length : Max. 3700 mm Min. 400 mm
9.Cutting Width : Max. 120 mm
10.Cutting Height : Max. 200 mm
11.Cutting Angle : 90° 45°
12.Motor Power : 2.2 kW × 2
13.Rotary Speed : 2800 rpm
14.Saw Blade Size : Φ450 × 4 × Φ30 × Z120
15.Overall Dimension : 4700 mm * 1600 mm * 1600 mm
16.Weight :\t1500 kg
Detailed Images
Compared with other cutting saws
Cut by other cutting saws
Cut by our Parker cutting saws
Certifications
Company & Service
Parker Company Information
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
Parker service
What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines.
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
Parker service
What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines.
