Трансформатор мощности 220 кВ ~ 245 3 фазы 230 индивидуальные масляные погружные
- Категория товара: Transformers >>>
- Поставщик (Оптовый магазин): Ningbo,Ville,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Details
Power Transformer
230-242kV on-load-tap-changing power transformer is made of high-quality silicon-steel sheets, and laminated by steps. It is advantageous in low loss, low noise, low voltage partial discharge and high anti short-circuit capacity. The dynamical and thermal stability of this transformer, of which the coils are winded by high-quality oxygen-free copper wire as well as used pre-compressing brackets processes and interior and exterior structure. The transformer tank used wave form shell, has very nice appearance, the core is with D shape yoke and 45 angle seaming. The core and oil box are well fixed and well protected on moving.

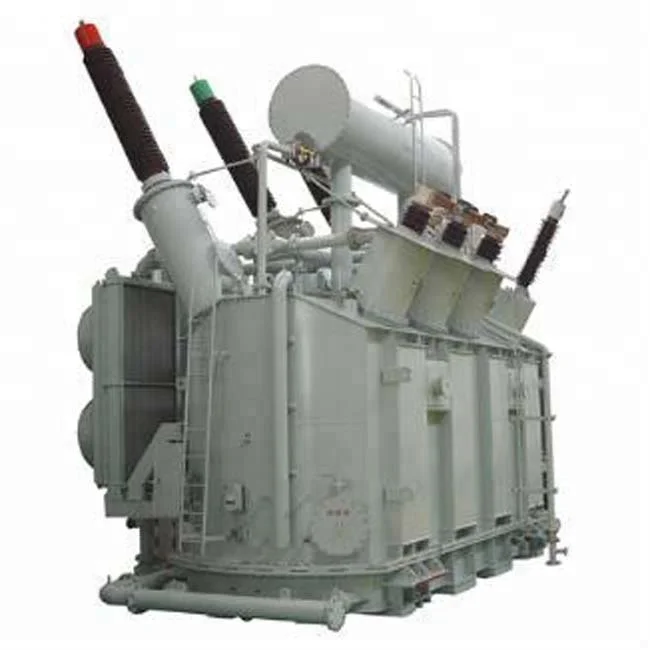

Three-phase dual winding oil immersed power transformer with OLTC
Type: SFZ-120000/230
Rated voltage: 230/34 kV
Rated capacity: 100000/120000kVA
Rated voltage ratio: 230± 8× 1.25%/34kV
Rated current: 301/2038A
Phase number: Three
Rated frequency: 50 Hz
Connection: Ynyn0(d11)
Voltage regulating method: Neutral point on-load Regulating
Short circuit impedance: 9.5%(10MVA)
Cooling mode: ONAN/ONAF
Low loss: No-load losses is about 40% lower than that required in current national standard GB6451-1999; load losses is about 15% lower than that required in current national standard GB6451-1999;
Low noise level: <60dB, about 20dB lower than that required in the national standard.
Low partial discharge: the full range process of 220kV product is dust-free operation; metal parts and insulation parts inside the transformer are all rounded; the partial discharge is controlled to be lower than 70pc;
High short-circuit capacity: the independently designed SFP10-200000/220 transformer of the Company has passed the short-circuit test of the National Transformer Quality Test & Inspection Center (CTQC) (CTQC).
Beautiful appearance: oil tank bending corrugated structure, shot blasting de-dusting, powder EFI paint, wide fin radiator, never fade in color;
No leakage: all seal with limit position and upper & lower tank edges are sealed along two channels; sealing gasket is imported. We solemnly commit no leakage of oil.
Low noise level: <60dB, about 20dB lower than that required in the national standard.
Low partial discharge: the full range process of 220kV product is dust-free operation; metal parts and insulation parts inside the transformer are all rounded; the partial discharge is controlled to be lower than 70pc;
High short-circuit capacity: the independently designed SFP10-200000/220 transformer of the Company has passed the short-circuit test of the National Transformer Quality Test & Inspection Center (CTQC) (CTQC).
Beautiful appearance: oil tank bending corrugated structure, shot blasting de-dusting, powder EFI paint, wide fin radiator, never fade in color;
No leakage: all seal with limit position and upper & lower tank edges are sealed along two channels; sealing gasket is imported. We solemnly commit no leakage of oil.
Product Introduction
Product Parameters
Product Details Show
Why Choose Us
About us
1, the company professional to do transformer
Equipment & technology
2, the quality of transformer and production is the biggest supplier in china
Service
3, stable product quality , supply, the good faith management
Product Processing
Product Packing
Reference Job
Order Instructions
When you choose our company product, please offer following data:
Transformer model:
Rated capacity: kVA
Phase : Three-phase
Single-phase
Frequency : 50HZ
60HZ
Rated voltage ( H.V. / L.V. ):
Tapping range: ± × %
Insulation level: LI AC / LI AC kv
Veotor group: Dyn11
Yyno
Other
Short-circuit Impedance: %
Cooling method: ONAN
ONAF
Tapping method: OLTC
OCTC
Other
Other requirement:
Notes:
We also can design special products according to customer's particular requirements.
The final dimension is subject to outline drawing.
