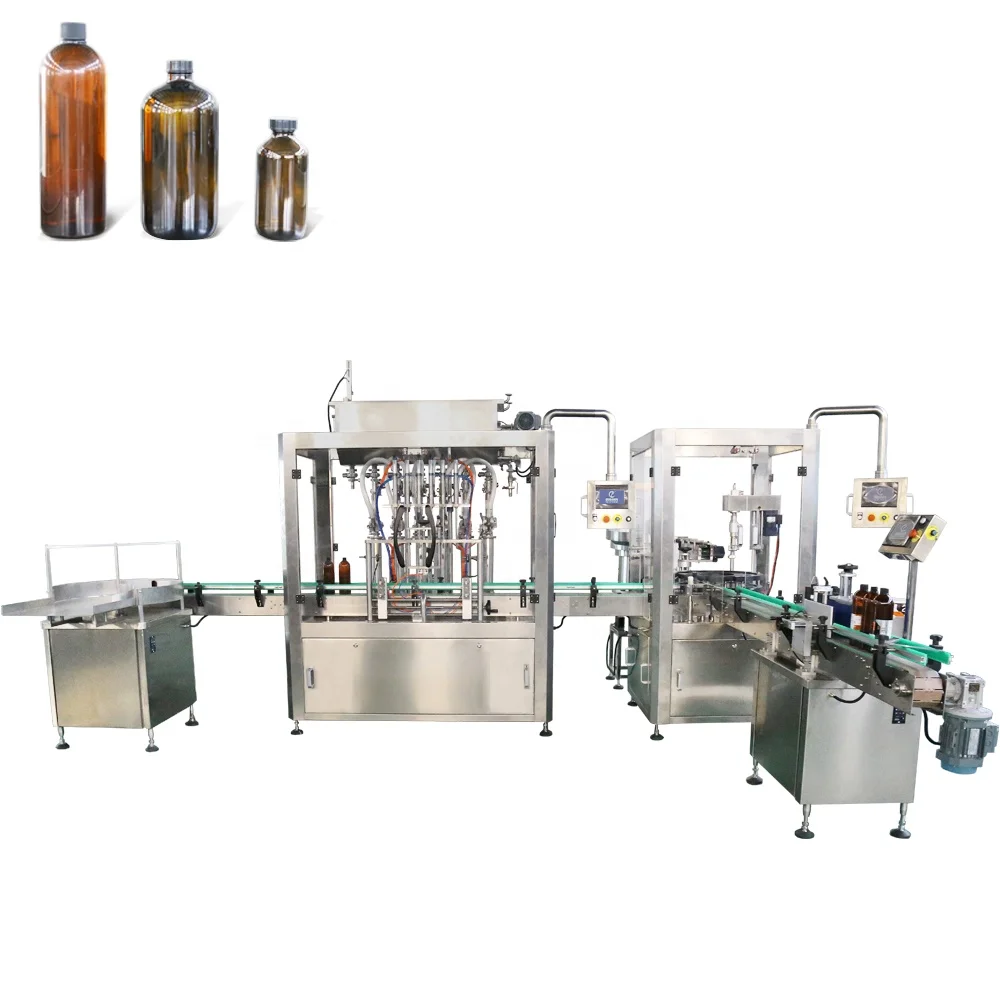

Shanghai paixie factory popular products Filling Machines stainless steel filling machine
Description:

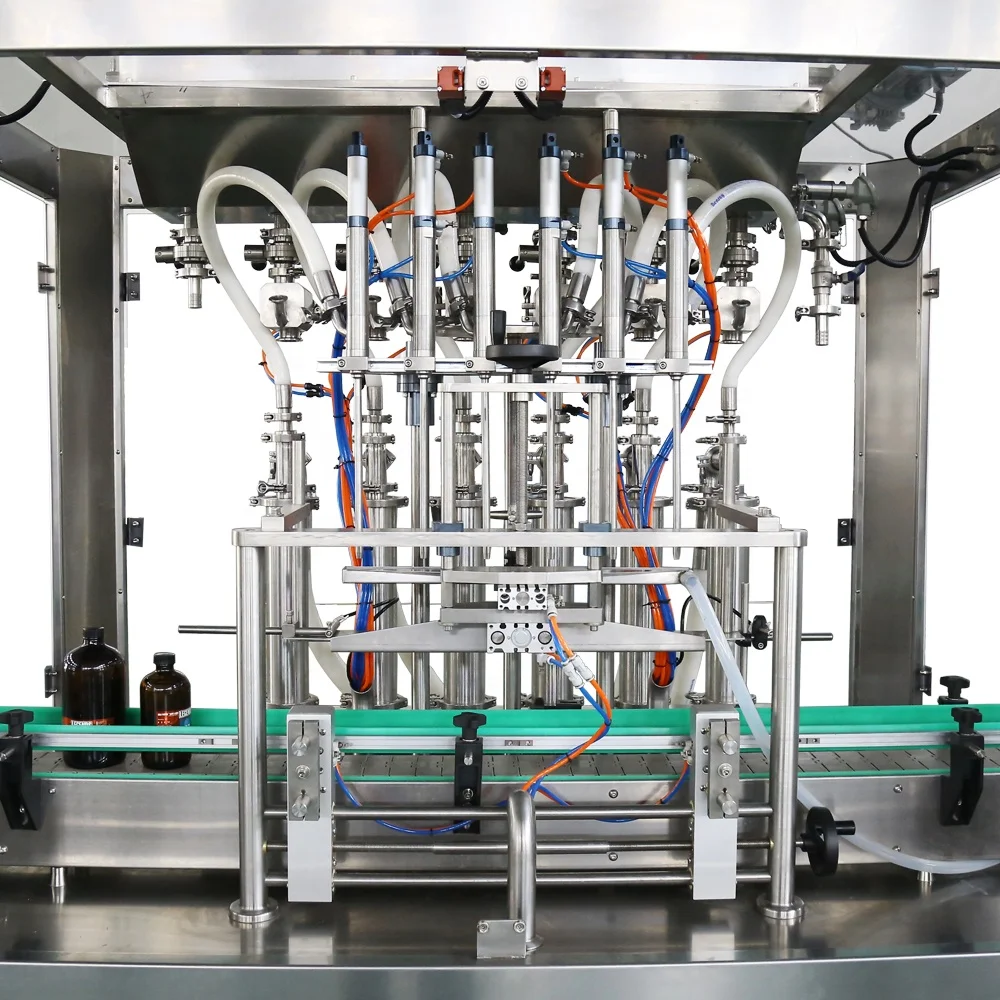

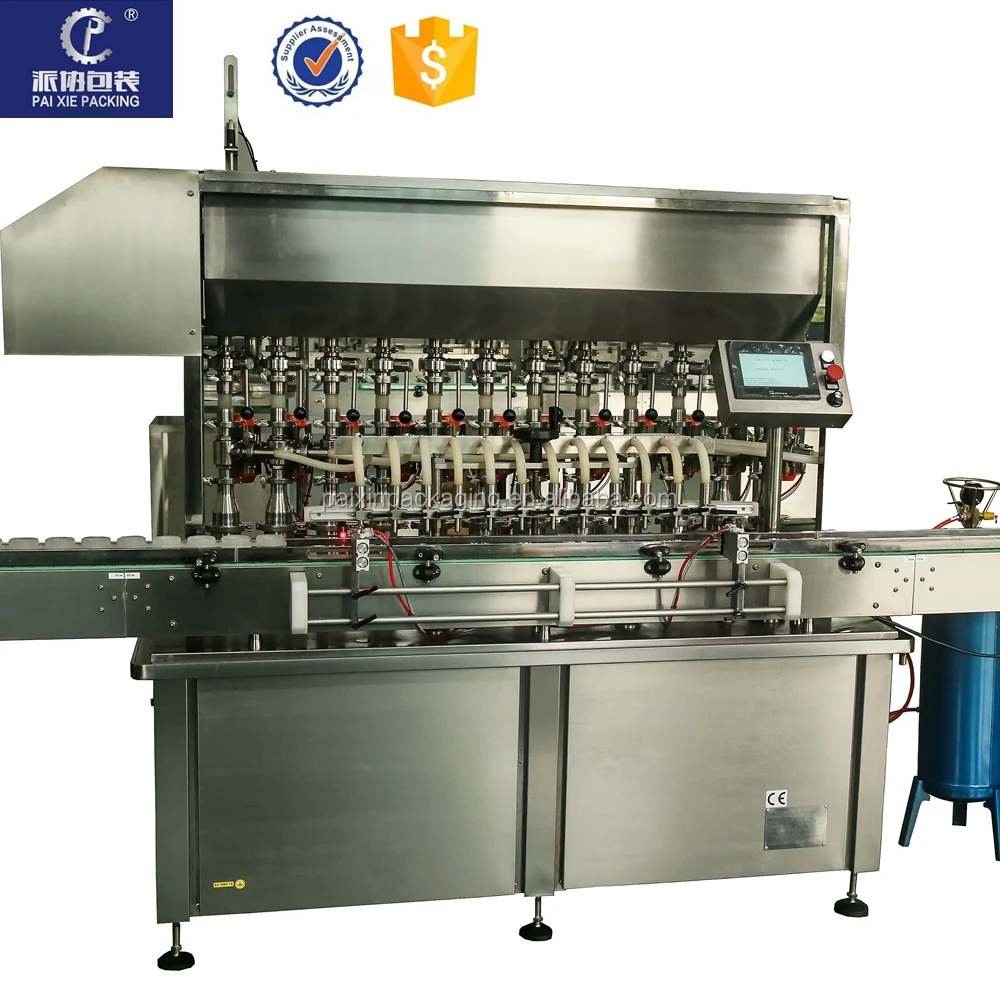

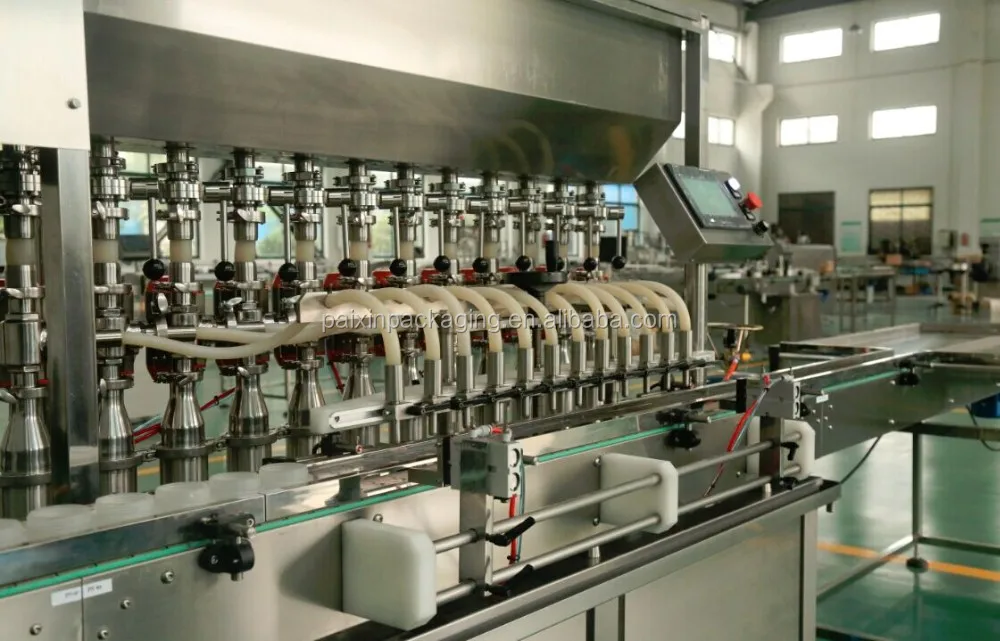

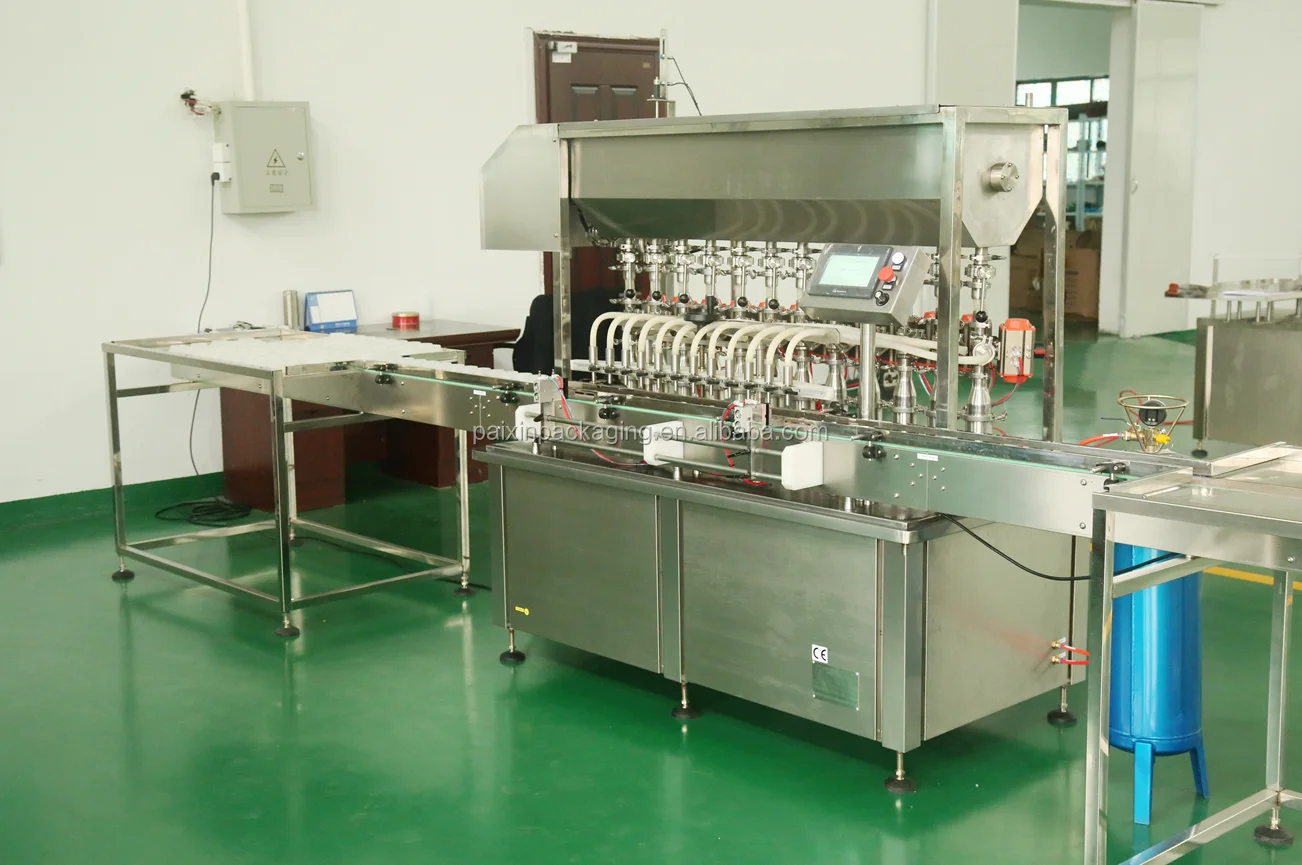

The full automatic petroleum jelly filling machine is specially made for liquid with PM and paste such as paste,honey, jam, gel, butter, cream, etc. The machine adopts piston pump for filling, PLC program system control, by adjusting on the HMI touch creen, it can fill various bottles in one filling machine, with quick speed and high precision.
The material storage hopper can heat material and keep warm. Also can be connected with CIP system for cleaning conveniently.

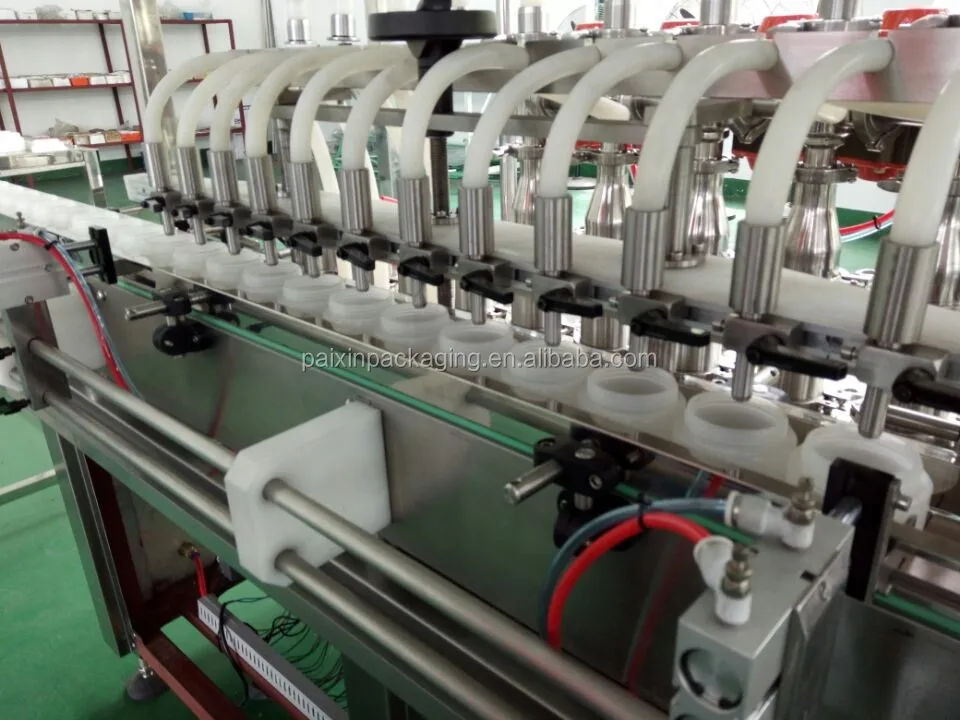

The filling nozzles quantity can be customized for capacity requirement. Equipped with drip proof device, no leakeage and high precision.
The machine is designed according to GMP requirements, the material contacting part will be made of stainless steel under the international of SUS316L or SUS304.

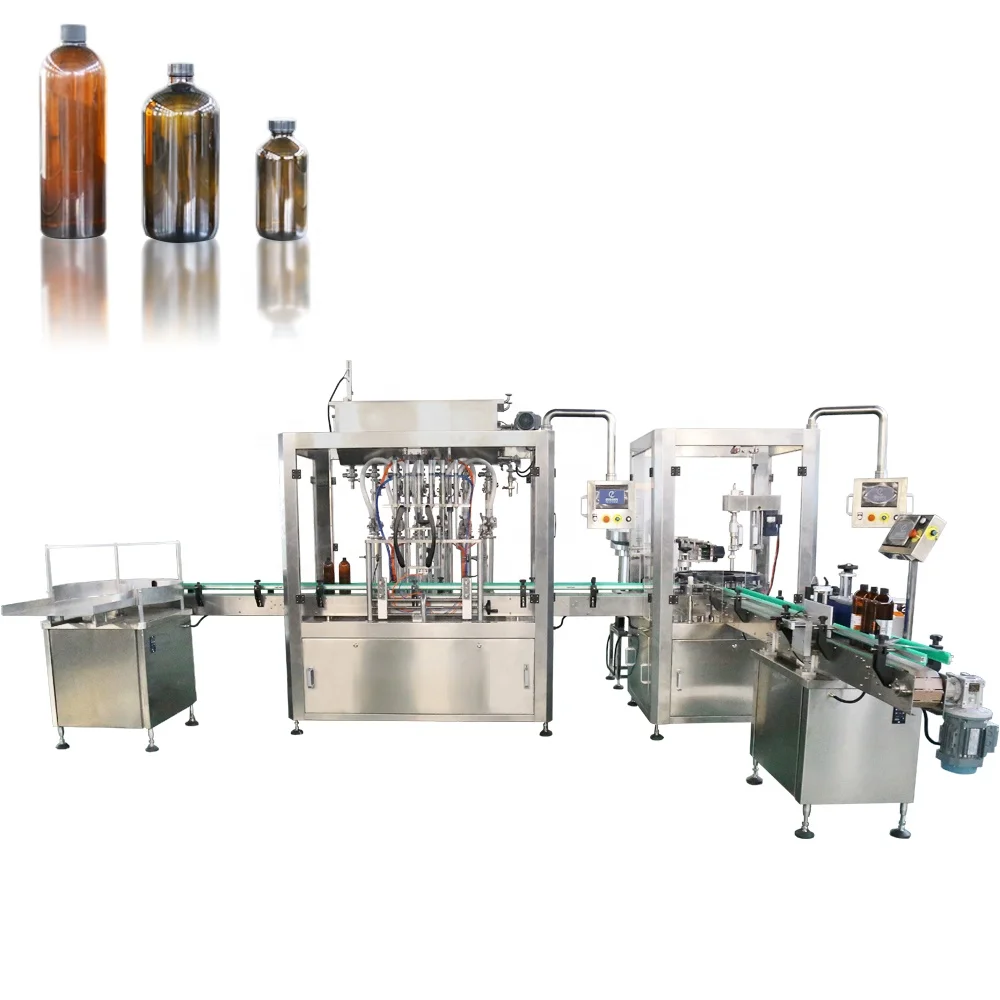

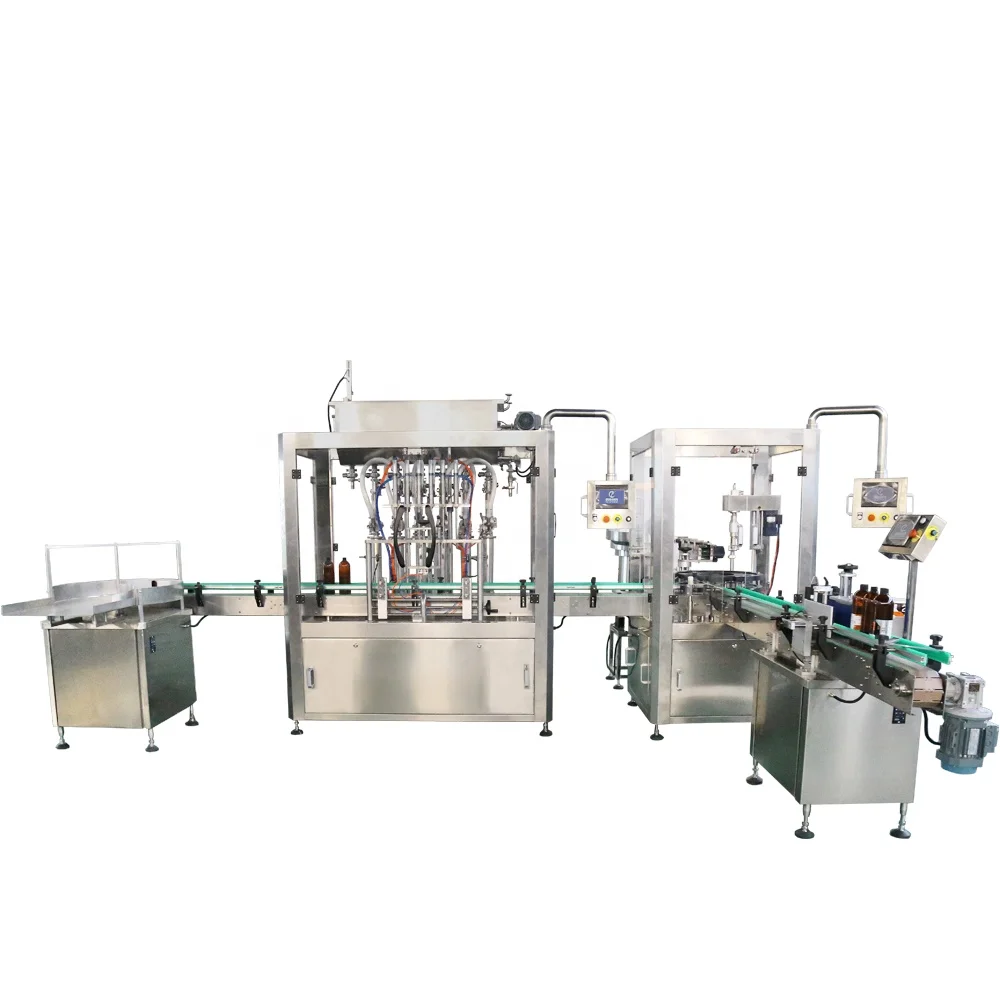

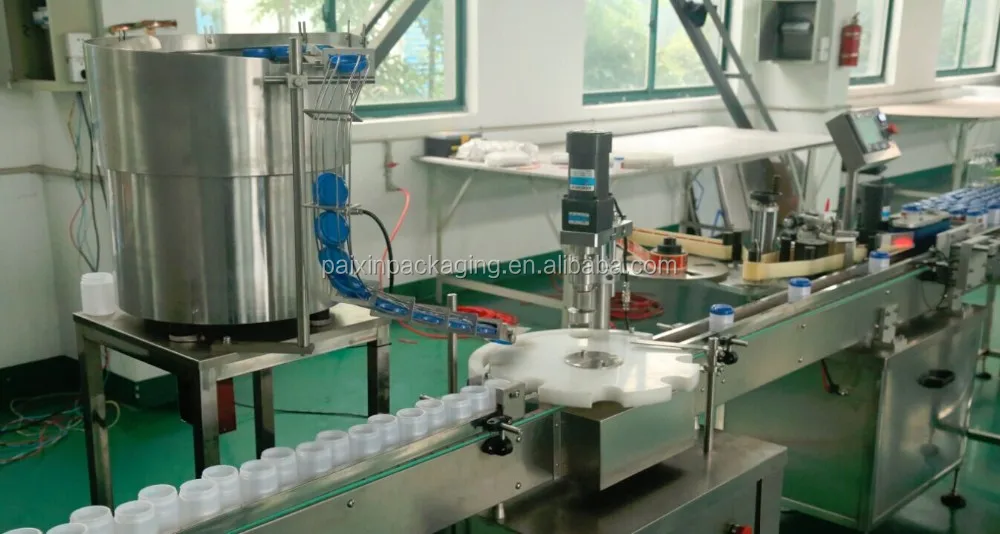

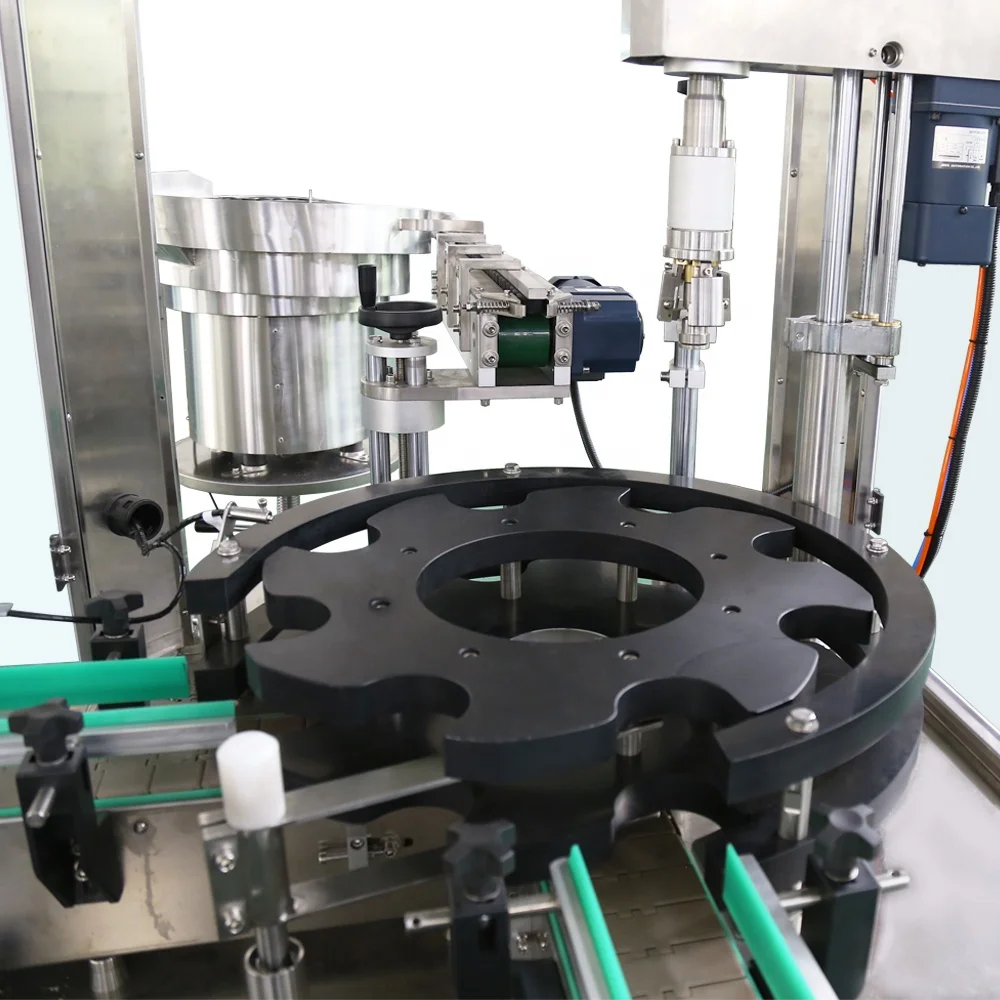

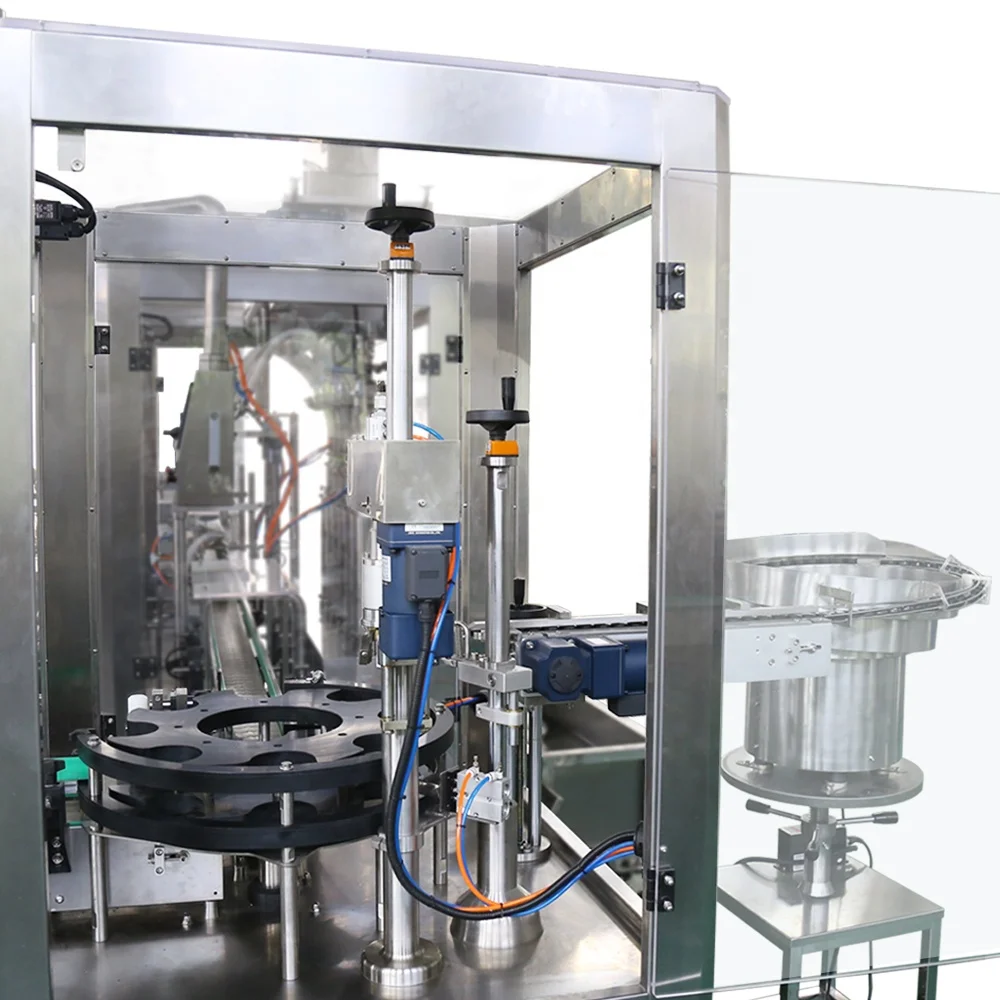

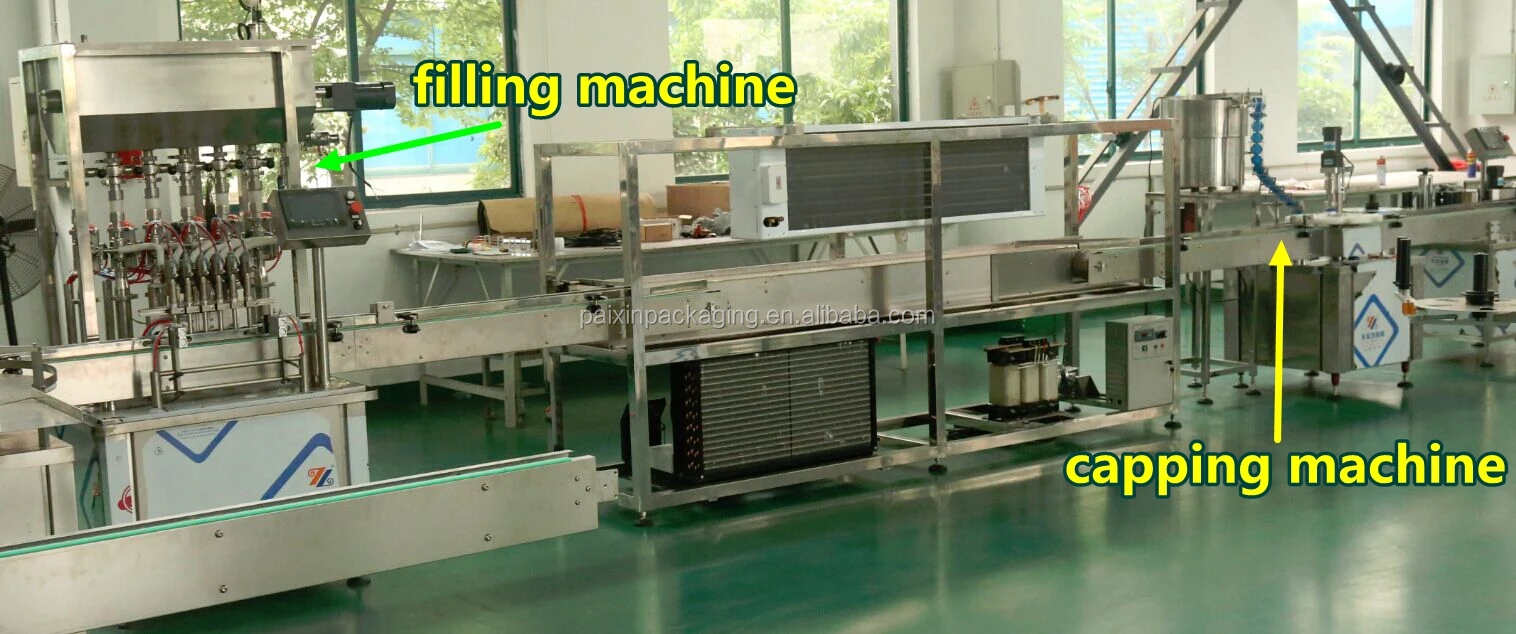

The machine can feed bottles, fill (can keep warm, heat up and stir), cooling the material, supply cap and screw capping and labeling automatically.

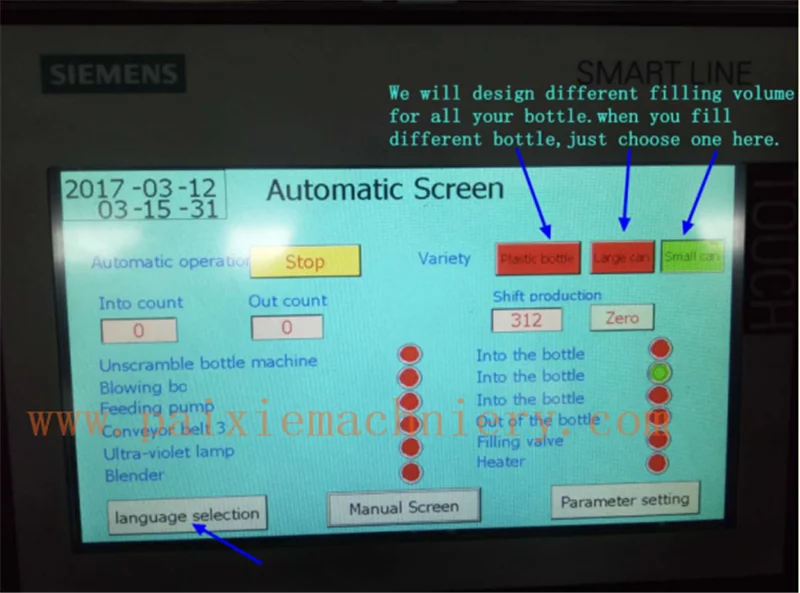

Full-auto touch screen
The machine adopts full-auto PLC control system and human-computer touch screen, can adjust the filling volume and speed very conveniently. For different capacity, we set different procedures, mode 1, mode 2, mode 3 and so on. Operators do not need too much complicated adjustments, the filling machine can switch between the three models easily. The Software can be customized for your language.
Features:
1. Full-auto PLC + human-computer touch screen control system. frequency conversion adjusting speed, high degree automation.
2. Piston pump, Suitable for different kinds of material with high filling speed and filing precision.
3. The structure of pump adopts shortcut dismantling organ, convenient to wash, sterilize.
4. Filling nozzles adopt the anti-drip device, no leakage, filling with high accuracy. No bottle, no filling.
5. Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.
6. The material contacting part of the machine will be made of stainless steel and thickened silicon tube. Medical grade, easier to clean up, no residue. Meeting with CE and safety standard.
7. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
Main Technical Parameters:
Name | Shanghai paixie factory popular products Filling Machines stainless steel filling machine |
Filling nozzle | 2/4/6/8 ( can be customized for requirement ) |
Filling speed | 1000-8000bottles/hour ( customized ) |
Filling capacity | 50-5000ml |
Bottle size | 20-1500mm |
Applied bottle range | Round/flat/square bottles in different sizes |
Filling accuracy | ≥99% |
Air pressure | 0.4-0.6Mpa |
Single machine noise | ≤70dB |
Power | 220v or 380v |
Warranty | One year free |
Certificate | ISO9001, GMP, CE |
Condition | Brand New |

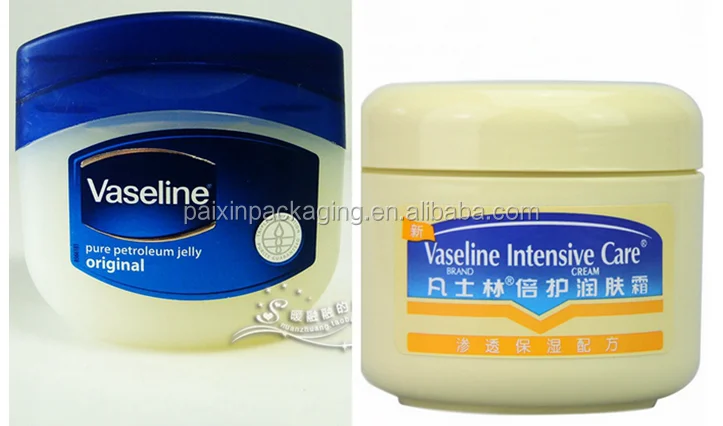

Sample
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturing filling machine with rich experience,our Engineer Team with over 20 year’s experience.
Q:How can I know your machine has good quality?
A:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q:What certifications do you have?
A:Fully in accordance with the GMP&ISO standard production and passed CE certification
Q:What is your Quality Warranty?
A:Two year warranty; Lifelong Maintenance and Technical Support.
Our Service
1. Our products can be found through www.paixiepack.com. Logging in this website and watch the video then can solve the problem at any time.
2. We can help you to design the production line, the machines can be customized.
3. Free equipment installation and debugging. Our engineers team have over 20 years difference experience . They will offer you the most professional suggestion for the production .
4. One year warranty for the whole system. If customers need any spare parts .We will deliver the spare parts to your factory for free (Including the spare parts' freight is also for free )
