Высокое качество 24 порта cat5e cat6 Серебряная

Описание и отзывы

Характеристики

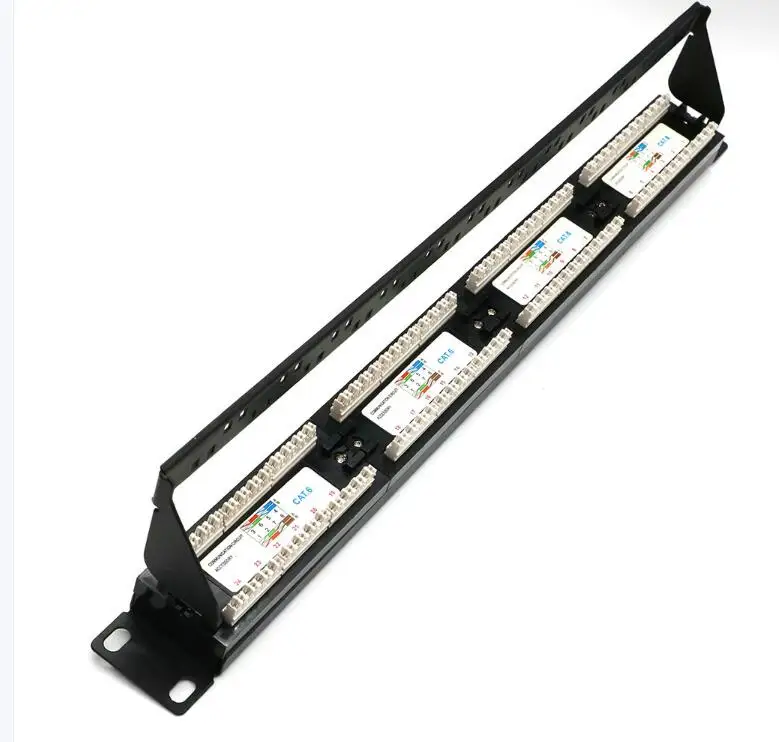

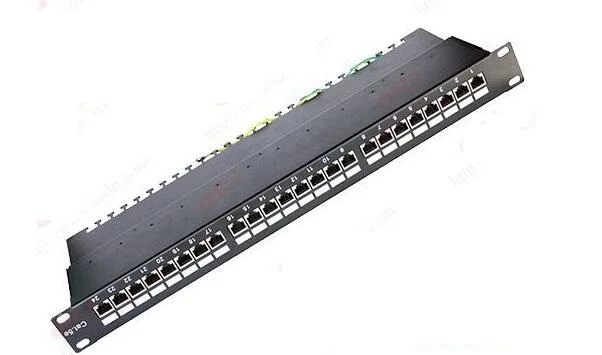

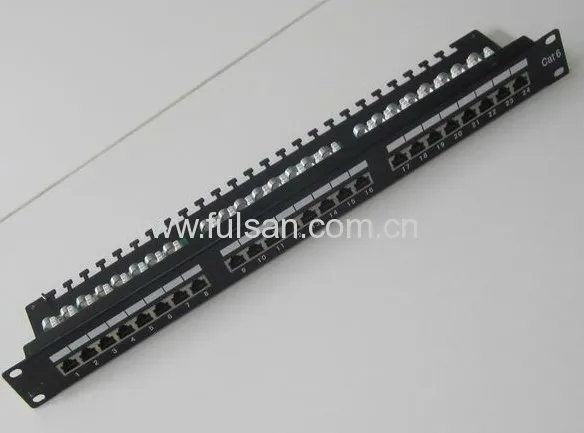

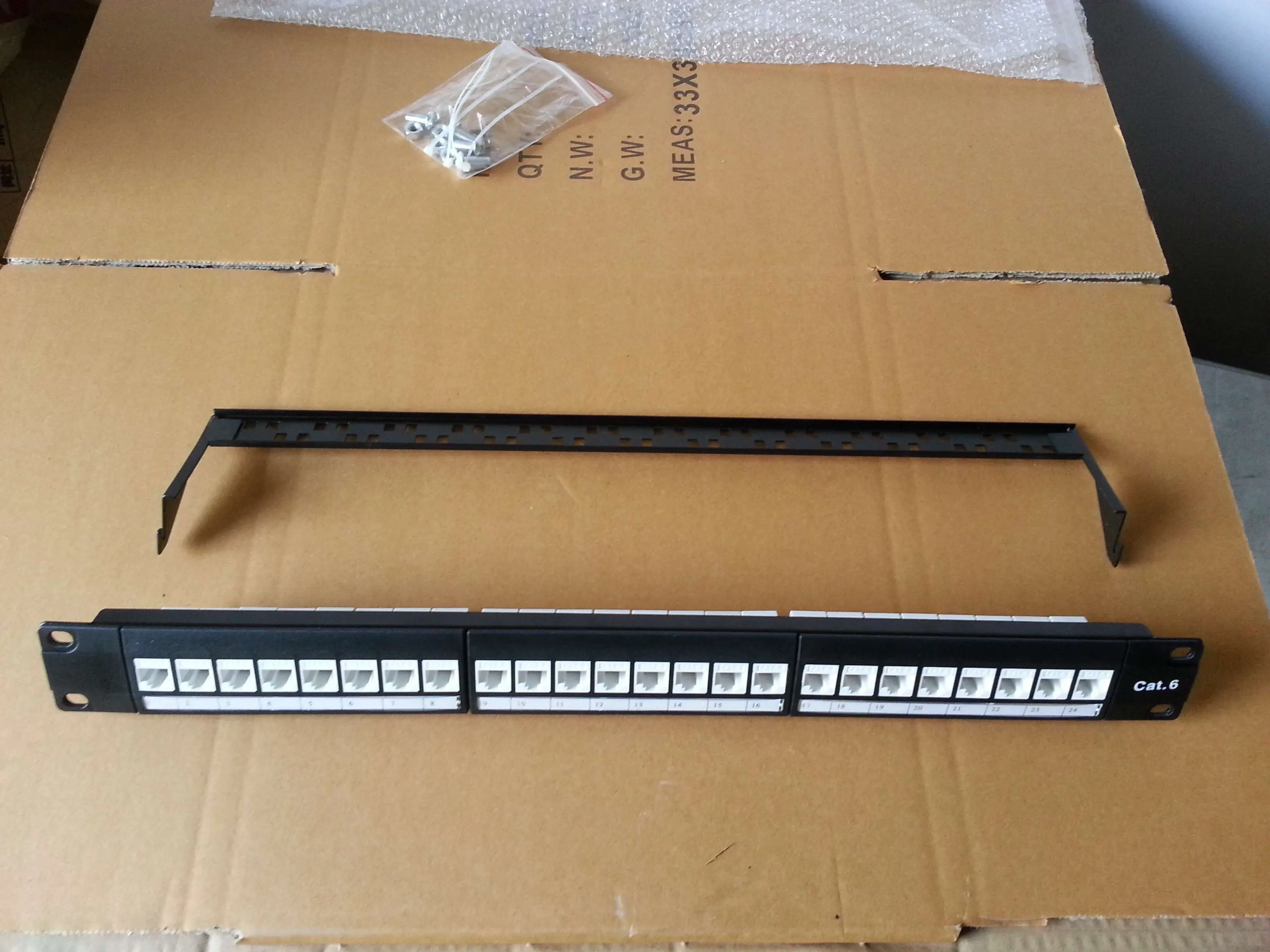

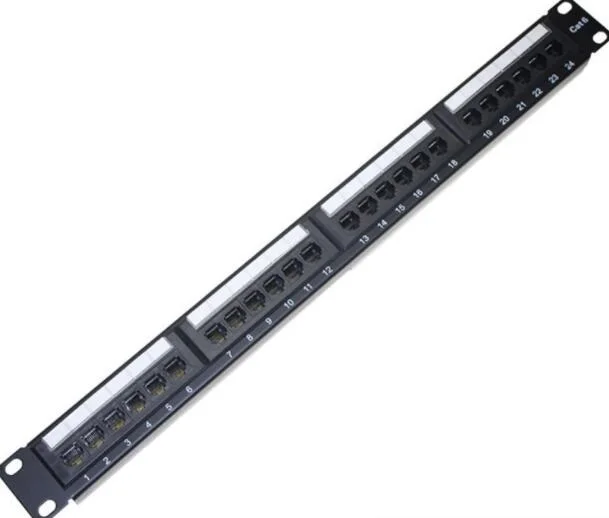

High Quality 24 port cat5e cat6 silver patch panel

 UTP cat5e 24ports 48 ports patch panel

1. Space saving, high-density
2. ISO9001, ROSH Approval
3. OEM is available
UTP cat5e 24 ports patch panel
1. Space saving, high-density
2. ISO9001, ROSH Approval


Description:
19" standard size for mounting in racks and cabinets
This patch panel is designed for 22-26 AWG solid conductors
Height: 1U (12, 16 and 24 ports), 2U (32 and 48 ports)
Horizontal termination

Material:
Housing: ABS 94V-0
IDC: PC 94V-0
PCB: FR-4 1.6 mm (0.06") thick, 2 layers.
Contacts: 0.35 mm (0.014") phosphor bronze with 1.27 micron (50 microinches) gold plating on contact area
Metal housing: 1.6 mm (0.06") thick metal.
Construction characteristic features:
Color marking of conductors according to T568B and T568A

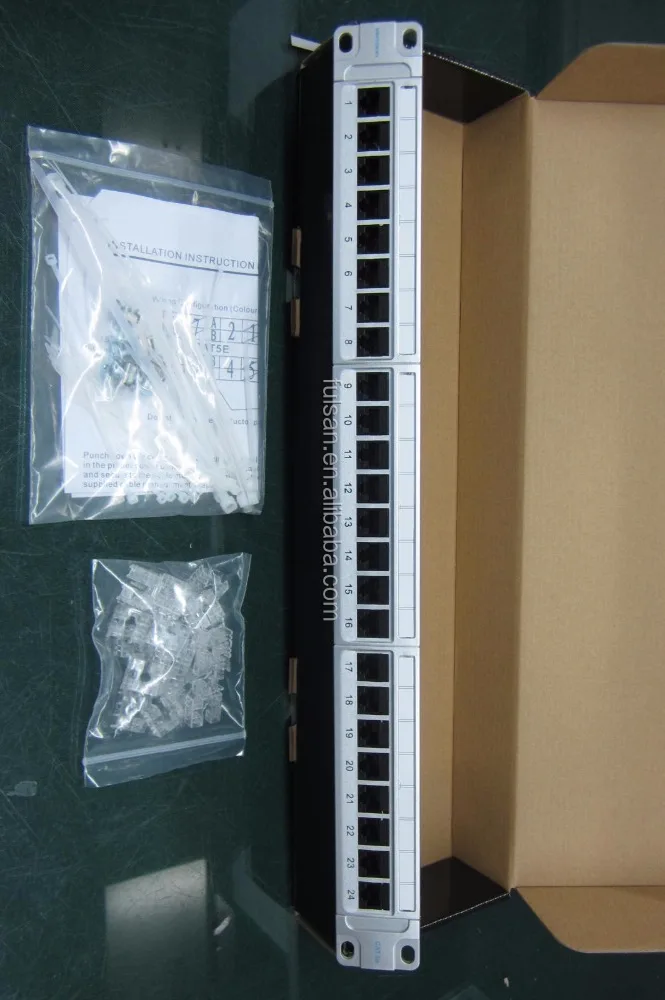

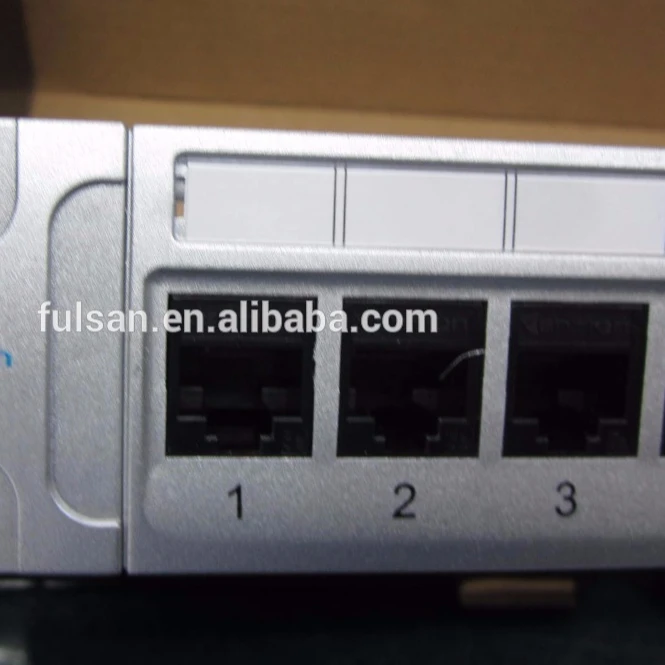

Numeral marking of ports on the front side of the panel
Space for additional marking

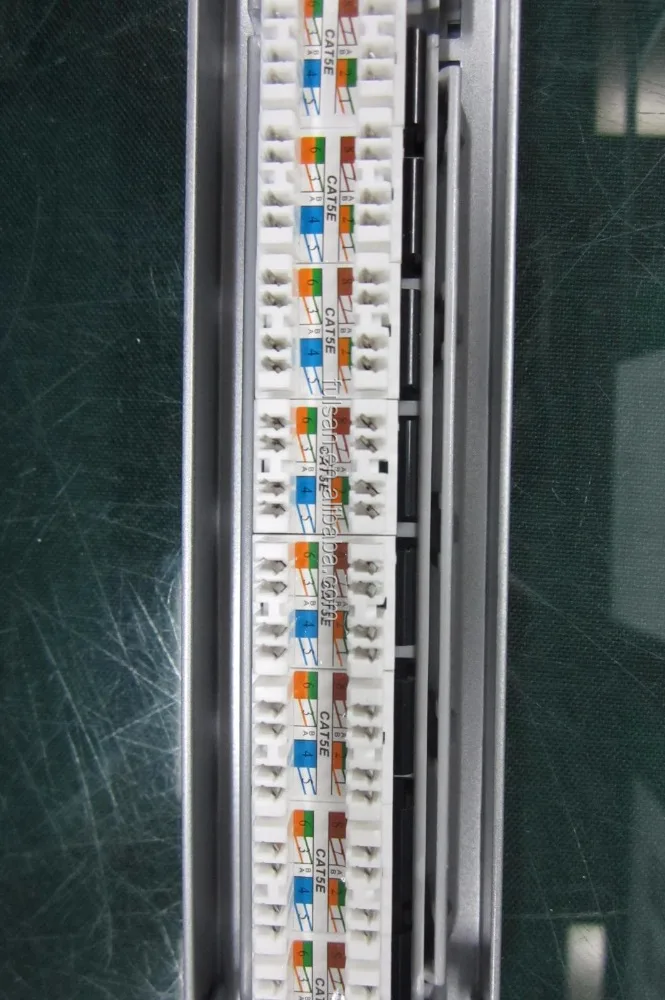

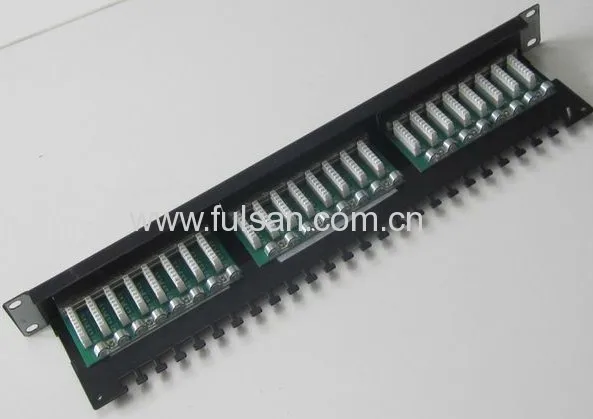

Color and numeral marking of IDC modules on the rear side of the panel
Hyperline patch cord usage provides the best connection
IDC Dual contacts provide minimal crosstalk
110 type punch down tool is used for cable termination
Electrical characteristics:
According to  1863
Current rating: 1.5 A max
Voltage rating: 150 V
Contact Resistance: 20 mOhm
Insulation Resistance: 500 MOhm
Dielectric withstand voltage: 1000 V AC RMS, 60Hz/1min
