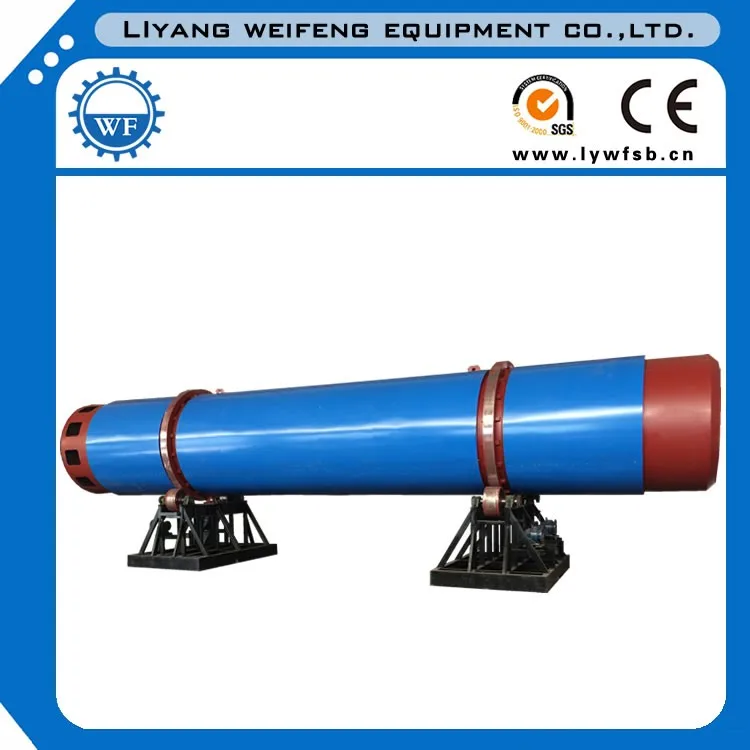

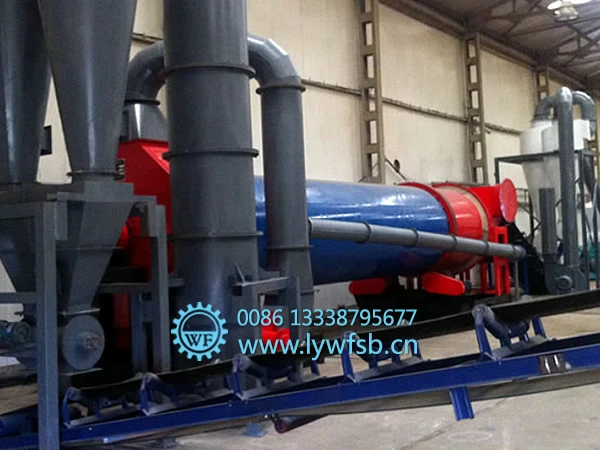

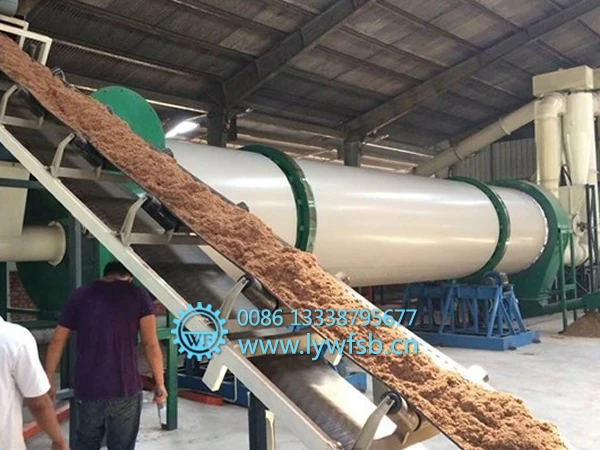

hot air single tube sawdust rotary drum dryer


Sawdust drum dryer is also called rotary dryer. Rotary drum dryer is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube, The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.

The input raw amterial moisture is about 45-50%, the outlet sawdust moisture is about 15%.

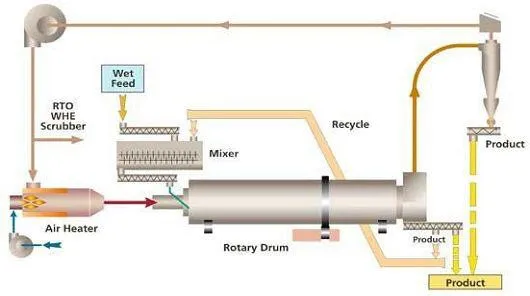

Working principle of the rotary drum dryer:

Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.

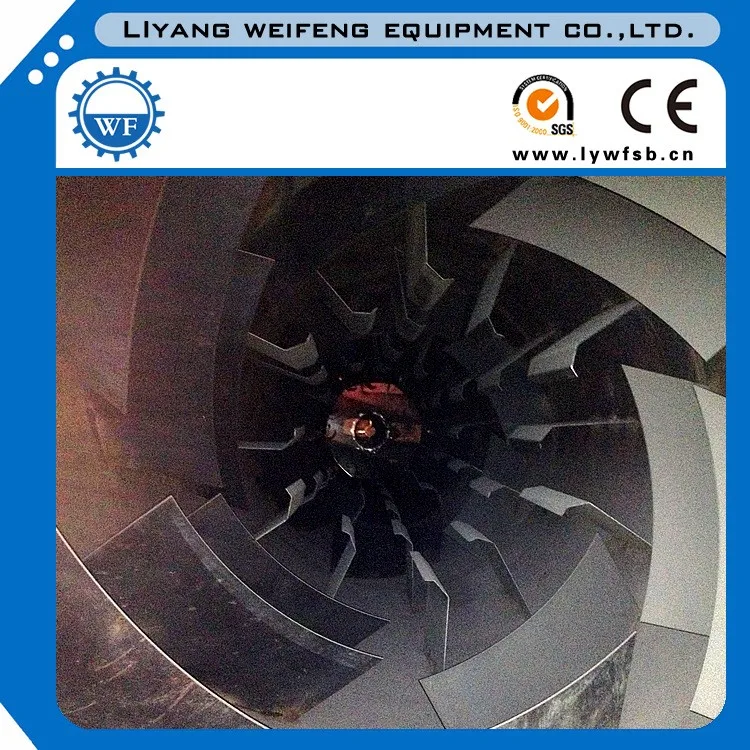

Inner structure of our dryer:

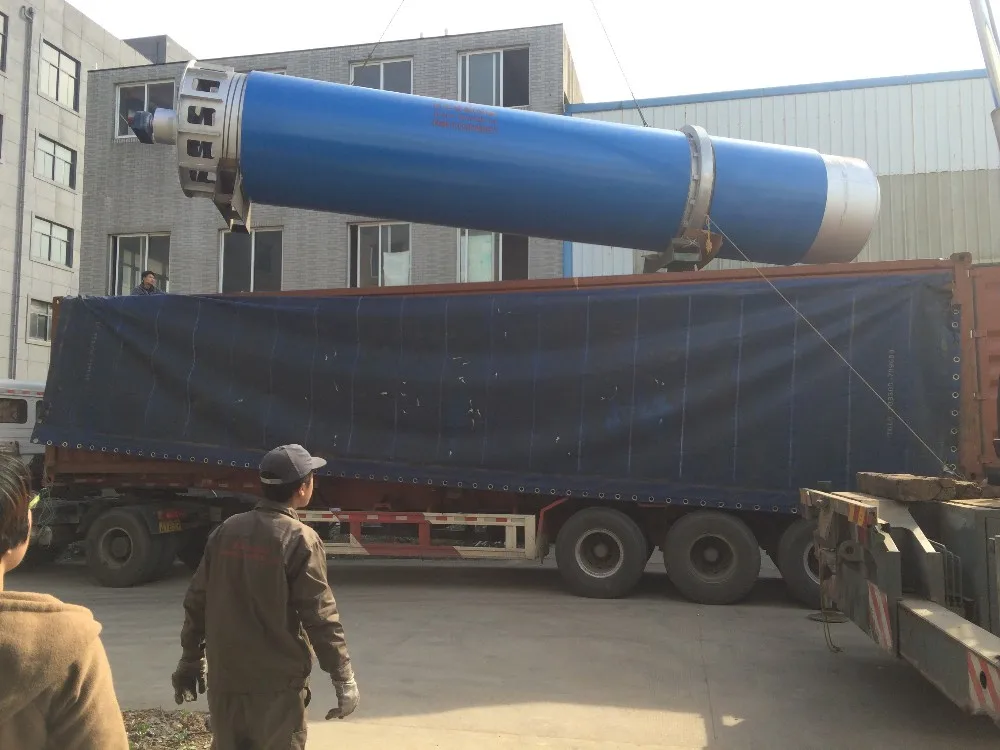

Delivery to Maylasia client:
