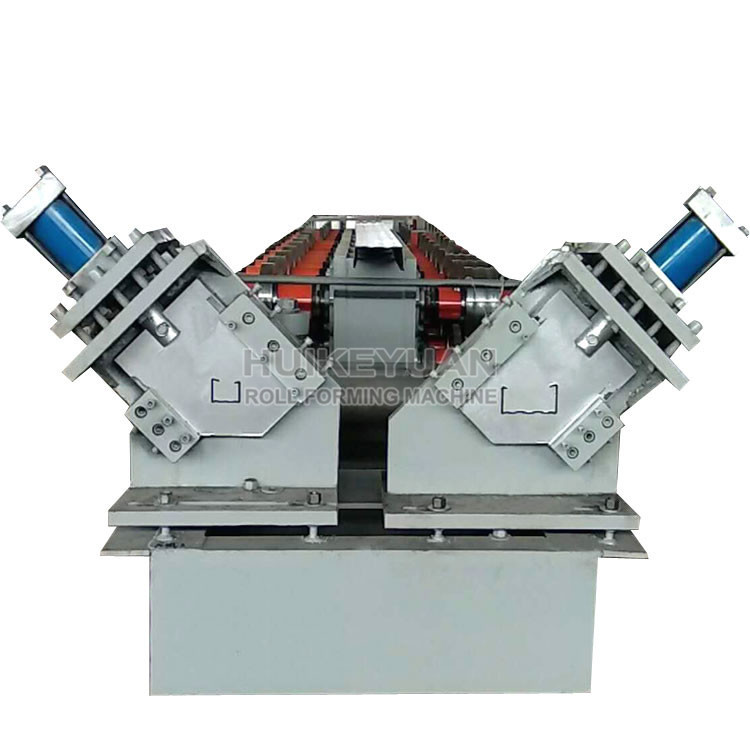

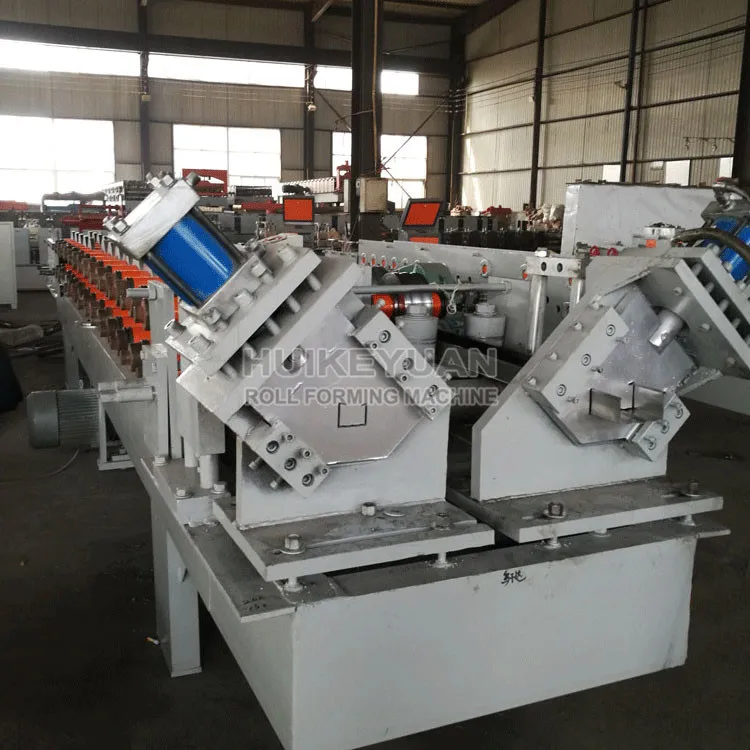

C Z обрешетку ролл профилегибочная машина

Описание и отзывы

Характеристики

Specialized Roll Forming Machine Manufacturer!

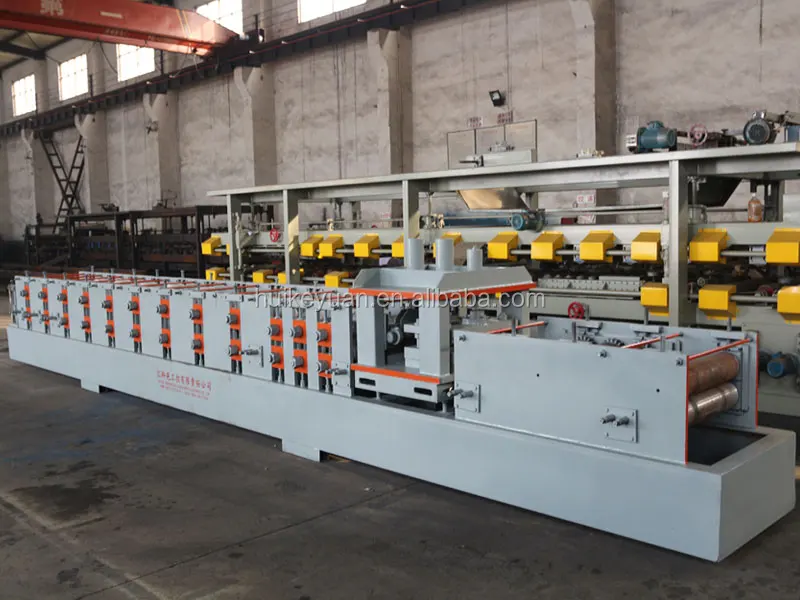

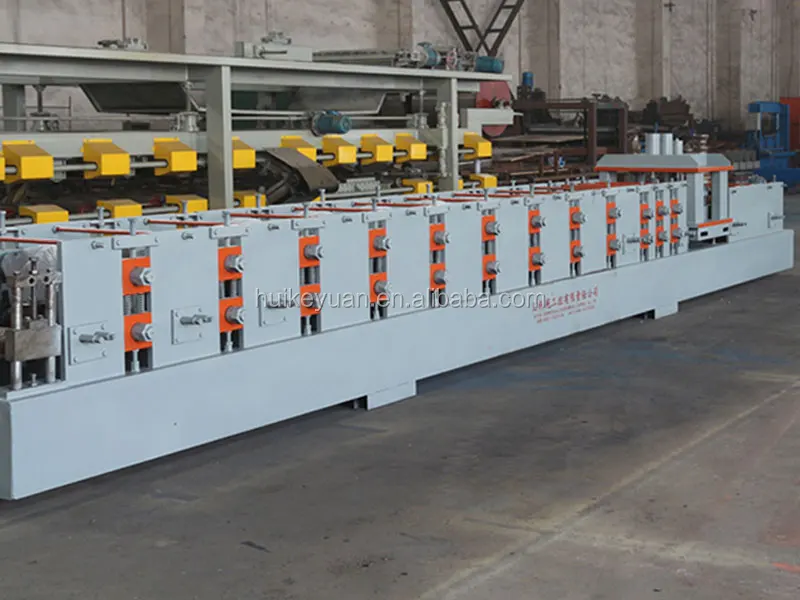

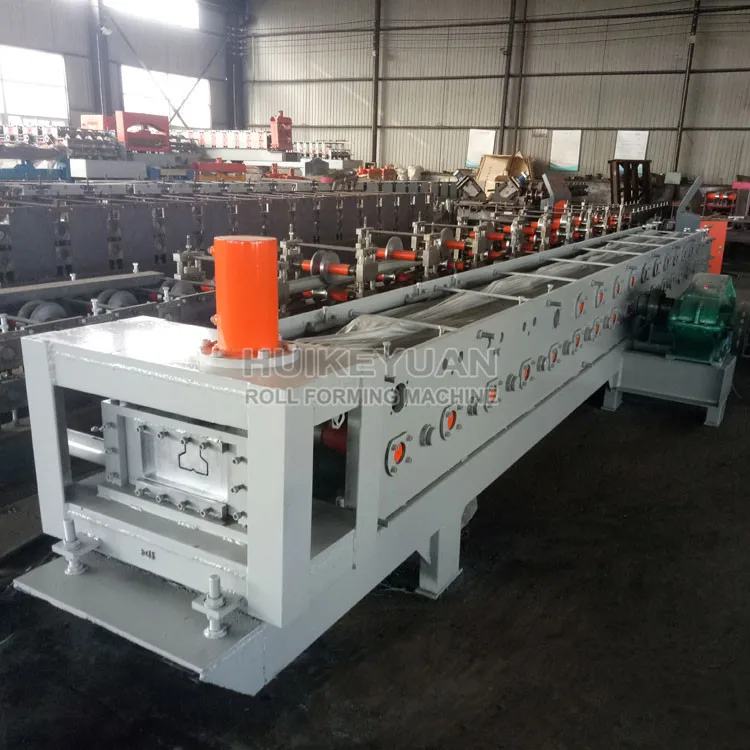

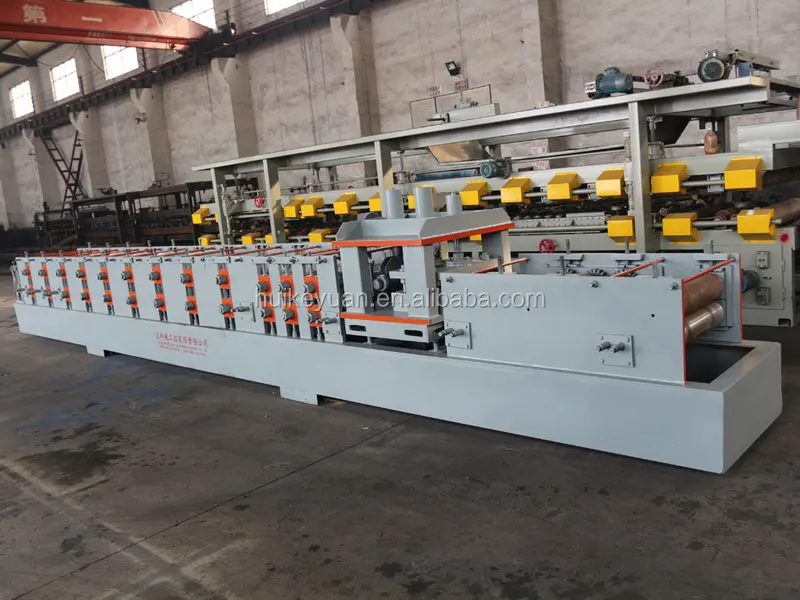

C Purlin Profile Roll Forming Machinewith PLC and HMI Control Panel

Certificates: BV,  ISO,  SGS,  CE

Trade Terms: FOB

Loading of Port: XINGANG PORT, CHINA

Origin: BOTOU, HEBEI

Min. Order Qty: 1 Set/Sets

Delivery Time: 1-10 Sets, in 30 working days ; Over 11 Sets, in 40 working days

Payment Term: T/T, 30% deposit in advance, 70% before shipment.or L/C

Warranty: 2 Years

During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but  normal wear and tear excepted. And the freight should be bore equally by both parties.

We will provide the technical support for the whole life of the equipment.

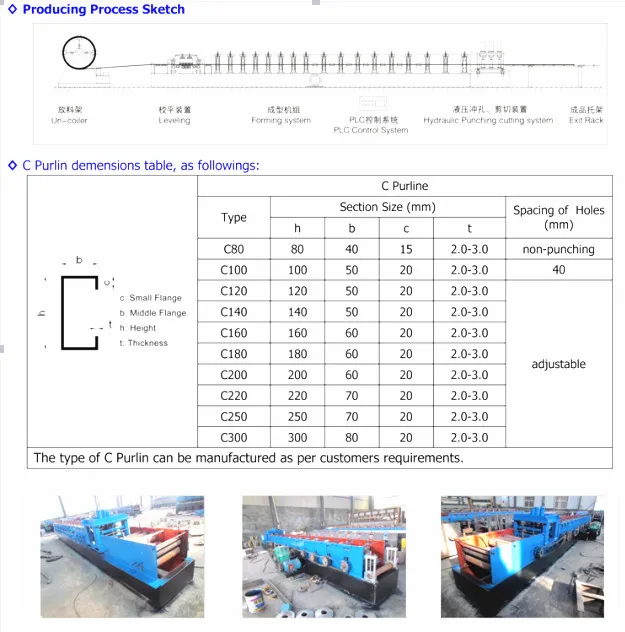

Machinery Parameters and Others Related Parameters, as follows:

1. Manual Un-coiler

Max Capacity: 5000kgs

Inner diameter of coil: 400-600mm

Manual with brake

2. Leveling Device

Ensure the material level and straight

The width can be adjusted

3. Punching Device

Punching way: pre punching/post punching (pause to punch)

Material of punching mould: Cr12 with heat treatment

Punching Mould: as per drawings

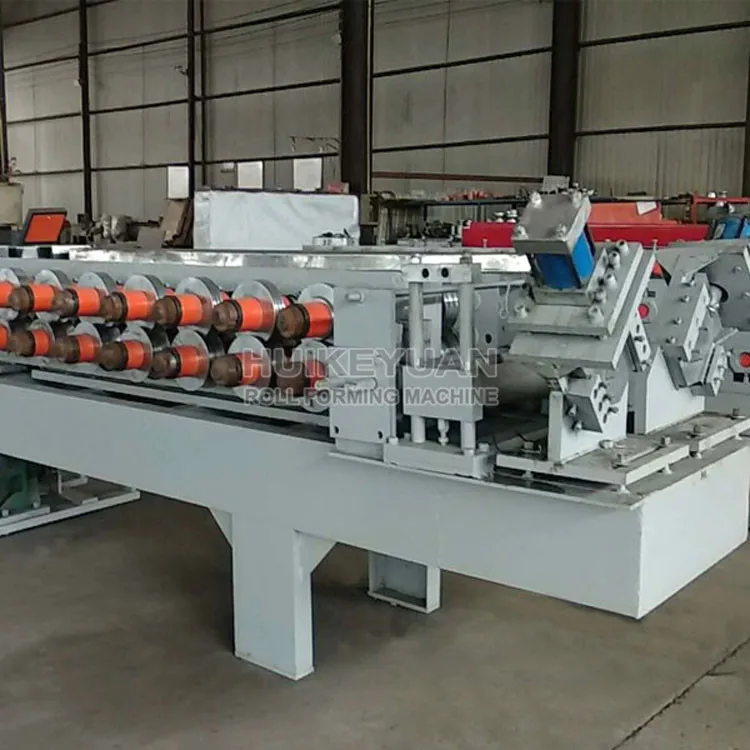

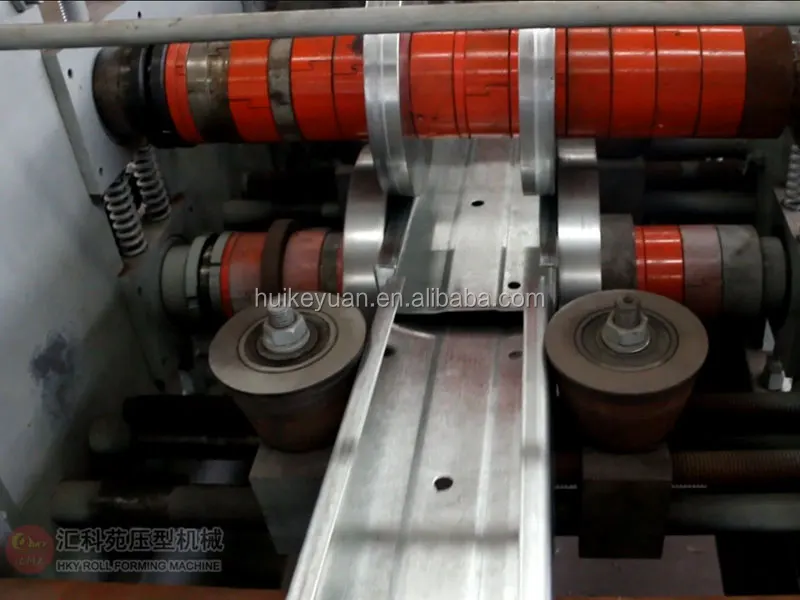

4. Main Forming System

Max Feeding Width:as per drawings

Product Max Effective Width: as per drawings

Thickness of Panel: 0.2-4.0 mm

Material Type: GI sheet coil or cold rolled coil or Aluminium etc.

Diameter of Main Shaft: 95 mm;  Rollers Station: 15 Rows

Roller Material: C45 steel,Heat Treatment

Surface of Roller: Chrome plating, Heat Treatment

Driving Mode: By Chain and Gear Box

Main Motor Power: 5.5 Kw

Machine Body: Electrostatic Spraying Treatment[1]

The machine base is assembled and welded by high quality steel

Forming Speed: Min. 0-15 m/min

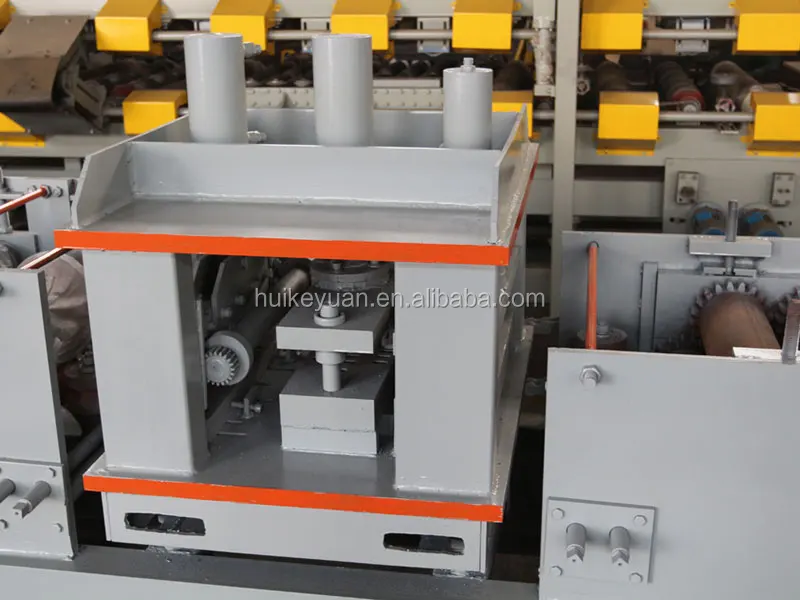

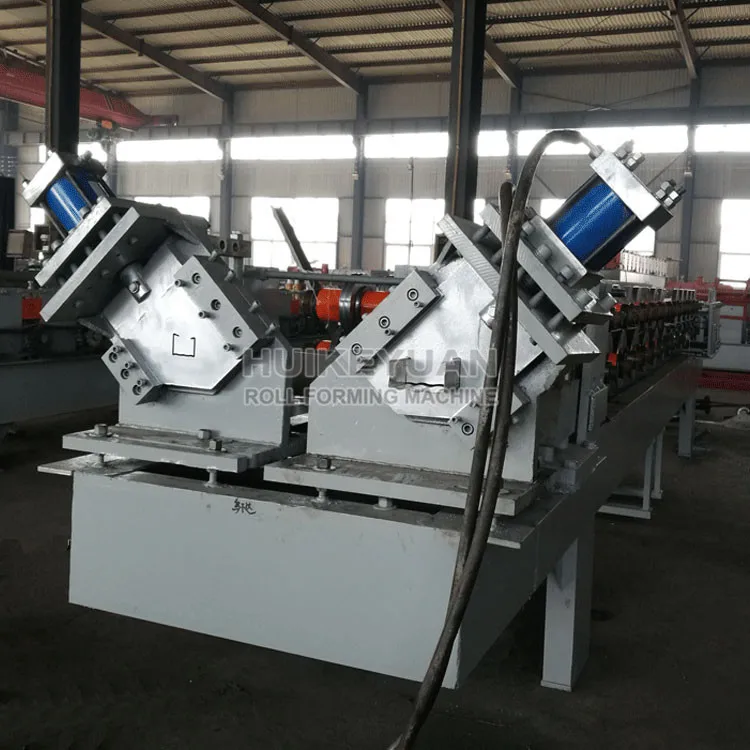

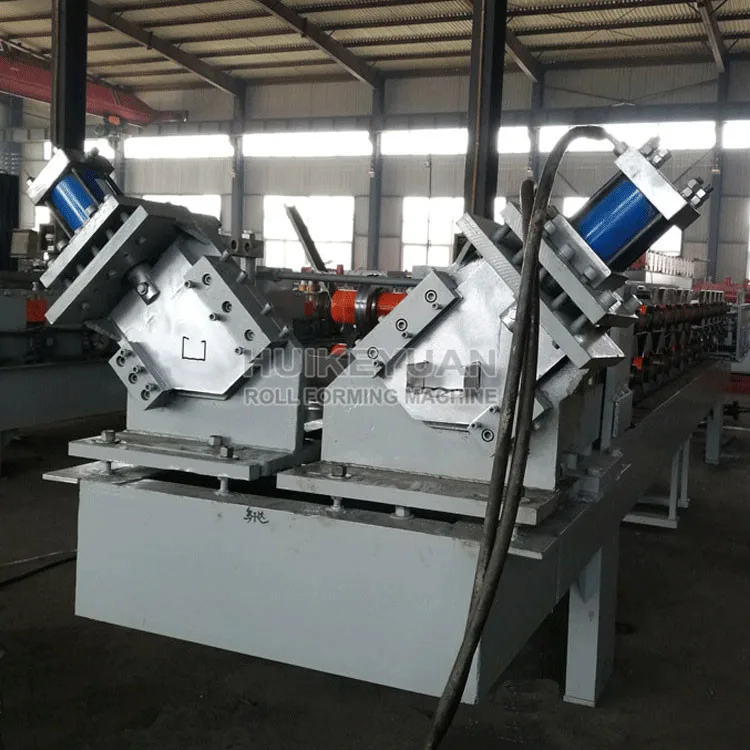

5. Hydraulic Cutting System

Cutting Way: Pause to Cutting, Non-stop

Oil pump station: 1set

Hydraulic Oil Pump: CB-E310

Hydraulic Station Power: 4 Kw With Cooling System

Blade Material: CR12 with heat treatment HRC60-62

Cutting mould: 1set

Forced air cooling device available

6. Electrical System (PLC&HMI Control System)

Electrical System: PLC and HMI touch Screen (Taiwan Delta)[2]

Automatic Measuring Length Function Available: Yes, Rotary Encoder

Automatic Counting Function Available: Yes

Current Protection Function Available: Yes, Aviation Plugs

Power Supply: 380V, 50Hz, 3 Phase  (as per local requirement)

6. Run-Out Table

Frame: 8# steel groove welded

Roller type.

Quantity: 1 pc

(They can be modified according to customer requirements)

Explanatory Note Description

Machine Body: Electrostatic Spraying Treatment[1]: Their surfaces are not coated with paint. First, they will be treated by Sand Treatment Equipemnt, and then be sent to Electrostatic Spraying Treatment Room, under the high temperature (over 260℃) to finish the final spraying treatment.So, They will have a good waterproof and rust protection performance, and look more beautiful.

Electrical System: PLC and HMI touch Screen (Taiwan Delta)[2] : It can be modified as per customers requirements, such as Siemens, and the operation system language can be specified, such as English, French, Russian and so on.
