Product Description
Description for car spray booth | ||||||
Outside Dimensions(mm) | 8200*4000*4000(L*W*H) | Inside Dimensions(mm) | 6900*3900*2650(L*W*H) | |||
Entrance Door Door(mm) | Aluminum alloy binding framework(thickness:1.8mm),1 set folding door size:2830*2600(mm)(W*H) | Personal Door(mm) | 1 set side hung door: 700*1700mm(W*H) | |||
Total Power | 39 KW | Voltage | 380V/50 /3Phase, etc. | |||
Wallboard/Roof | 50mm EPS(epispastics polystyrene)insulation material with S=0.476 two side steel panel. | 50mm Rock-wool with colorful steel skin board, anti-flame and heat-insulation, steel sheet thickness: 0. 476mm | ||||
Basement | High performance antirust treatment grille galvanized (5 rows of grilles). Square tube column. Front entrance is slope type basement. | 0.8mm Galvanized Steel Sheet | ||||
Air Make-up System | Air-Intake Fan System | With 2pcs intake air fans.single parameter: RRX-180.1.5kw.12500m³/h | ||||
Air-Exhaust Fan System | With 1pc exhaust air fan,single parameter: YDW5.0A.5.5KW.15000m³/h | |||||
Air Capacity | 25000m³/h | |||||
Air Flowing Speed | 0.25m/s | |||||
Cabinet setting | Intake air from upside,downside exhaust wind. Frame is made of tube:50*50mm,body plate is made of galvanized plate(thickness:0.8mm) (face the booth,the air cabinet is on the right side) | |||||
Air Duct | Made of galvanized plate,700*700*900 mm，2 pcs straight ,1pc elbow. Reinforcing frame and professional corner flanges. | |||||
Purification System | Air intake Filter/Prefilter | Air inlet with prefilter: dust holding capacity 400g/㎡; class G4; Filtration precision ≥5μm; Flammability (GB/T1759-2006) F1; Temp.resistant <100 | ||||
High efficient Filter | Ceiling equipped with CC-G650 type high-efficiency filter: dust holding capacity 600g/㎡; class F5; Filtration precision ≥1μm; Flammability (GB/T1759-2006) F1; Temp.resistant<100 | |||||
Activated Carbon | 3 layers of activated carbon in exhaust cabinet | |||||

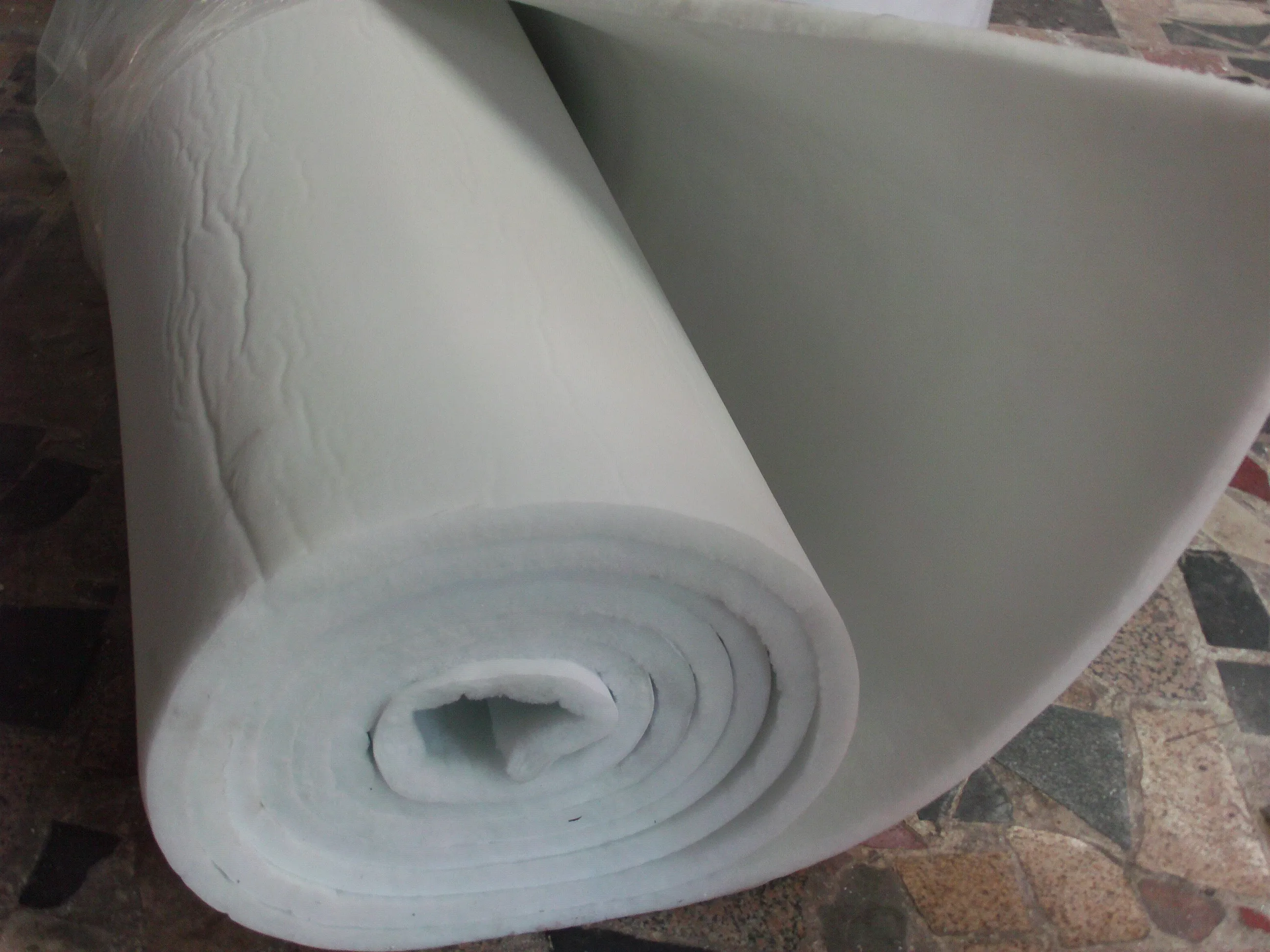

Air-Exhaust Filter | Outlet with filter cotton: dust holding capacity 550g/㎡; Class according(DIN en779) G2、G3、G4; Filtration precision ≥5μm; Temp.resistant<100 | |||||

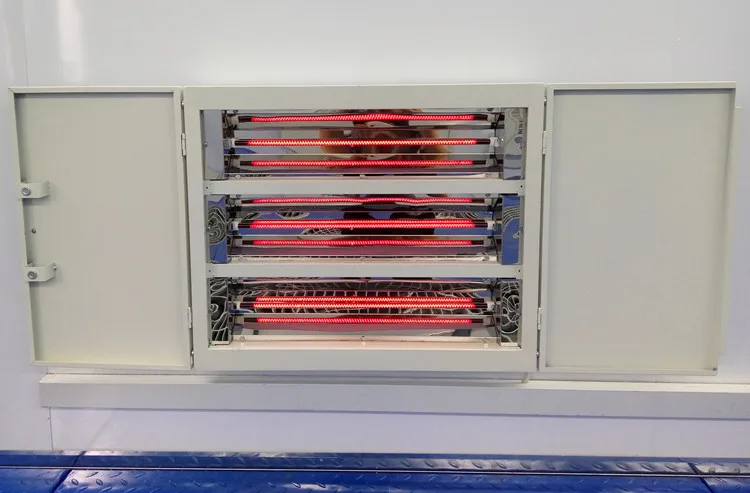

Heating System | Infrared Lamps | 30PCS infrared carbon fiber heating lamps,1000W/piece. The operating temperature:40℃~60℃. Max temperature:80 ℃ | ||||
Max. Heating Temperature:75℃ | ||||||
Lighting System | Ceiling Light | Lamp boxes are 45°fixed on upper two side, with 8 groups *4pcs =32pcs 18w energy saving LED lamps. | ||||
Illumination | ≥1000LUX | |||||
Control System | Switched Control Panel | Painting, baking, light switch, breakdown indicator, power switch, emergency stop switch. (Face the booth, the control system is on the right side) | ||||

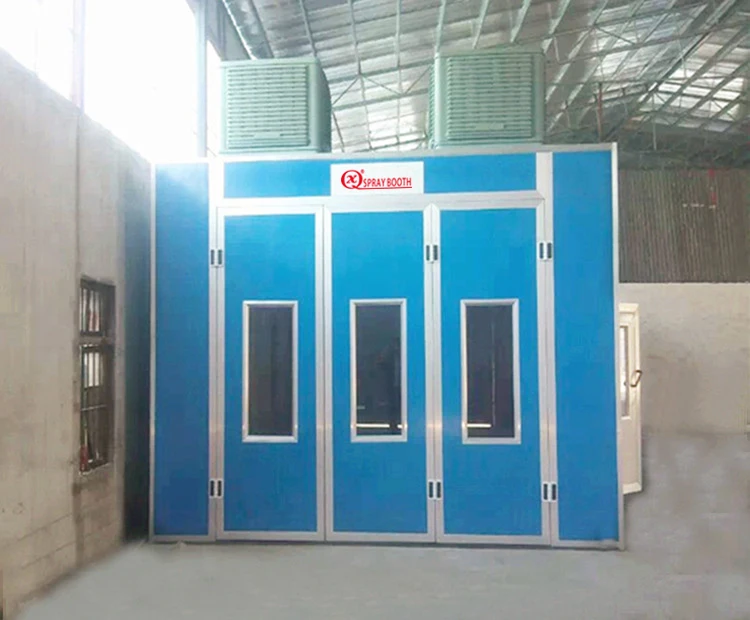

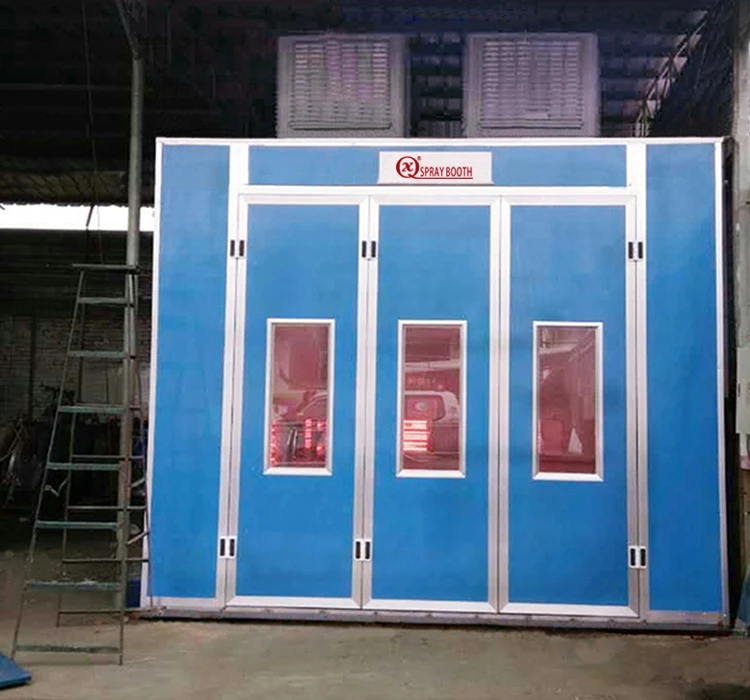

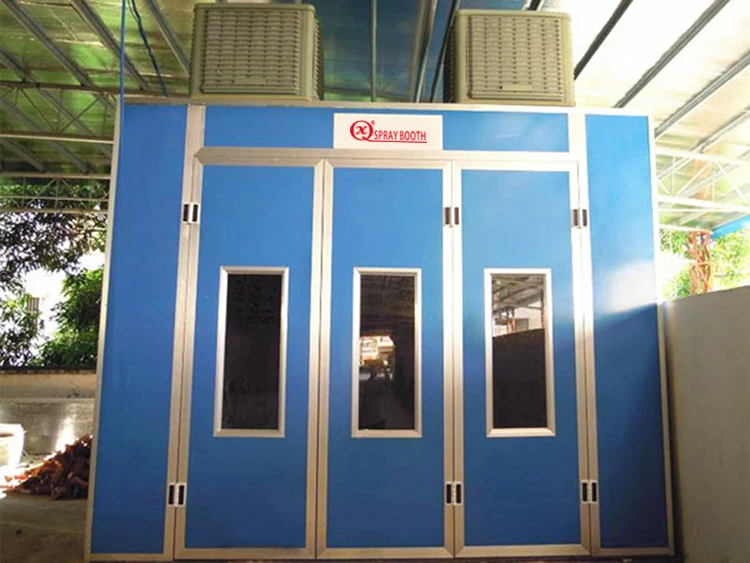

Front view of car spray booth
Side View of car spray booth

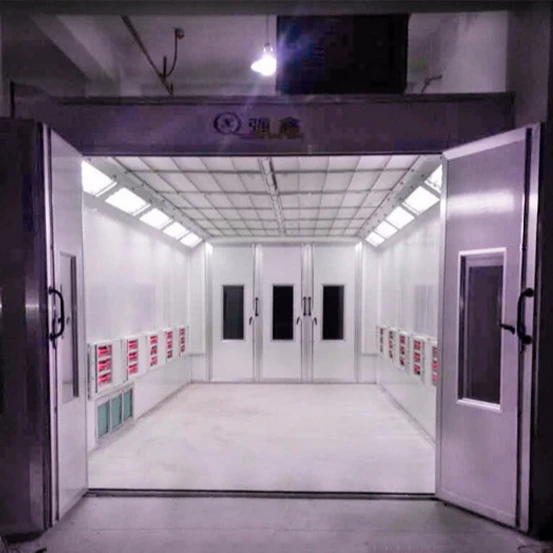

Inside view of car spray booth
Product Details

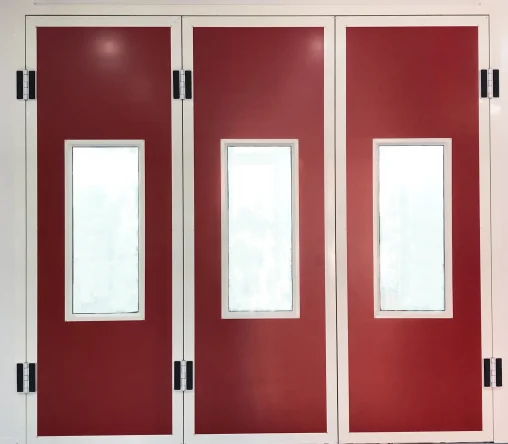

The entrance door of booth: powder coating surface, anti-rust. Aluminum alloy binding framework, more durable.

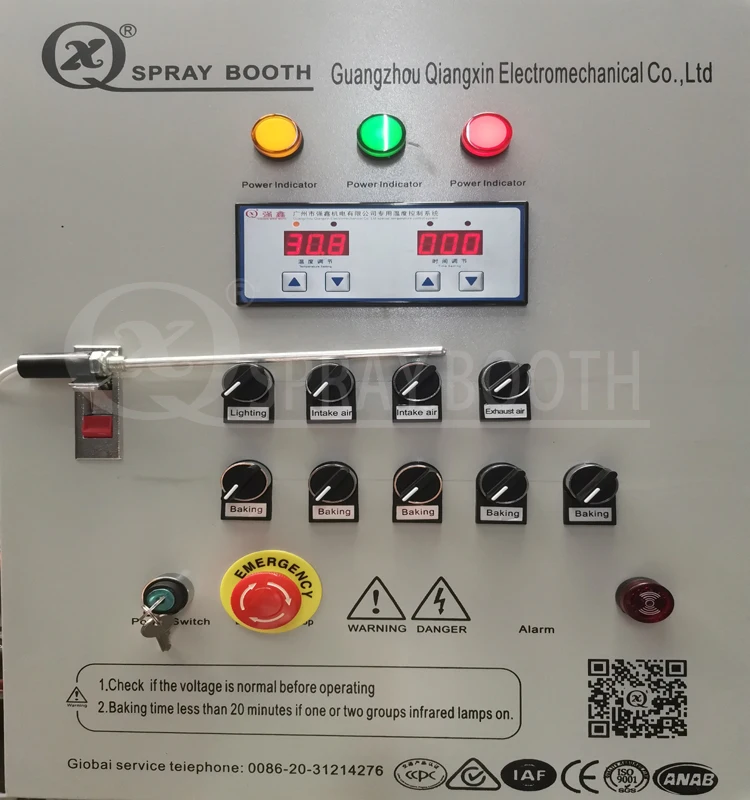

Luxury control box: painting, baking, light switch, breakdown indicator, power switch, emergency stop switch.
LED lighting system
Ennergy LED lights is more lighter and cost-effective.
Wallboard
50mm EPS wallbaord with color steel panel , anti-fire insulation. EPS desity: 14kg/m

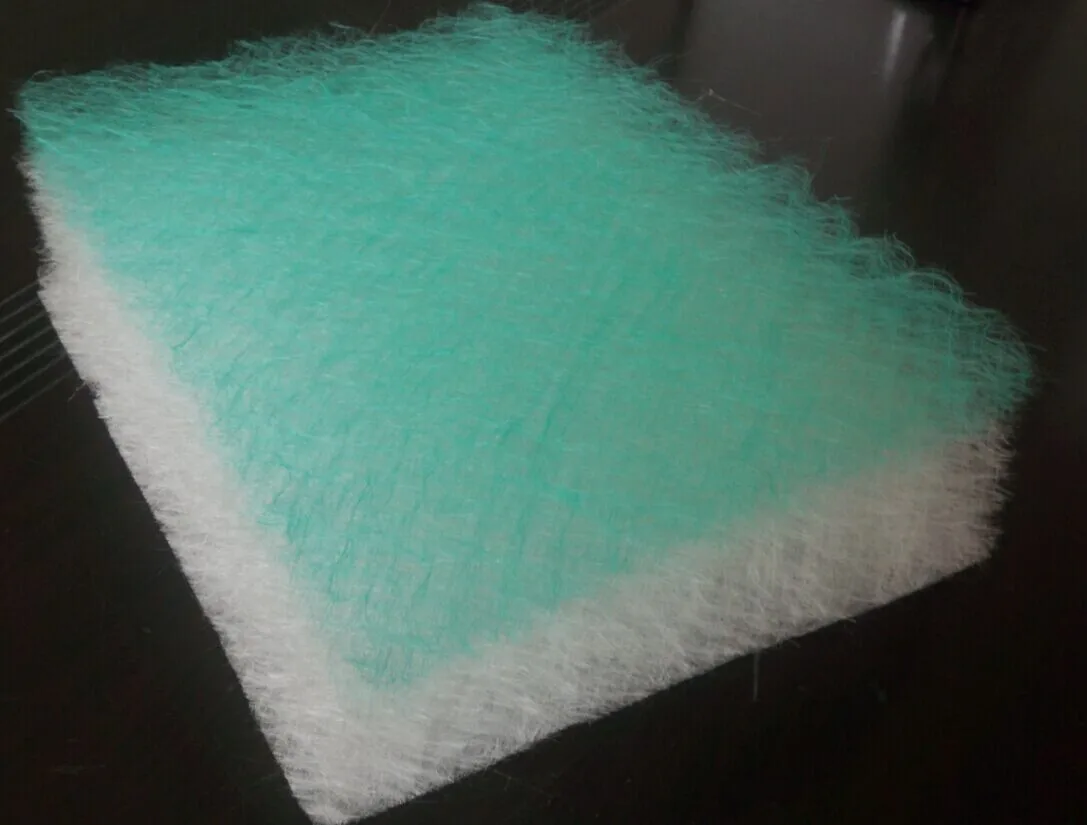

High efficient 4 filters to provide dust-free space for painting and baking.
Package&Shipping
One set car spray booth with 21-22CBM 3 Tons can be loaded in 20 feet container.
Company Profile
Guangzhou Qiangxin EP Eletromechanical Co., Ltd. is a professional direct manufacturer of spray booth, industrial coating equipment, automobile maintenance equipment.
Located in Guangzhou city, Guangdong province with connvenient transportation access. We have more than ten years exported experience in the market.
With CE, ISO, RCM certificate, all of our products comply with international standard. Our well-equipped facilities and excellent quality control to guarantee customers satisfication.
