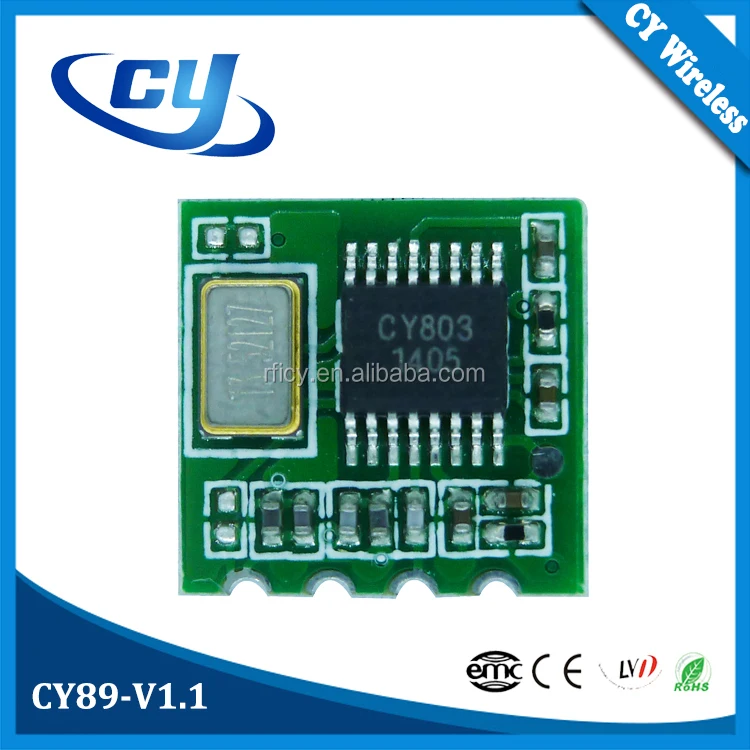

CY89-V1.1 SMD Тип RF 433 FM радио модуль приемника

Описание и отзывы

Характеристики

DESCRIPTION:
The CY89-V1.1 is a ASK/OOK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. With the adoption of European brand RF wireless data transferring/receiver chipsets. The model has a high receiving sensitivity and strong ability of resisting. From wireless signal input to data output can be done without any electrical circuit. User only use extra simple data decode circuit can achieve wireless products development.
CY89-V1.1 is for industrial level version.

FEATURES:
Frequency: 315MHz/433.92MHz ;
High sensitivity -110dBm/433.92 1kbps BER10E-2;
Supply voltage: VCC= 3.6to 5.5 V;
IF band: 230KHz;
Low power consumption: 4.7mA/315M, 7.0mA/433.92M.
Wide operating temperature:-20~70℃;
Excellent selectivity and noise rejection;
SIL(single in line) small package

APPLICATION:
Remote gate controls
Remote keyless entry
Car alarm systems
wireless security systems
Automation systems

PIN DEFINITION:

Figure1 CY89-V1.1Shape & Pins
Pin-out as showed in figure1 above.

Note1: ANT pin is a 50 ohm antenna input. The length is about:
23cm for 315MHz
17cm for 433.92MHz

ELECTRICAL CHARACTERISTICS:
Condition: Ta=25℃ Vcc=5.0V Frequency=315MHz

Condition: Ta=25℃ Vcc=5.0V Frequency=433.92MHz

MECHANICAL SIZE: (UNIT: mm)

Figure2 CY89-V1.1 Dimension


ORDER INFORMATION:
