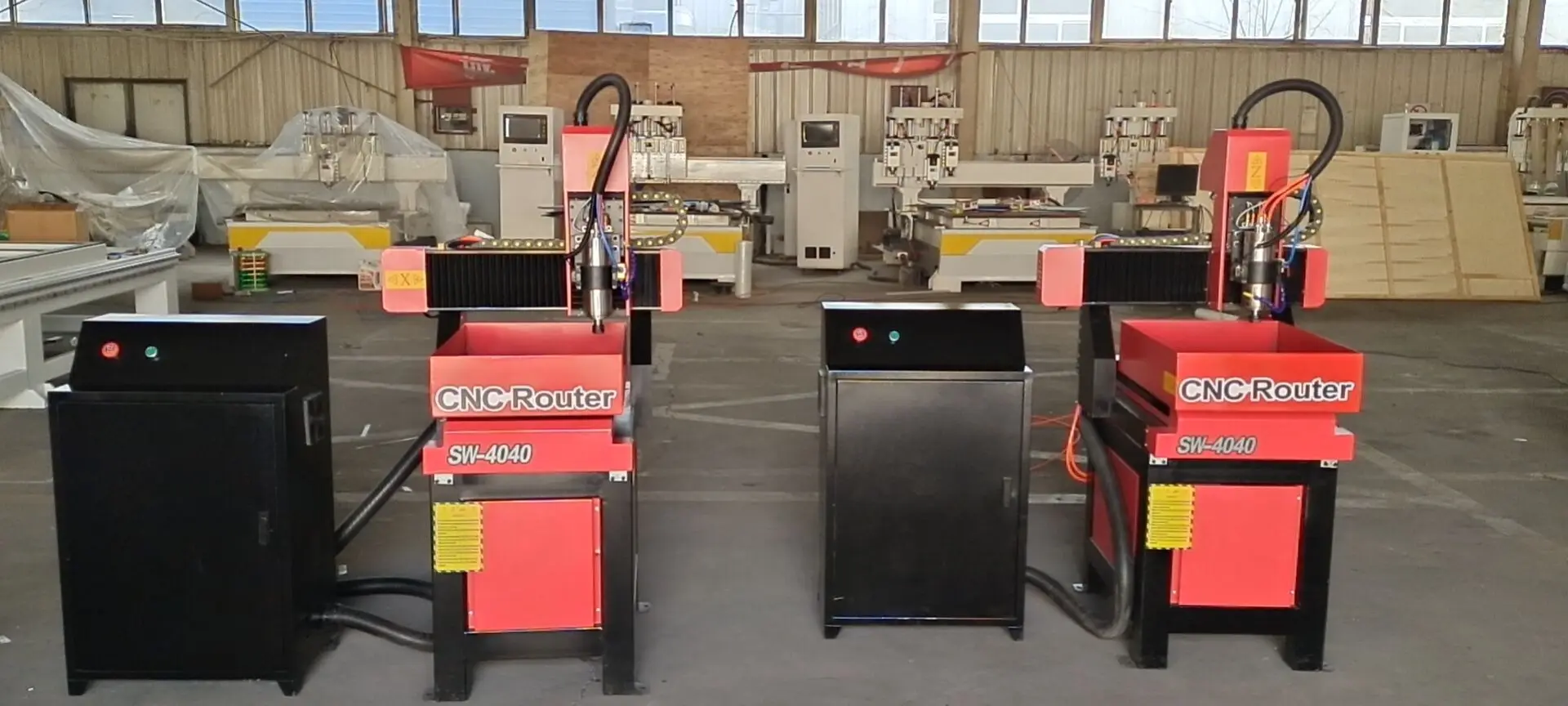

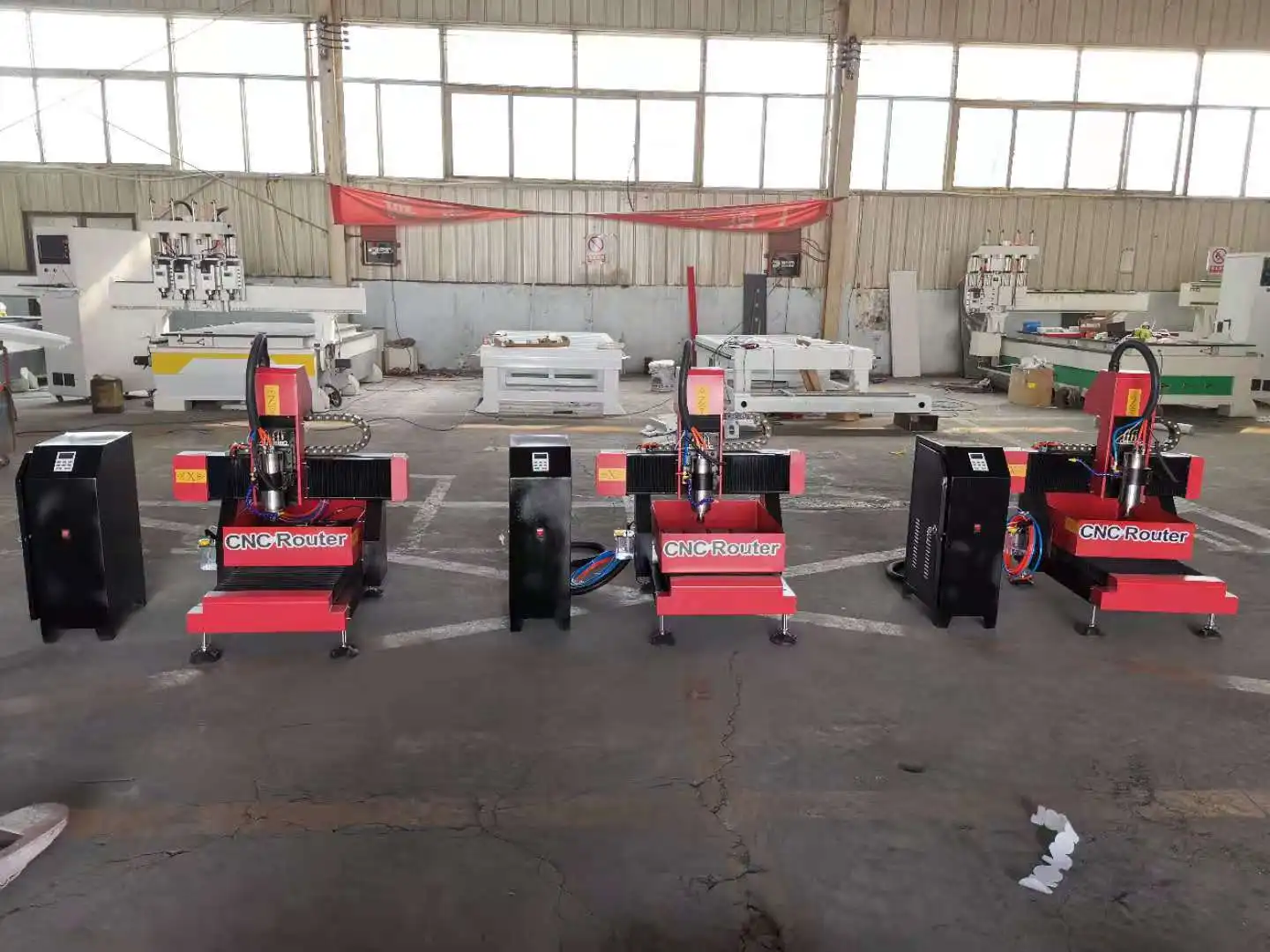

4040 Высокоточный металлический фрезерный станок с ЧПУ, гравировальная машина
- Категория товара: Metal Engraving Machinery >>>
- Поставщик (Оптовый магазин): Jinan,Huawei,CNC,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики

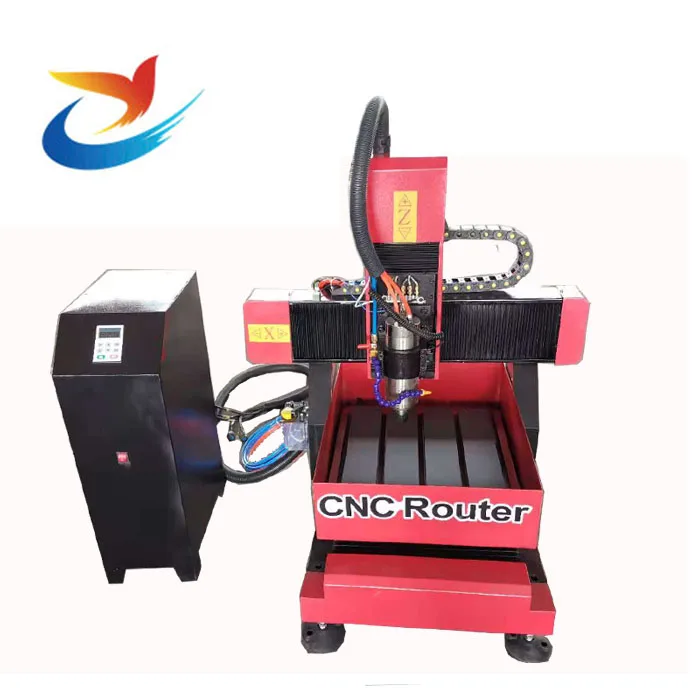

4040 high precision metal cnc router mould engraving machine
Feature:
new style cnc router
1.whole cast steel machine body,Servo motor,powerfully milling,1/100mm precision.
2.Pause, adjust speed and cutting depth anytime during cutting, also can preview the tool path. Convenient for engraving different materials, applicable to different industries.
3.NC studio system have break point memory mode and special saving mode of different points, so that can make sure continuous working after electronic drop or other postpone situation.
4.Has the continue engraving function of break point and break.
5.Has the function of zero return and correct automatically.
6. Well-compatibility: compatible software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.etc.
7.Heavy loading, non-deformation, adopting imported double-nut screw to ensure the engraving speed.
8.Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.
9.Adopt high-speed water-cooling variable frequency motor, big torque, strong cutting, high-frequency, long-life, can be a long time continuous workings.
Parameters:
new style cnc router
| Model | SW-3030 | SW-4040 | SW-6060 | |
| X,Y Working area | 300×300mm | 400*400mm | 600*600mm | |
| Z Working area | 100mm | 180mm | 200mm | |
| Feeding Height | 200mm | 200mm | 200mm | |
| Table Size | 600×600mm | 700*700mm | 800*700mm | |
| Lathe Structure | Cast Iron | Cast Iron | Cast Iron | |
| Working Accuracy | 0.01mm | 0.01mm | 0.01mm | |
| Repositioning Accuracy | 0.005mm | 0.005mm | 0.005mm | |
| Spindle Power | 2.2KW | 2.2KW | 2.2KW | |
| Spindle Rotating Speed | 0-24000rpm/min | 0-24000rpm/min | 0-40000rpm/min | |
| Control System | NCSTUDIO | NCSTUDIO | NCSTUDIO | |
| Drive System | Servo of Japan | Servo of Japan | Servo of Japan | |
| Resolution | 0.003mm | 0.003mm | 0.003mm | |
| Max. Travelling Speed | 11m/min | 11m/min | 12m/min | |
| Max. Working Speed | 7m/min | 7m/min | 8m/min | |
| Working Voltage | AC220V | AC220V | AC220V | |
| Applicational Material | Plexiglass, Aluminium-plastic composite panel, Aluminium,Copper, Steel, Iron, Plastic, Marble, Wood , PVC, Acrylic, ABS board, KT plate and so on | |||
Samples:
new style cnc router
Service and Warranty:
new style cnc router
| Warranty | ||||||
| Warranty | Warranty period | Warranty machine parts | Supporting | |||
| One year | electric system: spindle, motor,inverter,drive | During the warranty period any damage of the machine parts (non-human factors) , send the machine parts free. (Freight Own) | ||||
| One year | transmission system :rails,sliders,rack and pinion,ball screw | |||||
| One year | software:DSP control system and publishing software Artcut (English) | |||||
| whole life | lathe bed, gantry | |||||
new style cnc router
iron engraving
new style cnc router
