Product Description

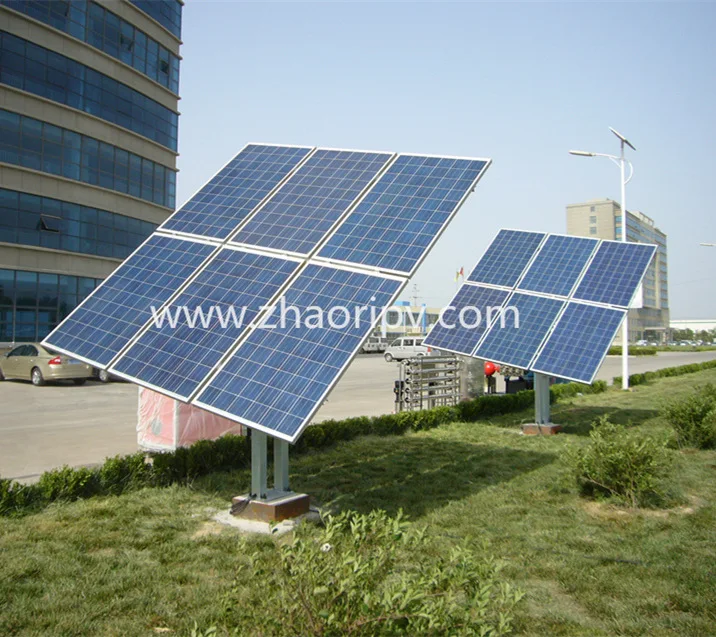

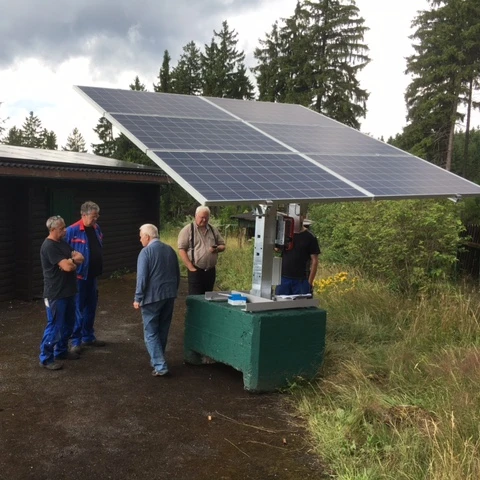

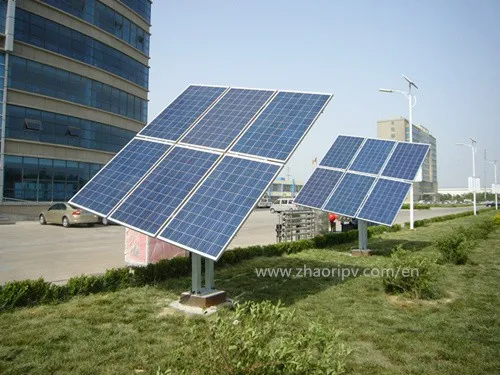

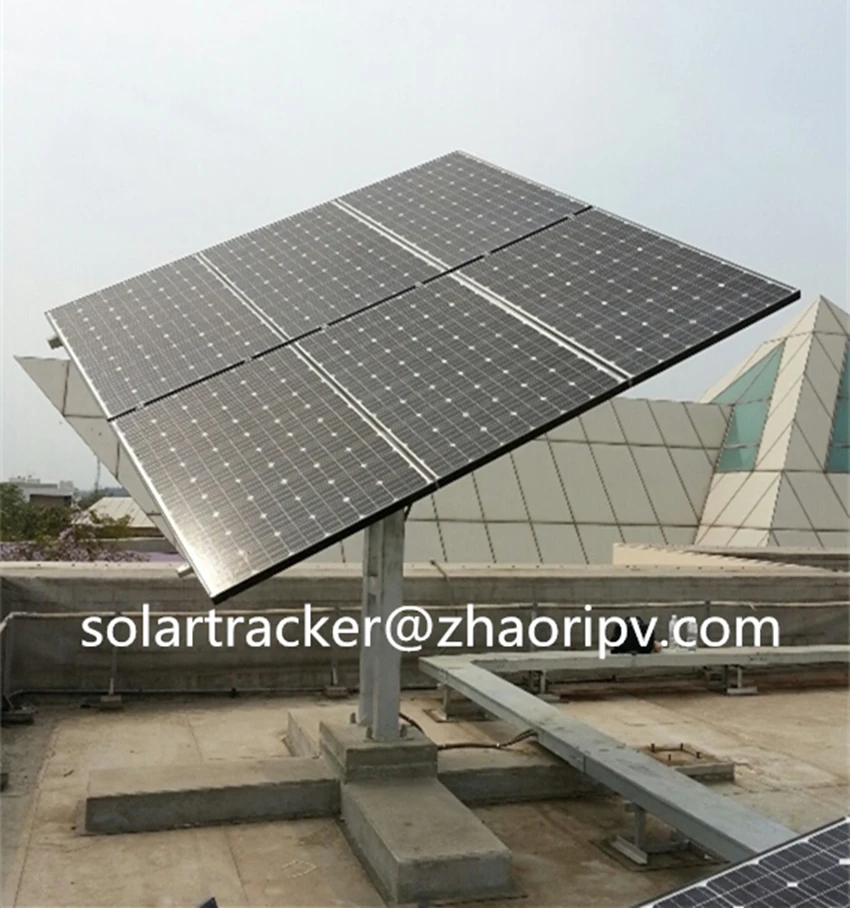

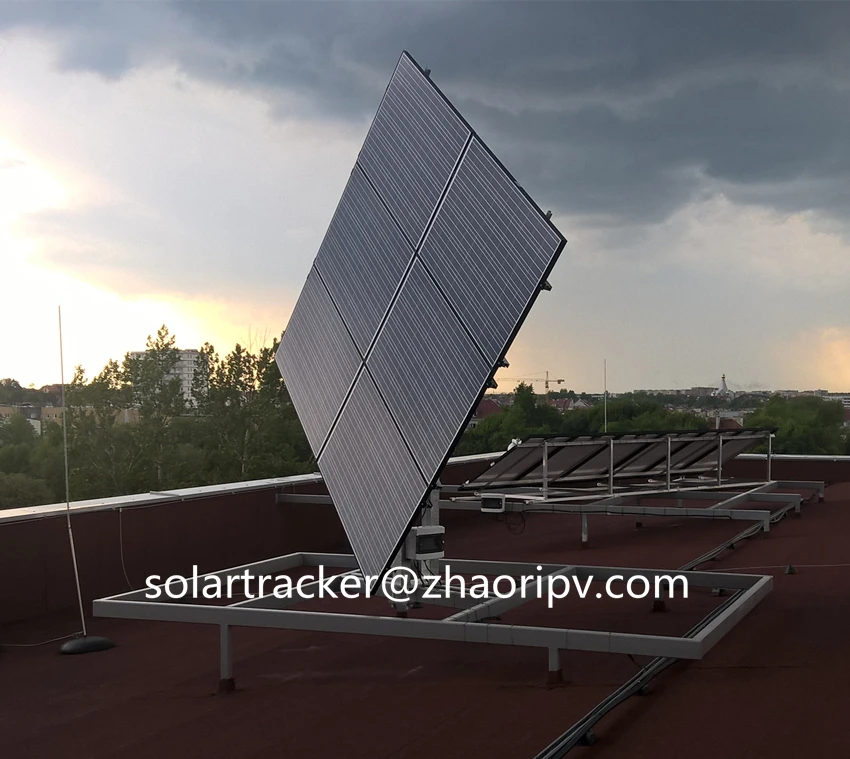

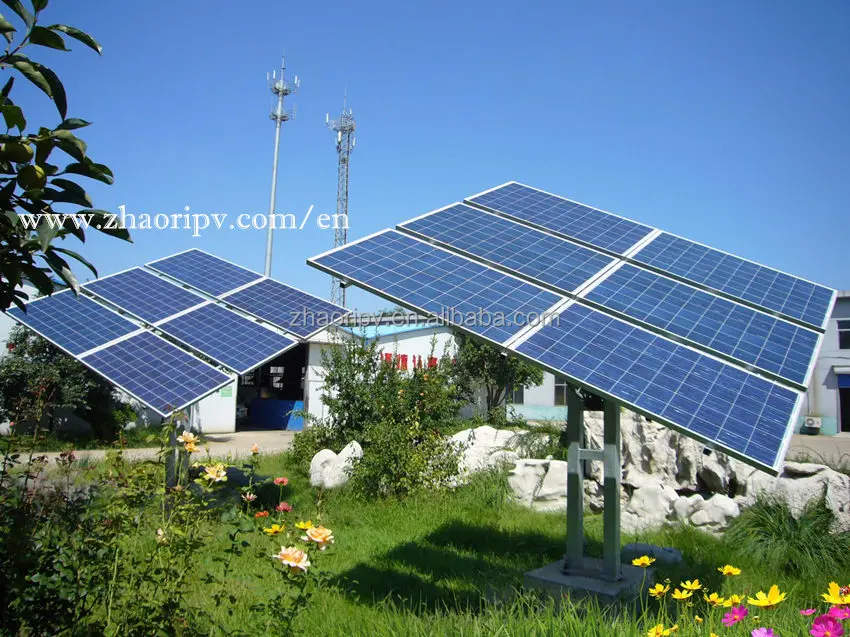

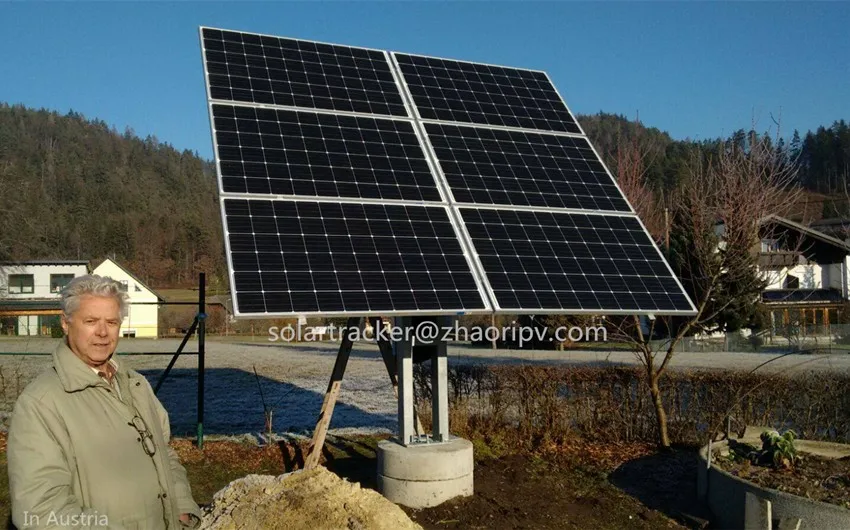

ZRS-06 semi-auto dual axis solar tracking system, also called elevation angel adjustable single axis solar tracking system, mounting 6 pcs of solar panels, it has one auto axis to track the sun in east-west direction automatically, and one manual axis to track the sun in south-north direction, only need manual adjustment 4 times a year, the adjustment is very easy.
Product: | ZRS-06 semi-auto dual axis solar tracking system |
Control mode: | GPS + Time control |
Tracking accuracy: | 0.4°-2° (adjustable) |
Motor: | 24V gear motor |
Output torque: | 2400NM |
Power consumption: | 3 kwh/year/set |
Azimuth angel tracking range: | ±50° |
Elevation angle adjust range: | 50° |
Structure material: | Hot-dipped galvanized steel, Zinc layer thickness≥65μm |
Max. wind resistance: | 24m/s in running state, 40m/s in wind protect state |
System guarantee: | 5 years |
Working temperature: | -40℃ - +75℃ |
Weight: | 160kgs |
Solar panels: | 6 pieces 60 cells(recommended) or 72 cells crystalline panels |
Total power: | 1.5kW - 2.5kW |
Company Profile
Shandong Zhaori New Energy Tech. Co., Ltd. is a high-tech & new energy company based on independent intellectual property rights, committed to researching and producing most simple and best cost performance smart solar tracking system, promoting generation capacity by 25%-40%, with TUV & CE certificates and patent of invention from many countries.
Our Advantages
★ Simplest structure, lowest cost.
★ Conveniently and quickly installation, no need for big machinery.
★ Less power consumption, totally less than 3kWh/set/year.
★ Solid bracket, good wind and snow resistance performance.
★ Independent support structure, better terrain adaptability.
★ No fixed coverage to sunshine or raining, no affection to plants growing.
★ Effectively reduce your solar panels washing times.
★ Less components, light single part weight, convenient transportation.
★ Intelligent control, self-correction & self-positioning, easy maintenance.
★ Mature and reliable technology, low failure rate, high tracking accuracy.
★ High efficiency, +25% - 35% more energy!
