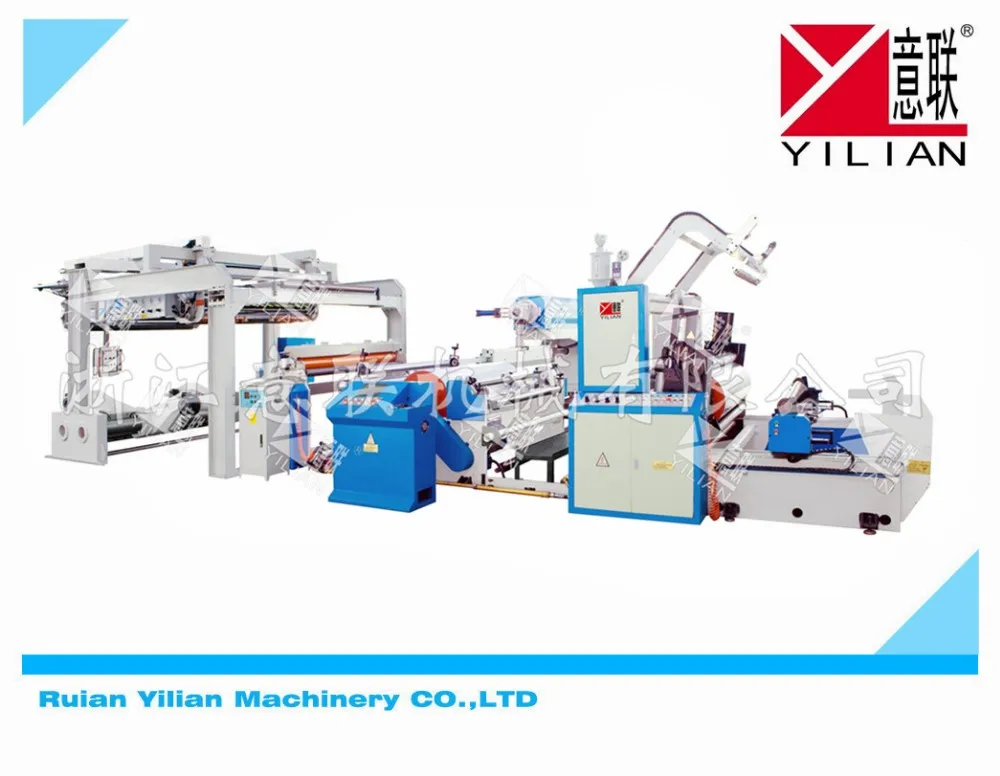

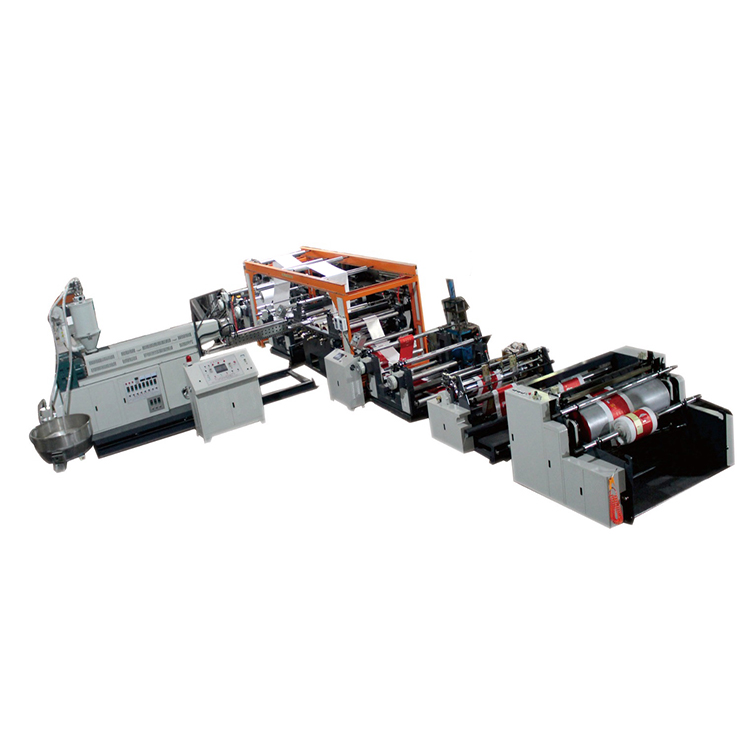

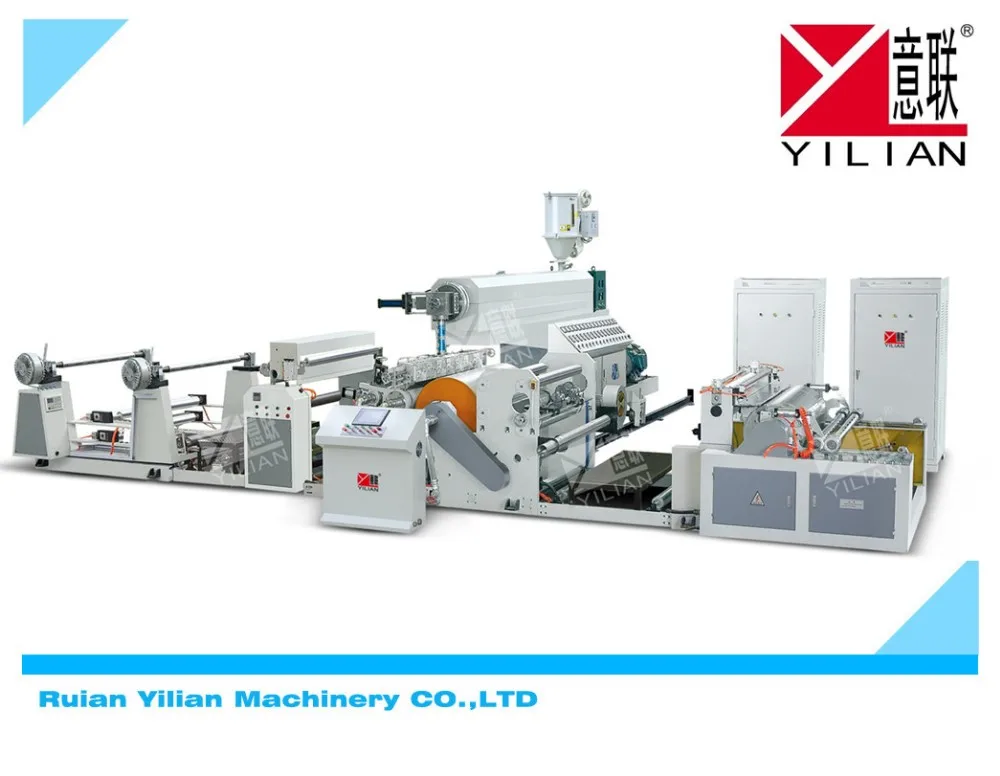

Машина для ламинирования бумаги и алюминиевой фольги YILIAN SJFM

Машина для ламинирования бумаги и алюминиевой фольги YILIAN SJFM

Категория товара: Ламинаторы >>>
Поставщик (Оптовый магазин): Wenzhou,Winrich,Machinery,Co.,Ltd.

Цена:81 000,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Description

Product Application Of Non woven bags laminating machine

1.Paper cups : PE coated paper

2.Non woven bags : Non woven fabric + PE

3.Release paper : Release paper + PE

4.Sugar packages : Thin paper + PE

5.Baby diaper : Thin non woven +PE

6.PP w0: sheet roll + PE

\t Specification of Non woven bags laminating machine
\t Applicable coating film resin	\t Coating grade like LDPE ,PP ,EVA,EAA etc
\t Based material	\t paper (35~425g/m2 ) , textile fibre ,non-woven fabric, Knited mesh, BOPP. BOPET .
\t Max working speed	\t 100~150m/min
\t Max width of coating film	\t 1200mm
\t Thickness of coating film	\t 0.01–0.11mm
\t Inaccuracy thickness of coating film	\t ±6%
\t Setting range of Auto-tension	\t 10-200kg/entire width (constant tension)
\t Max extrusion	\t 200KGS/H
\t Compound cooling roller	\t Φ510×1300mm (can choose)
\t Total power:	\t about 110 kw
\t Max rewinding diameter	\t Φ1300mm
\t Inside diameter of base material	\t Φ76
\t Machine total weight	\t about 15000kg
\t Overall dimension	\t 9600mm×8000×3250mm(L×W×H)

Main Features of Non woven bags laminating machine

Product features Of Extrusion laminating machine :

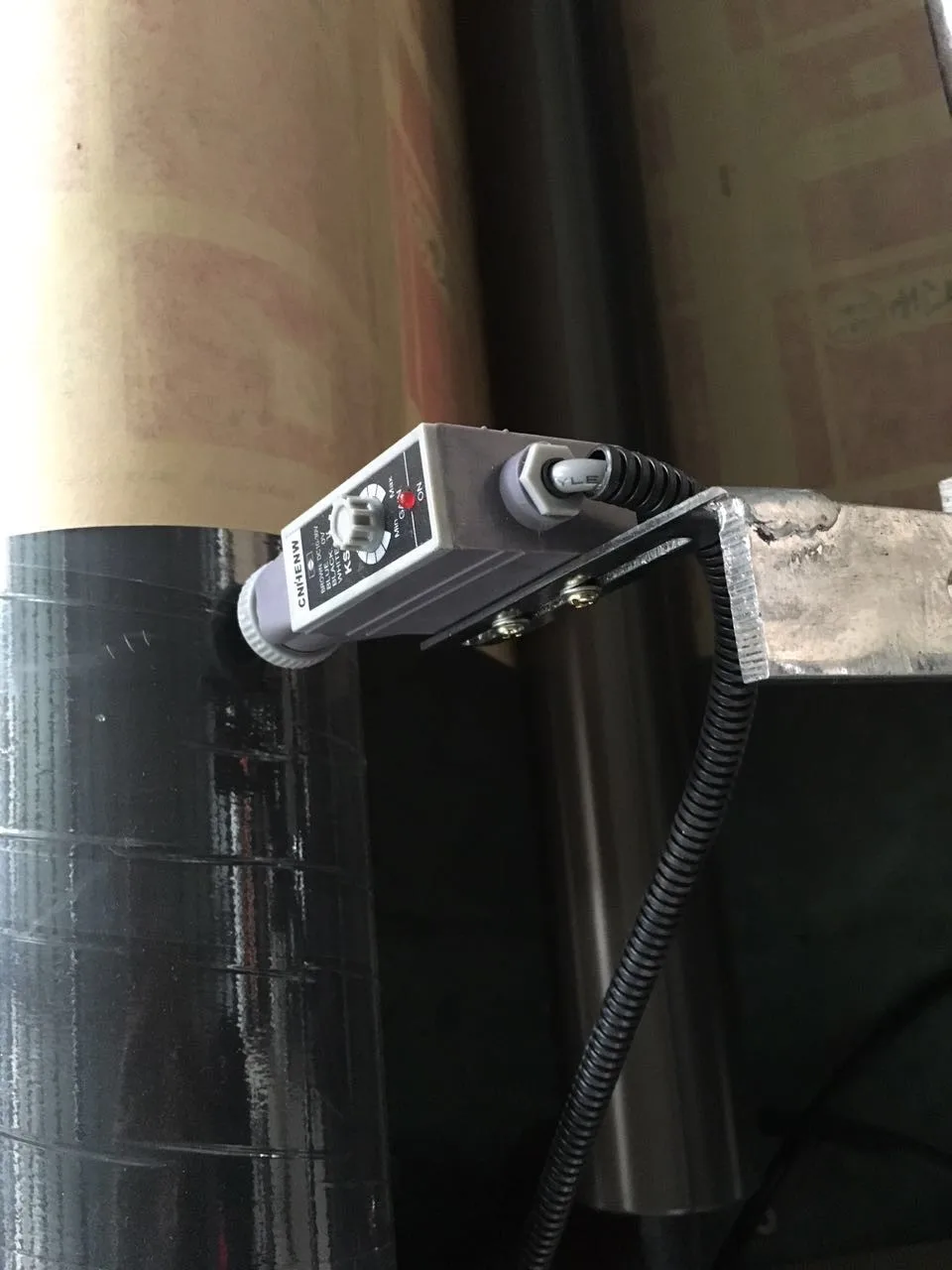

1.EPC STSTEM
2.CORONA TREATMENT
3.CHILLING ROLLER

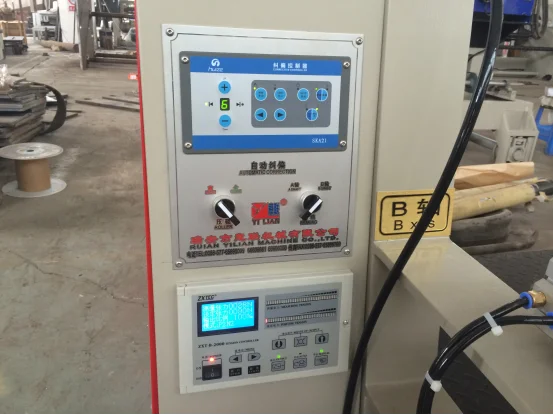

4.PLC TOUCH SCREEN
5.TRIMING
6. AUTOMAT HYDRAULIC FILTER SCREEN CHANG DEVICE

Certifications

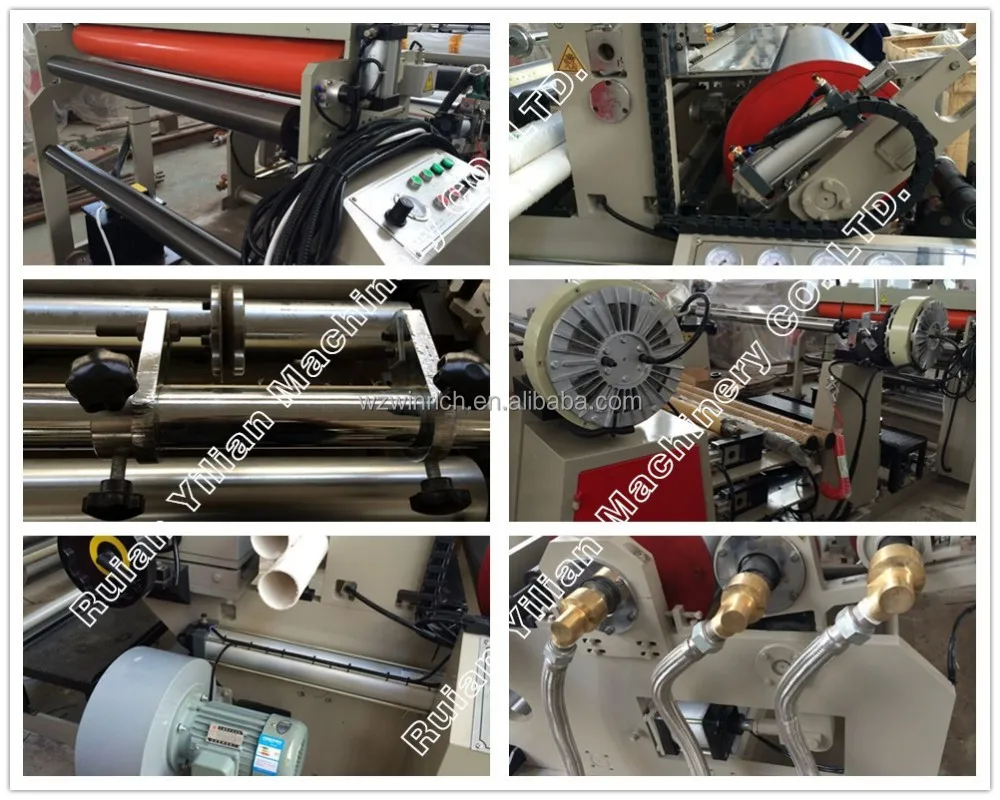

Detailed Images

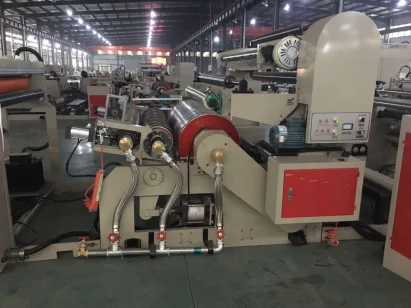

Machine Parts

1.Strong machine frame made , stable running without shaking or movement.

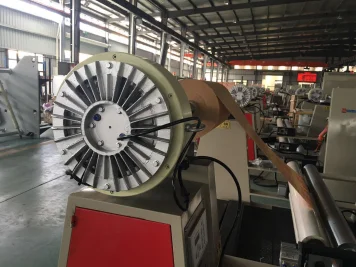

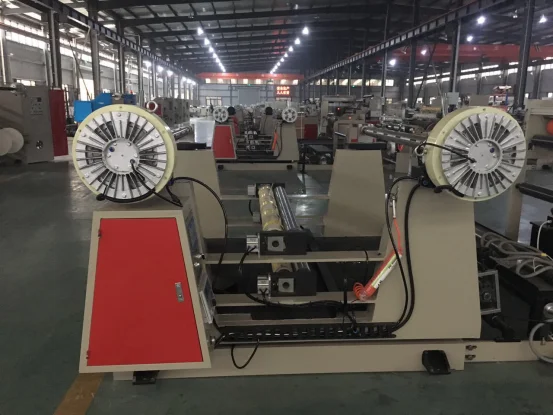

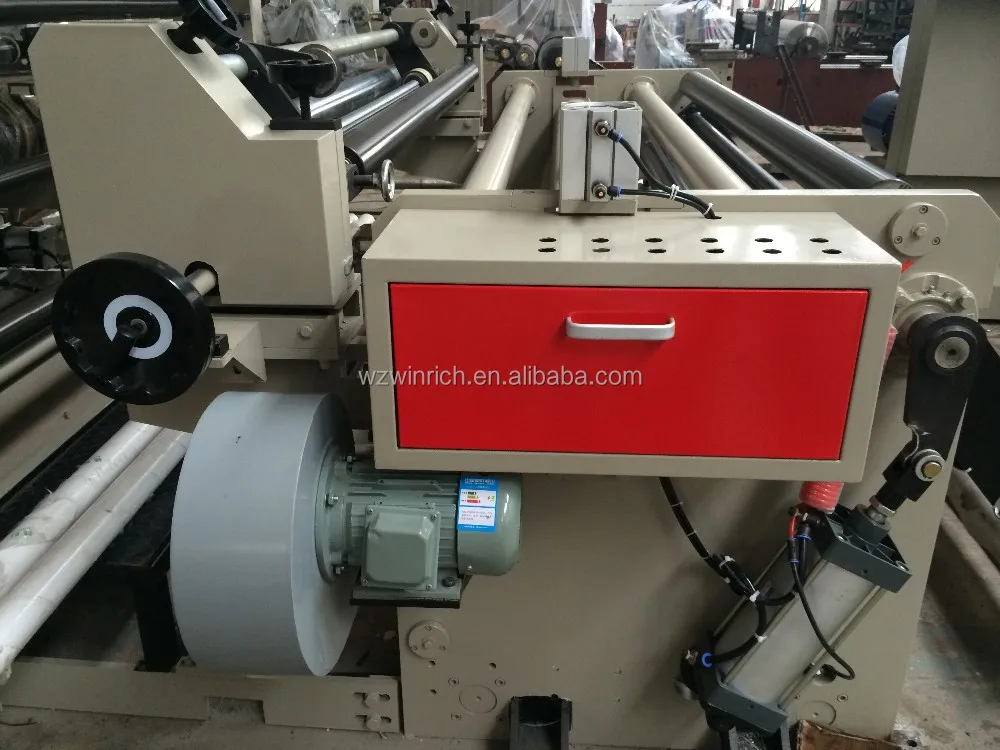

2.Magnetic powder clutch with the perfect combination of auto constant tension controller along with the roll material diameter changing, tension is decreased proportionally to achieve automatic tension control.

Machine Parts

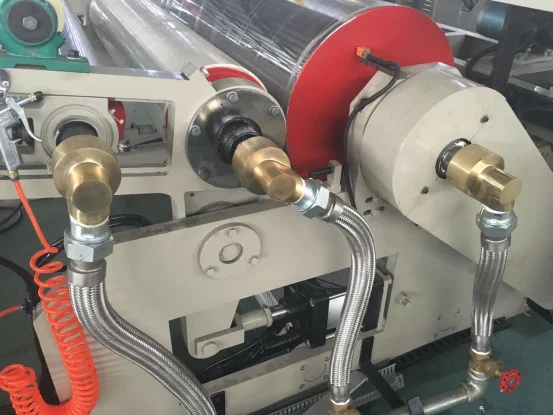

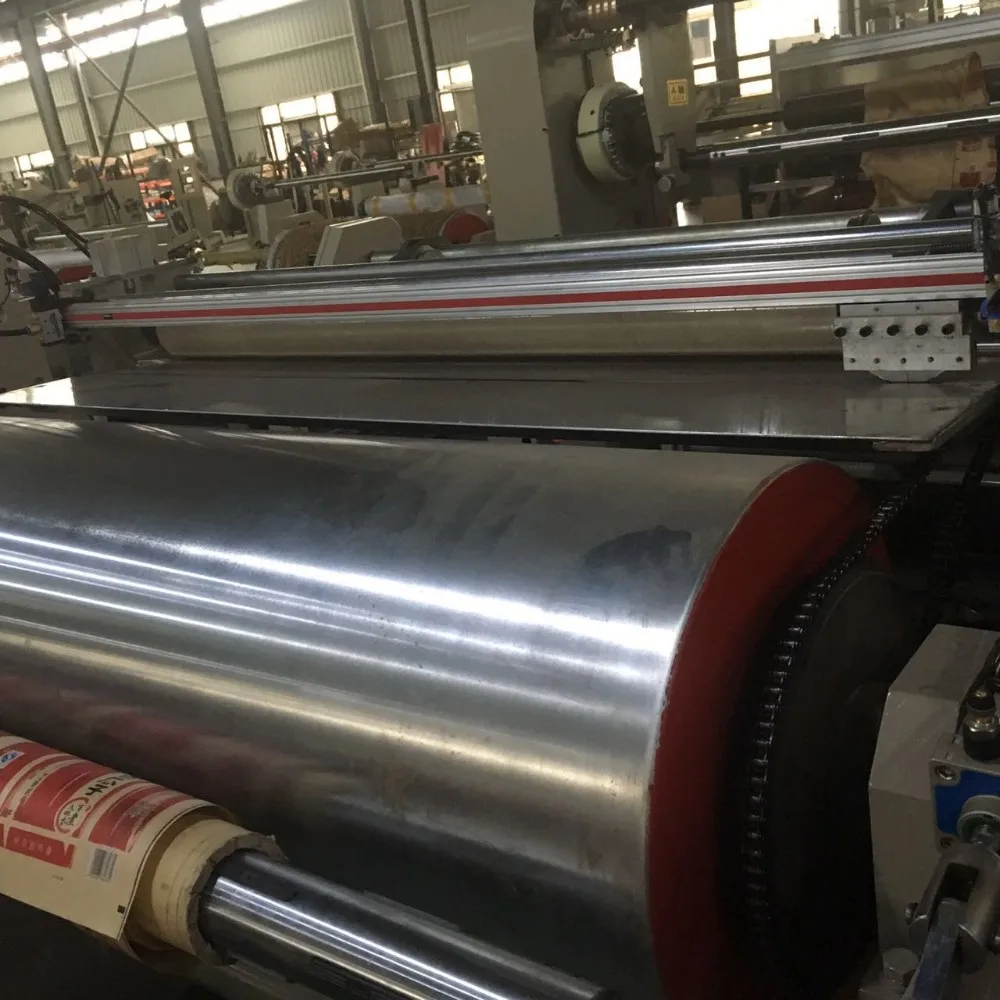

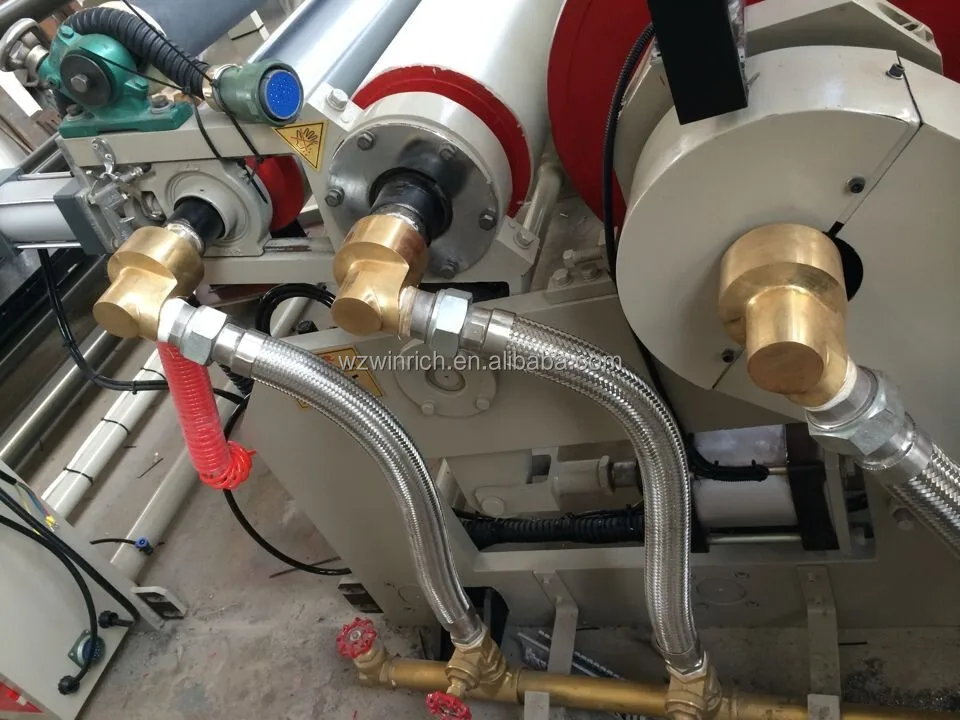

Pneumatic three chilling rollers type and inner water recycle design, makes PE coating evenly and firmly .

Main Features

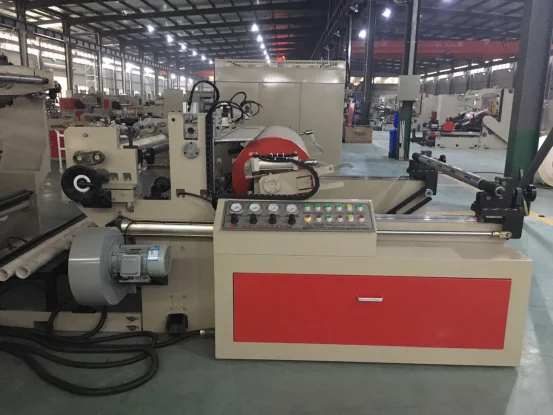

Automatic non stop materials changer device reduce wastage and increase production efficiency .

Our Service

1 year machine quality warranty

24 hours online technical support

Oversea technician service is available

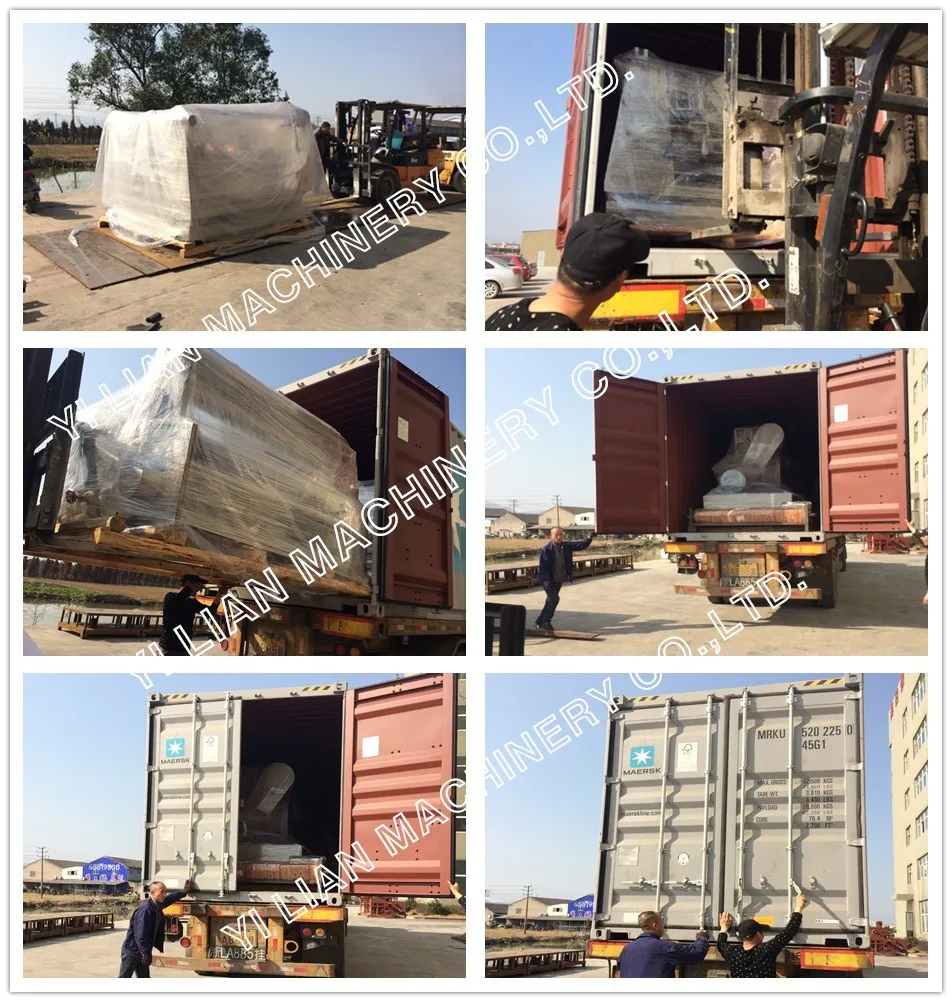

Packing & Delivery

\t Packages of Non woven basg laminating machine
\t Quantities	\t Total 6 packages
\t Weight	\t 15 T
\t Packaging Details	\t The normal package is wooden box. If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request.

\t Containers
\t Quantities	\t 1 20 Ft + 1 40HQ
\t Weight	\t 15T
\t Loading Details	\t 1300 mm width machine need 20 comtianers but still have some space rest . about 2 meters space in 20 Ft container ,customer can load other machine as well .
