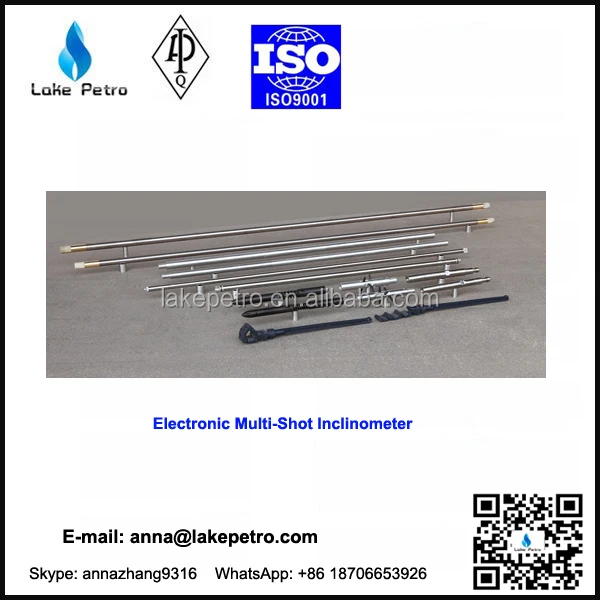

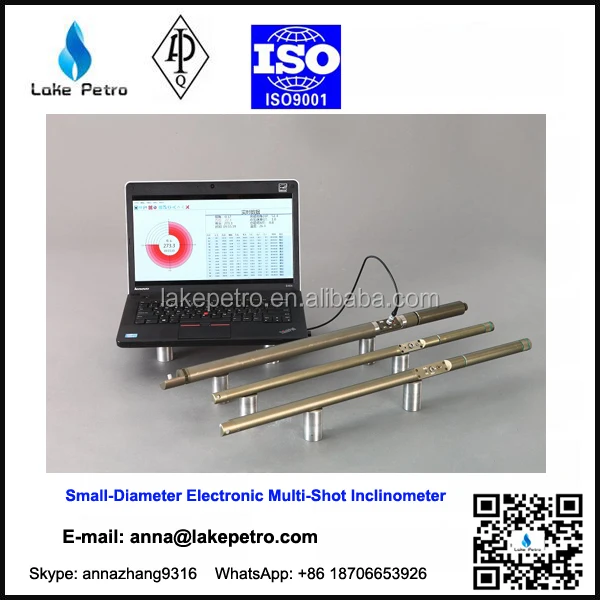

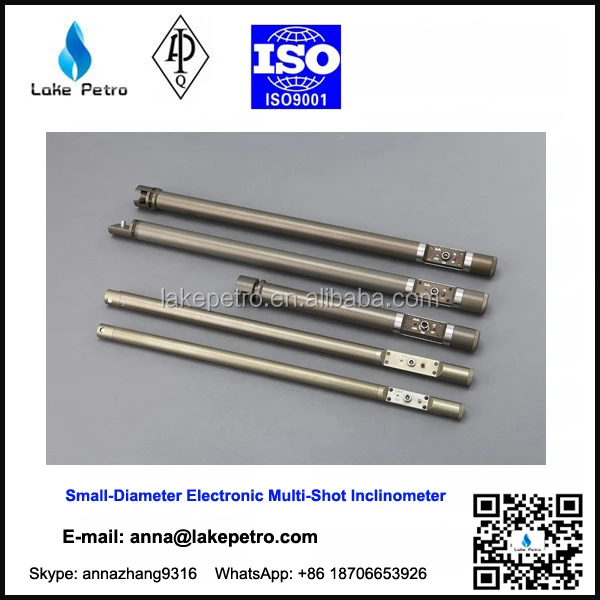

Электронный многодисковый Инклинометр для бурения

Main Characteristics:

1. Probe diameter is only Φ27mm/1.06 in
2. Able to collect 8000 sets of data
3. Able to determine bottom single data with time
4. Able to estimate downhole magnetic field variation
5. Battery can work 20 hrs continuously
6. Easy to learn and operate

Features:

1.Aerospace-quality optical fiber gyro sensor
2.True North Finding
3.Various vibration design, good vibration resistance,high stability, and convenient to calibrate
4.Steering survey of gyro high side, real-time monitoring display
5.Single/Multi shot and drop mode

Surface equipment parameters

Dimension of surface controller 235mmx105mmx245mm
Work temperature of surface controller -20℃~+55℃
Power supply 85VAC~230VAC 50/60Hz

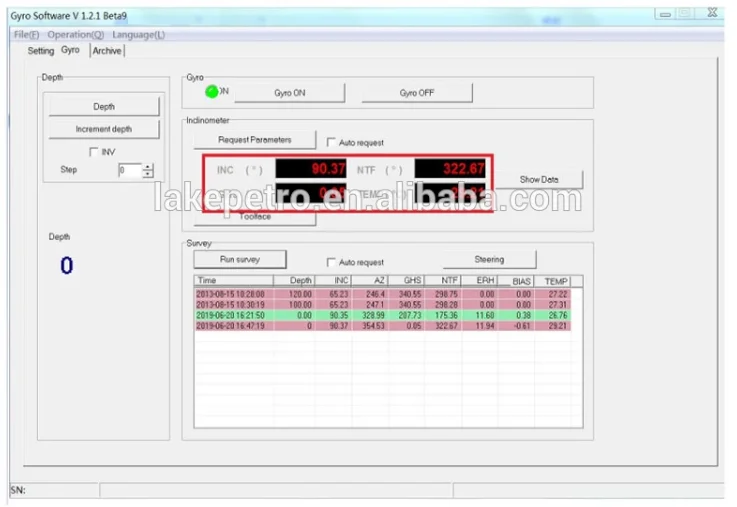

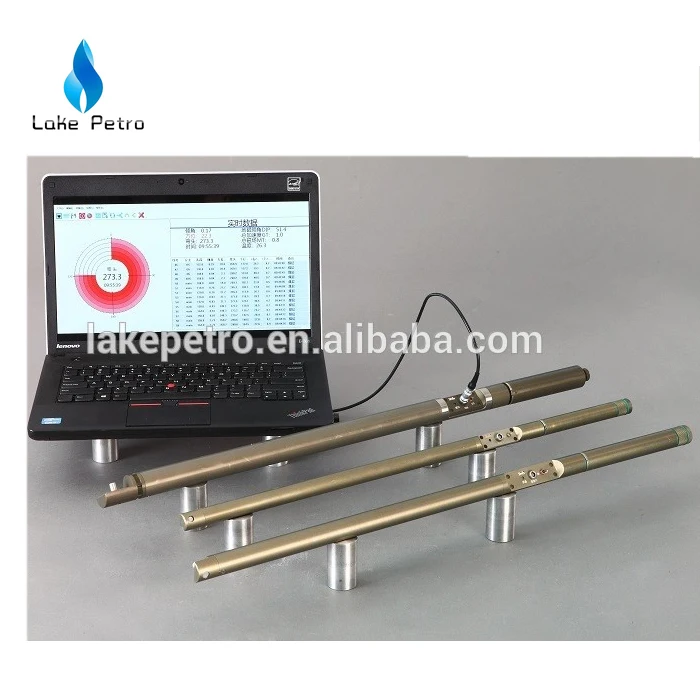

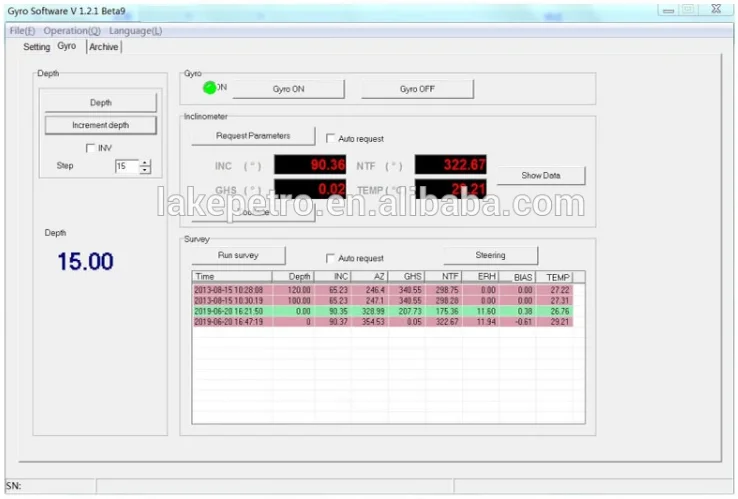

The surface equipment consists of a PC and a surface controller signal collection system. It
can monitor the down-hole assembly, display and save the real time logging data. This system
adopts multi-window menu operation mode, which is easy to operate.
Host computer: IBM PC or compatible laptop PC
Surface controller: AC85~AC230V 50/60Hz power supply.

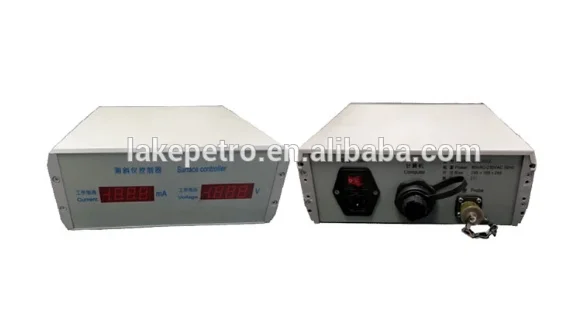

The front and back panels are shown as follows:

1. Voltage indication
Indicate the voltage of down-hole assembly; this voltage will not change as the total length of
the wire line.
2. Current indication
Indicate the current value for the down-hole assembly; it is one of the bases to show if the
survey tool works normally or not.
3. Probe interface
Supply power for the down-hole assembly through probe interface.
4.  PC interface

Connect with USB port of computer.
5. Power
Input 85VAC~230VAC 50/60Hz power supply
After the instrument is connected, switch on surface controller
