Products Description

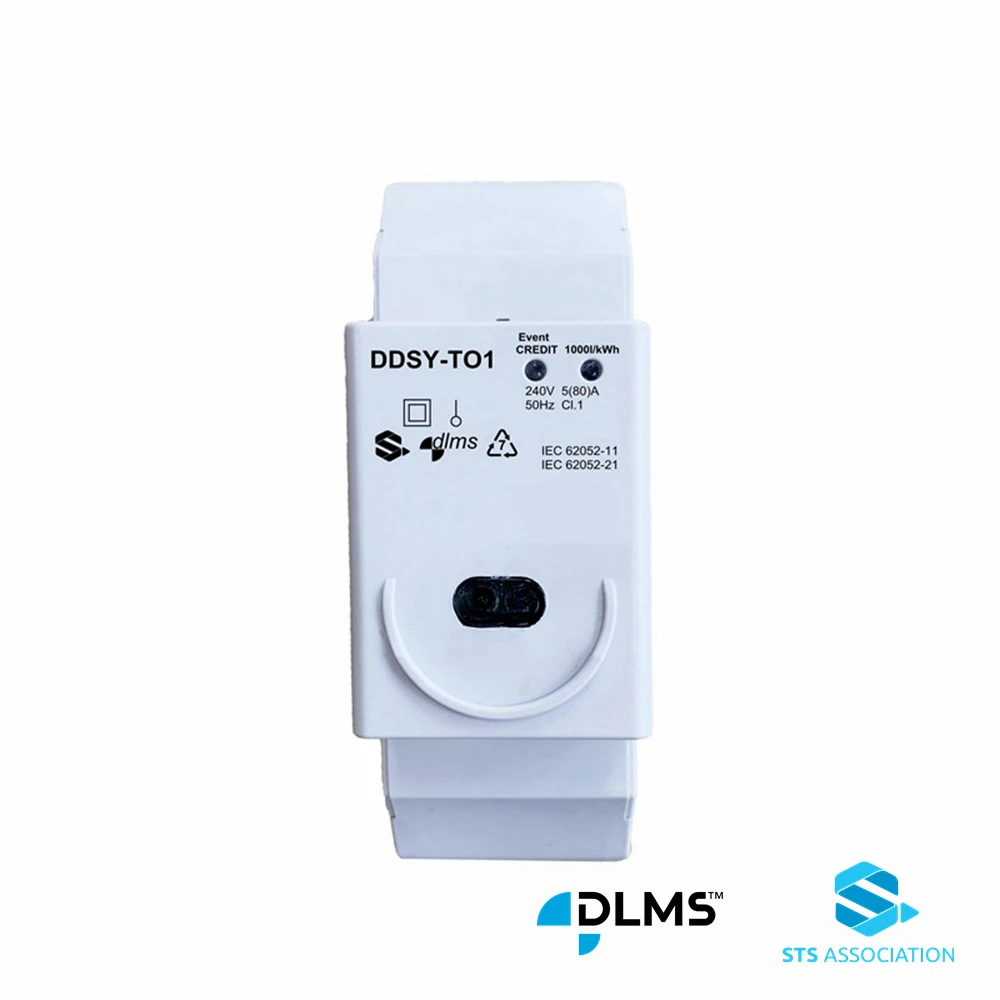

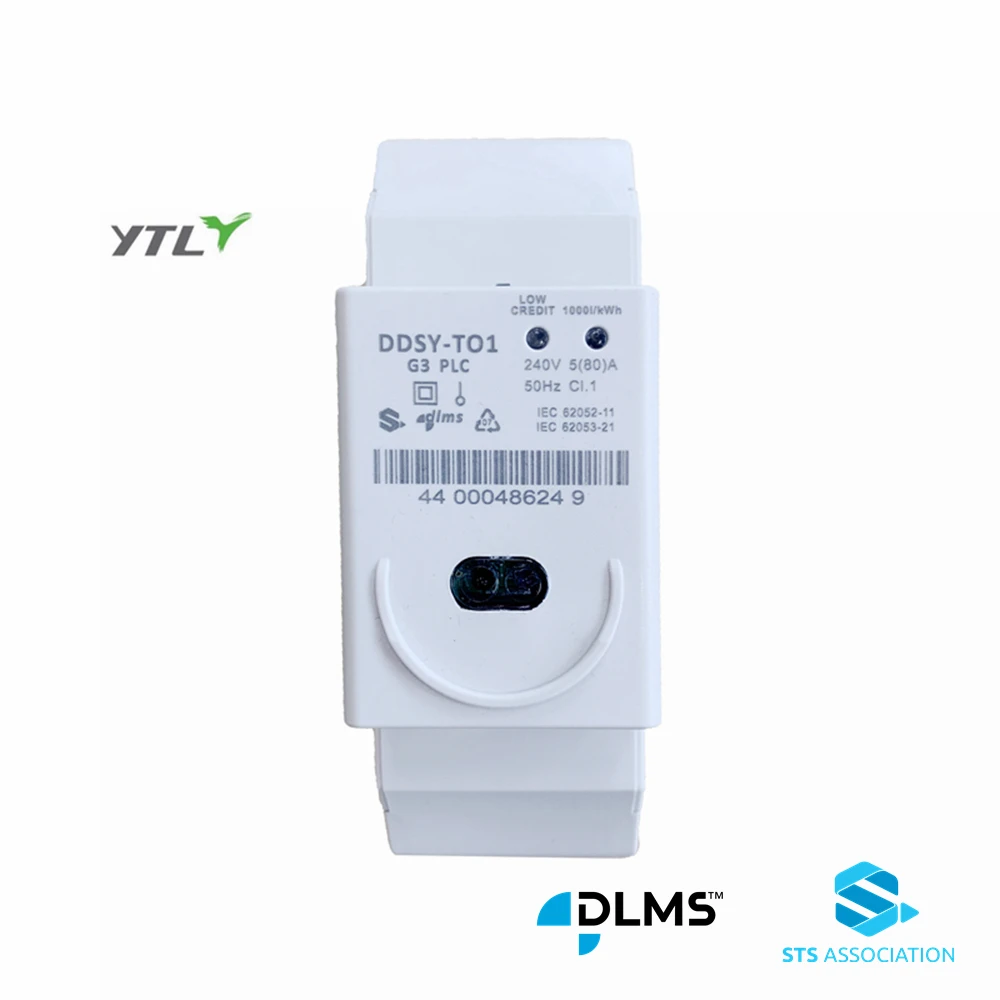

It's a single phase two wire din rail prepaid meter with G3 PLC communication with relay inside,it can be used with keypad IHD (option).
Features
* With with G3 PLC communication
* Maximum current isup to 80A.
* with buzzer inside, it will beep when low credit for 5 seconds, and you could press any key to turn it off. Also you could configure to enable or disable this buzzer function by IR communication.
* Support load ground connection, switch detection, influence of external magnetic field, abnormal voltage record.
* Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs. Every timetable has a backup table for remote updating of backup timetable and configure the switching time. Meter will automatically switch the tariff table at the switching time.
* Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy, the absolute value of total active tariff energy, total input energy of the current month, total input energy of last 5 month, total output energy of the current month, total output energy of last 5 month, and total reactive energy.
* Degree of Protection: IP51 (indoor meter).
* The IHD is with AC and back light. .
* Maximum current isup to 80A.
* with buzzer inside, it will beep when low credit for 5 seconds, and you could press any key to turn it off. Also you could configure to enable or disable this buzzer function by IR communication.
* Support load ground connection, switch detection, influence of external magnetic field, abnormal voltage record.
* Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs. Every timetable has a backup table for remote updating of backup timetable and configure the switching time. Meter will automatically switch the tariff table at the switching time.
* Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy, the absolute value of total active tariff energy, total input energy of the current month, total input energy of last 5 month, total output energy of the current month, total output energy of last 5 month, and total reactive energy.
* Degree of Protection: IP51 (indoor meter).
* The IHD is with AC and back light. .
* Anti-tamper when Neutral missing: when Neutral missing, the meter still can work（battery support）
Technical Paramenters
Voltage | 230/240V | |
Current | 5(80) A | |
Accuracy class | 1 | |
Standard | IEC62052-11, IEC62053-21, IEC62055-41 | |
Frequency | 50Hz | |
Impulse constant | 1000imp/kWh | |
Display | Without LCD | |
Power consumption | <10VA/2W | |
Starting current | 0.004Ib | |
Temperature range | -20～70℃ | |
Flashing red | Impulse indication, width=80ms±20ms | |
Average humidity value of year | 75% | |
Maximal value | 95% | |
LED description | ||
A | low credit | |
B | impulse | |
Material | ||
Cover | PBT+15%GF | |
Base | PBT+15%GF | |
Terminal cover | PBT+15%GF | |
Hook | ABS | |
Functions
Tampering Protection Function |
bypass power detection, record events and LED alarm. |
open terminal cover detection, LED alarm and record the event. |
record external magnetic field event. |
record over voltage and low voltage event. |
self-diagnostic: EEPROM check, battery alarm. |
Display details |
Total active energy power, voltage effective value, current effective value, average active energy on second, current date, current time. |
Communication |
With G3 PLC communication |
Events details |
Over voltage, low voltage, bypass, current reverse, power off, open terminal cover. |
Measurement |
Single phase active energy measurement, keep records of power, average active energy on second, voltage effective value, current effective value, demand. |
