LMS metal ceiling tile roll forming machine,cross tee grid making machine,fully automatic light steel keel roll forming machine

• metal ceiling tile roll forming machine



• fully automatic roll forming machine



• cross tee grid making machine,fully automatic light steel keel roll forming machine

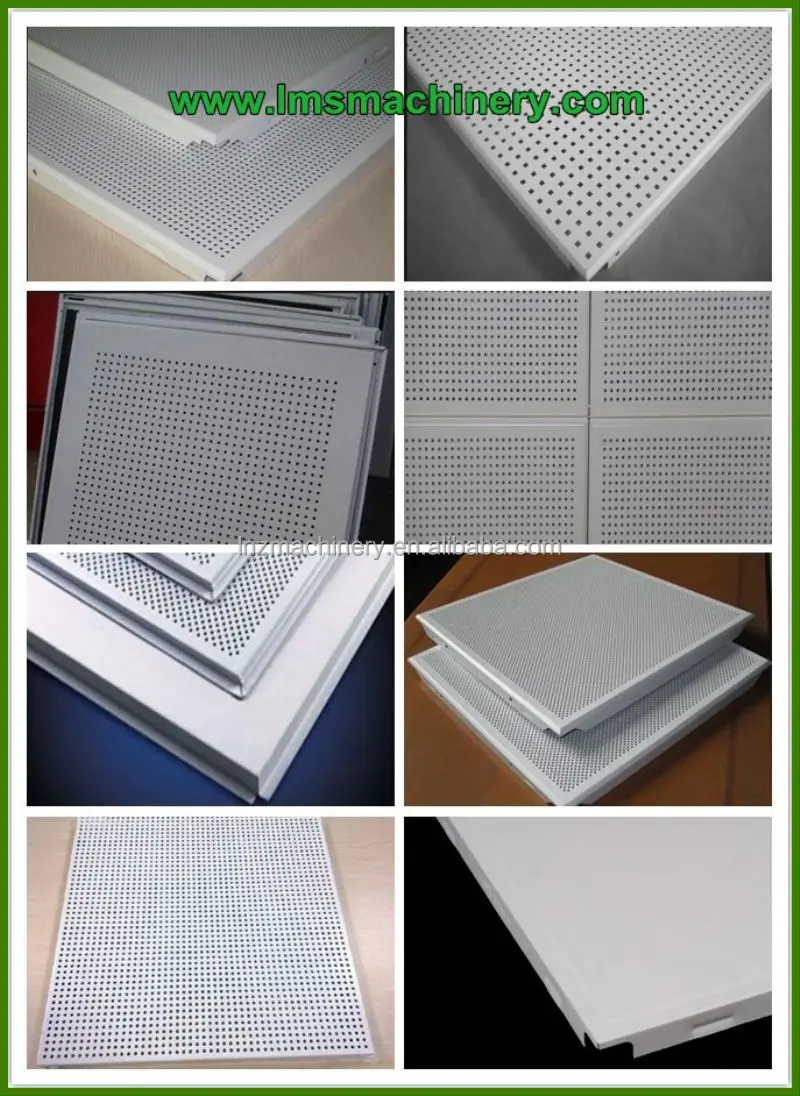

• Finished Products of Perforated ceiling tiles making machine:

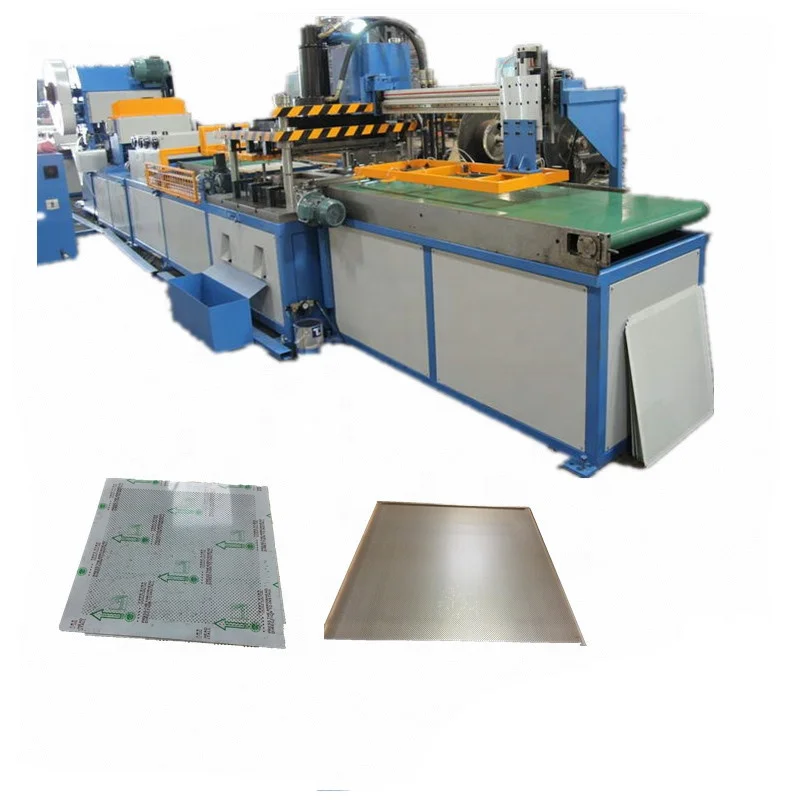

  The Whole Line of Perforated ceiling tiles making machine:





   Work Flow of  Perforated ceiling tiles making machine:







  Main Specification of Perforated ceiling tiles making machine:



  Incoming material  :                                                      Aluminum



  Thickness of  incoming material :                               0.6mm~0.7mm



  Width of incoming material :                                       According to the actual use



  Ceiling size :                                                                 600 x 600 mm



  With perforation :                                                            φ 1.8 mm, 2.5mm



  Speed :                                                                          3-4 piece /min



  Composition of Perforated ceiling tiles making machine :
  1. Hydraulic decoiler
  2. Leveling 1#
  3. Servo feeder
  4. Perforation power press
  5. Hydraulic cut-off
  6. Sheet conveyor 1#
  7. Leveling 2#
  8. Sheet conveyor 2#
  9. PLC controller with servo system
  10. Hydraulic system



  Main parameters of Perforated ceiling tiles making machine:

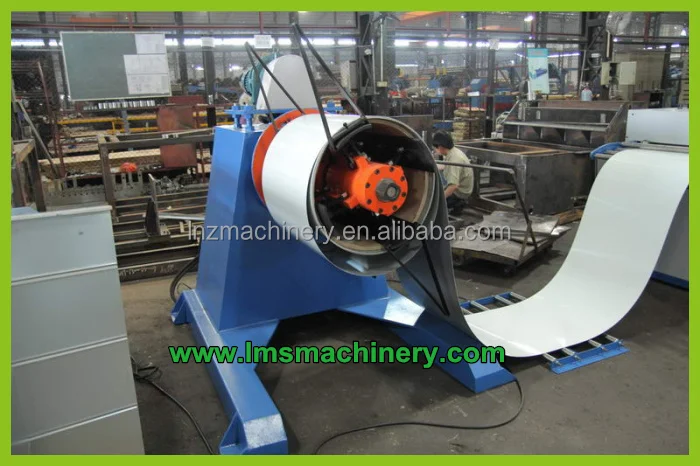

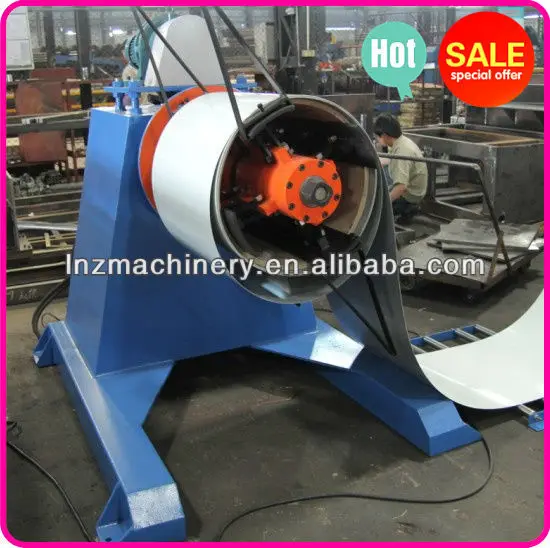

  1. Hydraulic decoiler of Perforated ceiling tiles making machine:

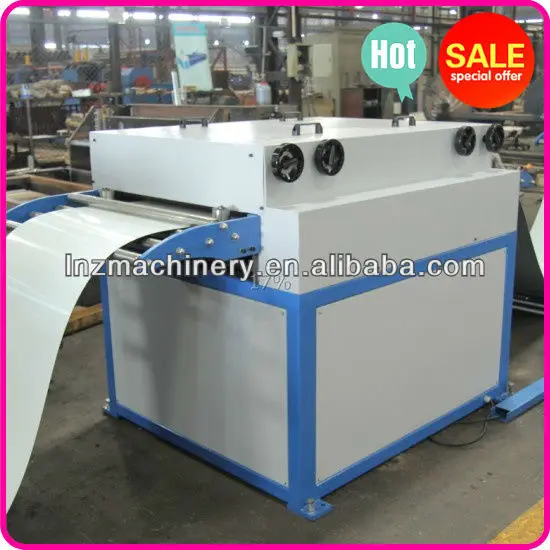

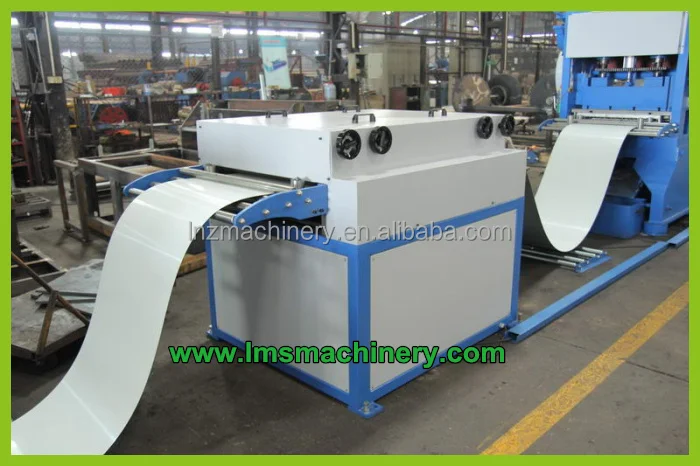

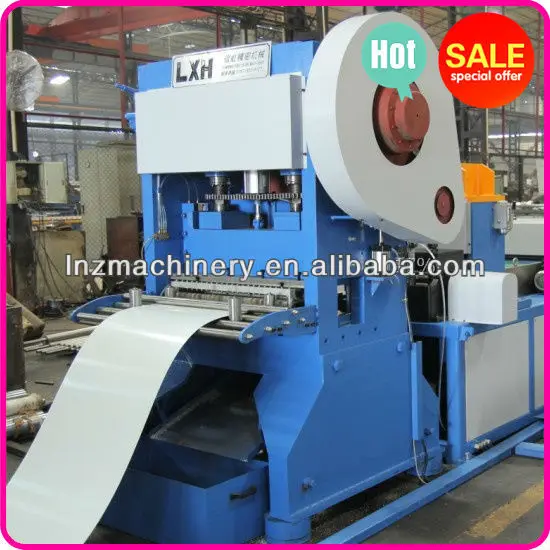

  2. First time leveling device of Perforated ceiling tiles making machine:

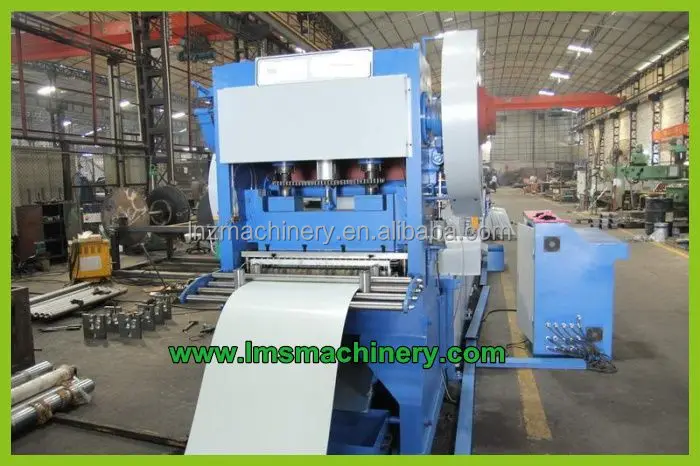

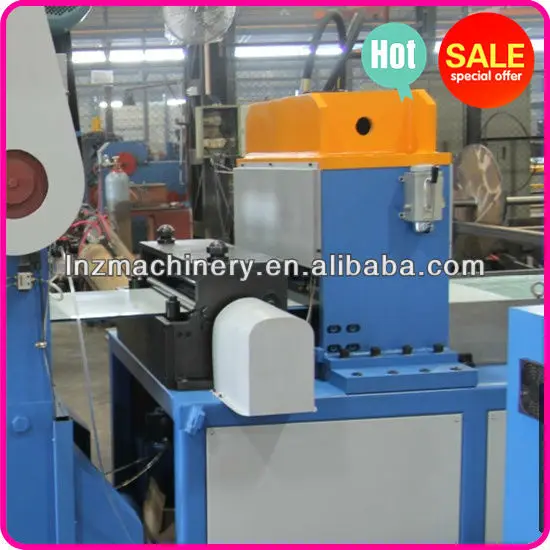

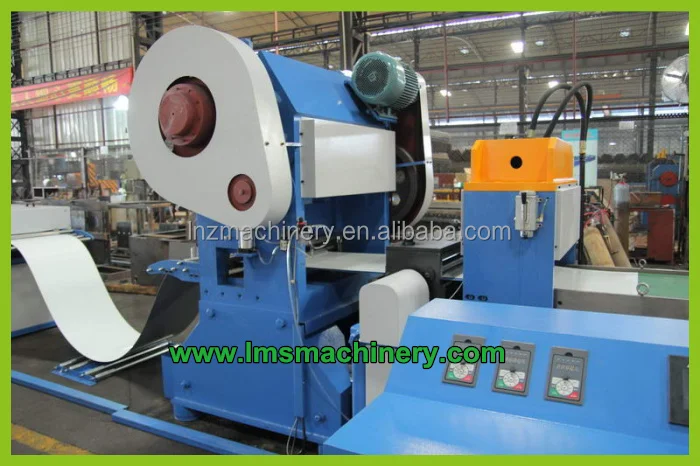

  3. Servo motor material feeding device and High speed punching machine

      of Perforated ceiling tiles making machine:





  5. Hydrulic Cut-off device of Perforated ceiling tiles making machine:

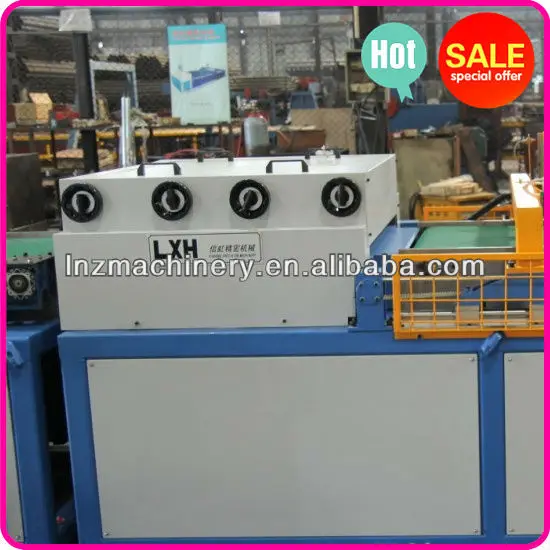

  6. Second-time Leveling of Perforated ceiling tiles making machine:

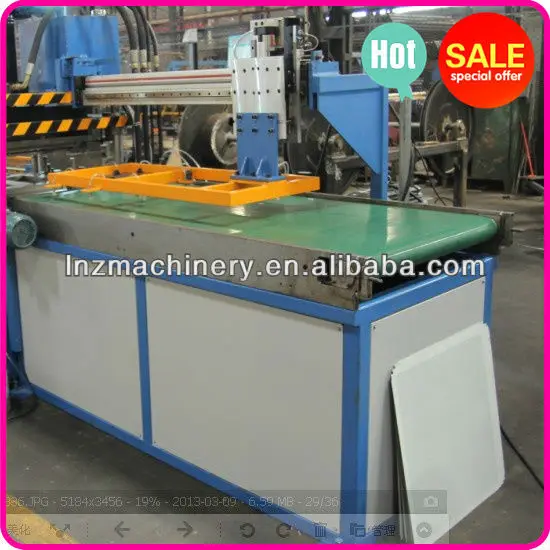

  7. Conveying Belt of Perforated ceiling tiles making machine:





  8. Micro-Perforation of Perforated ceiling tiles making machine:

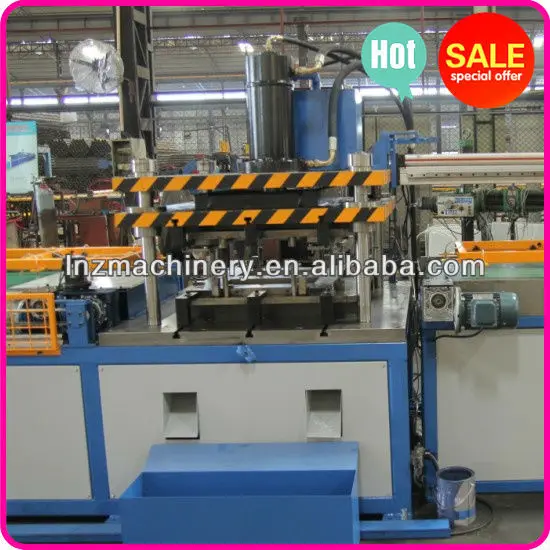

  9. Panel Forming of Perforated ceiling tiles making machine:

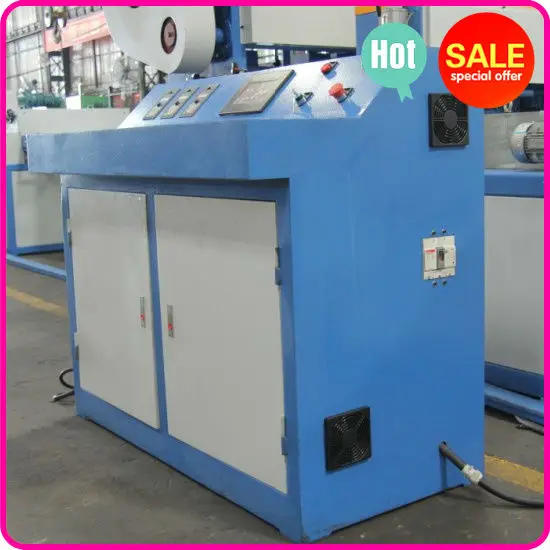

  10. PLC Control System of
