20 Channel Medical Portable EEG Machine, Wireless EEG System
Model: MC-7128W-C20
Product Description
What is the feature of our portable eeg machine?
- 20 channel ambulatory EEG
- Wireless
- Channel: 19 ch EEG + 1 ch ECG;
- Event button to mark patient's epilepsy seizure;
- Plug and play single electrode (DIN interface).
What is the specification of our eeg machine?
Input channels: | 20 (19 Monopolar EEG and 1 Bipolar ECG) |
Power supply: | 4x 6V AA batteries, rechargeable batteries or external rechargeable lithium batteries; |
Continuous Monitoring Time: | up to 72 hours with 4 AA batteries; |
Internal memory: | Built-in Flash memory card (2GB); |
Connection to PC: | Wireless for real-time data transmission; USB (2.0) for data uploading from Flash memory card. |
Operation Modes: | Real-time; LTM (Long Term Monitoring) |
A/D conversion: | 16 bit |
Sampling Rate: | 128Hz, 256Hz, 512Hz |
Input impedance: | ≥10MOhm |
CMRR: | ≥100dB; |
Noise: | ≤0.5uVRMS; |
Low-pass filter: | 1~60Hz arbitrary |
Amplitude-frequency characteristic: | 0.5~60Hz |
High-pass filter: | 0.01s, 0.02s, 0.03s, 0.1s, 0.2s, 0.3s, 1s, 2s, 3s (16Hz, 8Hz, 5.3Hz, 1.6Hz, 0.8Hz, 0.5Hz, 0.16Hz, 0.08Hz, 0.05Hz) |
Interface: | USB2.0 (USB1.1), interface transfer rate: 480Mb (/12Mb) /s; |
Dimension & Weight: | 130*89*40(mm); 250g (Amplifier only) |

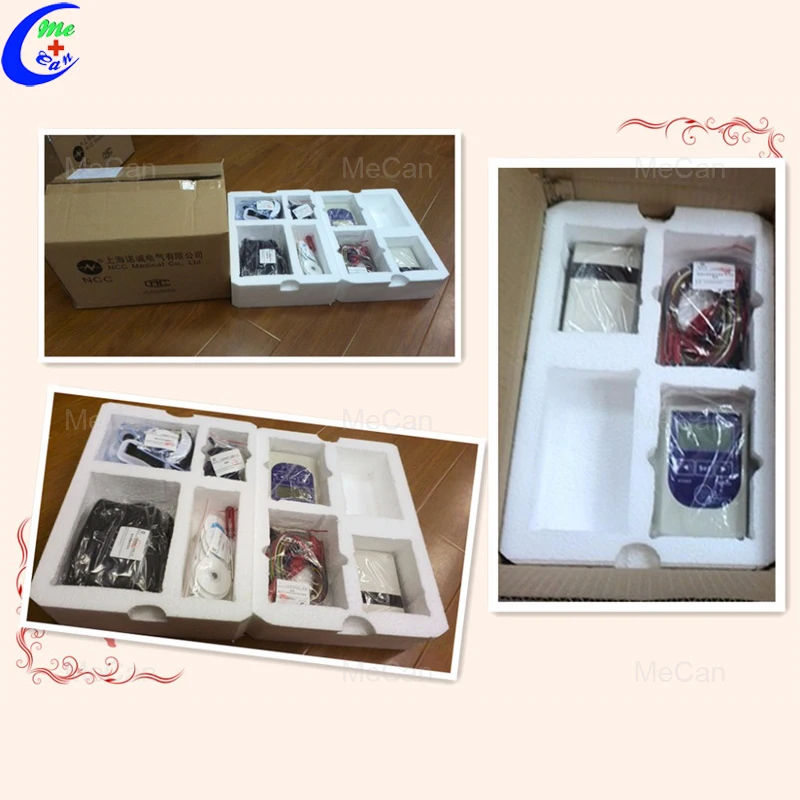

Standard configuration:
1.Amplifier (Type-C)
Type C Ambulatory EEG Amplifier (20 channles)
Electrode Cable Slot

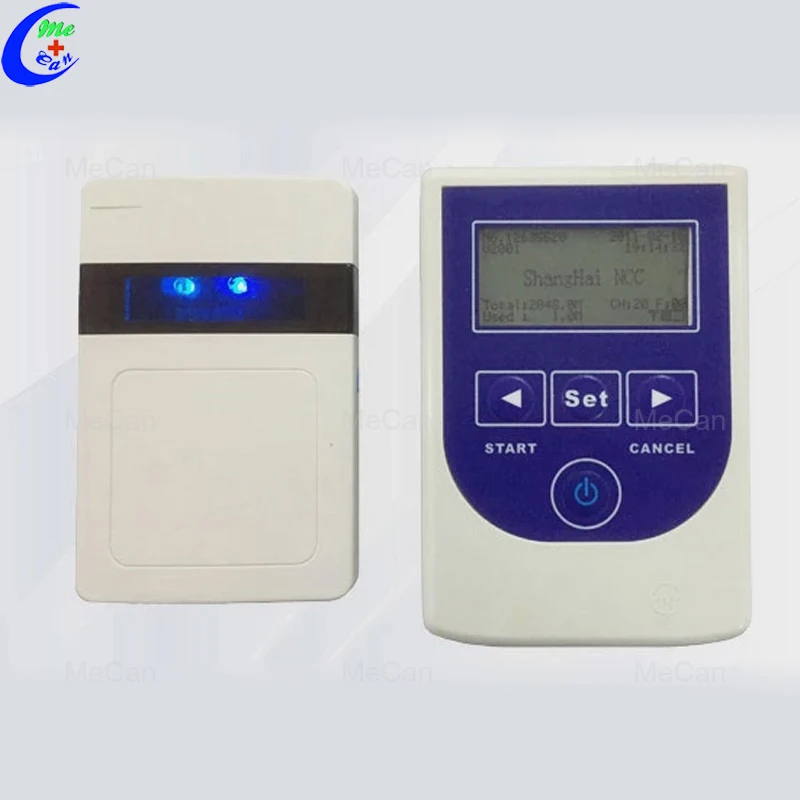

Wireless receiver
Amplifier bag
2.Electrodes
Single cup electrode cable ( DIN interface;22 pcs/set)
Single bracket electrode cable (DIN interface;22 pcs/set)
Single ECG electrode cable (DIN interface)
USB cable (AA interface)
Scarf
USB data cable
Cross screwdriver (small)

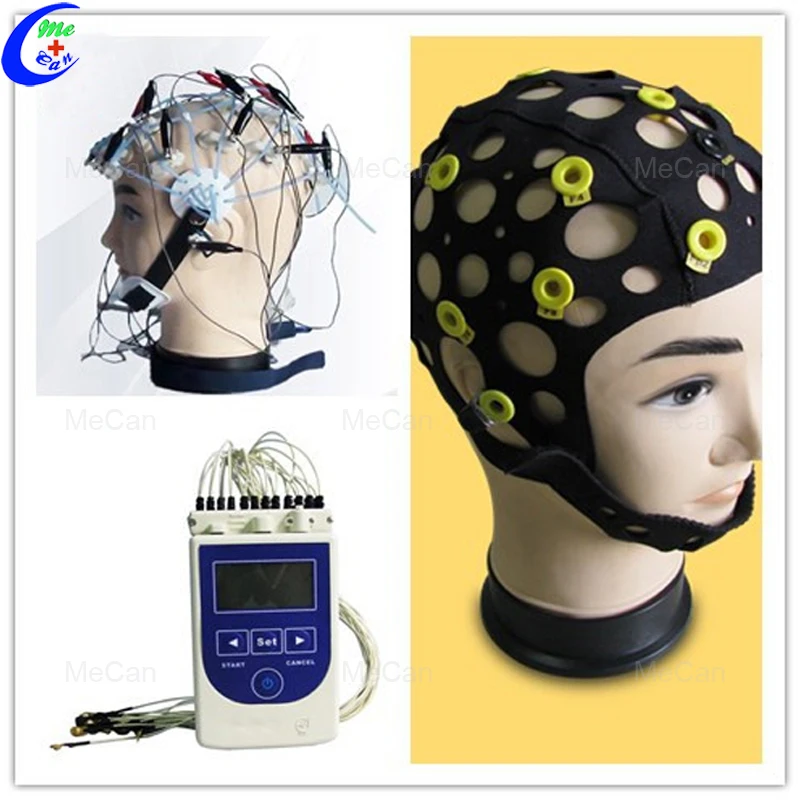

Net cap
Bracket Silver Electrode
Silver Ear Electrode
General bracket electrode cap
Pre-gelled electrode pad(ECG)
3.Software

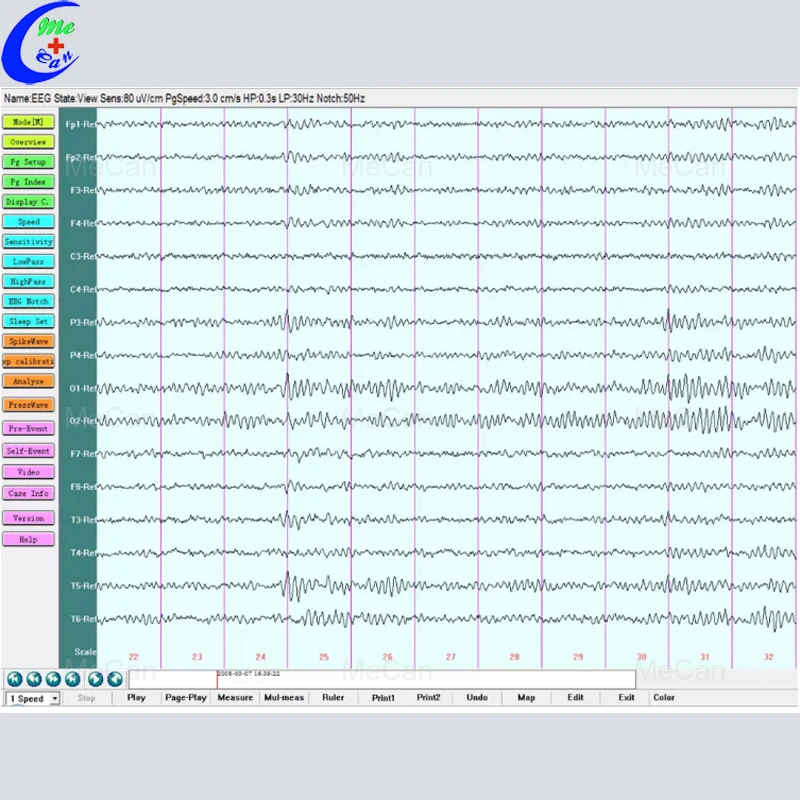

EEG Acquisition and Analysis software(English Version)
Optional configuration
- Video System
- Trolley(NS)
- Pentagonal stand
- Photic stimulator
- EEG Cap and others
