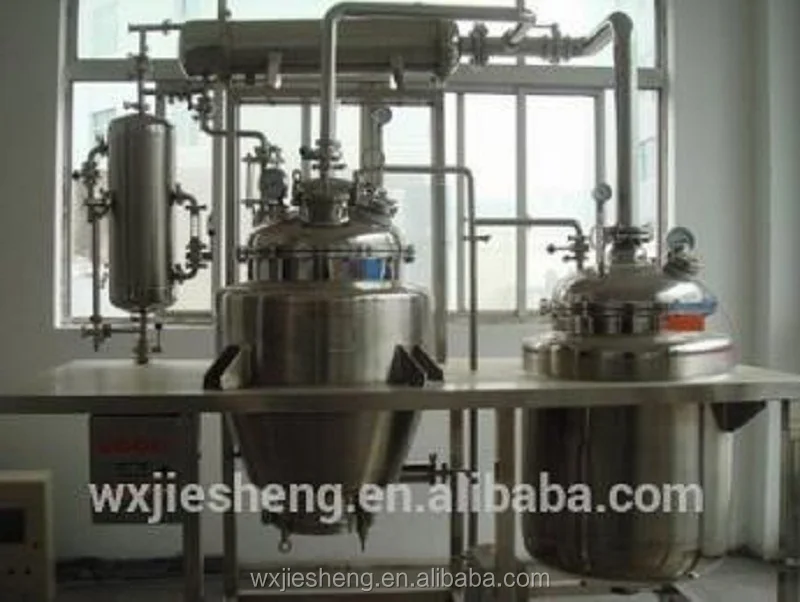

Многофункциональный экстрактор эфирного масла из нержавеющей стали 2017
- Категория товара: Extractor >>>
- Поставщик (Оптовый магазин): Wuxi,Jiesheng,Environment,Chemical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
2017 stainless steel multifunction essential oil extractor
Product Description
Applications:
This multifunction extractor can be used in herb, plant, pharmaceuticals, food and chemical industry, water decoction, atmospheric wet leaching, heat reflux forced circulation, penetration, plant essential oils and aromatic oil extraction and organic solvent recycle in atmospheric pressure and micro pressure.
The multifunction extractor is suitable for colleges and universities, research institutes, laboratories, pharmaceutical factory etc. multi variety material and small batch production.
Working principle:

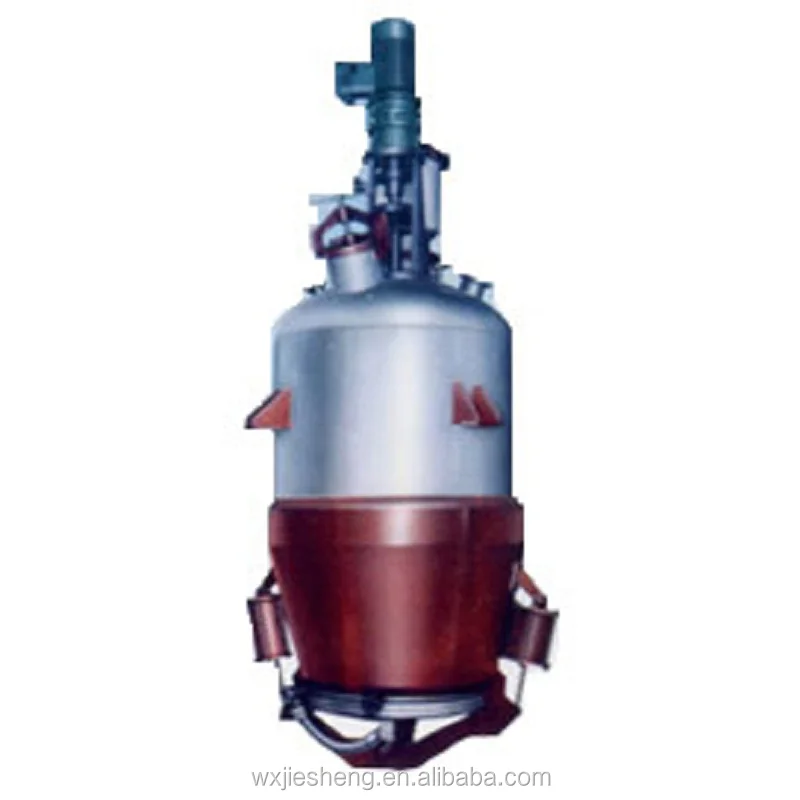

Extracting principle: when extracting, the tank heated indirectly with heat conducting oil in jacket, set the extracting tank material temperature and boiler temperature. The stirring speed is adjustable. The steam generated in the tank enter condenser and after condensation, back to oil-water separator, water liquid reflux to extraction tank, oil discharge through the optic cup from the discharge port, such cycle until the termination of extraction. After extraction, the extracting solution through the pump into the pipeline filter, clear liquid into the concentration tank.
Features:
1. This multifunction extractor is high efficiency, is the latest developed small dynamic extraction tank, saving raw material and working time is 10%~15% higher than the general extraction tank.
2. Raw material conversion rate is high, in the process of extraction hot solvent (water or alcohol etc.) continuously added to the raw material medicine, effective components from the material continuous dissolution from top to bottom, make the effective components in original liquid twice as general extraction tank.
3. The extraction unit use paddle stirring, make large volume herb can fully exposed to solvents, accelerate the precipitation of effective components in the raw materials.
4. This dynamic extractor has large aperture manhole or hand hole, convenient for taking herb dregs, and has filter system, prevent fine dregs to flow to the concentration unit.
5. The extractor has compact structure, small occupation area, the actual area about 2 m2, convenient to operate.
6. This extractor is not limited by herb components polar and molecular size, suitable for most herb materials. Adopts full closed inner circulation structure, has oil-water separator, condenser and cooler, can extract aromatic oil and vegetable essential oil at high efficiency.
| Model | TQ-0.5 | TQ-1.0 | TQ-2.0 | TQ-3.0 | TQ-6.0 |
| Full volume(L) | 500 | 1200 | 2500 | 1200 | 1200 |
| Design pressure in inner shell(Mpa) | 0.09 | ||||
| Design pressure in jacket(Mpa) | 0.3 | ||||
| Vacuum degree(Mpa) | -0.095 | ||||
| Comoressed air pressure(Mpa) | 0.6-0.7 | ||||
| Inclined door diameter(mm) | 300 | 300 | 400 | 300 | 300 |
| Heating area(m2) | 2.4 | 3.1 | 4.2 | 3.1 | 3.0 |
| Condensation area(m2) | 3 | 5 | 5 | 5 | 5 |
| Cooling area(m2) | 1 | 1 | 1 | 1 | 1 |
| Filter area(m2) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Weight(kg) | 1000 | 1500 | 1800 | 1500 | 1500 |
| Dimension(mm) | φ1400×φ2300 | φ1700×φ2900 | φ1800×φ3700 | φ1700×φ2900 | φ1700×φ2900 |
Related product
Packaging & Shipping
1. Wooden case packing if necessary.
2. Packed by plastic bags if for Very big machines.
3. Trade term: FOB or CIF.
4. Sea shipping.
FAQ
About Delivery time
A-----Usually we send the shipments in FOB term. However, the CIF are also acceptable which decided by the clients.
About Lead Time
A------Usually it takes about 15-20 days after we received your PO and prepayment.
However, it would depend on our production line schedule and the complexity of the item.
About Payment Term
A------By T/T in advance, or irrevocable L/C at Sight.
A------Usually it takes about 15-20 days after we received your PO and prepayment.
However, it would depend on our production line schedule and the complexity of the item.
About Payment Term
A------By T/T in advance, or irrevocable L/C at Sight.
Equipments can be customized, leave us an inquiry to know more details about price, packing and shipping. ice, packing and shipping.

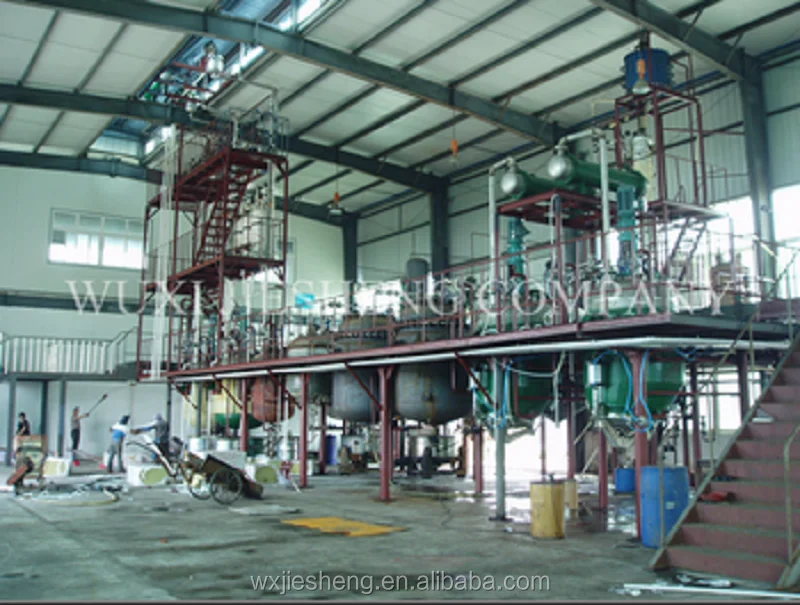

Company Information
Wuxi Jiesheng Environment Chemical Equipment Co., Ltd.
1. Have devoted to design and delvelop essential oil extractor since 1990s
2. Fast delivery. 20 working days / 40' feet container.
3. A comprehensive enterprise integrated the R&D, manufacturing, sales, installation, testing.
4. 20 year experience, ISO9001 certified workshop.
5. Powerful technical strength, complete production equipment, advanced manufacturing technology and perfect inspection methods,
6. Main Products
Complete chemical equipment (evaporator and concentrator, reactor, heat exchanger, seed tank, extraction tank, dryer and mixer, storage tank, drum flaker, finned tube radiator etc.)
Complete evaporation and concentration production line for food and pharmaceutical
Generator cooler (oil cooler) for electric power industry
Methanol and ethanol (alcohol) distillation column and various kinds of chemical packing
Complete daily chemical equipment for cosmetics, laundry detergent, hand sanitizer,
7. Exported to countries and regions in America, Brazil, Indonesia, Malaysia, Bangladesh, Singapore, Egypt, Vietnam, Iran, Russia, Kyrgyzstan, Kazakhstan, England, Belarus, Thailand, Peru, Ukraine
Our Services
Quality assurance: All the products will go through the detailed quality inspection during production.
Manufacturer's price: Factory direct sale, competitive price.
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced staffs to answer all of your enquires in fluent English.
3. OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
4. Good after-sale service offered, please get back if you got question.
5. Protection of your sales area, design drawing and all your private information.
Click here to see more products.
If any help we can do for you, please contact us anytime.
Contact person: Jason Xu
Email: jason.xu@ hiya.com.cn
Mobile/ WhatsApp: +8613665103611
