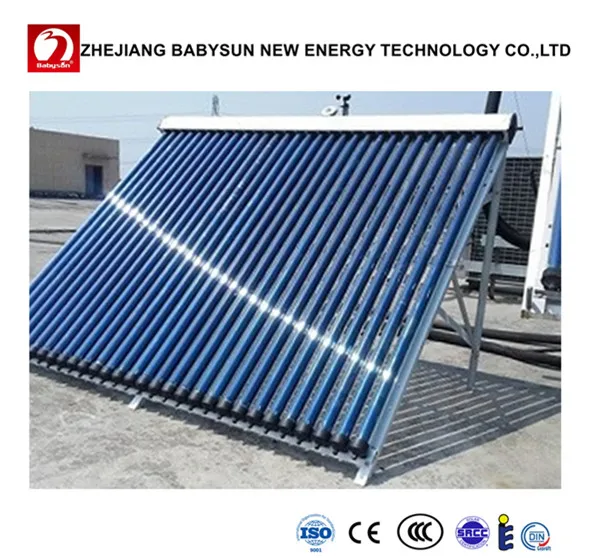

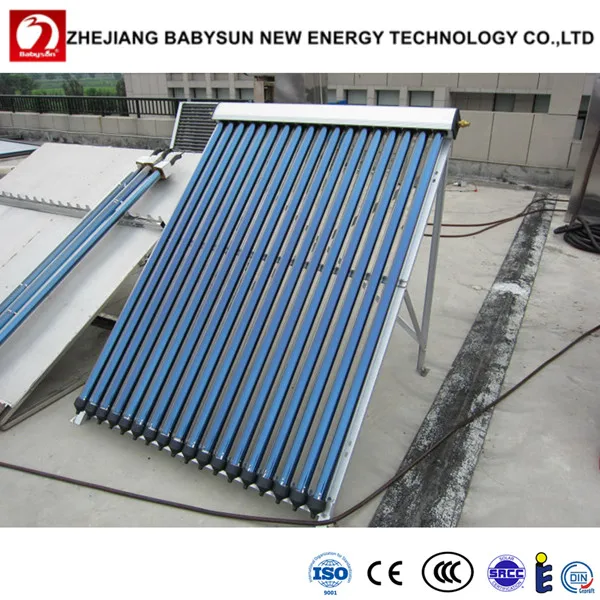

Солнечные коллекторы под давлением Солнечная тепловая труба colector 10

Heat Pipe

Solar Collector

Manifold

Copper pipe header, rock wool & PU insulation, aluminum casing

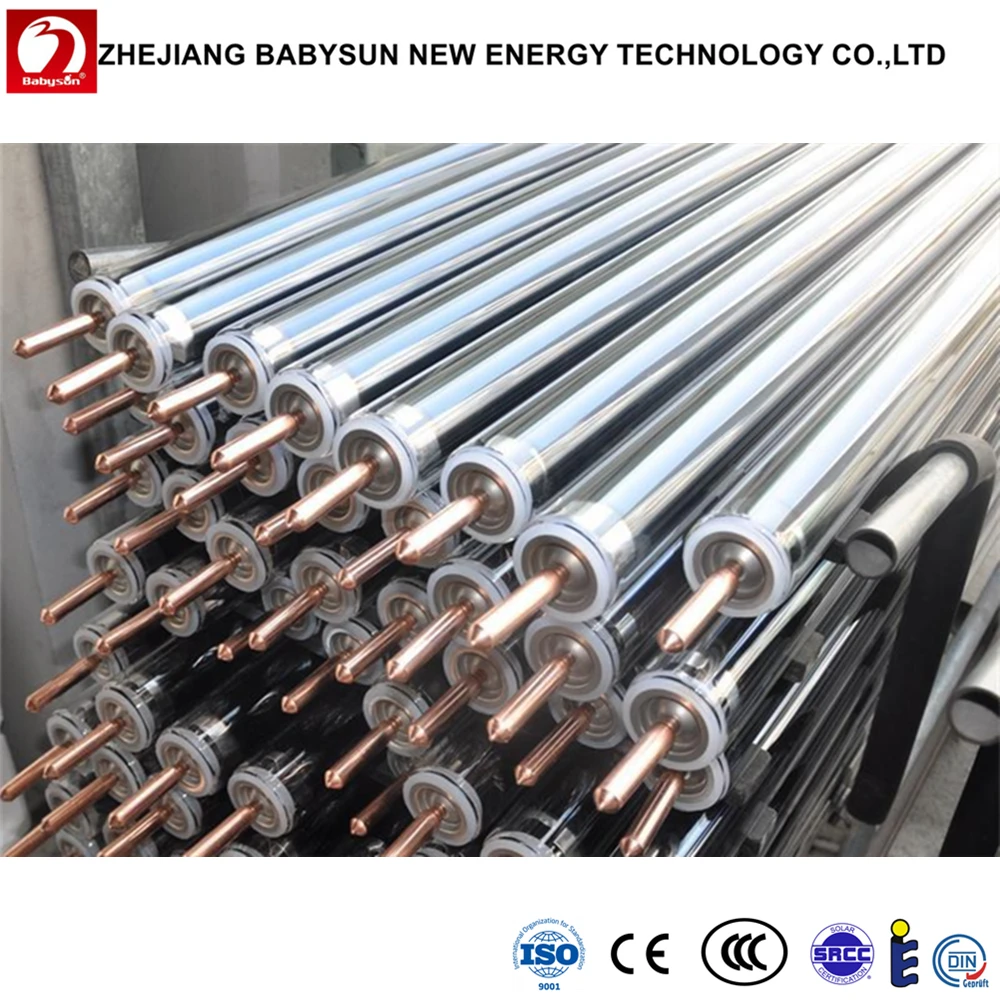

Heat Pipe

Vacuum Tube

High borosilicate 3.3 glass with three-target (CU/SS-ALN(H)/SS-ALN(L)/ALN) coating, 58*1800mm, glass thickness 1.6mm±0.15mm

TU1 red copper pipe 14/24MM condenser

Bracket

Anodized strong aluminum alloy designed for slope&flat roof

Pressurized

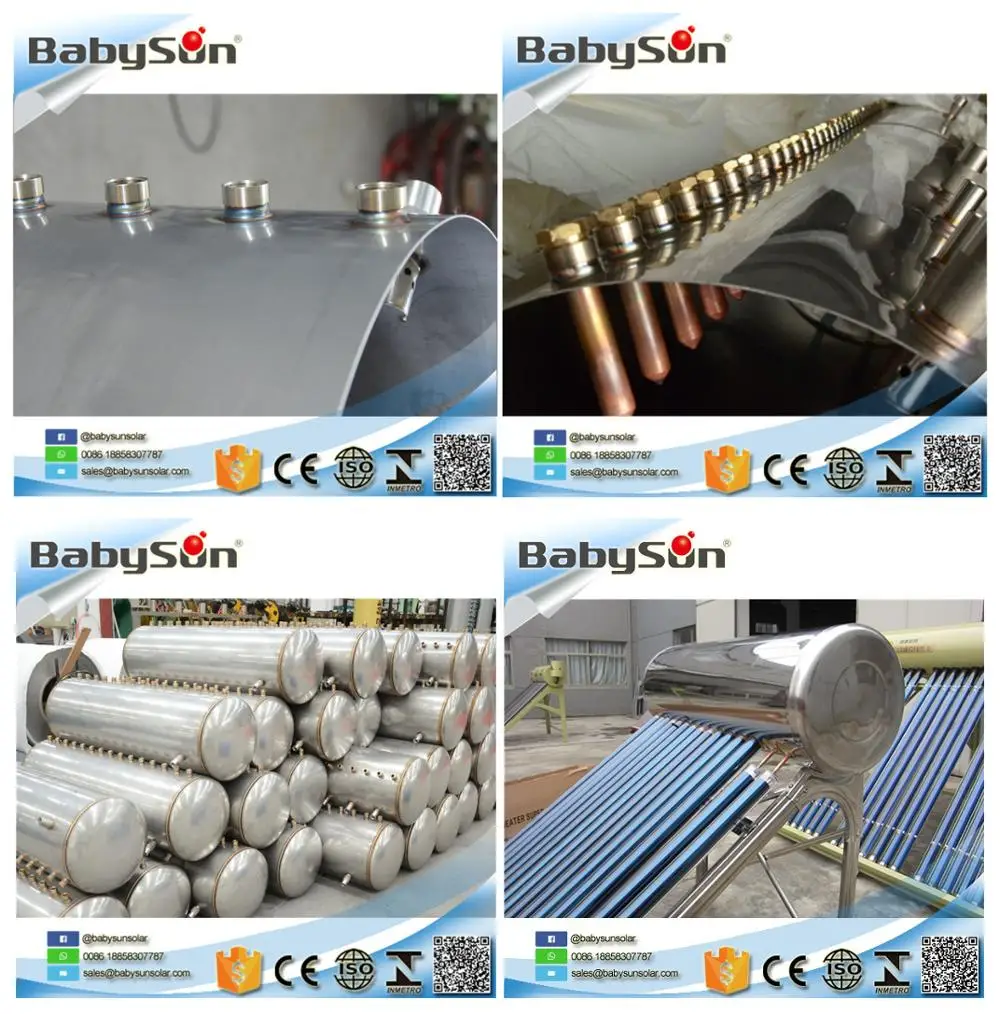

Water Tank

Inner Tank

Food-grade stainless steel SUS304-2B/SUS316, 1.2mm

Outer Tank

Painted steel(Galvanized steel)/Stainless steel, 0.4mm

Insulation

High-density polyurethane foam

Exchanger

Copper/Stainless coil firmly fixed in storage tank

Accessories

Electrical heater, magnesium anode, T/P valve, check valve

 Working Station

Including solar controller, circulation pump, expansion tank, safety valves & fittings

Anti-freezing

- 40 °C

Working Pressure

6.0 Bar

 Hail Resistance

Φ25 MM

Model

Heat Pipe

Vacuum Tube

Collector/Pcs

Tank

Liter

Container Loading

Qty/Sets

Size/MM

20GP

40HQ

BS-PC-12

Φ58*1800

12 Tube * 1 PC

100L

52

117

BS-PC-18

Φ58*1800

18 Tube * 1 PC

150L

38

89

BS-PC-24

Φ58*1800

24 Tube * 1 PC

200L

31

73

BS-PC-30

Φ58*1800

30 Tube * 1 PC

250L

26

60

BS-PC-36

Φ58*1800

18 Tube * 2 PCS

300L

21

50
