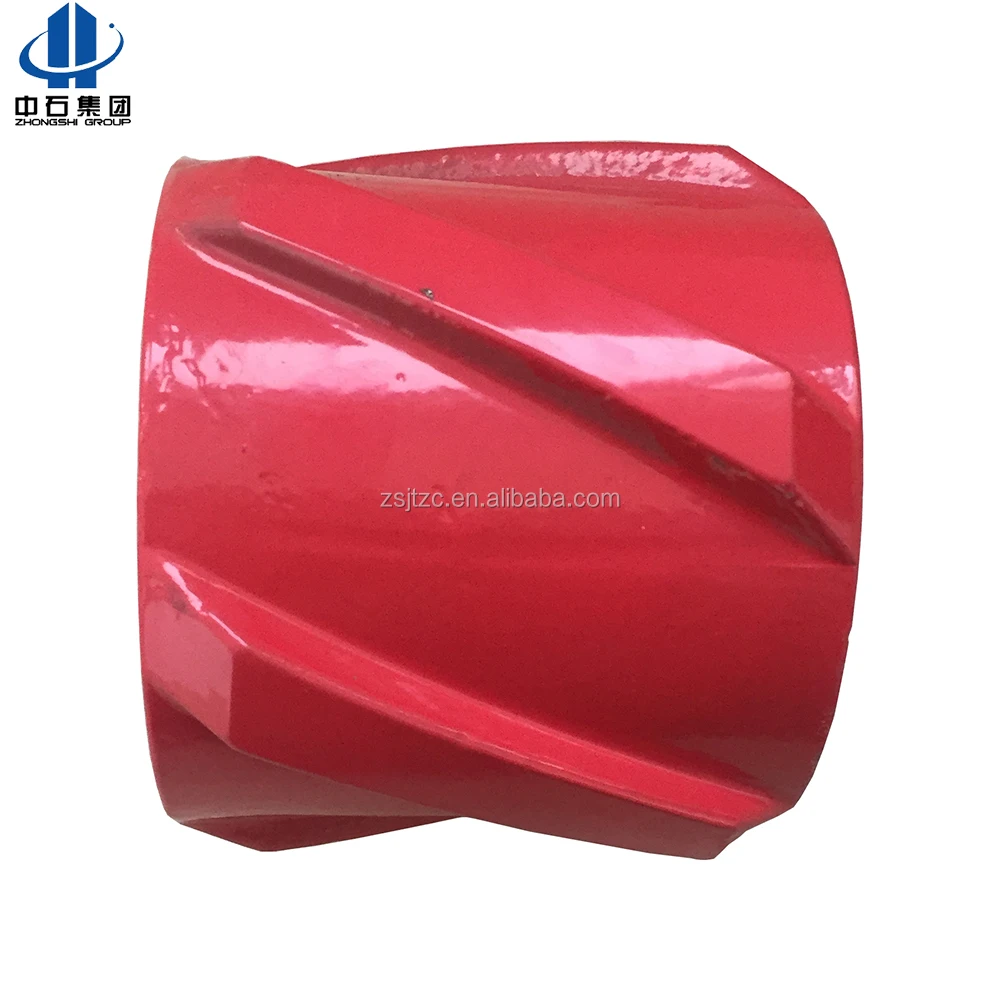

API 10D Casing Spiral Glider Rigid

Категория товара: Центратор >>>
Поставщик (Оптовый магазин): Puyang,Zhongshi,Group,Co.,Ltd.Puyang,Ltd.

Цена:19,00-20,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Product Description

Product Application

API 10D casing spiral glider rigid centralizer are an integral part of the cementing process. They provide the mechanism that centers the casing in the hole and allows uniform cement flow around the casing to help protect it at all points. Several styles of centralizers are available for matching different well specifications and hole sizes, including turbulence generating designs that help clean the annulus and distribute the cement more evenly and uniformly. All models offer ample clearance for fluid passage and are extra effective in centering the casing, even in highly deviated holes and improve cement flow by reducing the effects of channeling.

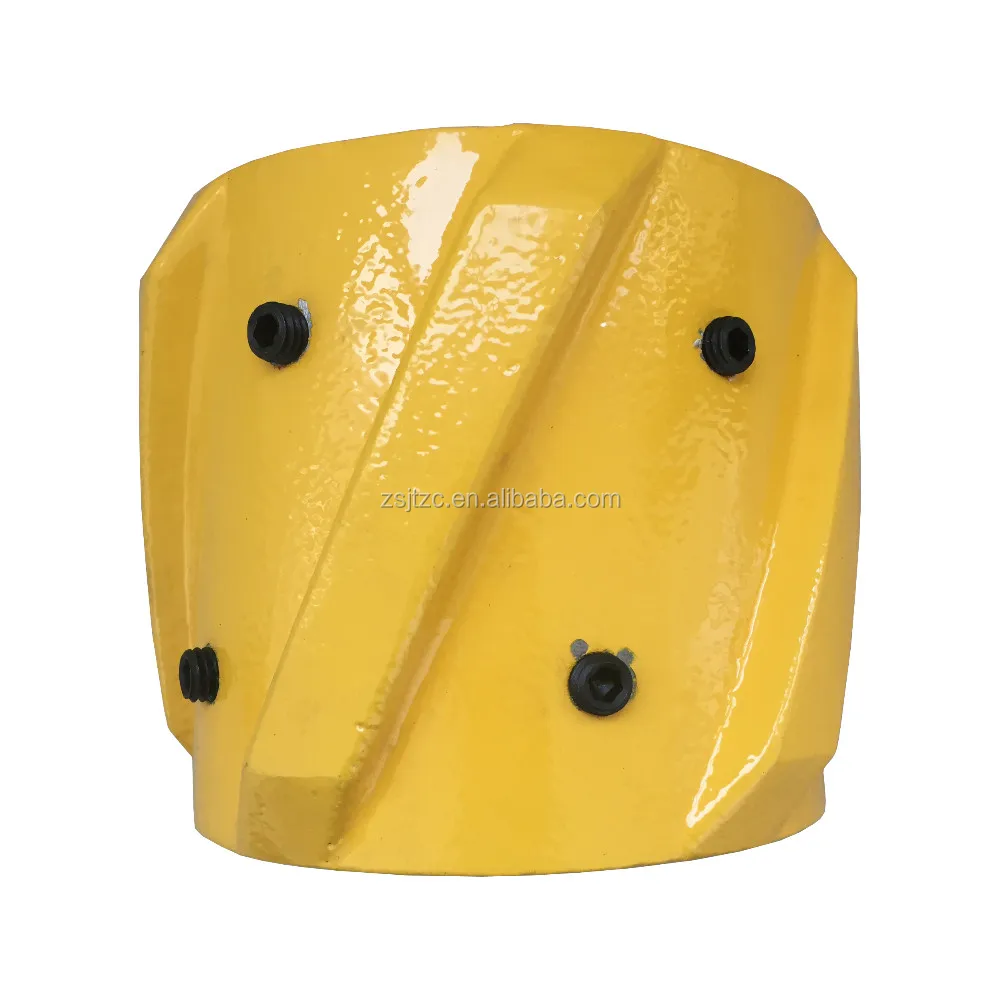

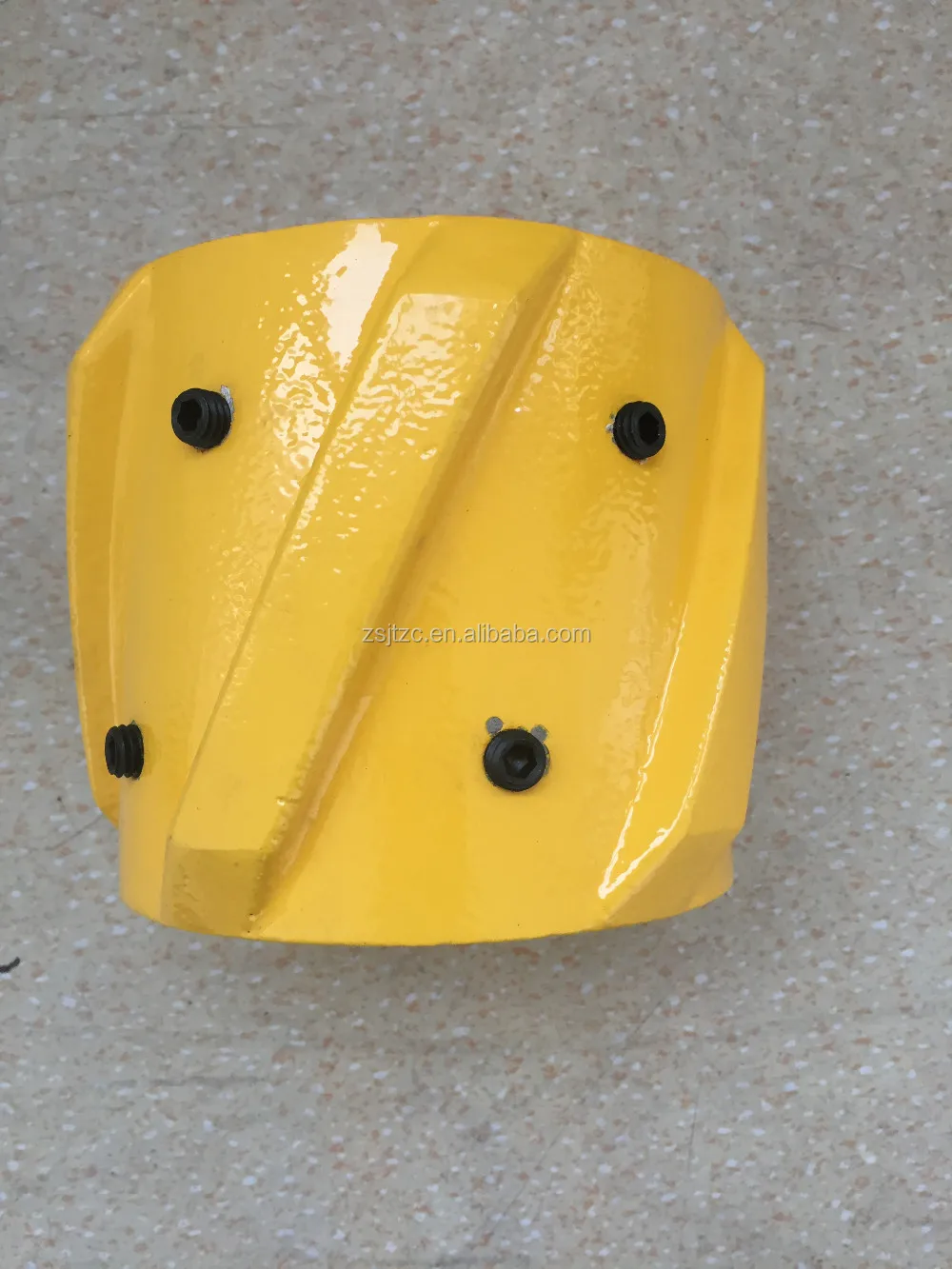

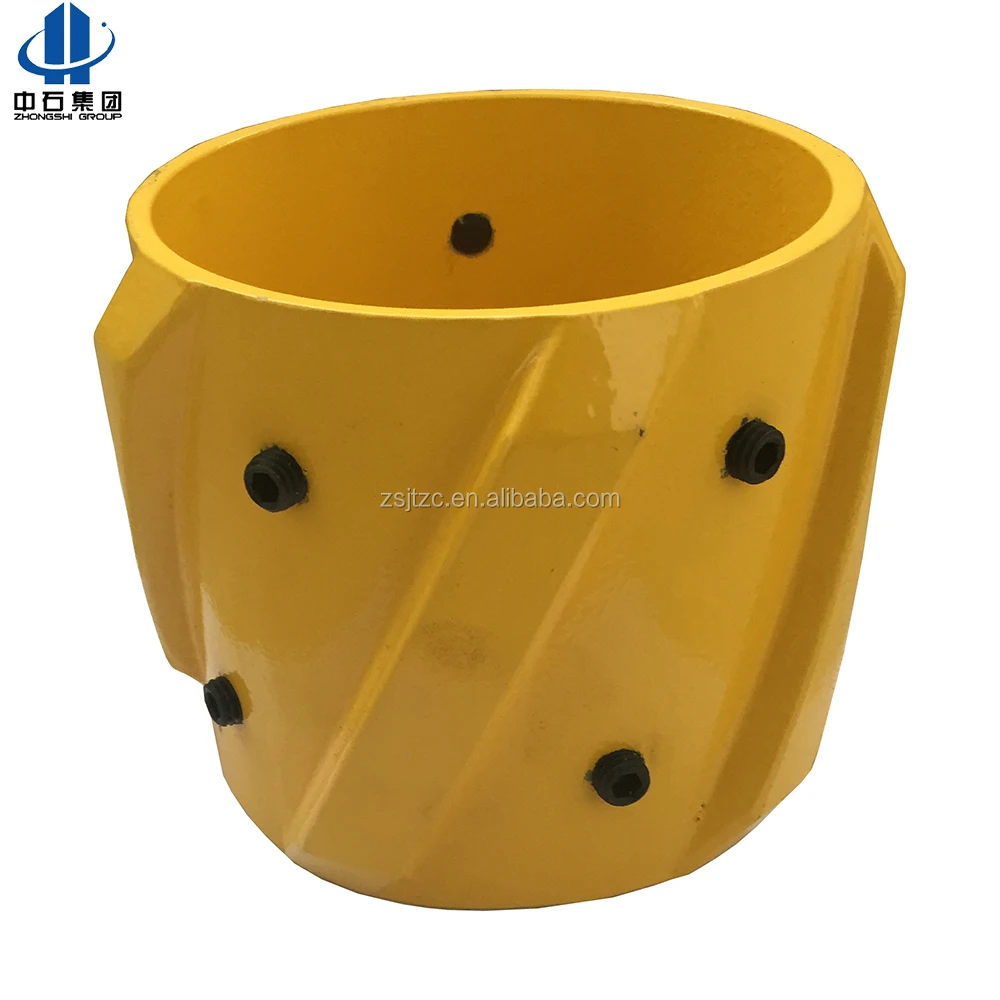

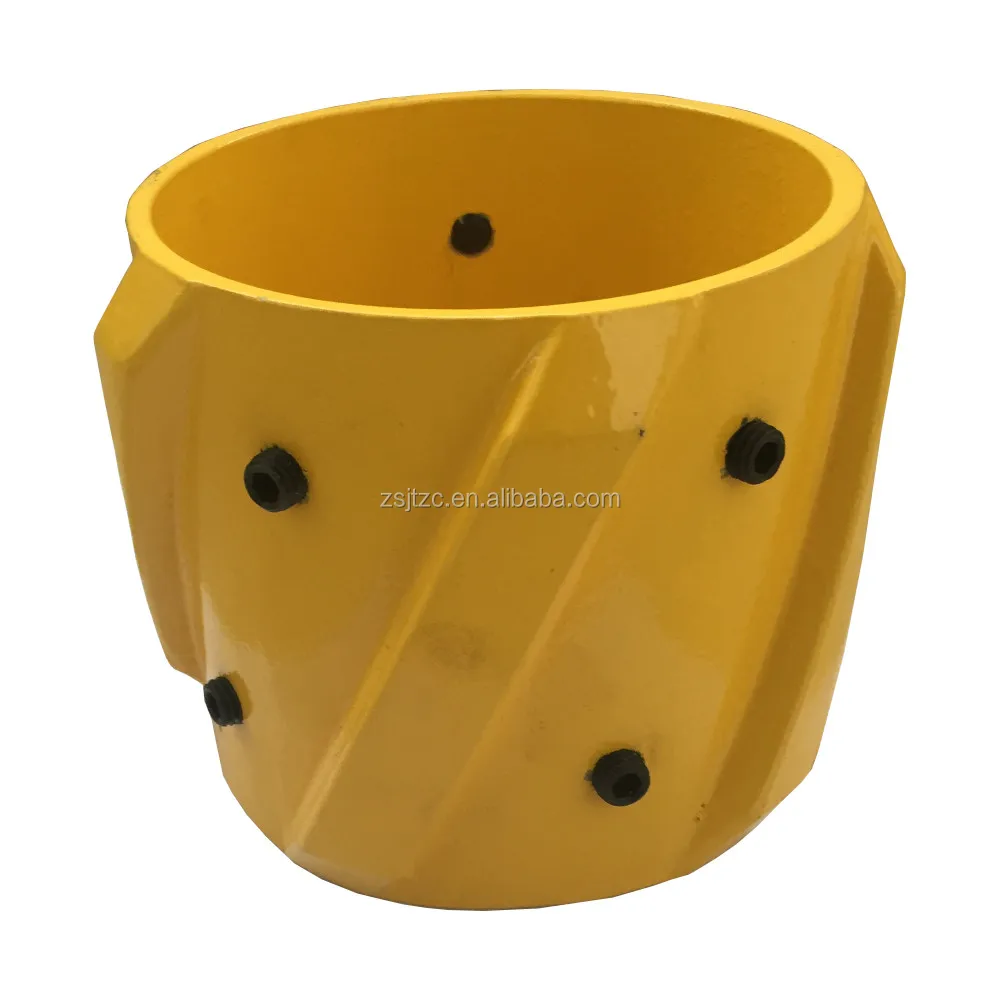

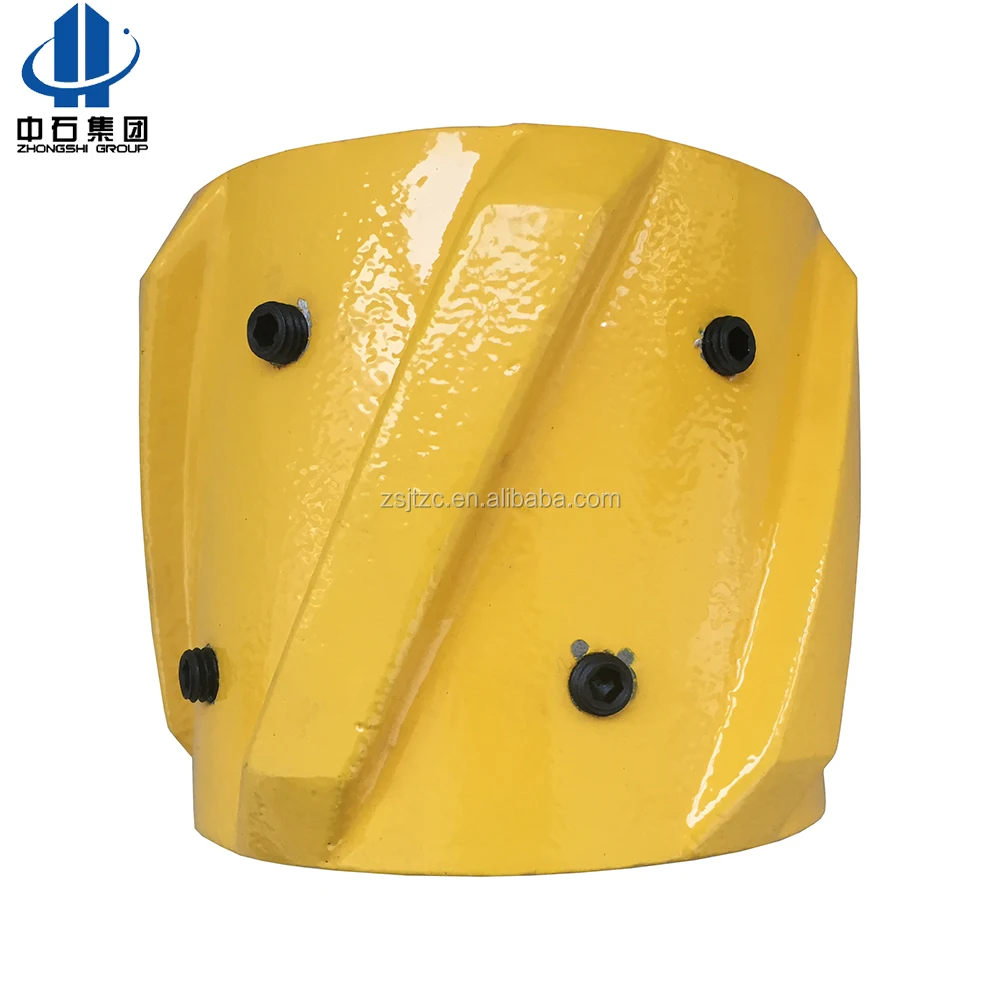

API 10D casing spiral glider rigid centralizerconsists of a rigid body, on which machined five spiral blades. There are three or four modified alloy steel, fully heat treated rollers fixed on every spiral blades. The assembly is shown as following fig. Because of rigid body and rolling friction between the rollers and inside of well or casing, the capability of the API 10D casing spiral glider rigid centralizer is better than others of all. Recommend to use the tool in deviated holes and horizontal holes.

\t THE SPECIFICATION FOR THE RIGID ROLLER CASING CENTRALIZER
\t Type	\t Casing centralizer (mm/inch)	\t Min Hole (mm/inch)	\t I.D. (mm/inch)	\t O.D. (mm/inch)	\t OAL (mm/inch)
\t PYR5	\t 139.7(5-1/2)	\t 215.9(8-1/2)	\t 143(5-5/8)	\t 211(8-5/16)	\t 260(10-1/4)
\t PYR7	\t 177.8(7)	\t 215.9(8-1/2)	\t 181(7-1/8)	\t 213.4(8-13/32)	\t 260(10-1/4)
\t PYR9	\t 244.5(9-5/8)	\t 311.15(12-1/4)	\t 247.5(9-11/16)	\t 305.4(12-1/64)	\t 260(10-1/4)
\t PYR13	\t 339.7(13-3/8)	\t 406.4(16)	\t 344(13-35/64)	\t 402(15-53/64)	\t 260(10-1/4)

Main Features

1. Spiral blades increase annular turbulence.

2. With the shape of stream-lined, it enables casing run easily in wellbore.

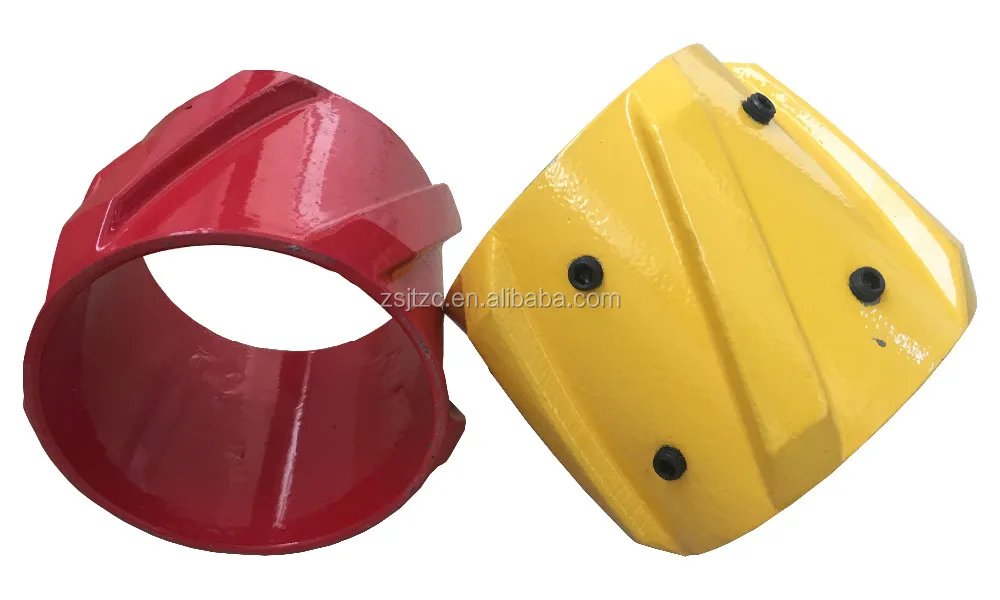

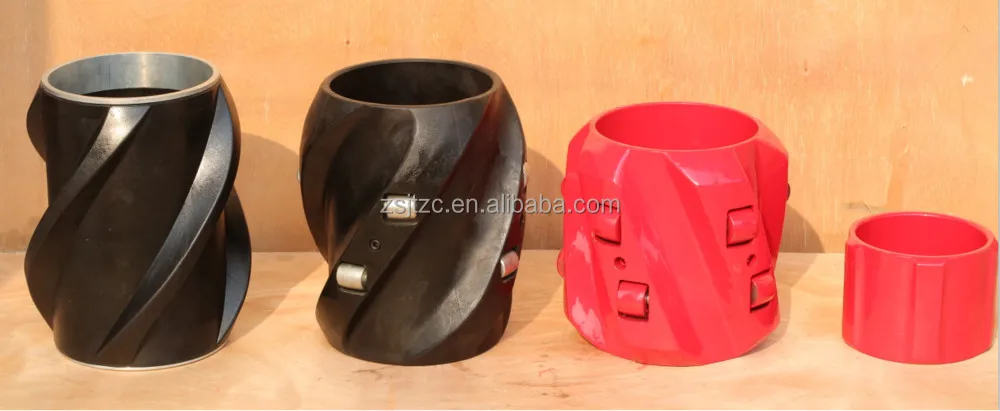

3. Both straight blade and spiral blade are available.

Certifications

Detailed Images

Our Service

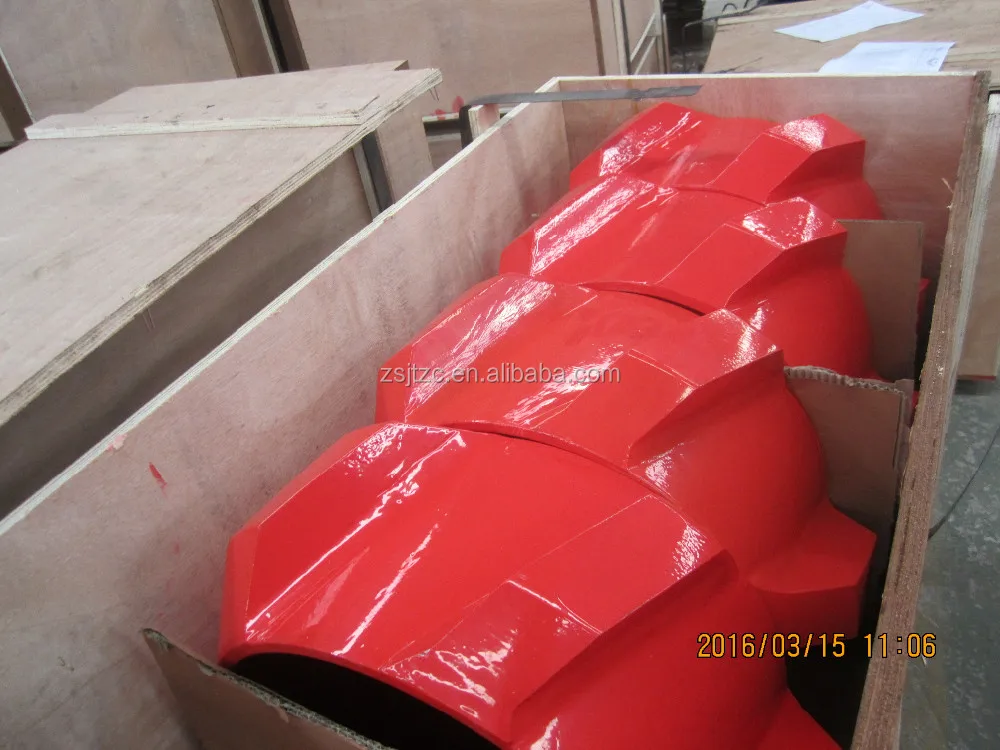

Packing & Delivery

\t Packaging
\t Size	\t 800mm(L) * 880mm (W) * 500mm (D)
\t Weight	\t 1.2T
\t Packaging Details	\t Total 250 Sets top wire casing rigid roller centralizer/Package Fumigation wooden box packing

Company Information

The predecessor of Henan Puyang Zhongshi Group Co. Ltd, was the 5th Machine Repairing Factory of Puyang Zhongyuan Oil field, Sinopec Corp. In 1997, after being restructured according to the modern corporate system, the factory was named Puyang Zhongshi Group Co.,Ltd.

With registered capital of 60,840,000 yuan, Puyang Zhongshi Group is composed of 9 subsidiaries, including 8 manufacturers and 1 trade company. Zhongshi Group covers an area of 200,000 sq.m, including workshop area of 50,000 sq.m. Various kinds of production equipment values 38,600,000 yuan. It has a strong mechanical processing capability.

Our leading products are pumping unit, tubing pump & sucker rod pump, cementing accessories, down-hole tools, wellhead (X-mas tree), drilling solid control series, pressure vessel ,camping house, air cannon, belt feeder and so on. They are mainly supplied to Central Asia, Southeast Asia, Africa and Middle East and many other countries.

Zhongshi Group has been the Tier One internet service provider of Sinopec. We passed ISO9001 quality management system certification and got approved to use API monograms on its oil machineries. So far, we have attained API 5CT, API 10D, API 11AX, API 11E and more are applying for.
