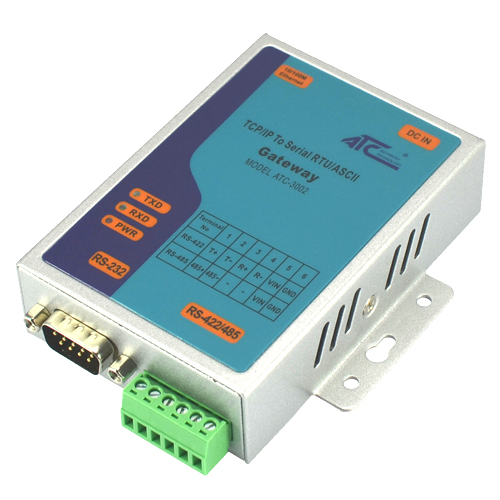

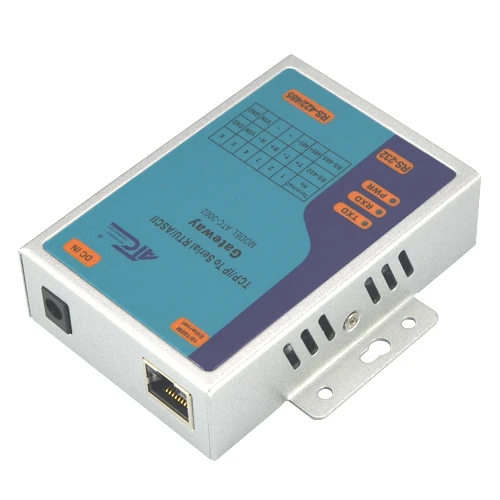

Modbus Tcp шлюз конвертер для промышленного (ATC-3002)
Modbus Tcp шлюз конвертер для промышленного (ATC-3002)
Modbus Tcp шлюз конвертер для промышленного (ATC-3002)

Modbus Tcp шлюз конвертер для промышленного (ATC-3002)

Поделиться:


Цена:103,80 $ - 105,80 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Product Features


 1.RS-232/422/485 3 in 1 interface
2. Support 10/100Mbps Ethernet port
3.Supports 4-wire and 2-wire RS-485 work mode
4.Automatic data direction control on RS-485
5.Supports 24VDC industrial power supply
6. Terminal block easily for RS-422/485 installation
7. Configure via webpage and windows utility
8. Supports virtual serial port,TCP Server/Client and UDP work mode
9. Built-in watchdog
10.CE, RoHS and FCC Certifications



Product Description

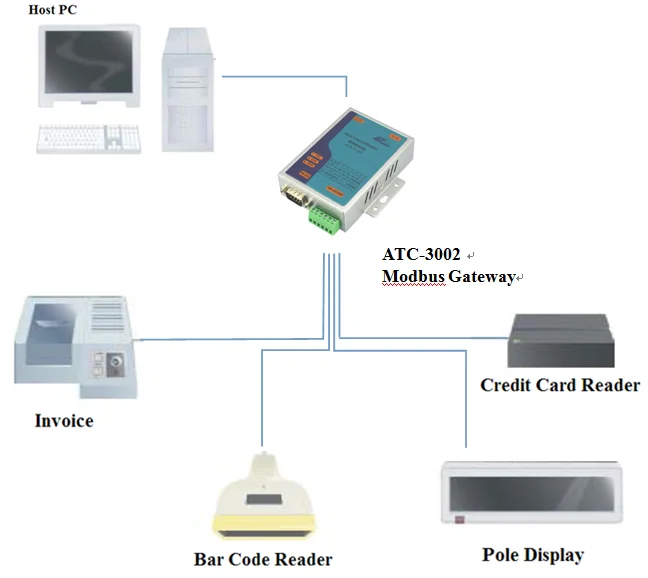

     Modbus is an industry adopted communication protocol that is based on RTU, ASCII, and TCP protocols for various of applications; these three protocols are commonly used by a lot of equipments in the industry, such as DCS, PLC, HMI, power meters, various sensors and measuring instruments. ATC-3002 series supports the standard Modbus protocol and is capable of converting the Modbus protocols between Modbus RTU/ASCII (Master) to Modbus TCP (Slave). It’s asimple and cost effective Modbus Gateway.
ATC-3002 series which supports the three most commonly used serial communication interfaces, RS-232, RS-422 and RS-485. It also provides a web-based configuration UI, so the users can select the serial interface easily.


Specifications


Serial Interface
Interface Type
RS-232/485/422 3 in 1
Date Rate
300bps ~ 115200bps
Date Length
7,8 bits
Parity
Odd, Even, None
Stop Bits
1,,2 bits
Flow Control
None, Hardware: RTS/CTS
Connector
RS-232
RS-485/422
Serial Line Protection
600W for RS-232, RS-485/422
Network   Interface
Interface Type
Ethernet 10/100Mbps (Auto-Sensing)
Connector
8-pin RJ-45
Isolation Protection
Built-in 1.5KV
Protocol
ModBus TCP/ASC/RTU,SNMP,HTTP
Software
Network Protocols
ARP, UDP/IP, TCP/IP, PING/ICMP, DHCP, BOOTP, Auto IP,TFTP, SNTP ,TELNET ,HTTP,

DNS,SMTP, PPP, LCP, PAP, CHAP, IPCP, PPPoE. SSL/TLS,HTTPS
Configure Options
Web Page,Windows Utility,Telnet
OS  support
Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/XP x64/2003 x64/WIN7 x64/WIN8 x64、

Linux real、TTY、UNIX
LED Indicators
LINK
ACT
TXD
RXD
PWR
Power Supply
9~48VDC
Physical Characteristics
Installation
DIN-Rail Mounting
Housing
Iron (1mm)
Weight
0.5Kg
Dimensions
Without ears
With ears
100 × 67 × 26 mm(3.94 × 2.64 × 1.02 in)
100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in)
Environmental Limits
Operating Temperature
-40 ~ 70°C (-13 ~ 158°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 176°F)
Humidity
5% to 95%(non-condensing)
Standards and Certifications

RoHS, CE, FCC


Pin Assignment


RS-232 DB-9(Male)



PIN
RS-232
1/4/6/9
-
2
RXD(in)
3
TXD(out)
5
GND
7
CTS(out)
8
RTS(in)


RS-485/422 6-pin Terminal block



1
2
3
4
485+(T+)
485-(T-)
R+
R-


Order Information


ATC-3002 One port Modbus Gateway



Package Checklist


1.ATC-3002 1-Port Modbus Gateway 1 PCS
2.Power adapter 9V
