High Quality Pir Sensor Human Automatic DC 24v Infrared Motion Sensor
Professional infrared sensor manufacturers
Support customization
Product Description
1. introduction
Basic parameters | |||
Operating voltage | DC3 – 15V |
lens size
| Diameter 12mm(can be customized other types) |
Static power consumption | <50uA | Trigger | L can not be triggered, H can be triggered, the default L |
Level output | High 3.3V low 0V (can be customized other types) | Sensing range | Less than 120 degrees, distance ≤ 3 meters |
Delay time | Adjustable (0.3S ~ 300S)(can be customized other types) | Operating temperature | -20 ~ 70℃ |
Block time | 0.2S | Dimensions PCB | Diameter 28.5mm |
2. Features
Features
Fully automatic induction: when people enters its sensing range, outputting high electrical level;when people leave, outputting low electrical level. We can help with professional customization.
Photosensitive control: can be set to photosensitive control induction. Non-induction in daytime and strong light. Default without induction.
Two trigger mode: L: non-repetitive trigger, H: repetitive trigger. L, that is, inducting and outputting high electrical level current, oncethe delay time ended, the output will automatically change from high to low electricallevel current.H, that is, after outputting high electrical level current, within the delay time, if there is human in its induction range of activities, the output will remain high until people leave, and after that, changing to low. (Every time the sensor module detects human activities will prolong a delay time, and taking the last activity as the delay time’s starting point.
Induction blockade time: the default is 0.2S. Each time the induction module outputs, following is the setting of the induction blockade time. During this, the induction module is unavailable to any signal. This function effectively restrain the interference generated during load switching.

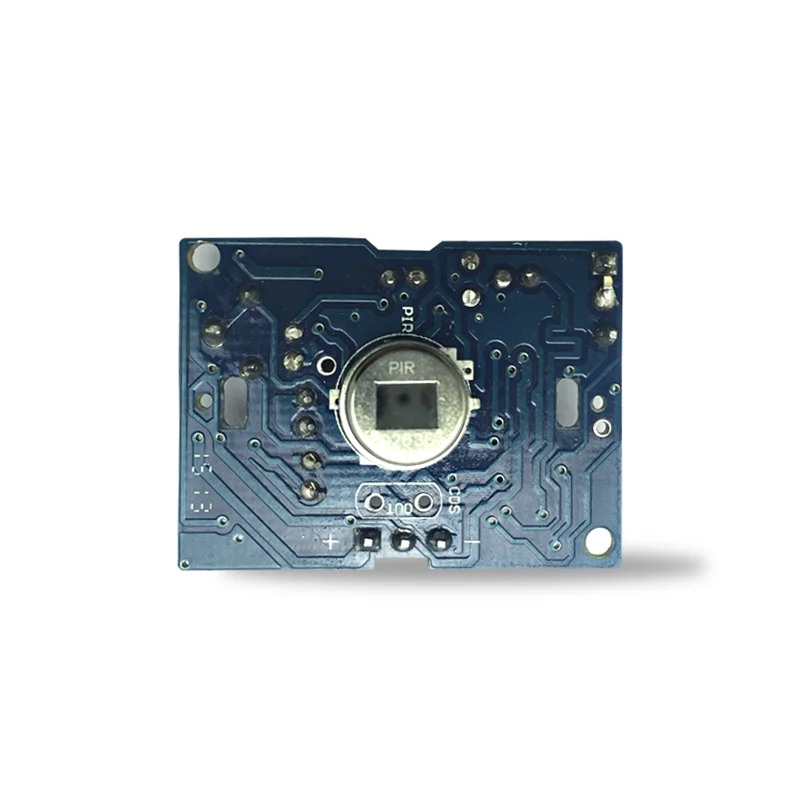

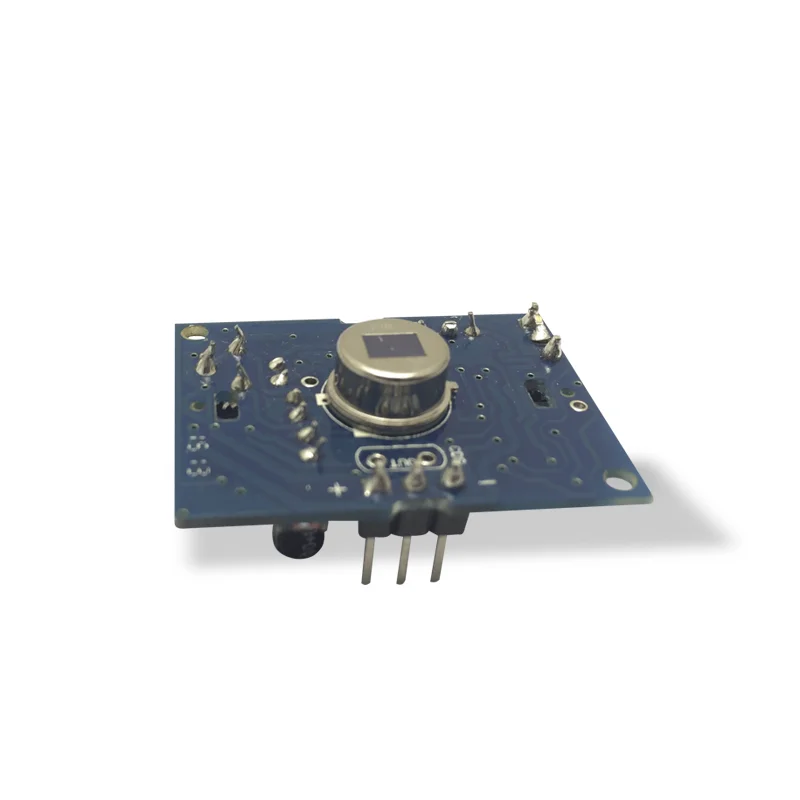

Physical Product
Show Detail
Scene Application
Company Information
Shenzhen Lampda photoelectric Technology Co,.Ltd Located in Shenzhen, Guangdong for 10 years. Lampda is a manufacturer produce various CCFL products. Our main products are CCFL Energy Saving Lamp, CCFL T8 tube, CCFL spiral bulbs, CCFL Backlight Lamp, UV germicidal lamp, Power board design, Original electronic, Multiport Adapter, Infrared Sensor Module, OEM & ODM products, ect.
we have professional research and development department and strict qualitycontrol system. Two production lines and professional production equipment is the support for you and us. Our staff of sales is available to help you in selecting the right protection for your application as well as to provide you with samples.
Our lamps have successfully passed CE PES and RoHS certifications. And products are now not only sold in China, But Asian countries,like Japan and South Korea. also Australia, American, Russia, Italy, Brazil , German, Hong Kong, Taiwan and other countries and regions.
