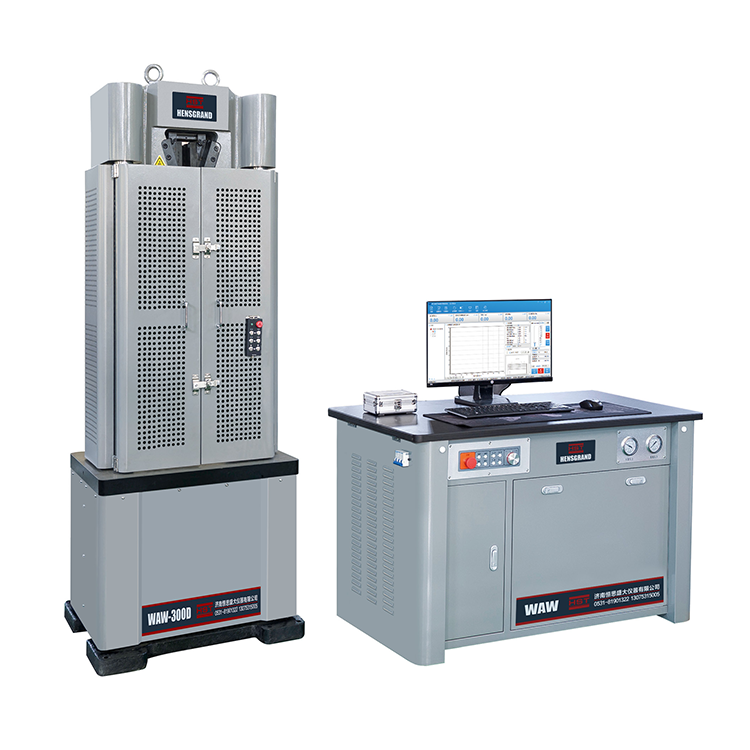

WAW-D 300kN 600kN 1000kN 2000kN Hydraulic utm universal testing machine
Contact: Alice Skype: hssdtest whatsapp /wechat/mobile:+8617853101076 /15098778967
Product Description
1. Application
Hydraulic Universal hydraulic Metal Tensile Strength Testing Machineis suitable for tension,
compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications
Contact: Alice Skype: hssdtest whatsapp /wechat/mobile:+8617853101076 /15098778967
Model | WAW-100/300D | WAW-600D | WAW-1000D | |||
Max load (kN) | 100 /300 | 600 | 1000 | |||
Structure | 6 column | |||||
Control way | constant stress uniform deformation constant displacement three closed loop control and program control | |||||
Load accuracy | ≤±1% or ≤± 0.5% | |||||
Load range | 2%-100%FS or 0.4%-100%FS | |||||
Load resolution | 1/300000 | |||||
Deformation Measurement Range | 2%~100%FS | |||||
Deformation accuracy | ≤±1%/± 0.5% | |||||
Displacement resolution | 0.01mm | |||||
Displacement error | ≤±0.5% | |||||
Max.piston stroke | 250mm | |||||
Max. tension test space | 750mm | 650mm | 650mm | |||
Max.Compression Test Space | 600mm | 500mm | 500mm | |||
Effective space between columns | 420mm | 475mm | 525v | |||
Crosshead moving speed | 190mm/min | 190mm/min | 150mm/min | |||
Round specimen clamping range | Φ10-Φ32mm | Φ13-Φ40mm | Φ13-Φ40mm | |||
Flat specimen clamping range | 0-15mm 15-30mm | |||||

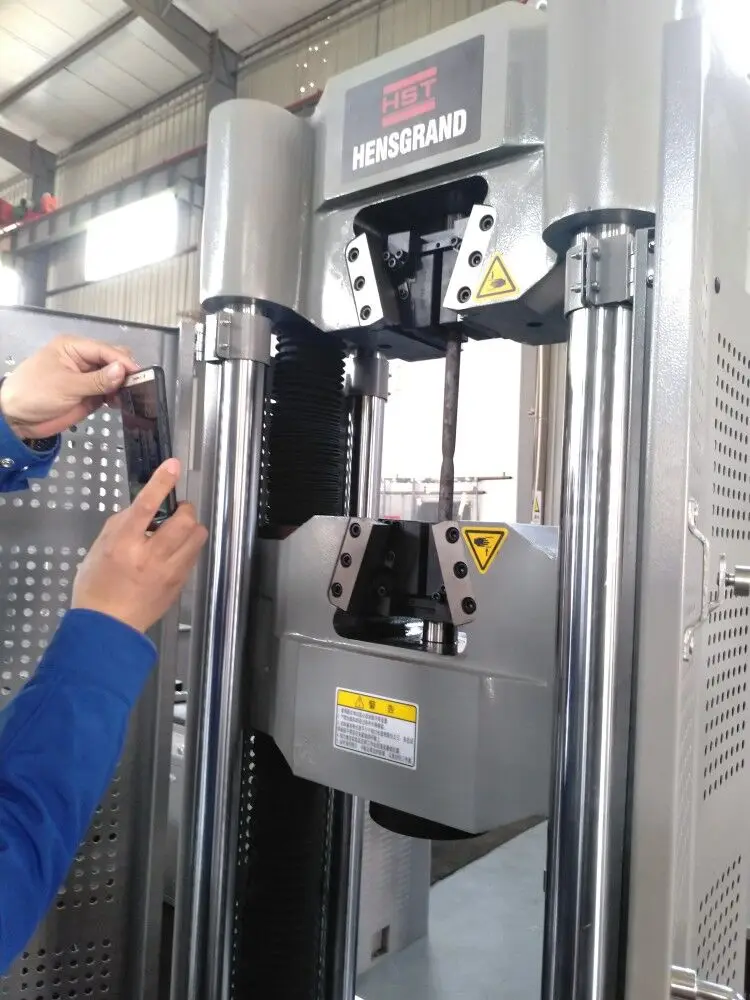

Clamping method | Hydraulic clamp | |||||
Clamp height | 70mm | 90mm | 90mm | |||
Clamping width | 75mm | 80mm | 80mm | |||
Compression plate size | φ160mm | |||||
Bending roller distance | 450mm | |||||
Width of bending rollers | 120mm | |||||
Power supply | 3-phase,AC380V, 50Hz(can be customized) | |||||
