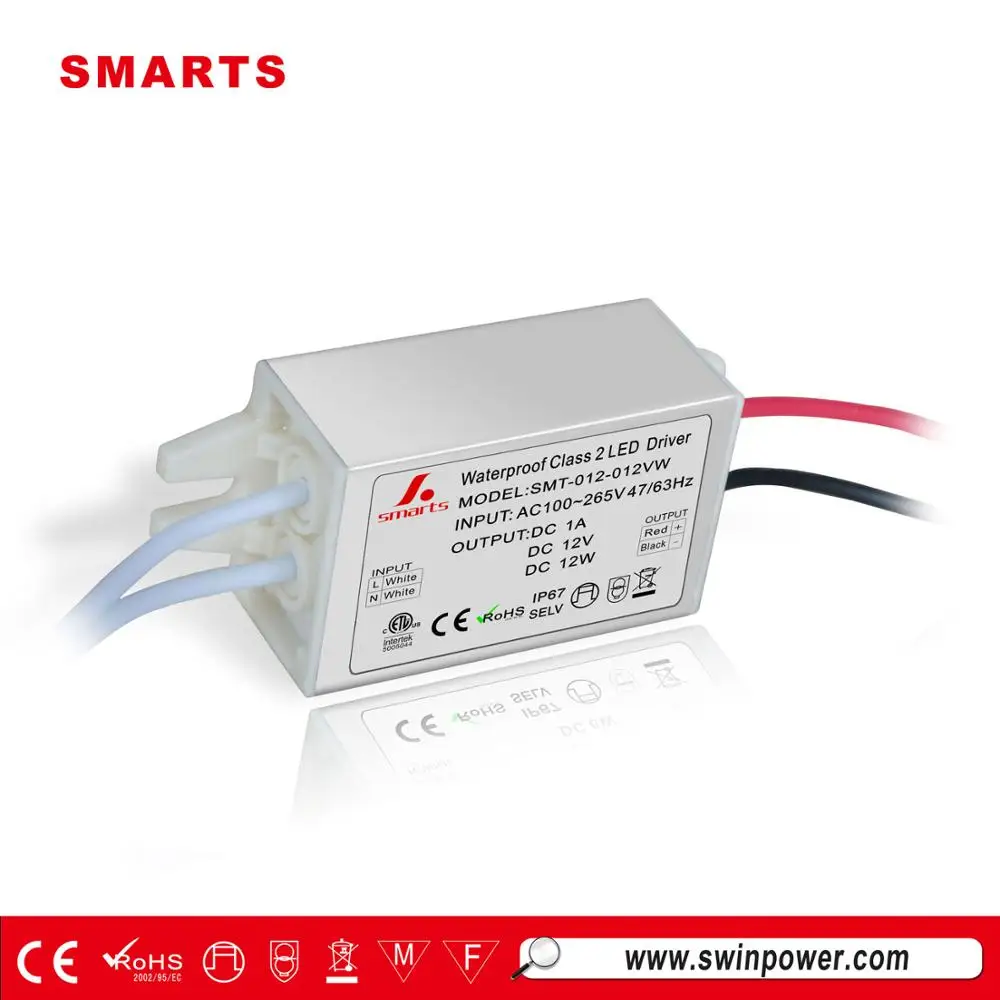

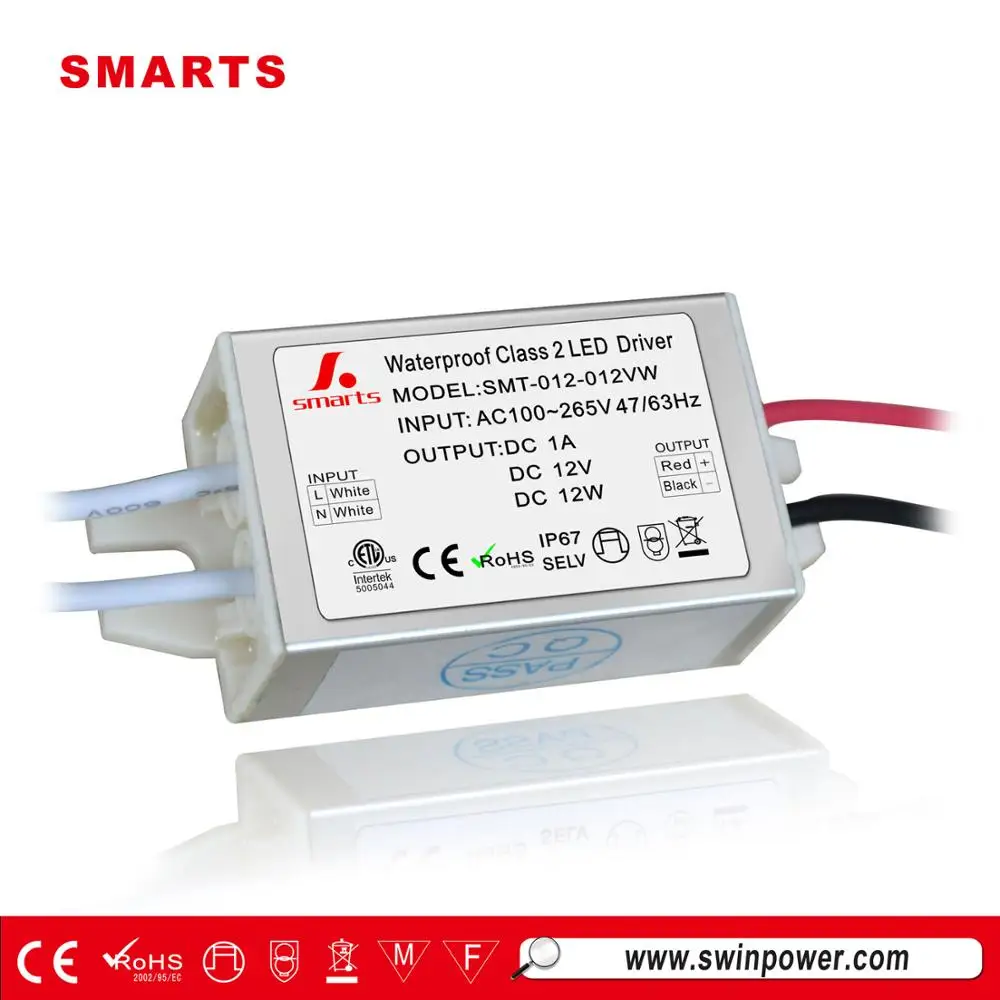

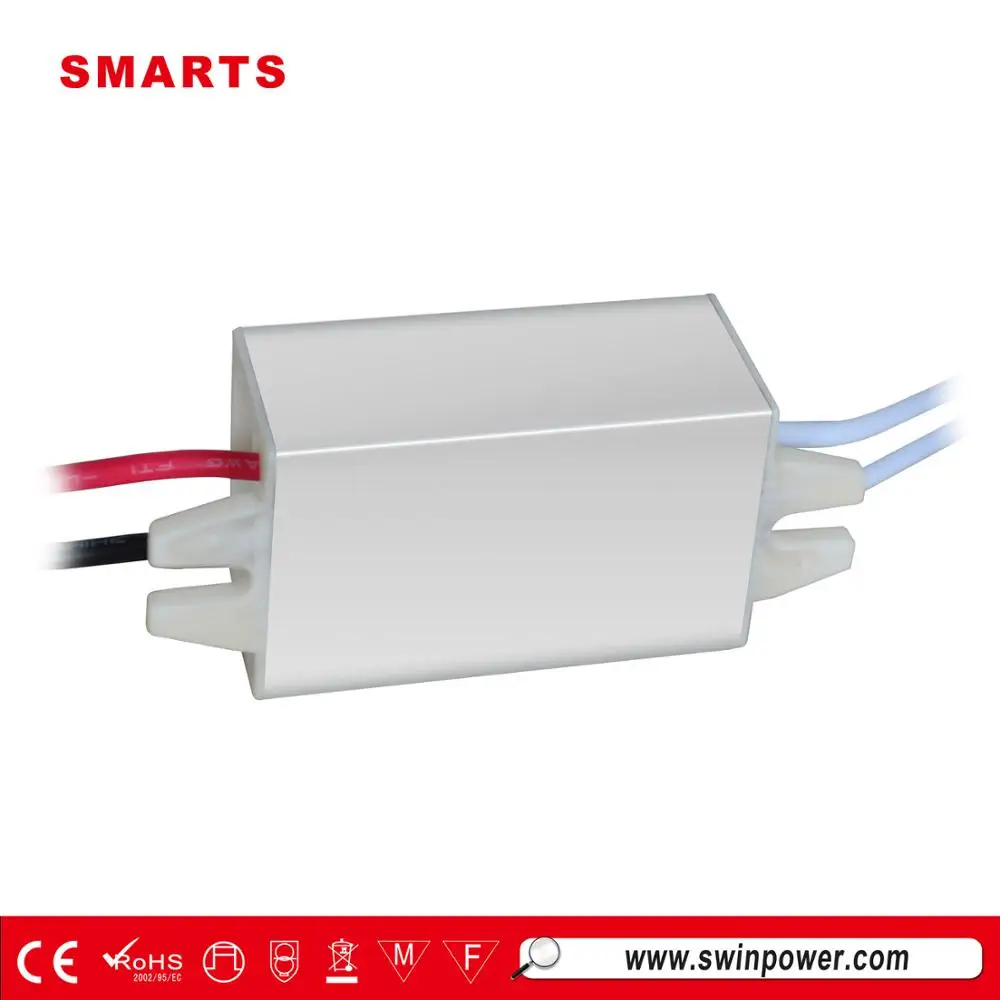

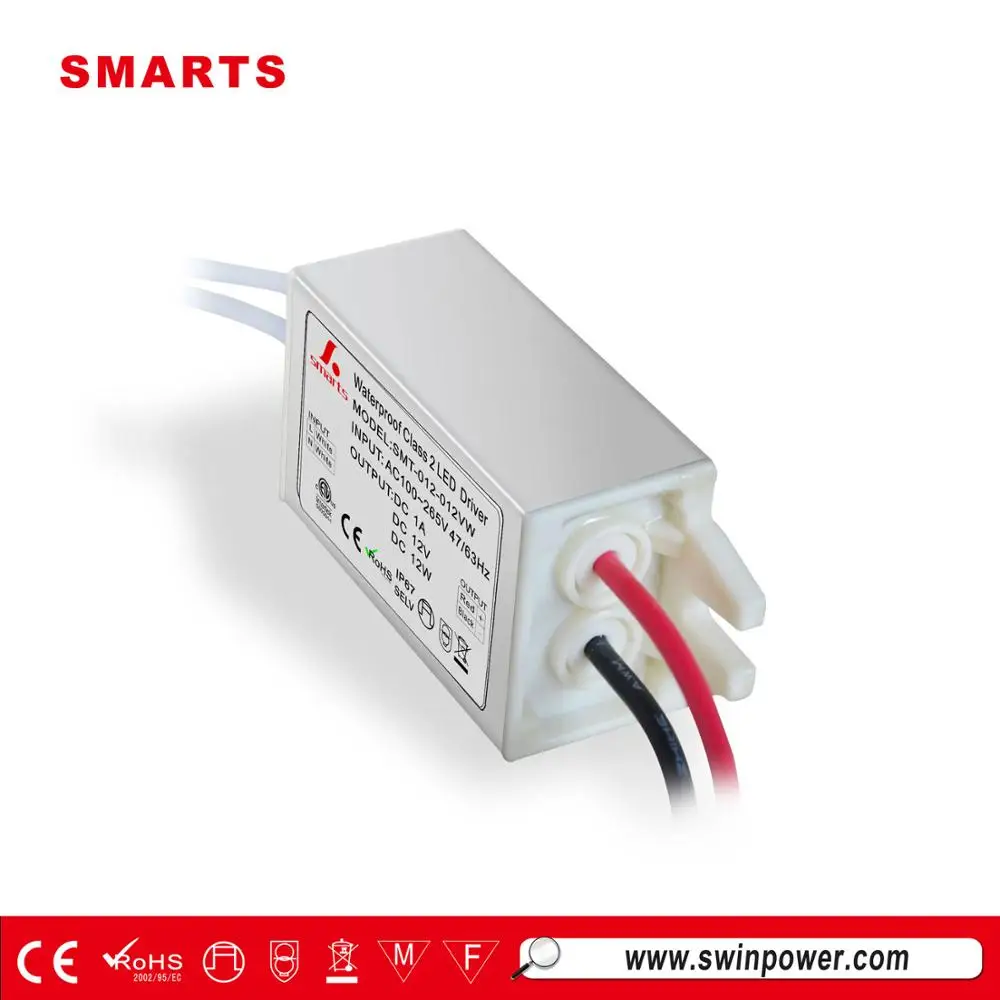

Hot sale IP67 waterproof mini 12v 12w led driver 7w
Product Description
Specification
| MODEL | SMT-012-012VW | SMT-024-012VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 1A | 0.5A | |||
| CURRENT RANGE | 0~1A | 0~0.5A | |||
| RATED POWER | 12W | 12W | |||
| RIPPLE&NOISE(max) | <700mV | <400mV | |||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |||
| INPUT | VOLTAGE RANGE | 90~265VAC | |||
| FREQUENCY RANGE | 47~63Hz | ||||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | >81% | >81% | |||
| AC CURRENT(Typ.) | 0.090A/100~220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||||
| STORAGE TEMP | -40~+80℃ | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 CE, ROHS approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation. | ||||
Hot Product
Company Information
Company Information
All of our drivers are got ETL CE SAA ROHS listed .OEM Welcome.
Our led drivers are widely used for:
- 1.Indoor LED illuminating lights
- 2.LED Neon, LED urban Decoration
- 3.LED Lighting Advertising,LED Display
- 4.Safety Protection Apparatus
- 5.Telecommunications, Networks
- 6.Vehicle Lights, Controller Panels
Our Market
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
Certifications
Our Services
Our Services
What Service we can supply??
- 1.All inquiries will be replied within 24 hours
- 2.Professional manufacturer,welcom to visit our website
- 3.OEM/ODM avaliable:
- A.Print logo on our product;
- B. Customized specification;
- 4.After Sales-Service:
- A. All products will have 100% burn-in test and strictly quality test before shipping;
- B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
- 5.High efficiency,long life span,reasonable&competetative price,fast lead time;
- 6.We have our engineer team, if you have any question about your LED applications, let us know freely.
FAQ
FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: steven821228
Whatsapp/Phone: +86 13489577737
E-mail: Sales1 @smartselectronic.com. cn
Send your inquiry details in the bellow for professional reply.
