Б/у стальная катушка, машина для продольной резки, металлическая используемая продольная линия

Б/у стальная катушка, машина для продольной резки, металлическая используемая продольная линия

Категория товара: Бобинорезательный станок >>>
Поставщик (Оптовый магазин): Taiyuan,Huaye,Equipment,Research,Institute,(Co.,Ltd.)

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

Used steel coil slitting machine line metal used slitting line

Specification

Mode	Coil Width(mm)	Thickness(mm)	Coil Weight(ton)	Speed(m/min)	Capacity(Kw)	Area(Estimater M)
ZJ-01	500~1250	0.2~1.2	3	80~150	100	12×30
ZJ-02	900~1250	0.3~2	5	50~100	150	12×30
ZJ-03	1000~1500	1.8~4	8	40~80	175	12×30
ZJ-04	1000~1550	2~6	10	30~60	200	12×30
ZJ-05	1000~1550	4~10	20	20~40	480	12×40
ZJ-06	1000~1550	4~12.7	25	20~40	550	12×40
ZJ-07	1000~1700	5~14	30	15~30	600	16×50
ZJ-08	1200~2000	6~16	40	12~25	650	16×50

Introduction

1.Brief introduction

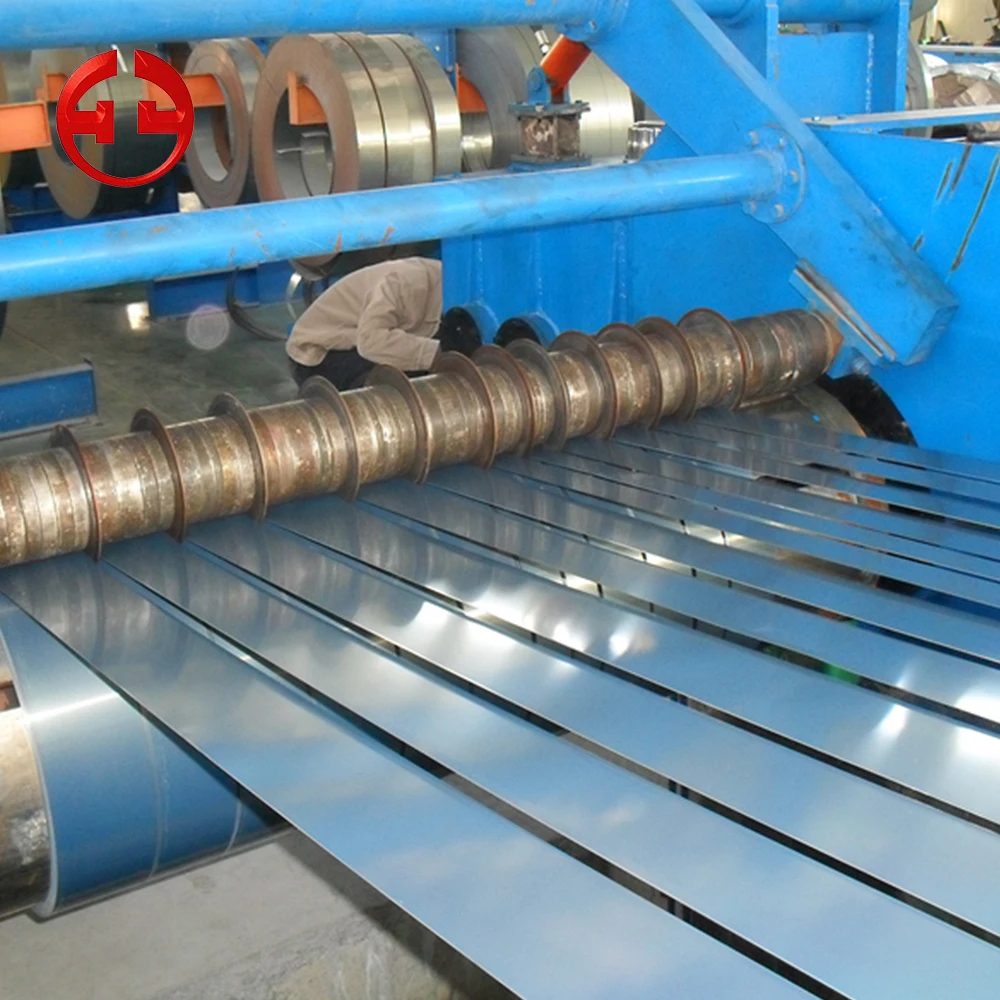

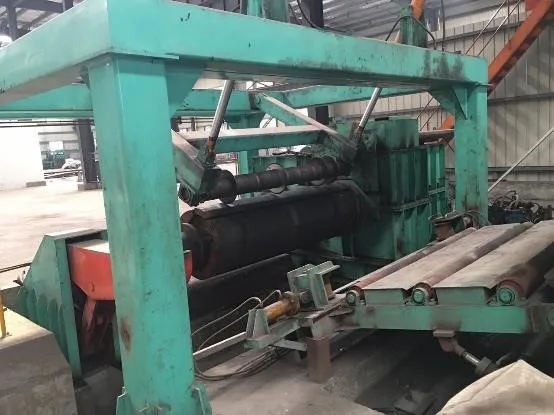

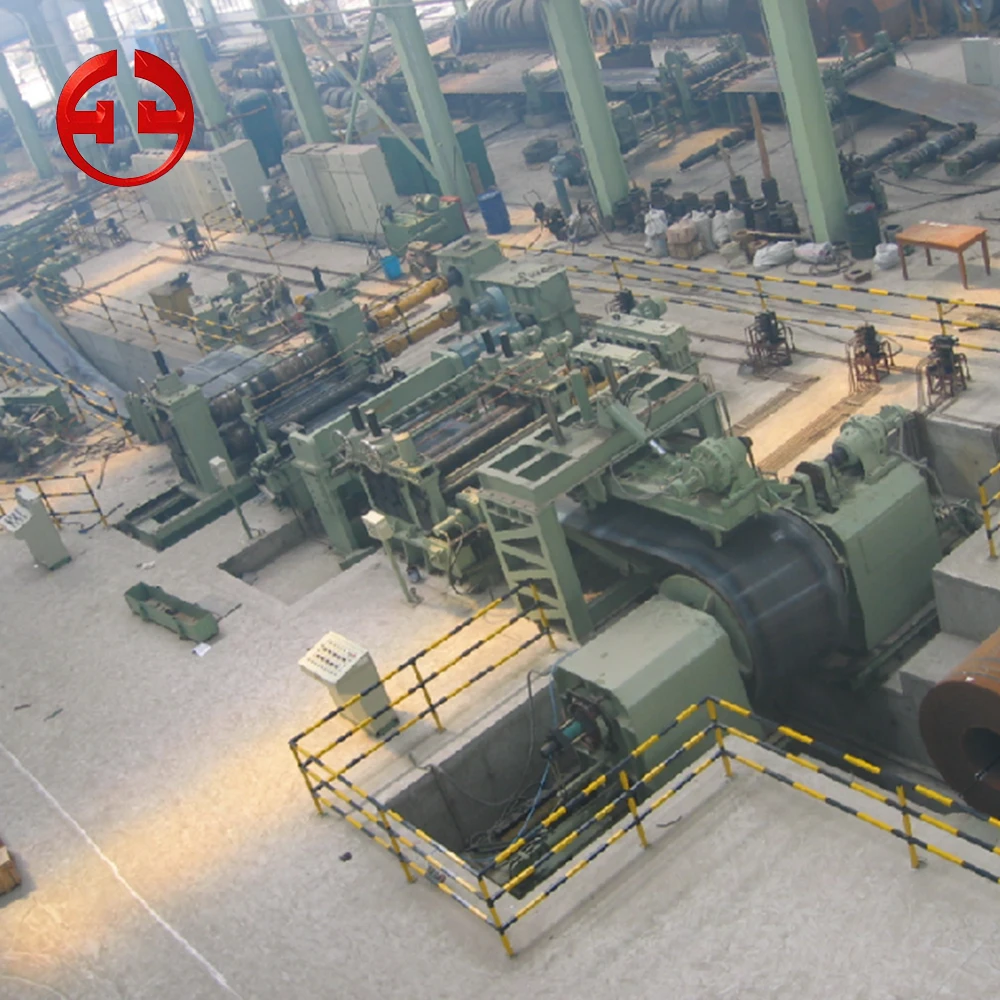

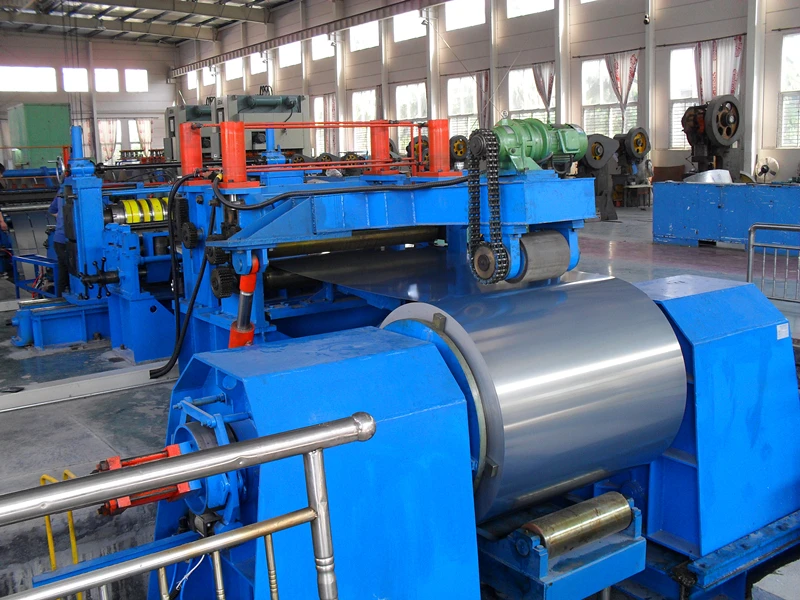

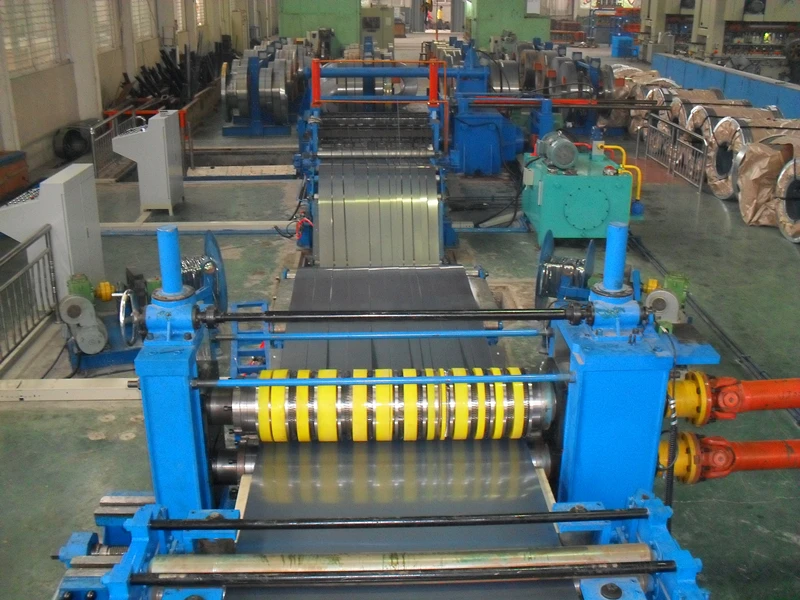

A slitting line is used to slit steel coils into narrower coils with specific width.

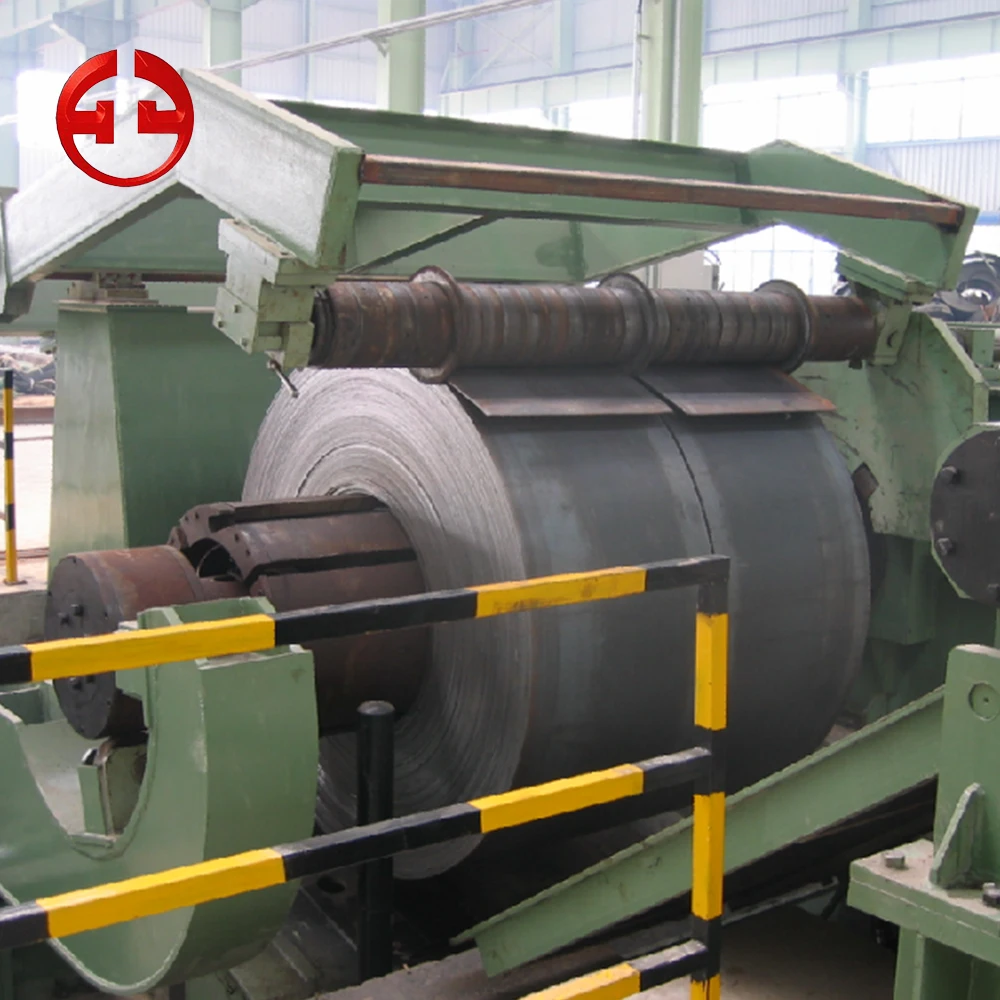

It starts with uncoiling the steel coils into a steep strip.

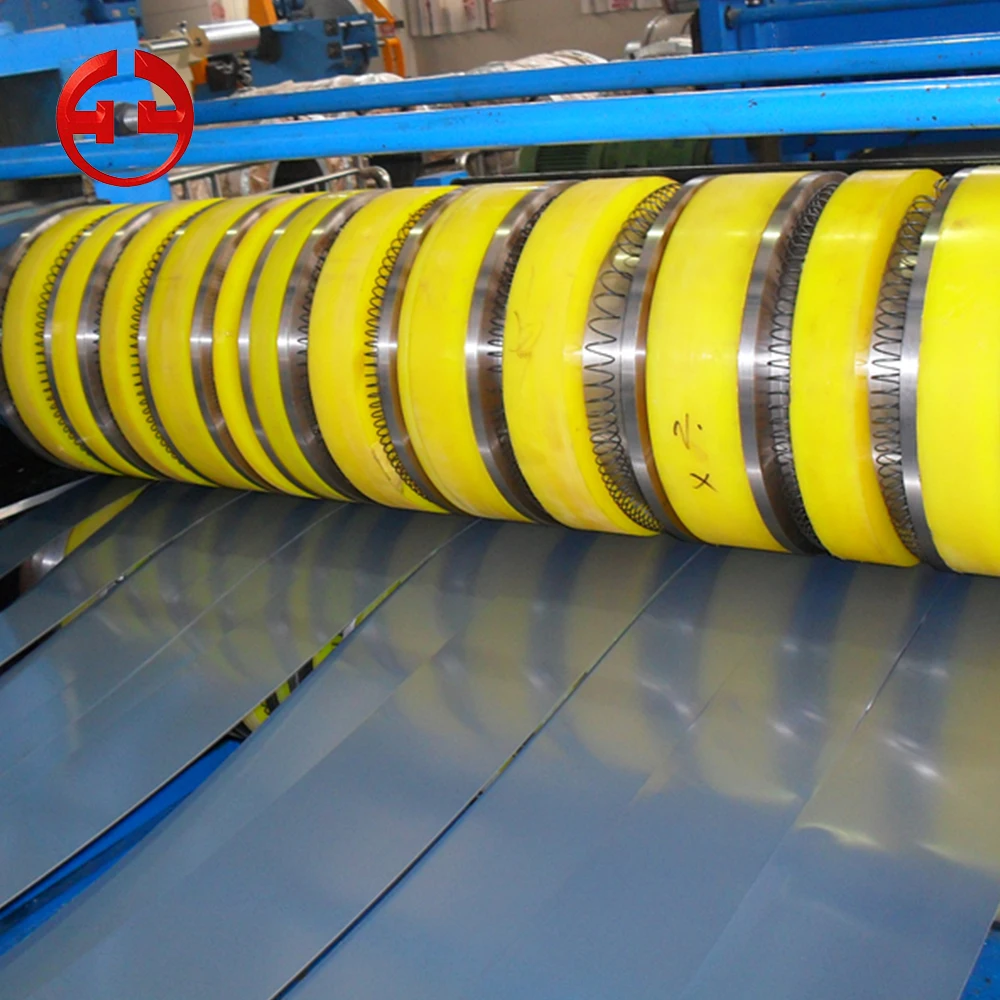

After being flattened, the strip is fed to the rotary shear and slitted into narrower strips and finally recoiled up to coils with smaller width.

2. Function

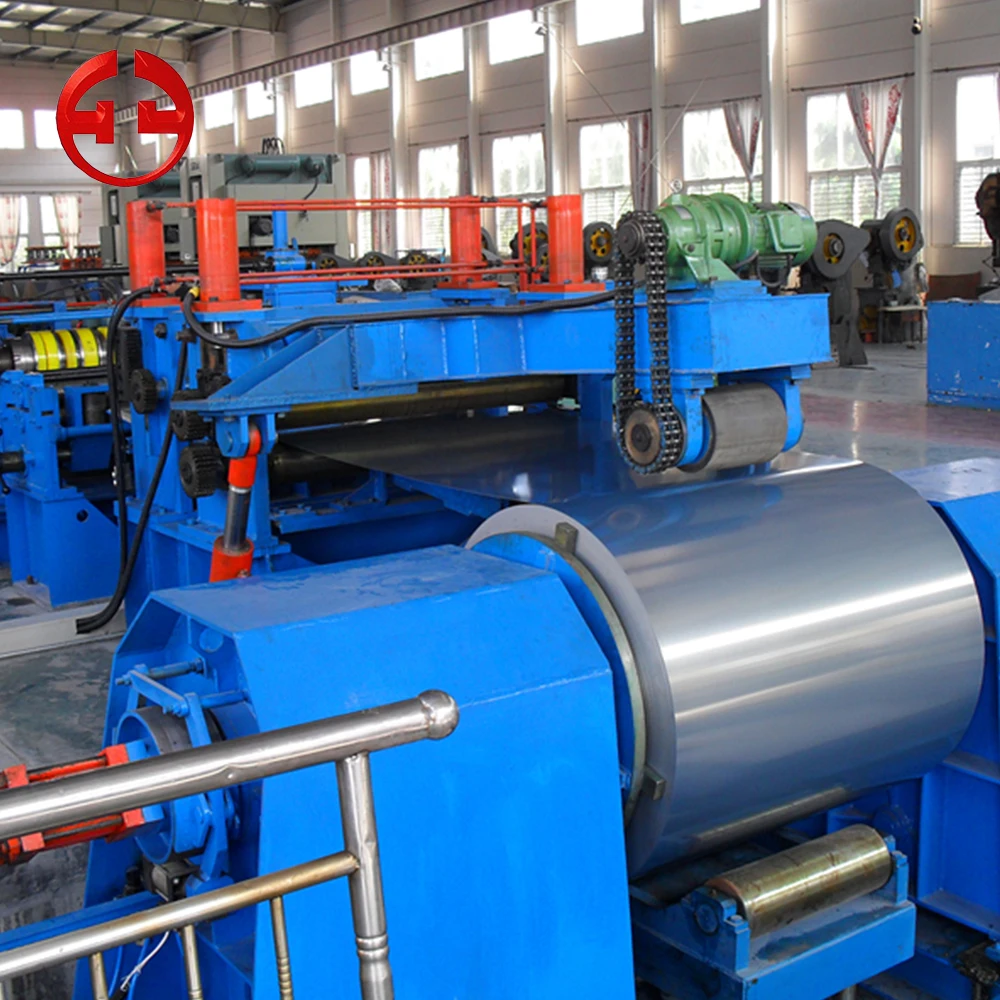

A slitting line can do uncoiling, slitting and recoiling works.

It usually works not only for the steel cutting industry, but more commonly for the pipe making industry.

A lot of pipe production lines, longitudinal or spiral weld pipe line, start with a slitting line to produce coils with requested width.

Our slitting lines, with delicate and advanced design, can fit various sizes of steel coils and can be easily adjusted to cut coils into needed width.
