Смарт-карта дальнего действия для парковки автомобилей
- Категория товара: Parking Equipment >>>
- Поставщик (Оптовый магазин): Shenzhen,Sewo,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

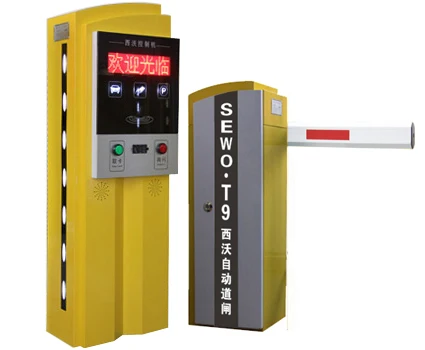

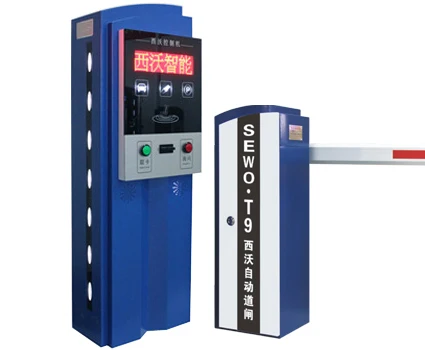

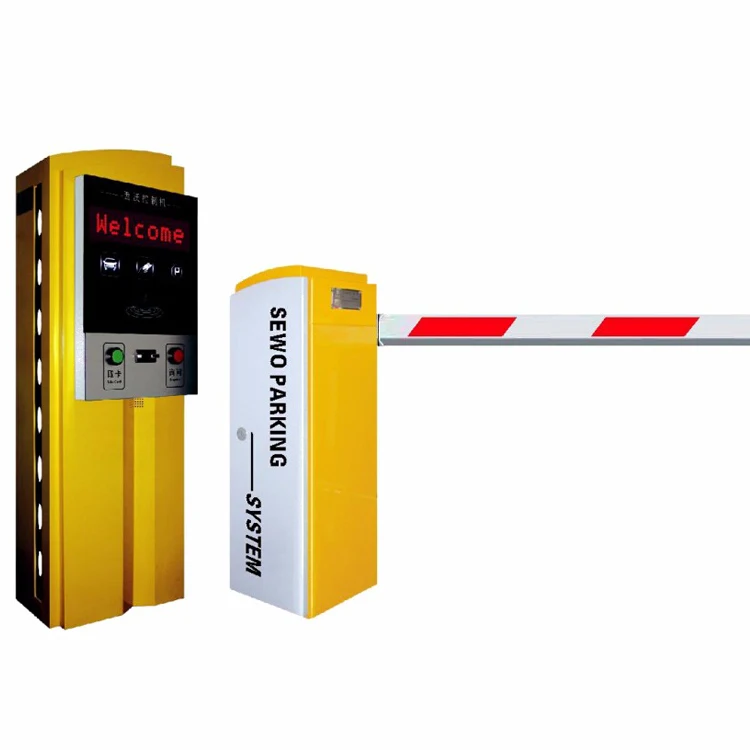

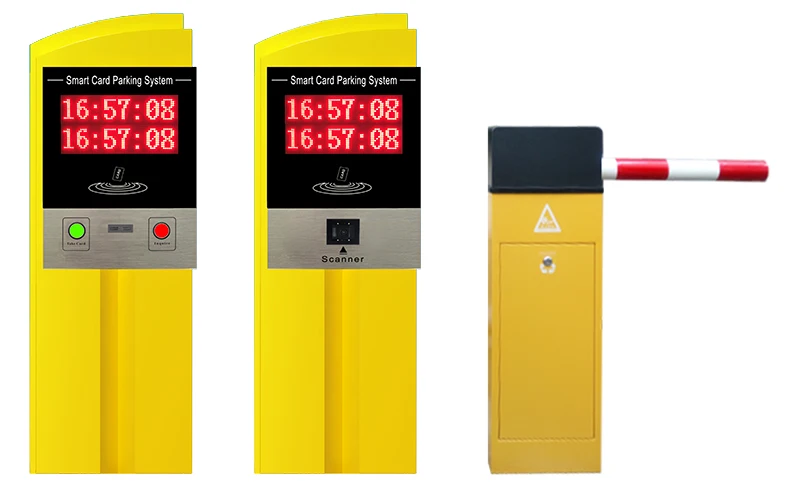

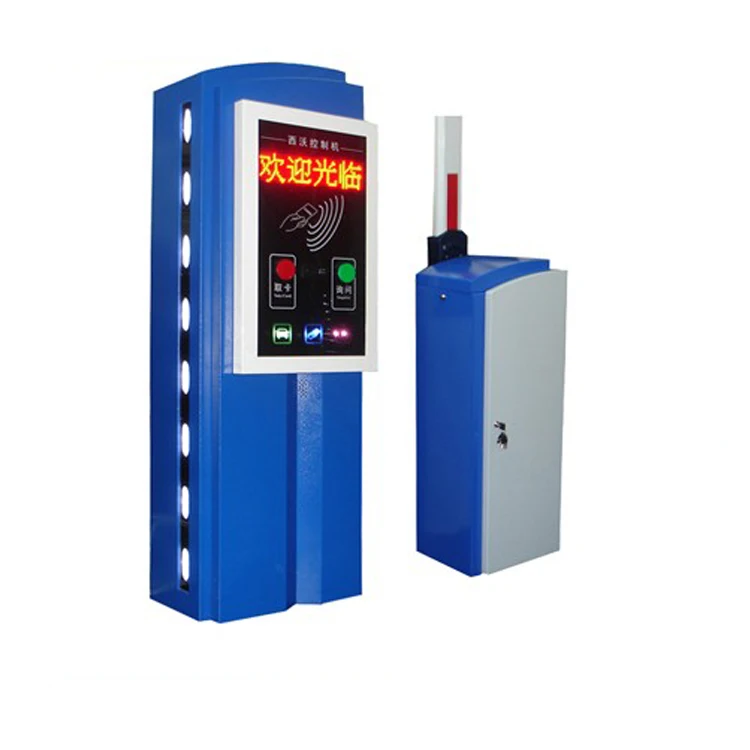

SEWO RFID IC Long Range Smart Card Vehicle Parking Lots Entrance Access Control Management System
Brief Introduce
SEWO smart parking system is wholly developed,modified and owned by Shenzhen Sewo Science & Technology Co.,Ltd. This system is a dynamic and intelligent system adapted to most intelligent parking management requirements. Benefits can be brought to parking facility operators,managers, owners and users,etc.
SEWO-T9 rfid parking lot management system is a classical series Parking System for managing pay-to-park facilities with high traffic flow, for both hourly and registered parkers. This system automatically dispenses card to hourly parkers, and registered parkers get access and leave by self-service swiping their cards on Entry Station & Exit Station respectively, or enter and leave without stop if tag on window shield was read by long range reader. It is ideal solution for parking lots of premises such as shopping center, exhibition center, hospitals, airports etc.
Advantage of SEWO T9 Car Parking Management System
1,International general icon, real-time distinguish system working condition is normal or not.
2,High brightness LED information display, in strong light can still clearly shows.
3,the panel material is the toughened glass with new technique, and are impacting-proof, scratching proof, with thorough rainproof design.
4,big panel structure, easy installation, maintain, debugging.
5,industrial-class electronic component, can stably operate in bad environment.
6,the panel mouth can be inserted at two sides and water-proof.
7,with night background lighting system, this system can create unique beautiful shining prompt in night view.
8,readable IC card (charge fee off-line ),readable ID card(including close and long distance)8,vehicle detecting signal can be read when receiving signal from vehicle or without signal by manual work
9,communicate with computer online or offline.
10,deputy communication can connect with display, and voice system, and has the ability of turning the barrier off or on, and detecting the statement of the barrier.
11,The system can control the shining prompt pole, and connect with the card machine or paper machine, and full seat light box. It also can be using in nested parking lot.
12,It is suitable for common changing system, and handing card (temporary card) at the exit and changing fee at the center management mode.
2,High brightness LED information display, in strong light can still clearly shows.
3,the panel material is the toughened glass with new technique, and are impacting-proof, scratching proof, with thorough rainproof design.
4,big panel structure, easy installation, maintain, debugging.
5,industrial-class electronic component, can stably operate in bad environment.
6,the panel mouth can be inserted at two sides and water-proof.
7,with night background lighting system, this system can create unique beautiful shining prompt in night view.
8,readable IC card (charge fee off-line ),readable ID card(including close and long distance)8,vehicle detecting signal can be read when receiving signal from vehicle or without signal by manual work
9,communicate with computer online or offline.
10,deputy communication can connect with display, and voice system, and has the ability of turning the barrier off or on, and detecting the statement of the barrier.
11,The system can control the shining prompt pole, and connect with the card machine or paper machine, and full seat light box. It also can be using in nested parking lot.
12,It is suitable for common changing system, and handing card (temporary card) at the exit and changing fee at the center management mode.
Functions of SEWO T9 Car Parking Management System
1) Multiple network mode, can realize remote data and image transmission;
2) 32-bit ARM dual-core processing technology;
3) Easy to install, debug and maintain;
4) IC, ID, bar code, RFID available in one control board
5) Nesting function available;
6) Extendible long distance read function;
7) Off-line working available;
8) Extendible plate-number identification and auto-printing;
9) Multiple charging mode, charging standards can be defined by the user;
10) Automatic card dispenser;
11) voice prompt available;
12) Flexible system configuration, can be extended to multi-level parking lot management system;
13) waterproof, dustproof and rustproof case;
14) Modular structure, high integration.
2) 32-bit ARM dual-core processing technology;
3) Easy to install, debug and maintain;
4) IC, ID, bar code, RFID available in one control board
5) Nesting function available;
6) Extendible long distance read function;
7) Off-line working available;
8) Extendible plate-number identification and auto-printing;
9) Multiple charging mode, charging standards can be defined by the user;
10) Automatic card dispenser;
11) voice prompt available;
12) Flexible system configuration, can be extended to multi-level parking lot management system;
13) waterproof, dustproof and rustproof case;
14) Modular structure, high integration.
For Example:

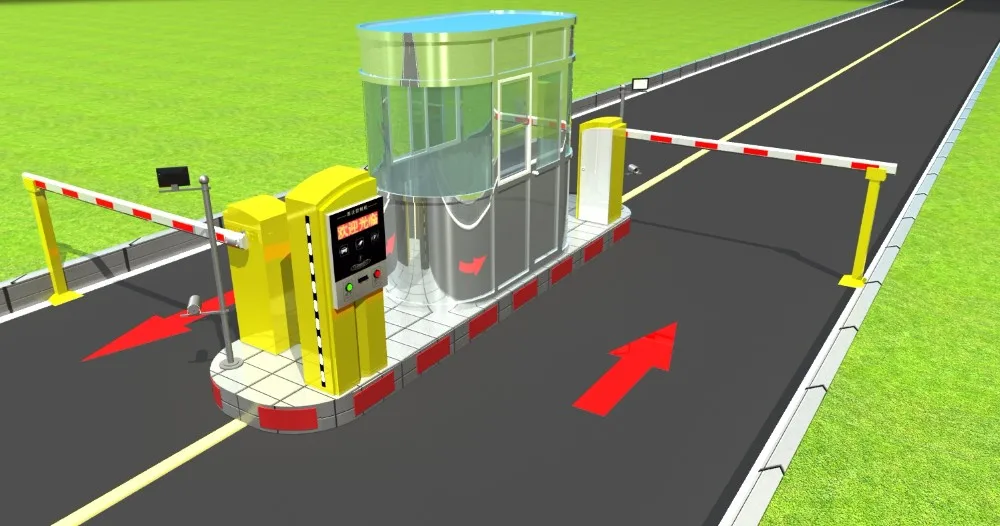

SEWO-T9 Parking Ticket System --One Entrance / One Exit
Product Configuration List for reference: | ||||||
Items | #1 Entry Control Parts | #2 Exit Control Parts | #3 Management Parts | |||
1 | Barrier Gate | Barrier Gate | Master Intercom | |||
2 | Loop Coil | Loop Coil | Parking Software | |||
3 | Loop Detector | Loop detector | RS485 Converter | |||
4 | Entry System belows | Exit System belows | Card Issue Device | |||

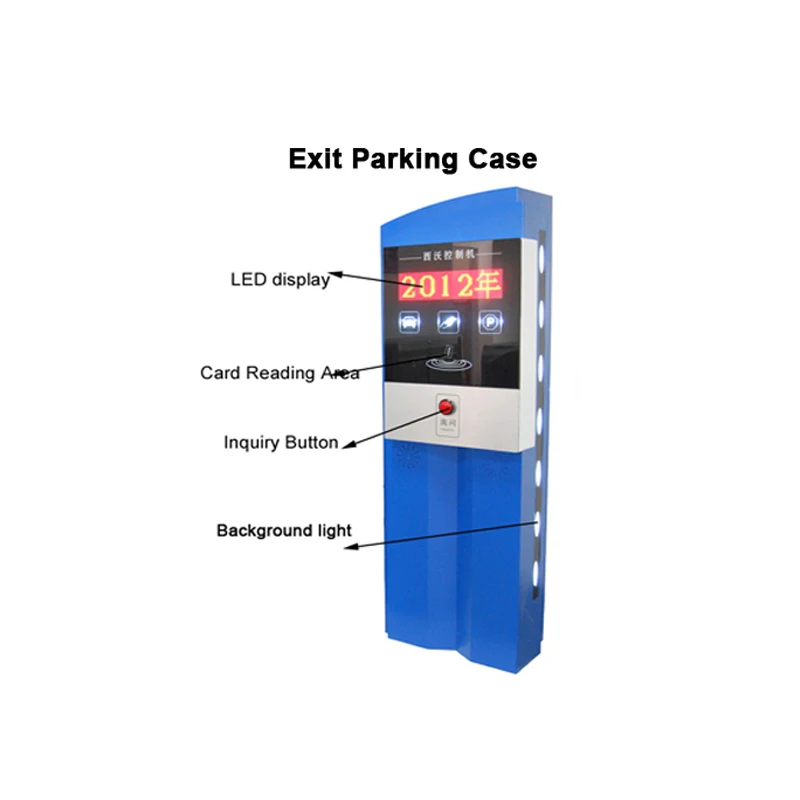

4.1 | Entry Case | Exit Case | RFID Card | |||
4.2 | Background light | LED display | Video capture card | |||
4.3 | card dispenser | Card Acceptor | Analogy / IP Camera | |||
4.4 | card reader | card reader | Focus lamp | |||
4.5 | Slave Intercom | slave Intercom | ||||
4.6 | Voice plate | Voice Plate | ||||
4.8 | Power Supply | Power Supply | ||||
4.9 | Main Control Board | Main Control Board | ||||
Parking Lots Payment Solutions
Example of case as below, it is only for refenerce, real requiry please contact our sales, thanks !

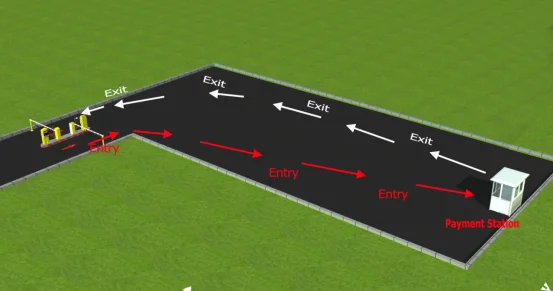

#1 Exit Payment Solution (If Payment station located near the exit barrier.)
Cashier inside the gatehouse. before exiting, driver pay the parking fees to the cashier. Then cashier open the barrier gate via the software
#2 Central Payment Solution (If Payment station in the central parking lot.)
The driver give the RFID card to the cashier, then the cashier swipe it on the card issue device and system displays how many minutes he stayed and how much need to pay automatically. After pay the parking fees,cashier give back the card. The driver must leave within 15minutes and insert thecard into the card acceptor.
#3 Auto-payment Solution (The driver pay the parking fees to the autopayment machine. )
It can accept coinand notes. after paying. driver take back the RFID card and get the receiption. It shows how long he stayed and how much he paied, before exiting, driver must insert the RFID card into the card acceptor, then the barrier open.
Specifications

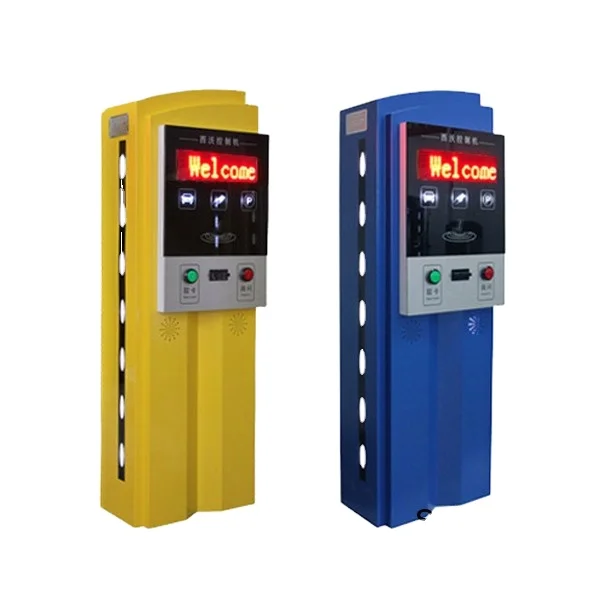

SEWO-T9 Car Parking System | ||
Model No | SEWO-T9 Series Intelligent Parking Management System | |
Dimension | 450*270*1370mm | |
Housing Material | Steel & Tempered glass | |
Housing Color | Yellow and Blue | |
Support Built-in Reader | IC/ID /Ticket | |
Mode of Communication | Base RS485. Rear TCP/IP | |
Communication Transmission Distance | 1200m(RS485) | |
Data Transmission Speed | 4800bps/100m | |
Offline Storage Capacity | 10000pcs(Extendible) | |
Blacklist Capacity | 1000pcs(Extendible) | |
Card Capacity | 1000pcs(Extendible) | |
Working Temperature | -30℃--70℃ | |
Working Conditional | Indoor / Outdoor | |
Name | Access Control Park Gate Automated IC/ID Card Car Parking Equipment | |

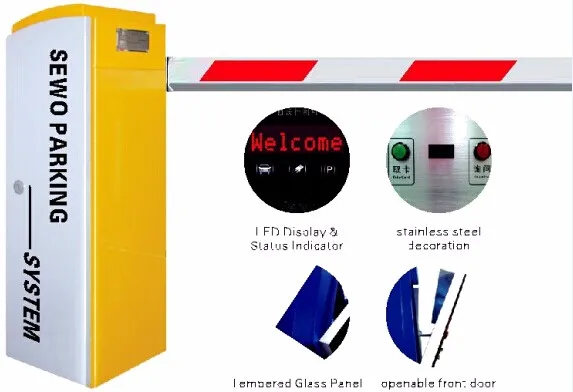

SEWO-T9 Boom Barrier | ||
Model NO. | SEWO-T9 Boom Barrier | |
Overall Dimension | 400L*300W*1050H(mm) | |
Weight | 50kg | |
Housing color | Yellow and Blue | |
Motor Power | 100W | |
Noises | ≤60dB | |
Motor speed | 30r/min | |
MCBF | ≥5,000,000 times | |
Arm direction | Left handed /Right handed(Optional ,According to your drive direction in your country ) | |
Remote controller | 2 Pcs | |
Remote control distance | ≤30m | |
Rail type | Straight / Fence /Folding | |
Rail length | ≤6m | |
Rail material | aluminum alloy | |
Rail lifting time | 3-6s | |
Relative humidity | ≤95% coagulation free | |
Working voltage | AC220V±10%, 50Hz±4% | |
Working temperature | -40°C~+75°C | |
Working environments | indoor, outdoor | |

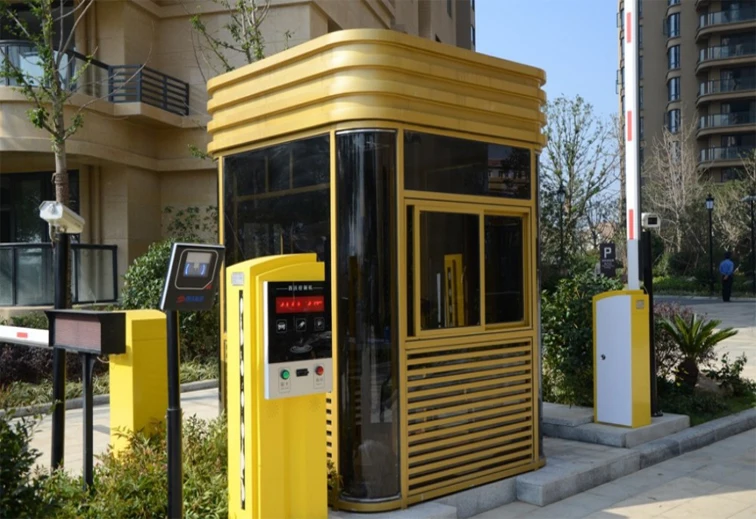

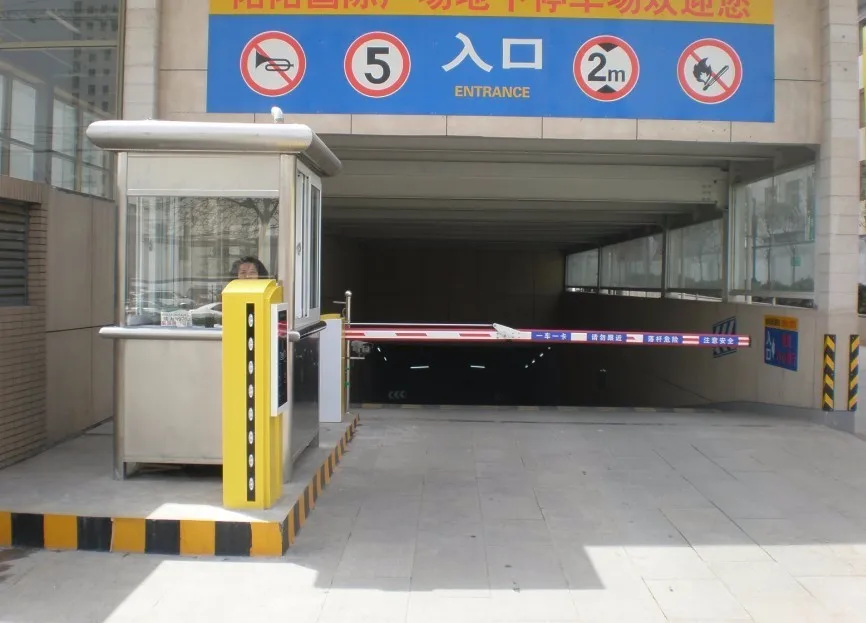

Project Case
Company Profile
Shenzhen Sewo Science & Technology Co., Ltd.
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has also ranked among the top 10 famous brands of car parking systems and facilities in China. With nearly ten years to steady development, our R &D team has strong capacity to be committed to continuously creating high quality products and service. With the first-class production equipment, technical quality and service, we won the trust of customers and the market recognition. Our products have been well used by customers from enterprise institutions, infrastructure enterprises, government institutions, transportation enterprise, housing districts, commercial organizations,etc.
With our exquisite technology and strict quality testing system, we passed “CE” and “ ISO9001:2008” international quality assessment standards. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America.
With our belief of “Sincerity is essence of enterprise; High quality is the way of existence”, we will keep on endeavoring to make cost-effective intelligent parking system products in China. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has also ranked among the top 10 famous brands of car parking systems and facilities in China. With nearly ten years to steady development, our R &D team has strong capacity to be committed to continuously creating high quality products and service. With the first-class production equipment, technical quality and service, we won the trust of customers and the market recognition. Our products have been well used by customers from enterprise institutions, infrastructure enterprises, government institutions, transportation enterprise, housing districts, commercial organizations,etc.
With our exquisite technology and strict quality testing system, we passed “CE” and “ ISO9001:2008” international quality assessment standards. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America.
With our belief of “Sincerity is essence of enterprise; High quality is the way of existence”, we will keep on endeavoring to make cost-effective intelligent parking system products in China. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
FAQ
1, What is the strength of your company in this industry?
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has ranked among the top 10 famous brands of car parking systems and facilities in China.
2, What is the advantage products of your company?
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
3, How about the quality of your product?
With our exquisite technology and strict quality testing system, we passed “CE” and “ISO9001:2008” international quality assessment standards. Our company also has won many honors,such as “China Top 10 Parking Management System Supplier”, “AAA grade quality, service and prestige enterprise in China”, and so on. Professional R&D team has strong capacity to be committed to continuously creating high quality products and service.
4, How about some customization request?
We support OEM / ODM service , more than 20 years industry experience will bring appropriate design for you, no only products, but also a smart access management solution expert.
5, Do you have agency for after-sales service?
Any question about products , you can find our sales anytime. We will provide life-time technology support. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
6, How about the delivery time?
Regular products need 5-10 working days.
Usually the customized products need 15-20 working days, actual delivery time according to your product request.
