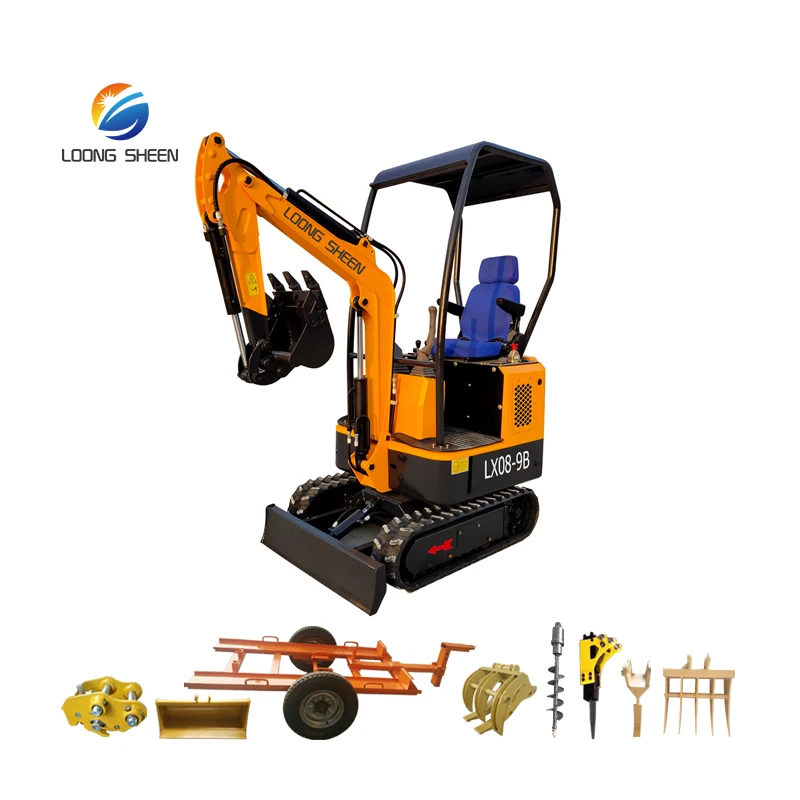

China Popular Mini Excavator 800KG Diggers Earthmoving Machinery


LX08-9B hydraulic excavator has beautiful design, its platform can rotate 360 degrees.


The excavator is equipped with rubber track, it's reliable and of user-friendly.


With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.



Advantages


A  Japanese SHIMADZU hydraulic pump.


B  Connection between the pump and the engine is a flexible connection. Instead of spline connection, we can extend the service life of hydraulic pump from 6 months to 3 years. If the spline is worn out, the pump and the engine will broke down.


C  Forging hydraulic cylinder , anti high pressure, has the function of buffering.


D  Hydraulic pipes is double-deck pipes, anti high pressure.


E  Hydraulic track adjuster, safe and efficient.


F  With oil sensor, oil pressure gauge. easy to view the remaining amount of oil


G  Structure is stronger, weight is 910kg.


H  Working speed is faster, rotary speed is higher, work is more efficient.


I   Man-machine design more reasonable.


J  There is a lamp on the boom, it’s convenient for night time work.


K  Oil filler, it is more convenient to fill.


_20190929135634








Product Description


1ton excavator (17)

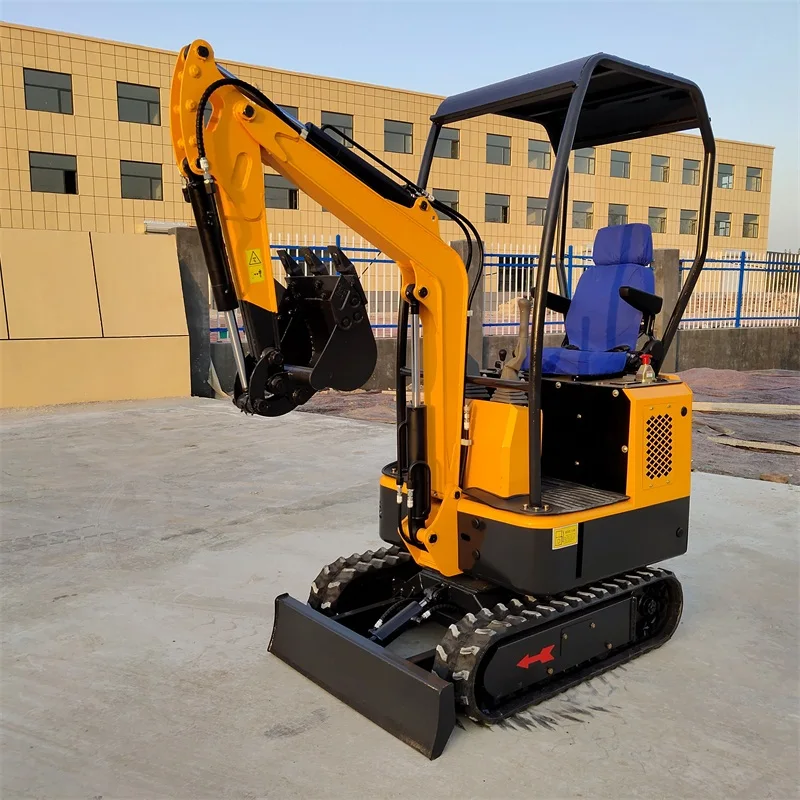

1ton excavator (16)

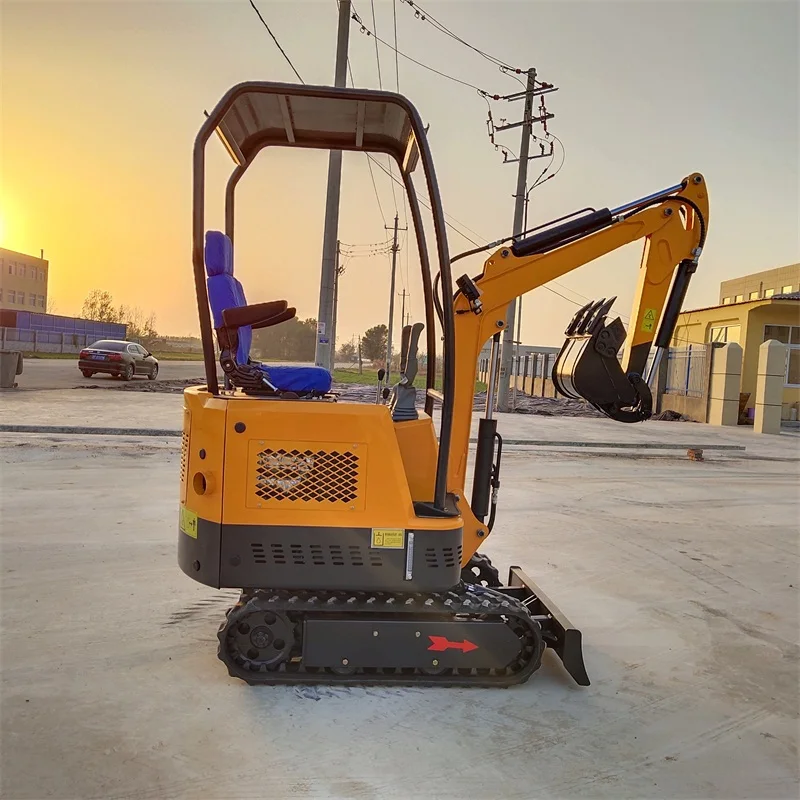

1ton excavator (11)











































































































































Model



LX08-9B



Operating Weight



900kg



Whole machine weight



910kg



Digging bucket capacity



0.02cbm/120kg



Digging bucket width



350mm, can add narrow bucket is 200mm



Engine



KOOP(KD192F)



Rated power



8.6kw/3600r/min



Displacement



0.211 L



Main pump



single cylinder, fan cool



Valve



BEIFANG



Displacement



6.8ml/r



Swing motor



EATON



Traveling motor



EATON



Pump



JAPAN SHIMADZU



Main Specifications



Overall dimension( LxWxH)



2770x910x1490 mm



Wheelbase



910 mm



Total length of track on land



1230mm



Platform ground clearance



380 mm



Platform back turning radius



784 mm



Chassis width



896 mm



Track width



180 mm



Chassis ground clearance



132 mm



Track height



320 mm



Overall range



Max. Digging depth



1650 mm



Max. Vertical digging depth



1375 mm



Max. Digging height



2610 mm



Max. Dumping height



1850 mm



Max. Digging radius on ground



2850 mm



Min. Rotation radius



1330 mm



Max. Upgrade height of bulldozer blade



345 mm



Max. Digging depth of bulldozer blade



255 mm

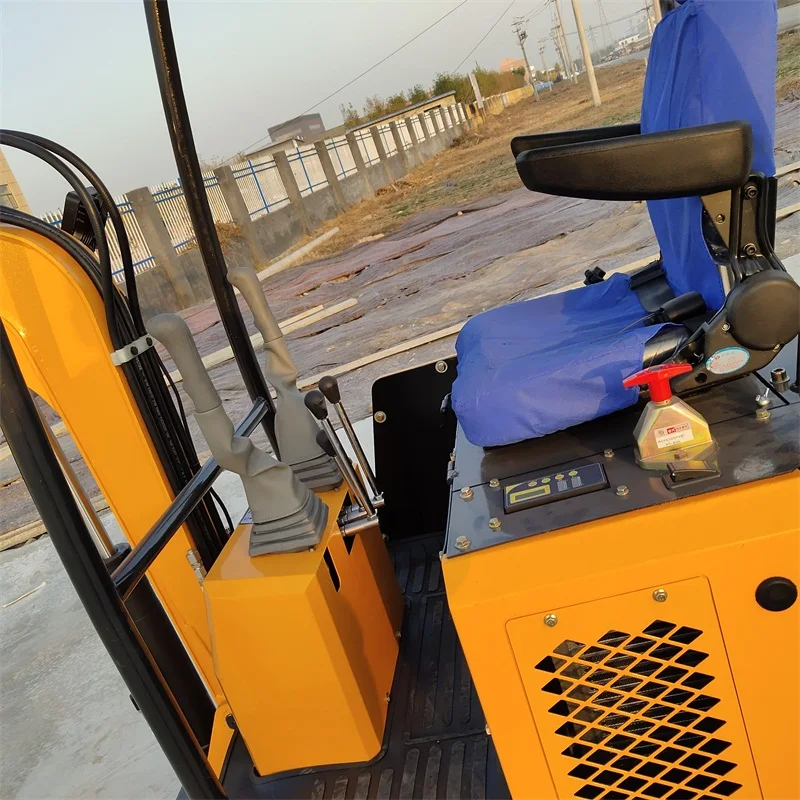

1ton excavator (14)

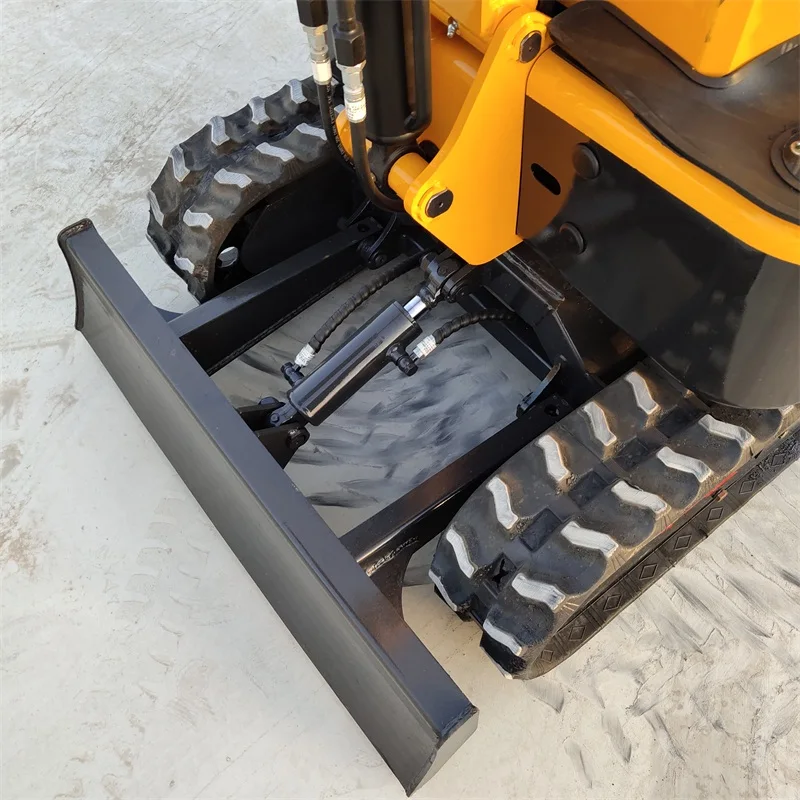

1ton excavator (15)

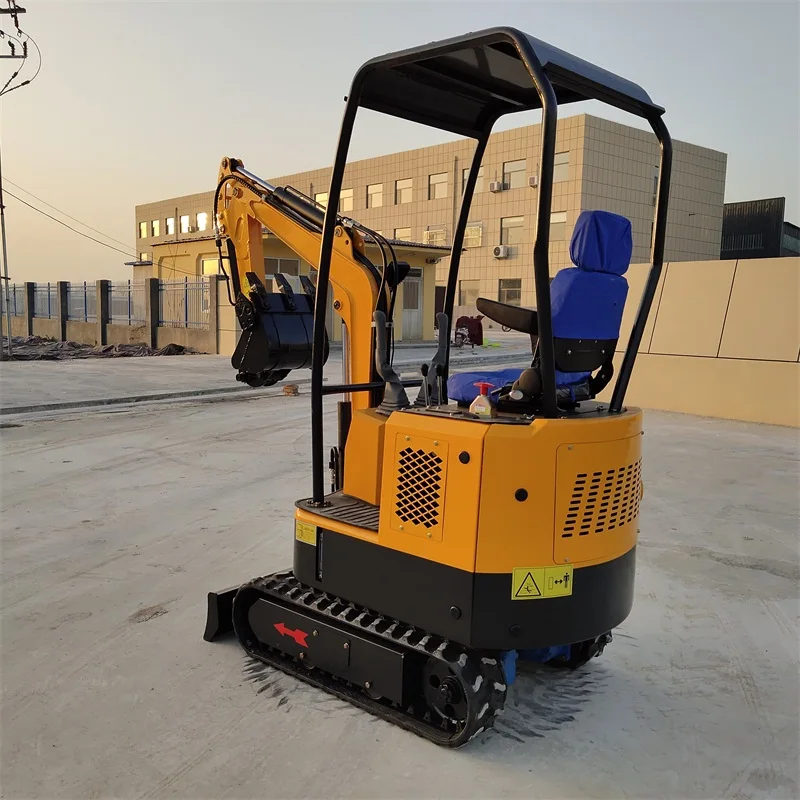

1ton excavator (18)





1ton excavator (10)





Mini Excavator (14)

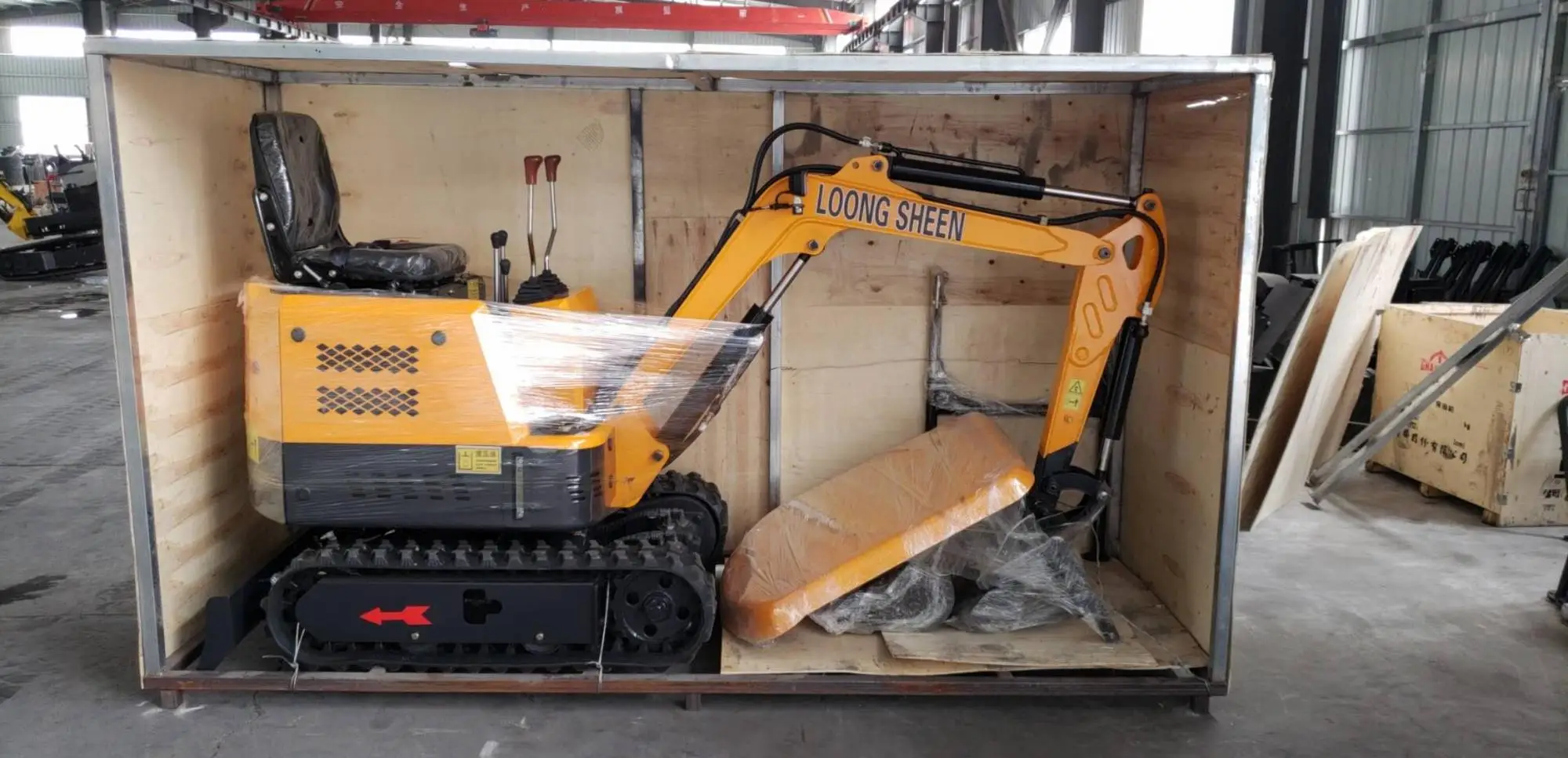

Packaging & Shipping


IMG_3547











Company Information


Shandong Loongsheen Heavy Industry Co.,Ltd is a professional heavy machines manufacturer and exporter concerned with the design, development and production kinds of machines. We have a branch company Shandong Loongsheen Import&Export Co.,Ltd. Our products is truck crane, excavator, road roller, skid steer loader and so on. We are located in Jining city Shandong province China, with convenient transportation access. Covering an area of 6,000 square meters, we now have over 600 employees and an annual sales figure that exceeds USD 8-15 million.


Five years professional experience in international trading and rich knowledge in construction machinery and heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers.


A well educated and friendly sales team with international vision, members of which can speak fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc.


Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price.


Excellent logistics services by sea, air, railway or road, ensuring timely delivery of consignments all over the world.


Comprehensive after-sales service, including one year warranty, spare parts supply, installment and maintenance, and training.


If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.


We are looking forward to forming successful business relationships with new clients around the world in the near future.


We sincerely hope to cooperate develop together and build a good future with you. Loongsheen is your best choice for kinds of machinery in China.
