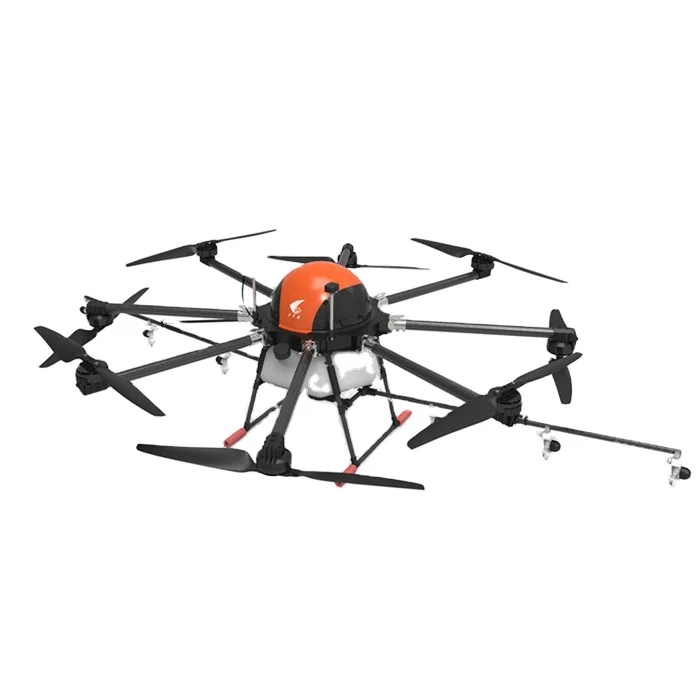

TTA M8APRO 20kg payload carbon frame agriculture pesticide aircraft sprayer drone helicopter
- Категория товара: Aircraft >>>
- Поставщик (Оптовый магазин): Beijing,TT,Aviation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
TTA AGRICULTURE ACCURATE DRONE SPRAYER 20KG PAYLOAD
Intelligent Agriculture is the trend of all over the world. And the intelligent drone act as a important role in this world plan.
TTA Agriculture spraying drone can replace the traditional pesticide sprayer and its' speed is 40times of the traditional sprayer. It will save 90% water and 30%-40% pesticide. Small droplet diameter make the pesticide more well-distribute and improve the effect. At the same time, it will make the people faraway from the pesticide and reduce the pesticide remain of the crop.
Make the life more healthy, make the world more efficient.--TTA
SPECIFICATIONS FOR 20KG PAYLOAD AGRICULTURE SPRAYING DRONE | ||||
DIMENTION | Diagonal wheelbase | 1630mm | ||
Size Folded L*W*H | 513*473*540mm | |||
Container Material | Fiber glass | |||
Container Volume | 20KG | |||
FLYING | Full payload flying time | 15 min | ||
Empty payload flying time | 30 min | |||
Flying Speed | 0-15m/s | |||
Flight Radius | 1.5 km | |||
Flying Height | 0-200m | |||
Landing approach | Vertical take-off and landing | |||
Anti-wind | <8.0m/s (28.8km/h) | |||
SPRAYING | Spray droplet diameter | 60-180μm | ||
Quantity of Nozzles | 6 pcs | |||
Recommend Spray Speed | 4.8-6m/s | |||
Spray Width | 5-8m | |||
Spray Height | 1-3M above crop | |||
Work Efficiency | 3.5-4.5Acre/15min | |||
Main Features
1.It has automatic break-point memory. It can memory the position automatically when then pesticide was finished. Make sure the continuities of spraying.
2. Automatic action mode. One key taking off , One key back landing.
3.Flying as the planing route.
4.Powerful and long-life pump, better atomization function with big pressure.
5. Rtk technology, fixed position accurately . And integrate GPS,Beidou,Glonass
position systems to make more safety work.
6.Quick released structure, easy to maintain and easy to transport.
7.Excellent black box function,automatically record the flight data.
8.Six levels of wind resistance,rain proof,dust proof.
9.Brushless motor, long-life and easy to maintain. 8 points positioning, stable taking-off.

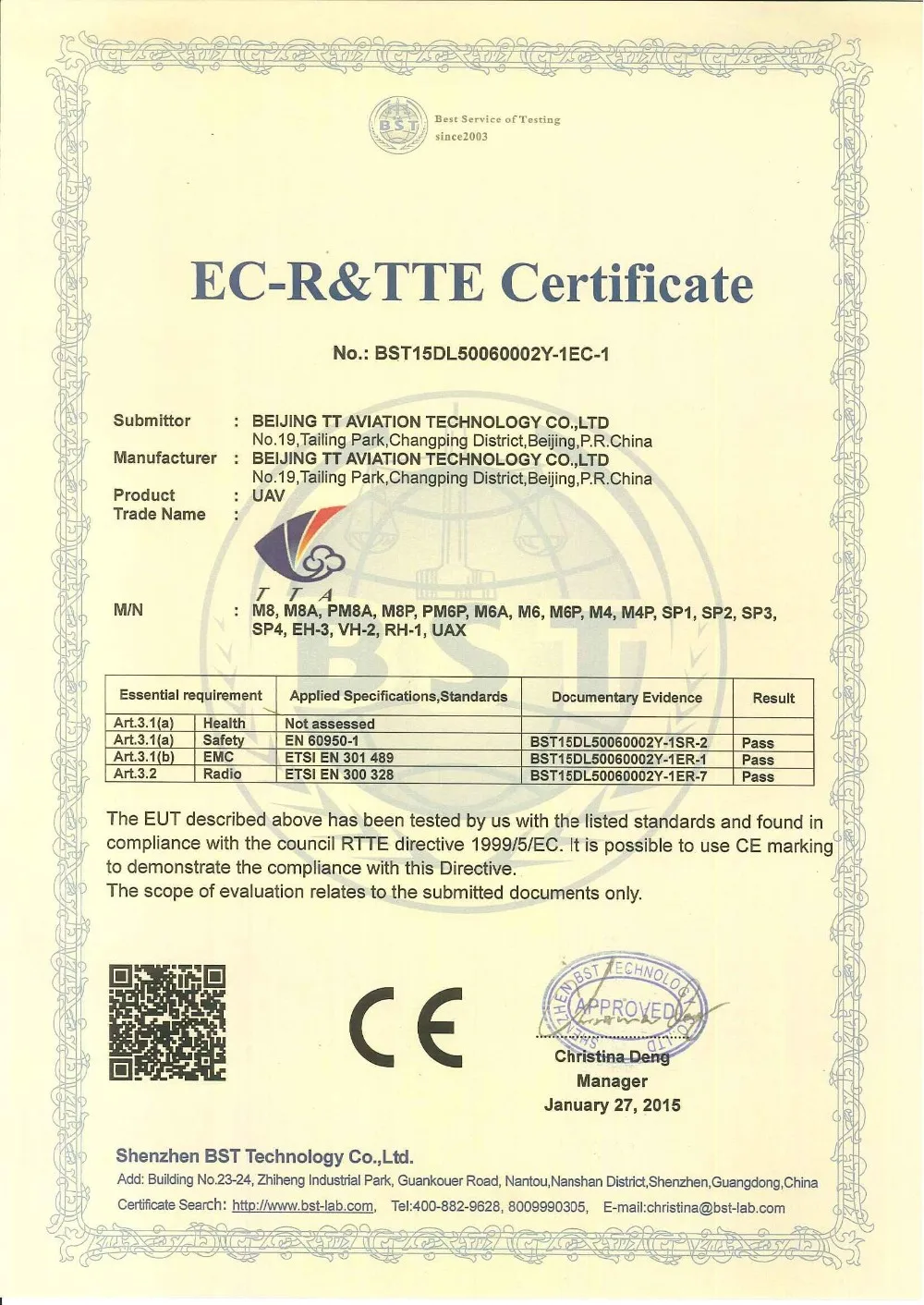

Certifications
Detailed Images
Operate mode
*Automatically route planning and flying.
*It can memory all the routes you have designed to
make the agriculture spraying service easier.
*Support break- point memory.
Main Features
*Powerful and long-life pump, better atomization function
with big pressure.

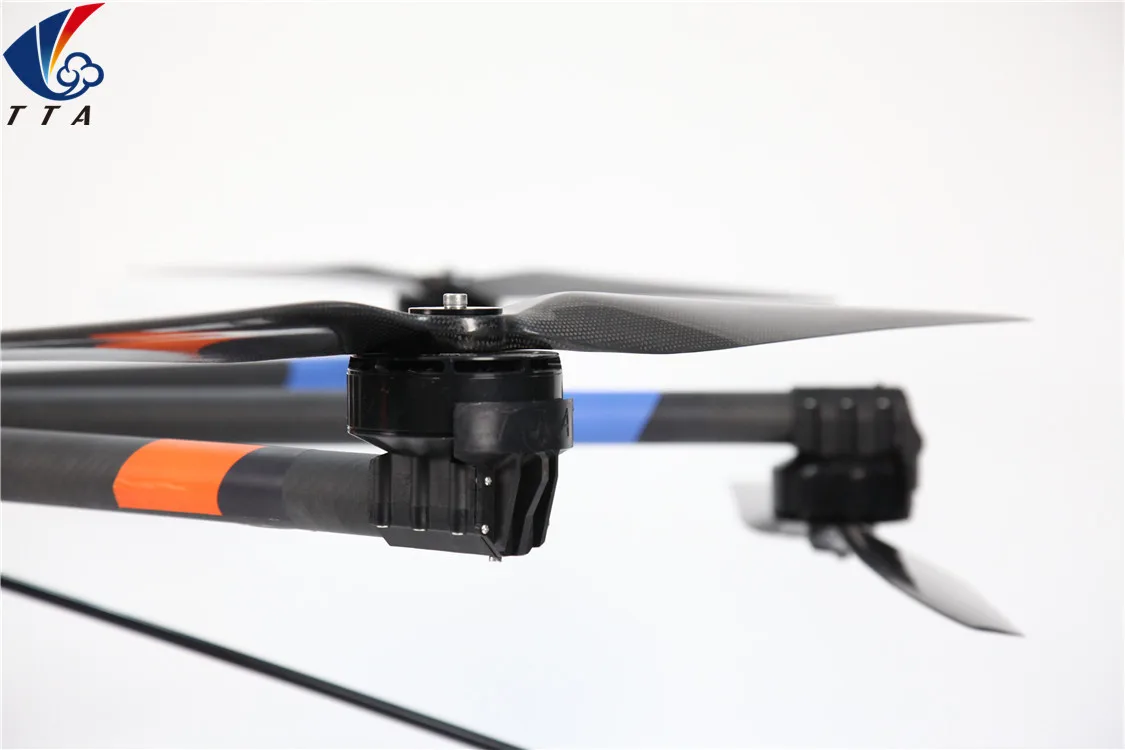

*Brushless motor, long-life and easy to maintain. 8 points
positioning, stable taking-off.
RTK system
*RTK precision position which make the accuracy
to be horizontal +2cm and vertical +5cm.
Main Features

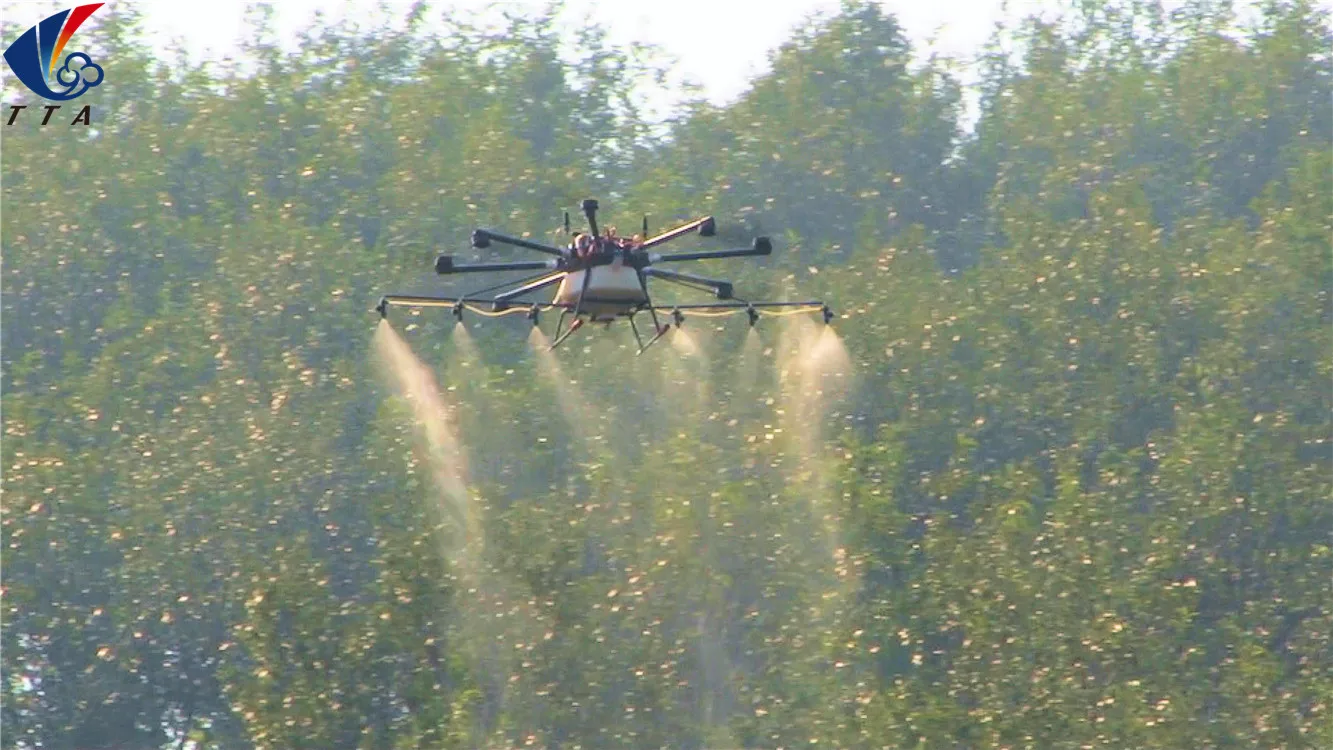

*Big payload and big flow which make the trees spraying
easier.
*Can spraying for the high trees.
Q&A
*Independently design and manufacture. TTA concentrate
on every spare part detaily.
*Professional processes :design, testing, manufacture ,finished product testing ,package, delivery.
Q&C
* There is a responsible person for each drone.
*TTA will test every drone before delivery .
*There is serial no. for every drone which can be used to
check it's whole production process .
Our Service
Pre-Sales
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* TTA education is the biggest AOPA pilot training school
in China, we supply free training for our customer.
* Engineers available to service machinery overseas.
*Good warranty service. Supply 7days return.
*24h online service to help the customer .
Packing & Delivery
Packaging | ||
Size | 70 (L) * 79(W) * 95(H) | |
Weight | 25kg | |
Packaging Details | The normal package is aviation industrial carrying case. Which will protect the drone very well. And we have designed special foam according to the drone structure. The drone inside the box will be fixed and box has wheels which make the transport easy an safe. | |
Packaging | ||
Size | 67 (L) * 67(W) *74(H) | |
Weight | 18kg | |
Packaging Details | Packing list: 1.Fuselage include arms, motors, propellers, electronic speed controllers 2.Futaba remote controller (8FG) 4.Spraying equipment includes Micro pump / pesticide tank / nozzles 5.Assemble tools | |
Our Company
About us
Beijing TT Aviation Technology Co.Ltd (TTA) was funded in 2008 with registered capital of 22.46million RMB . The stuff is
approaching to 200. With more than 200 utility model patents and design patents and 20 software copyrights ,TTA is granted as national high-tech enterprise and Zhongguancun high-tech enterprise
TTA is a specialized unmanned aerial vehicle (UAV) industry chain provider. Our main products are multi-rotor, unmanned helicopter and fixed-wing UAV. The company integrates researching and development, manufacture, test and training to provide professional UAV products,service and training to our customers(Government,Institutions,Enterprise).
The company is the first batch UAV training center authorized by AOPA. It is the NO.1 test center Of AOPA in north China ,which is responsible for the test of all the UAV training institution of north China. TTA is the education base both has the full line model UAV include multi-rotors , fixed wing,helicopter UAV ,and the training qualification of captain,pilot,and teacher.
TTA has been committing to do more contributions and transport more talents for the UAV industry with partners together. Make the world more efficient.
