Taidacent 6*8 Matrix LED Display Bar Light Beam 51 Segments 42mm LED Linear Array LED Panel Minting Bar electronic Display Meter
Product Description

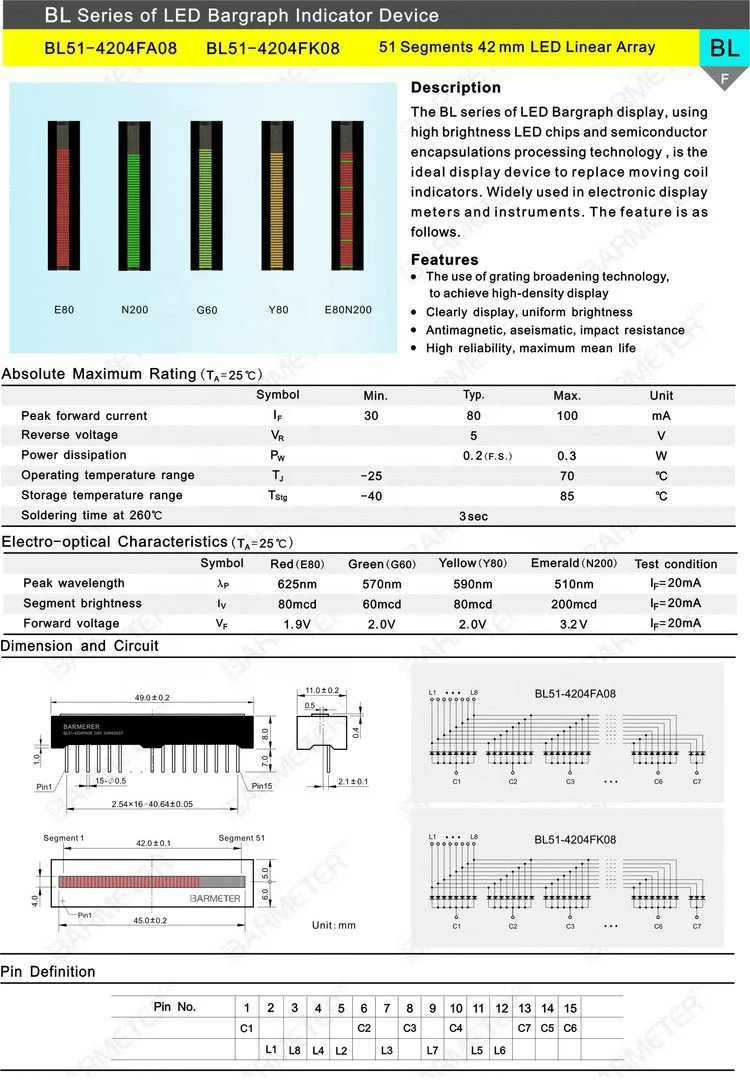

The BL series of LED Bargraph display, usinghigh brightness LED chips and semiconductorencapsulations processing technology , is theideal display device to replace moving coilindicators. Widely used in electronic display meters and instruments.The feature is asfollows.
Features
The use of grating broadening technology,to achieve high-density display
Clearly display, uniform brightness
Antimagnetic, aseismatic, impact resistance
High reliability, maximum mean life
Clearly display, uniform brightness
Antimagnetic, aseismatic, impact resistance
High reliability, maximum mean life
Specification
Absolute Maximum Rating(TA = 25℃ )
Peak forward current : 30~100mA, Typ 80mA
Reverse voltage : 5V
Power dissipation : Typ 0.2W (F.S) , Max0.3 W
Operating temperature range : -25 ~ 70 °C
Reverse voltage : 5V
Power dissipation : Typ 0.2W (F.S) , Max0.3 W
Operating temperature range : -25 ~ 70 °C
Storage temperature range: -40~ 85°C
Soldering time at 260°C : 3sec .
Soldering time at 260°C : 3sec .
Electro-optical Characteristics(TA = 25℃ ) | ||||||||
Red(E80) | Green(G80) | Yellow(Y80) | Emerald(N200) | |||||
Peak wavelengh | 625nm | 570nm | 590nm | 510nm | ||||
Segment brightness | 80mcd | 60mcd | 80mcd | 200mcd | ||||
Forward voltage | 1.9V | 2.0V | 2.0V | 3.2V | ||||

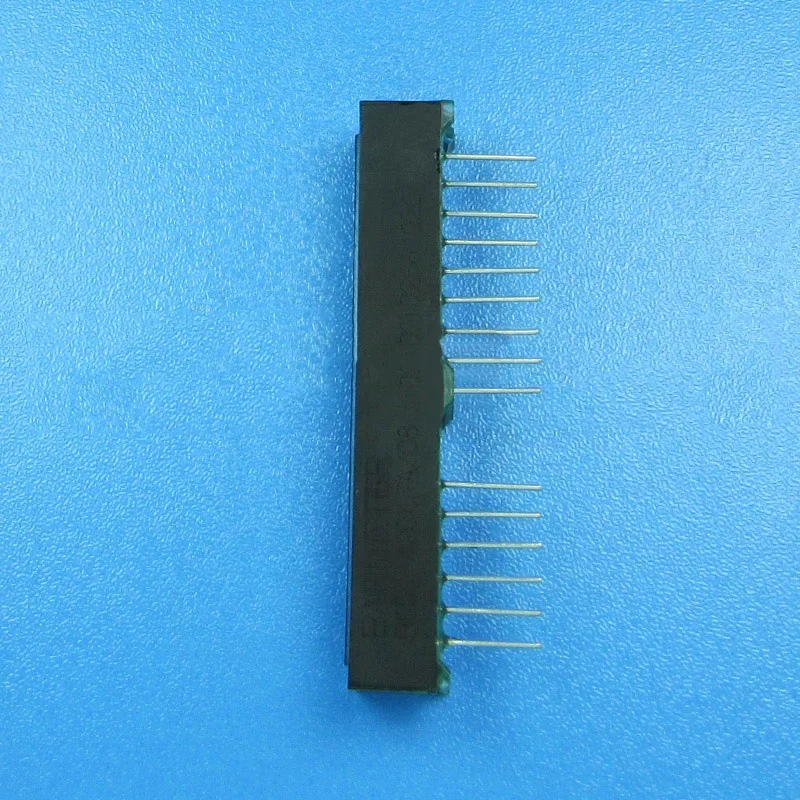

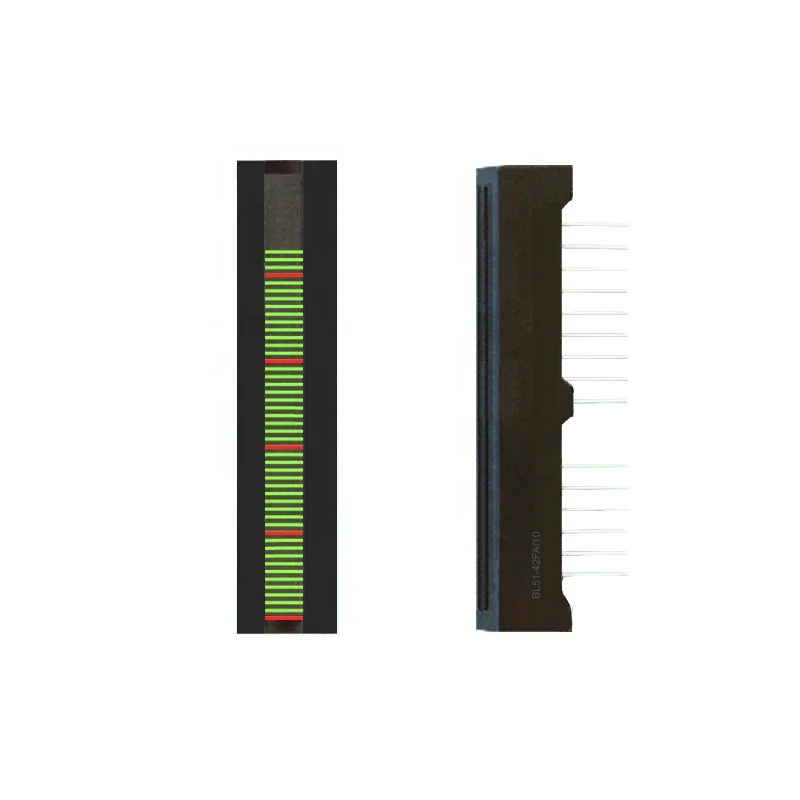

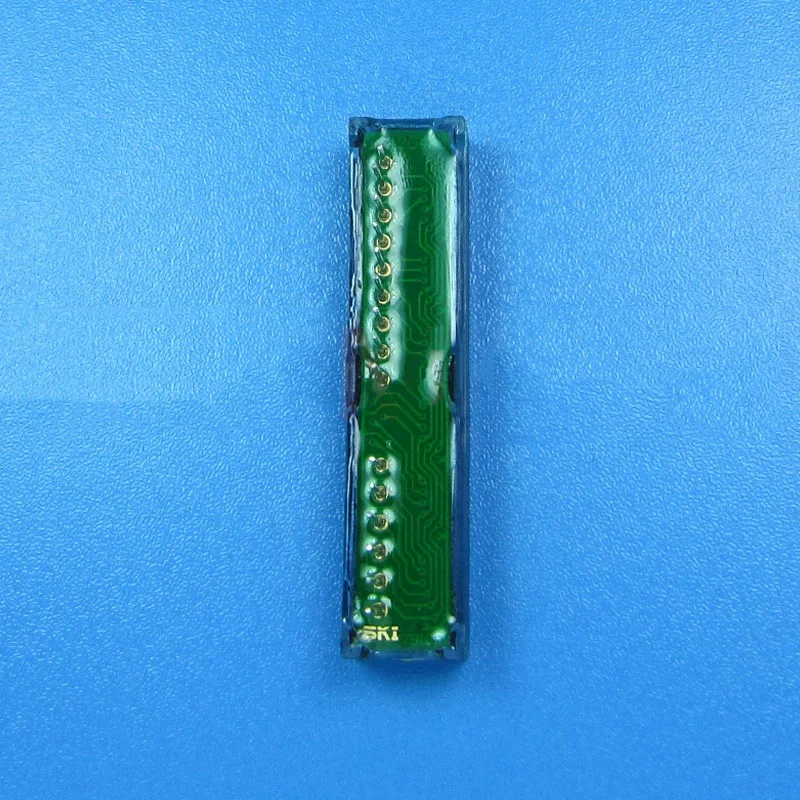

Details Images
