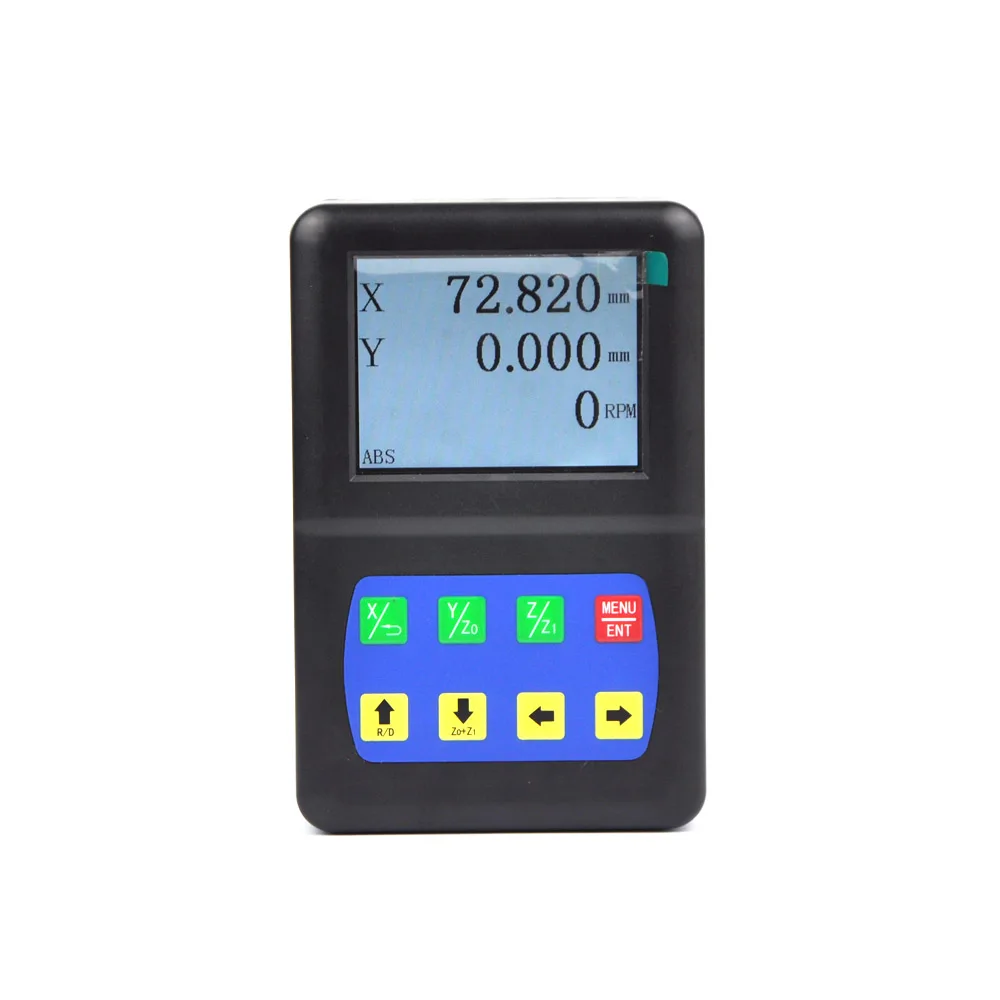

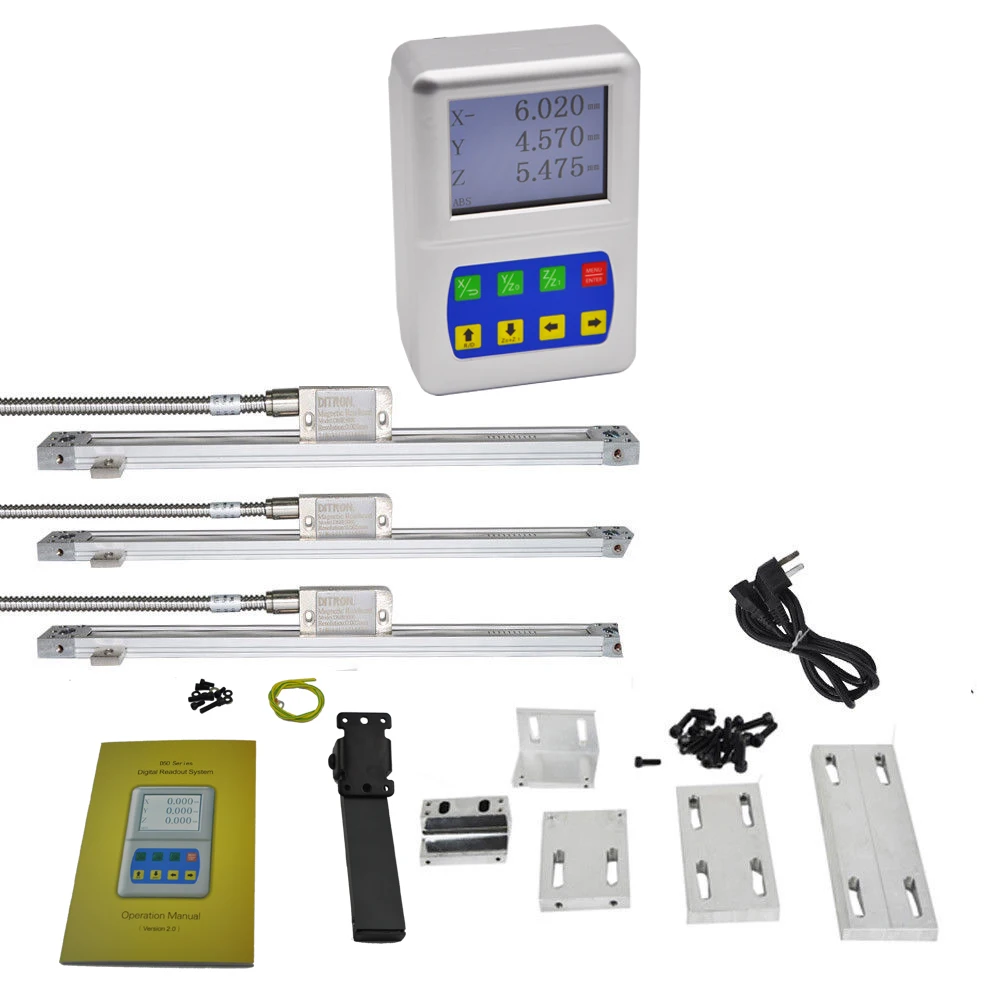

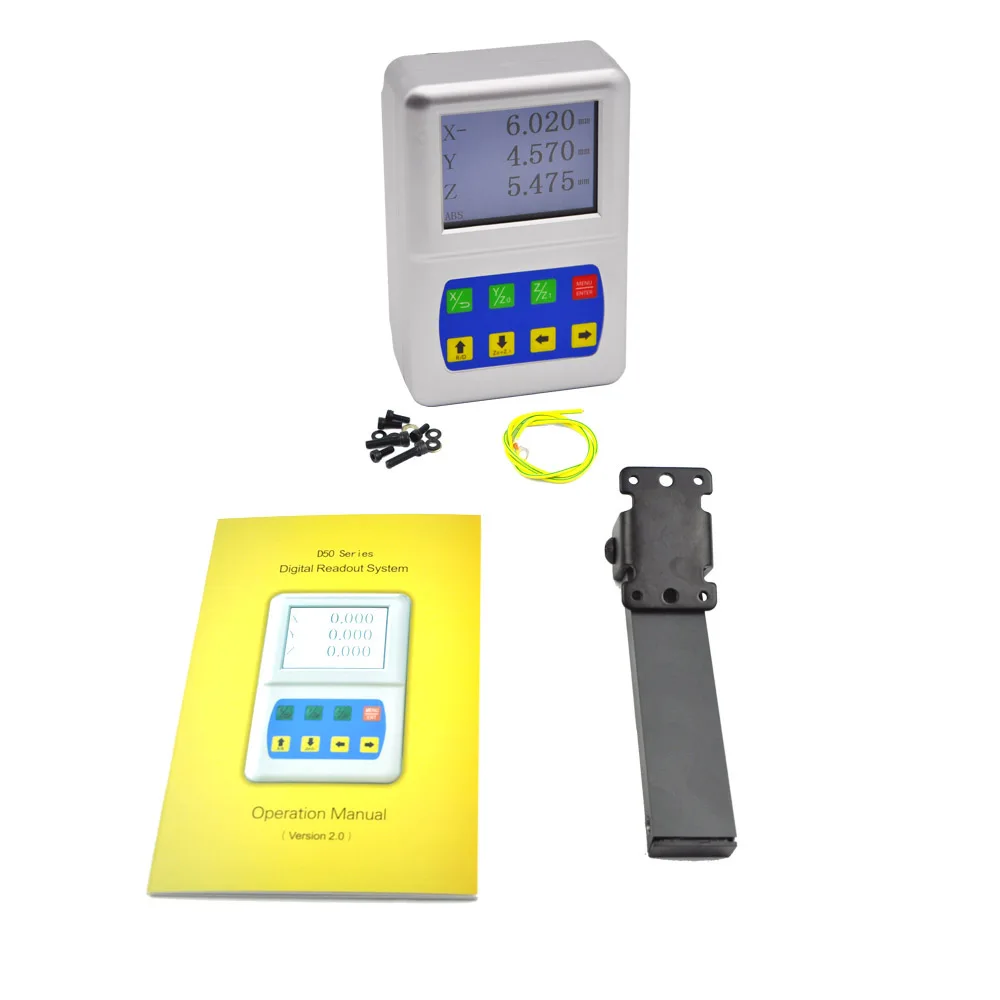

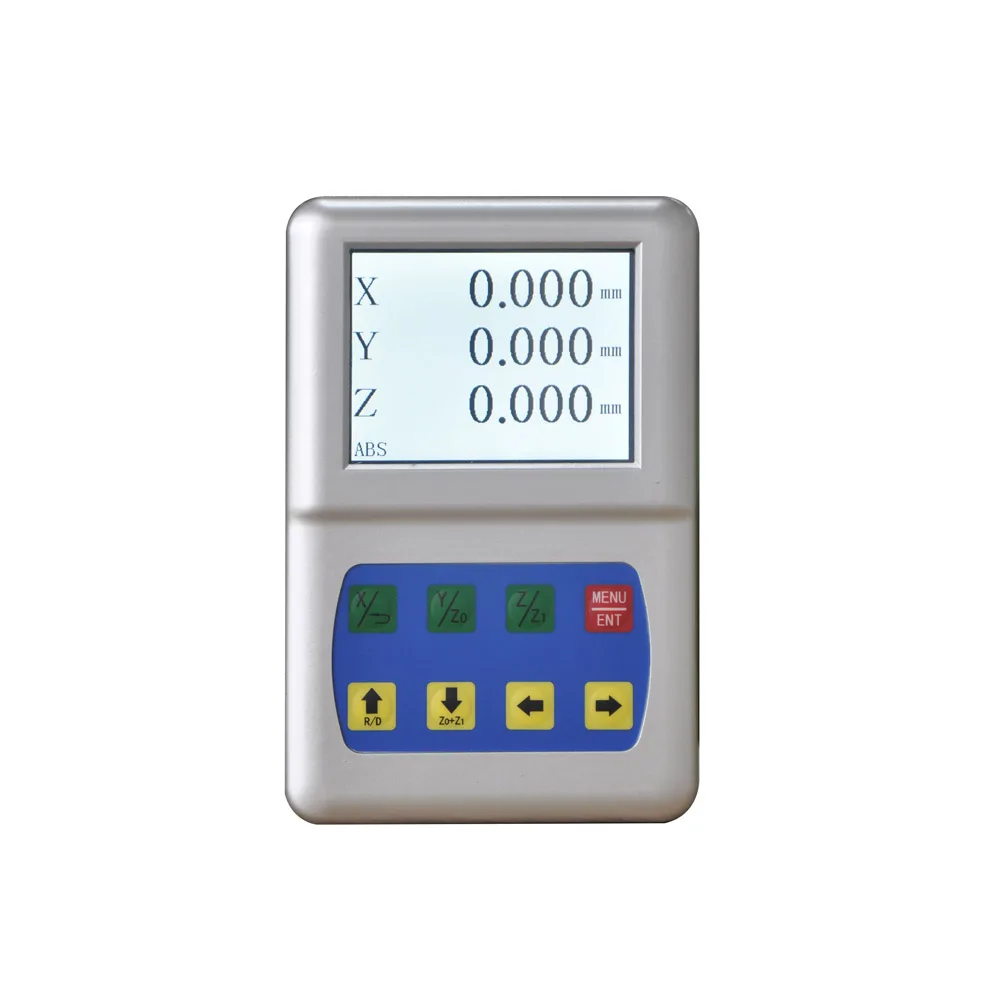

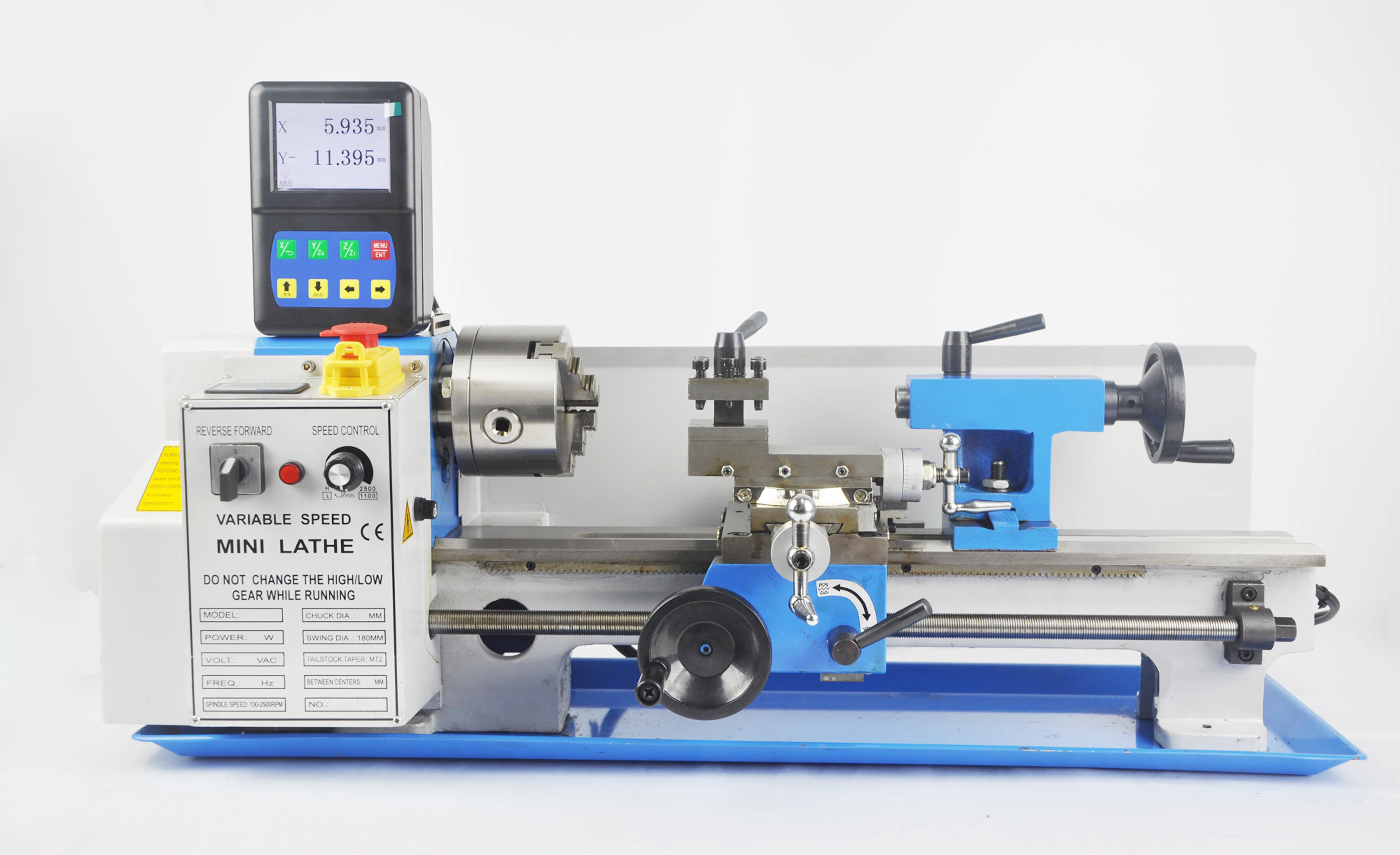

DITRON LCD DRO Small Size 1/2/3 Axis Digital Readout System with Linear Scale 5um Resolution 5V TTL for Mini Lathe

• 3.5' ' true color LCD screen,easy to recognizing


• Optional for RPM function and RS232 protocol


• High integration makes the performance be stable


• Lathe mode with Z+Z1 and Diameter&Radius conversion,Milling mode with PLD and PCD function


• Smart checking of the inner data and power supply


• Can connect with both linear scale and rotary encoder

D50 digital readout Functions:

• Zeroing ,date recovery


• Input coordinates


• Metric / British units


• Power off memory


• Encoder selection


• Resolution setting


• Linear compensation


• Counting direction setting


• ABS/INC coordinate


• REF


• Calculator


• Non-linear compensation


• 1/2 function


• Radius / Diameters conversion


• Y + Z function


• Axes summing

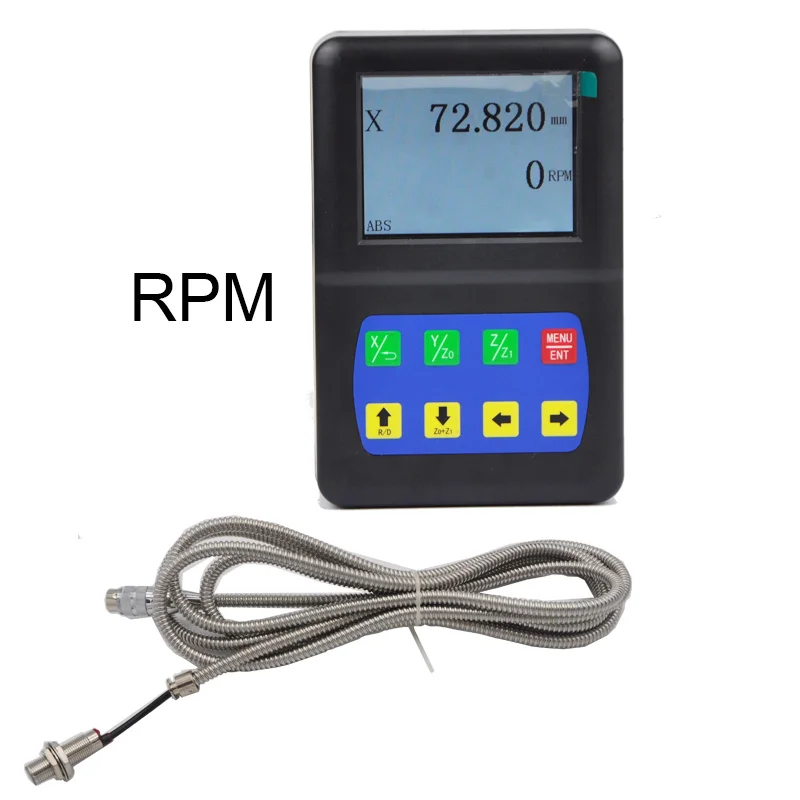

• Rotational Speed Measurement / RPM (optional )


• RS232  port (optional )


• Linear measuring basing rotary encoder  (optional )

Comparison of various parameters of DC10, DC10F, DC20:
