DIYmall ESP32S 4 CH Wi-Fi BLE триггерный релейный модуль Wi-Fi реле с DC6V 0.6A адаптер питания штепсельная вилка стандарта США
- Категория товара: Electronic Accessories & Supplies >>>
- Поставщик (Оптовый магазин): Shenzhen,Flyfun,Technolocy,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
DIYmall ESP32S 4 CH Wifi BLE Relay Module WiFi Relay Switch with DC6V 0.6A Power Supply Adapter US Plug
Related Products
Product Description
Please be noted that our APP is not available in APP Store now, only available in Google Play. Please use it with Android Phone.
Please feel free to contact us if you want to custom a module based on ESP or Lora Chipset.

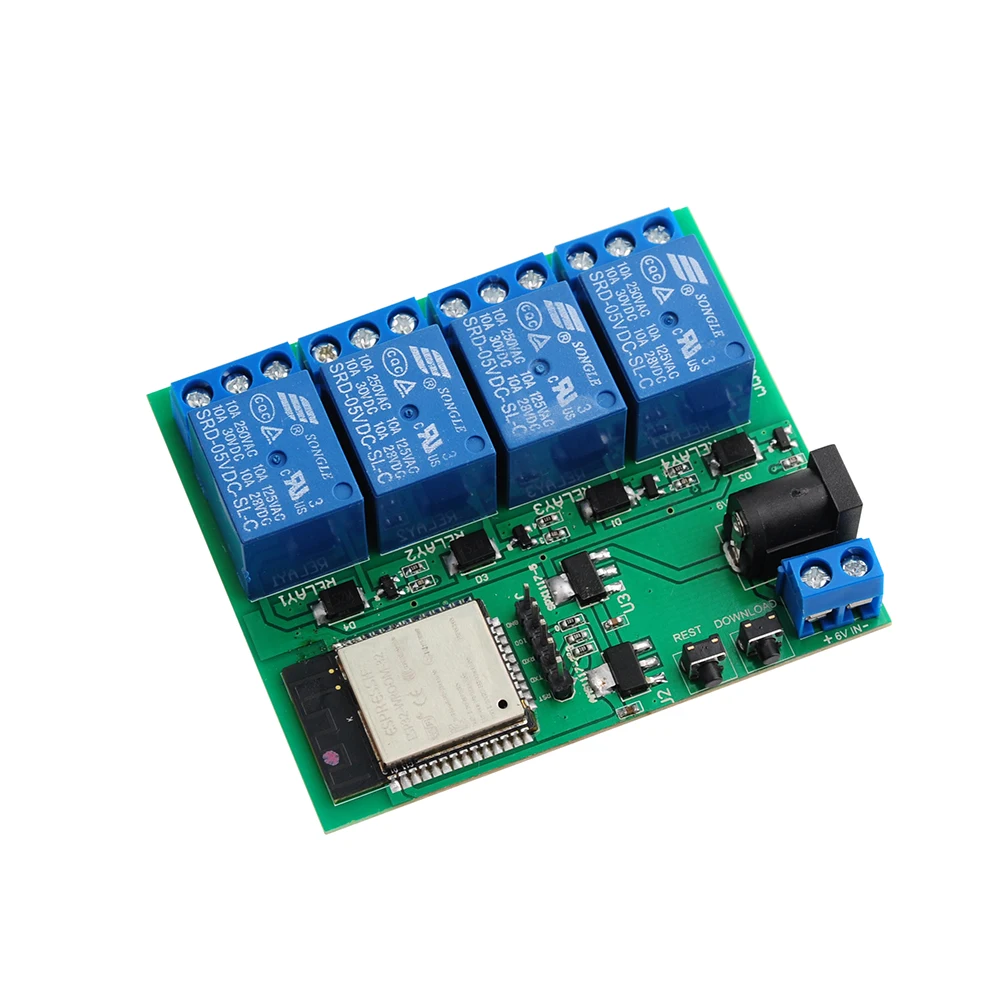

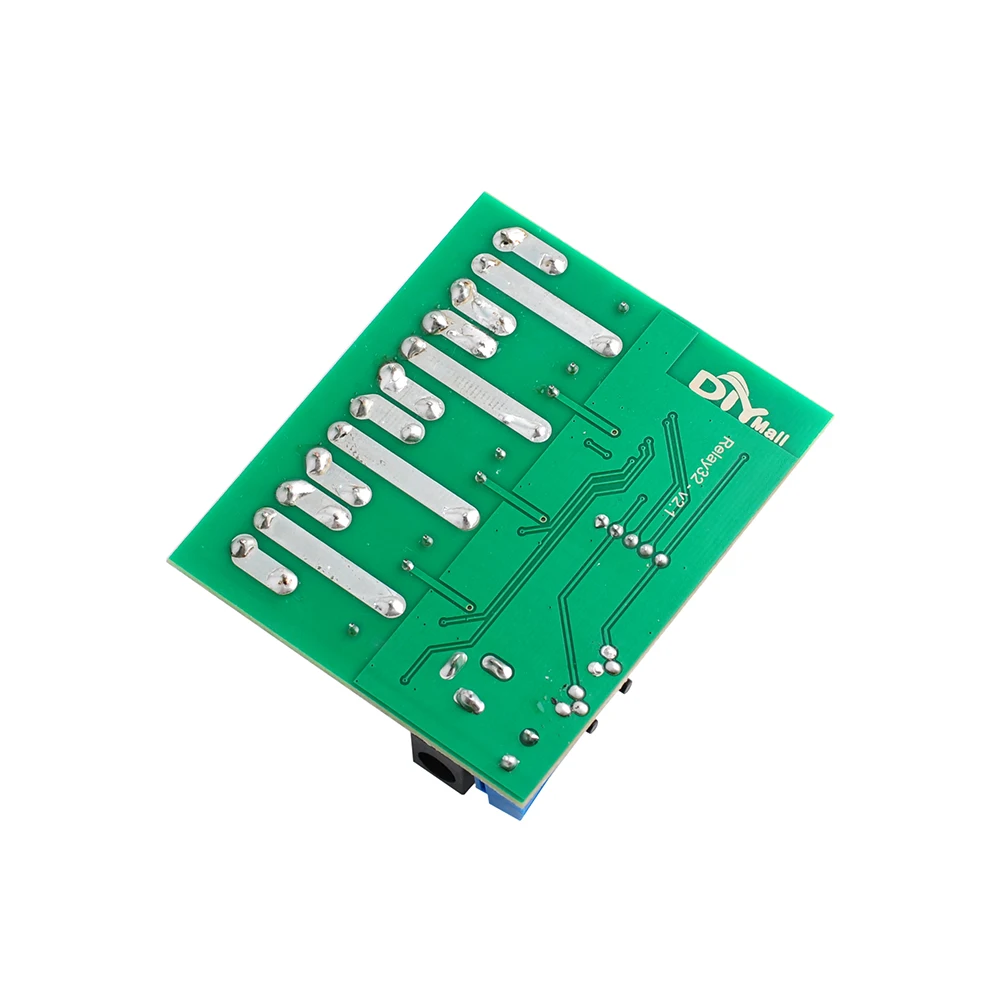

Description of ESP32 4CH WiFi Relay Switch:
Input: 6V 0.750A (NOTE: if the board can not work, please change power to 9V 1A or 12V 1A)
Relay capacity (per relay): 250Vac/10A, 125Vac/10A, 30VDC/10A
Relays: 4 independently controlled via ESP32
Interface: BLE and Wi-Fi
The ESP32S 4 CH WiFi Relay Switch can be switched on and off individually via BLE or Wi-Fi connection. Upon startup, the module creates a WPA2 protected Wi-Fi access point and BLE server. Over Wi-Fi, the relay states can be controlled with a simple GET statement for easy integration with your applications. The Wi-Fi webserver provides a JSON interface for relay states. A BLE GATT server is created and can be used concurrently with the Wi-Fi access point.
WiFi connection, the wifi name is TEST, password is 123456789
APP Store: Not Available now

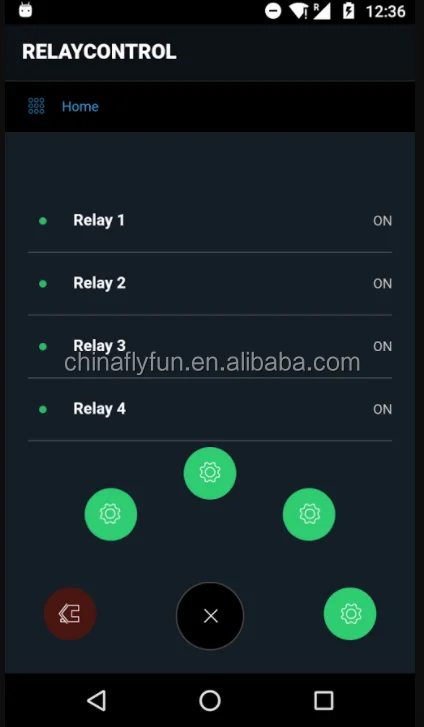

Google Play: "DIYMall Relay Control" APP (Requires Android : 4.1 or up)
Android APP Link:
https://play.google.com/store/apps/details?id=me.stratux.relaycontrol&rdid=me.stratux.relaycontrol
Document link: http://www.diymalls.com/files/FZ2707-esp32-bluetooth-relay-module.zip

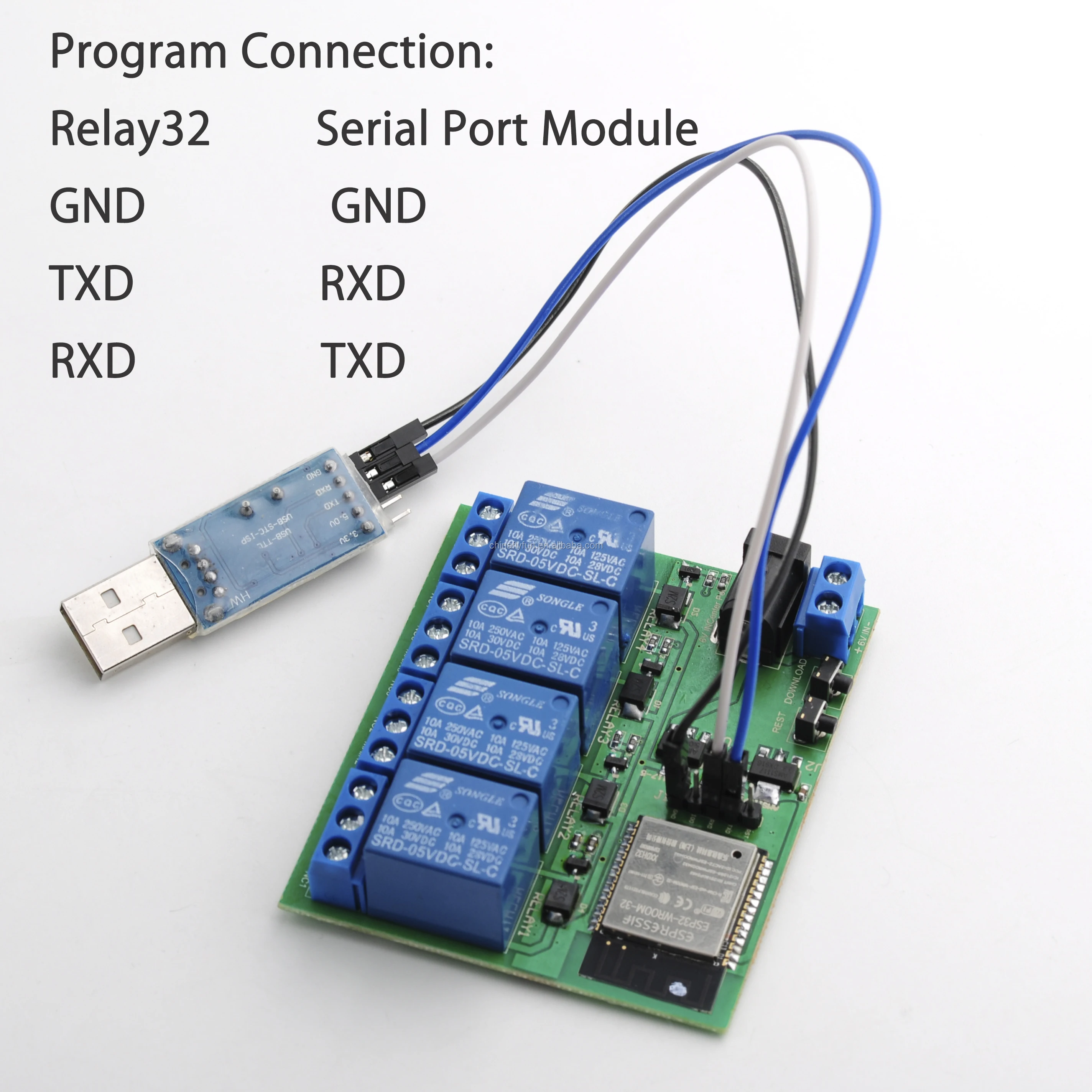

Pls contact us if you need Burn firmware into relay32s.

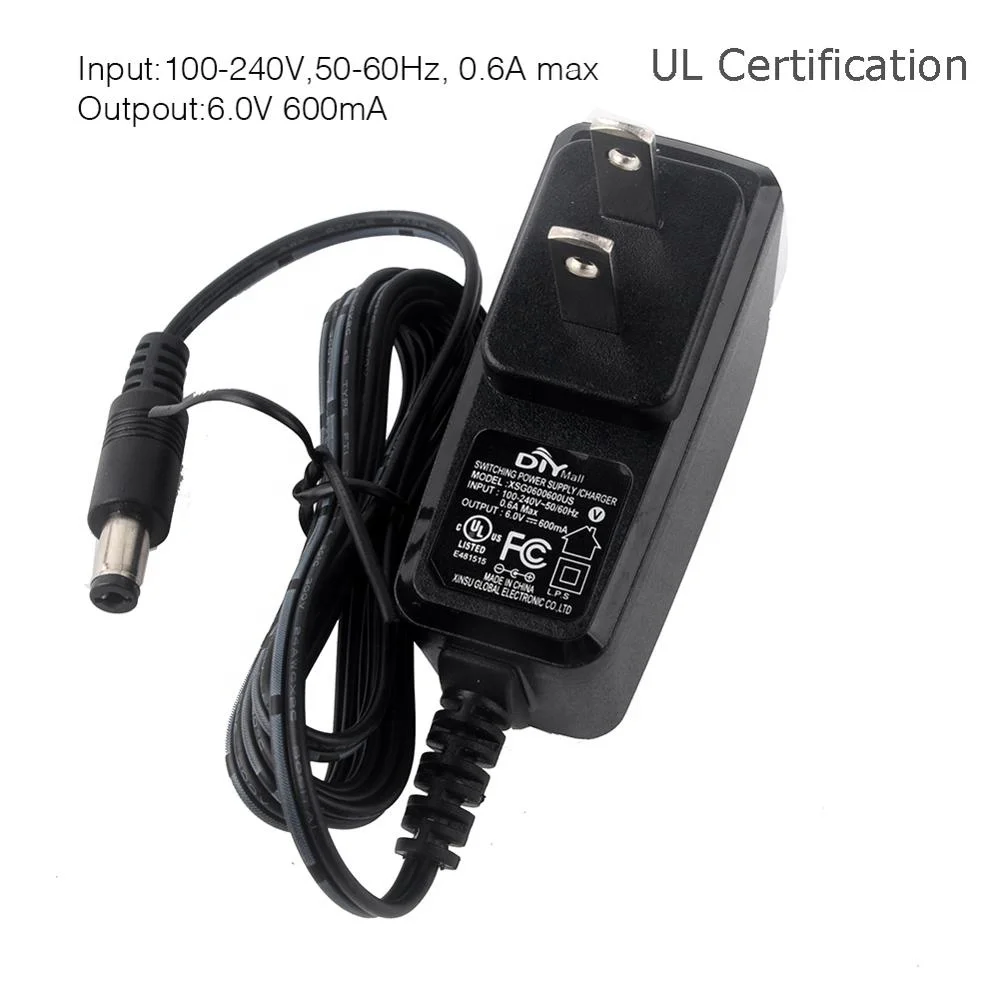

Description of Power Supply Adapter:
Input:100-240V,50-60Hz, 0.6A max
Outpout:6.0V 600mA
Plug:US standard
DC cable:UL2468 AG24
Cable length:1.2m
DC connector size:5.5X2.1CM
Power polarity: inside is positive, outside is negative

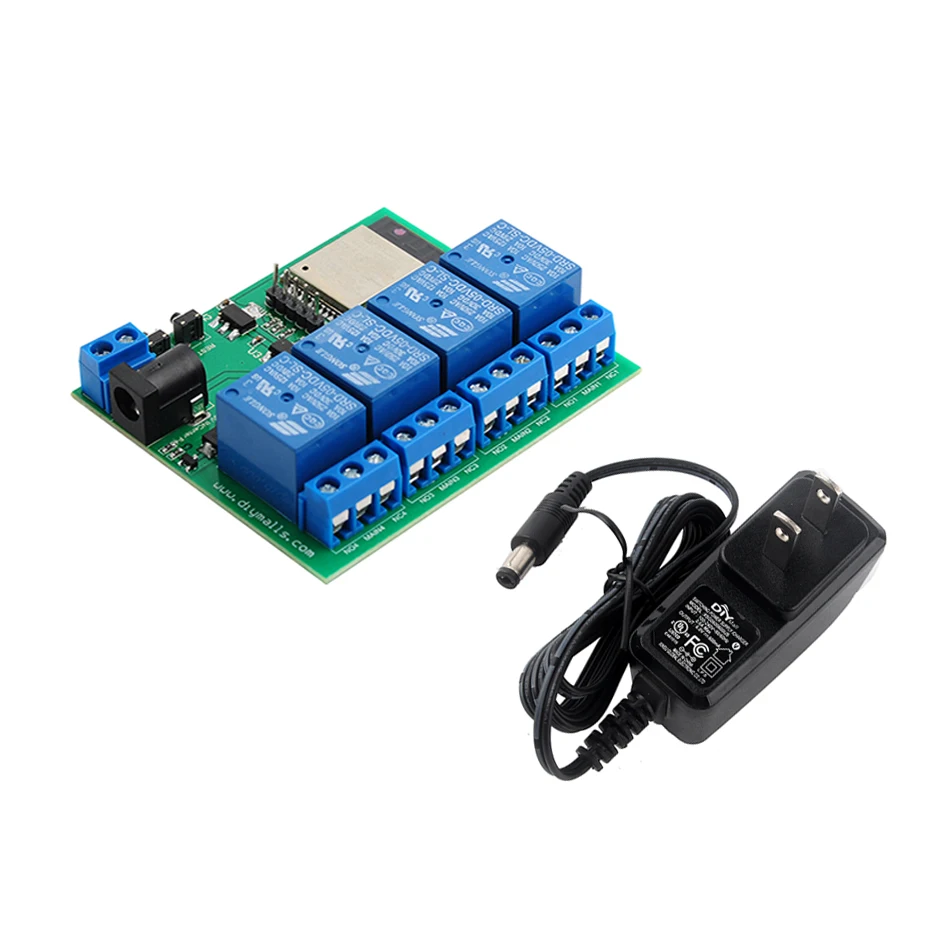

Package Included:
1 X ESP32 4CH WiFi Relay Switch
1x Power Supply Adapter US Plug
Product Images
