API 5CT Downhole Cementing Tool Tubing Anchor for Gas Oil Fields

Tubing Anchor Introduction

Tubing anchor is a downhole, packer-like device run in a string of tubing that clamps against the wall of the casing. The tubing anchor prevents the "breathing" of the tubing, the cyclic up and down movement of the lower section of tubing as the well is pumped by a rod pump.

1. Characteristics:

(1) effectively anchoring the tubing string on the wall of well during the PC pump operation;

(2)When the anchoring is no need it is easy release the anchoring condition.
2. Specification: API 5CT 5-1/2" - 9-5/8"
3.Connecting thread type: 2-3/8” to 4-1/2” EUE, NUE

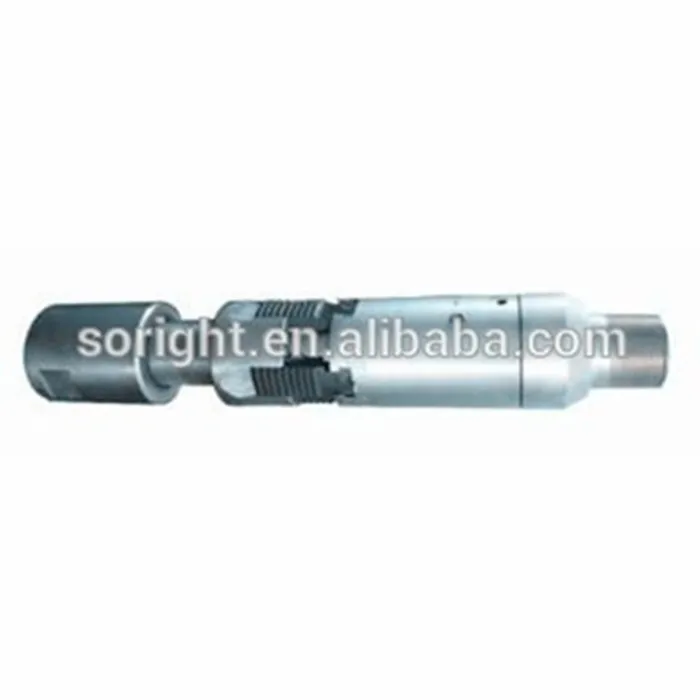

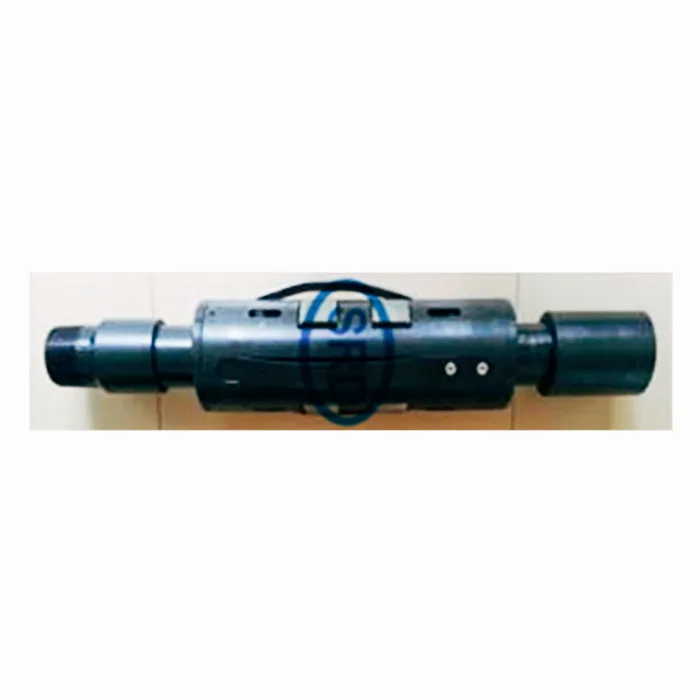

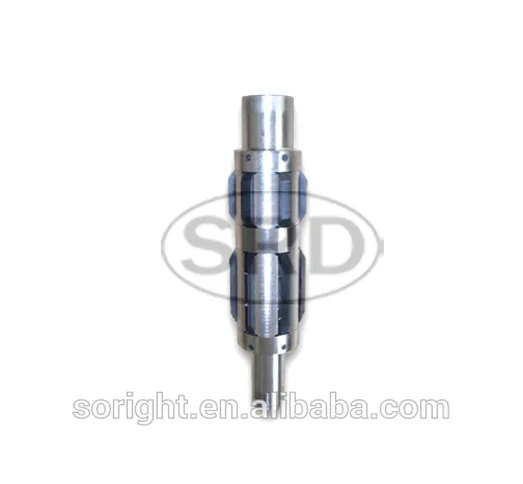

Tubing Anchor 21052521 Tubing Anchor 21052511 Tubing Anchor 21052506 001

Specification of the Tubing Anchors:

Specification	Max OD (mm)	Drift diameter (mm)	Slip free OD(mm)	Slip open max OD (mm)	Working pressure(Mpa)	Pulling tension (KN)	Setting pressure (Mpa)	Release force (KN)	Lift Load (KN)	Suitable casing diameter (mm)
Tubing Anchor	114	62	112	132	35	≤60	8~10	90~100	≤400	121.4~124.3

Features:

1. Safely and firmly set in all type of casing, including premium grades.

2. Bi-directional slip anchoring, which improved the ability of pressure difference resistance between upper and lower pressure

3. Hydrostatic setting, straight pull releasing, suitable for all kinds wells (vertical Wells, deviated well and horizontal well)

4. Bore diameter could satisfy the requirements of different kind wells.

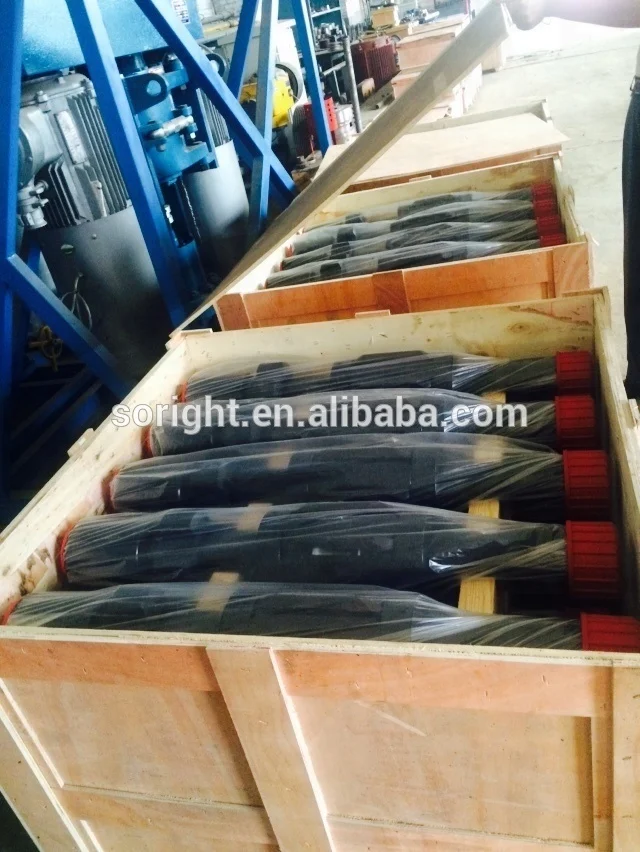

Package of the Tubing Anchors:

Our Company Brief Introduction:

Tianjin Soright Technology & Development Co.,Ltd (hereafter called Soright Tech) is one of exporting windows of China Petroleum Machinery. It is an integrity combined with R&D, machinery and processing, technical services on petroleum machinery products and services.

Soright Tech primarily provides clients with the production equipments, tools, spare parts and accessories that been manufactured by high quality petroleum equipments manufacturers of CNPC (China National Petroleum Corporation). Our main products are as follows: subsurface sucker rod pump, sucker rod, tubing crossover, tubing/casing couplings, stuffing box, thread protector, packings, float shoe and float collar etc.

The company keeps on the Quality is the first. All of products are designed and processed meeting API Specifications. Quality Management System has been set up to ensure the whole process being properly controlled.
