Product Description
Stainless steel powdered sugar grinding machine sugar mill
Introduction of sugar grinding machine
The machine is applied for pharmaceutical, chemical, foodstuff, magnetic material and powder industries, representing a new generation pulverizer which combine crushing with dust absorption and continuously discharging.
Working principle of sugar grinding machine

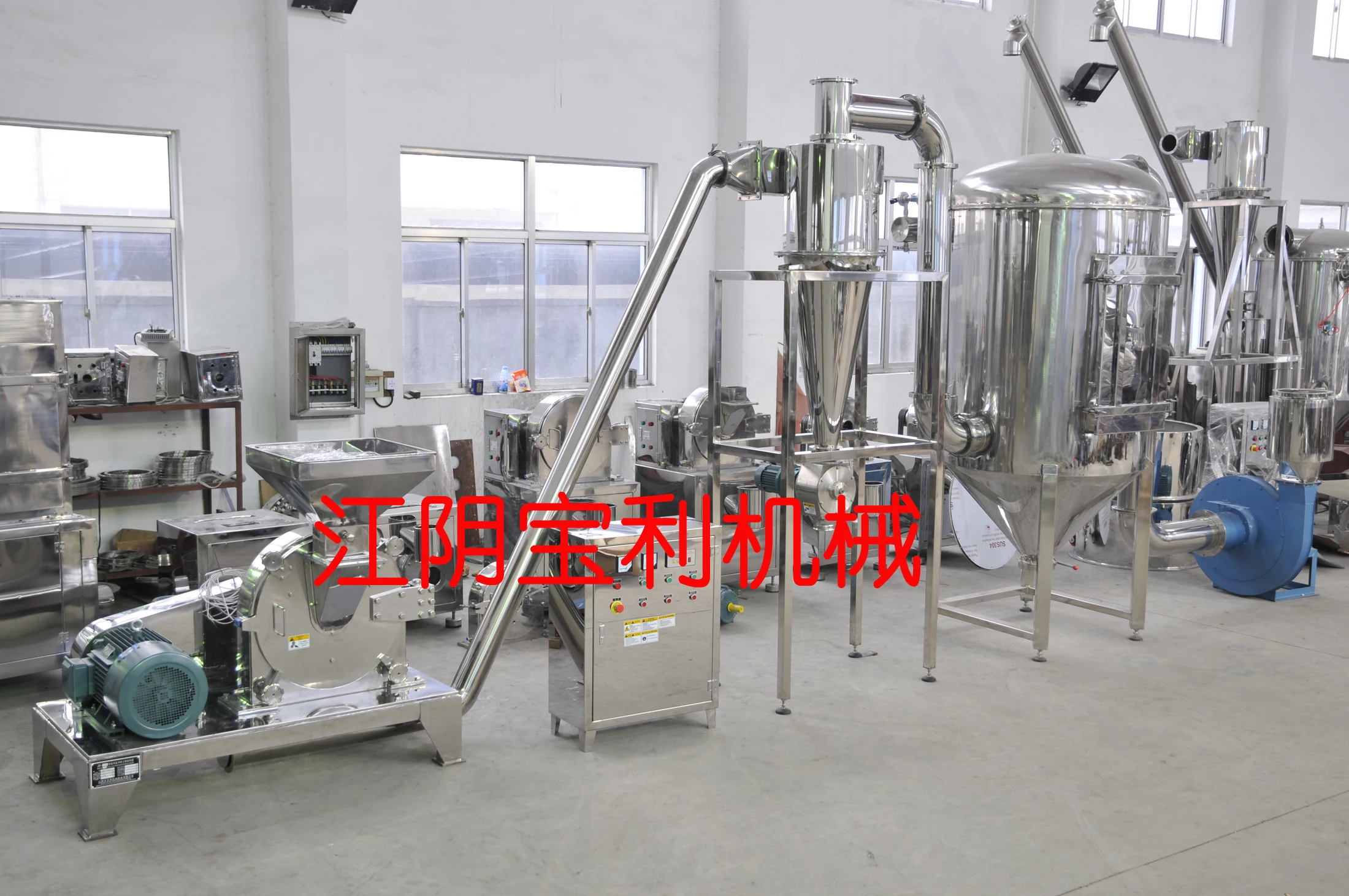

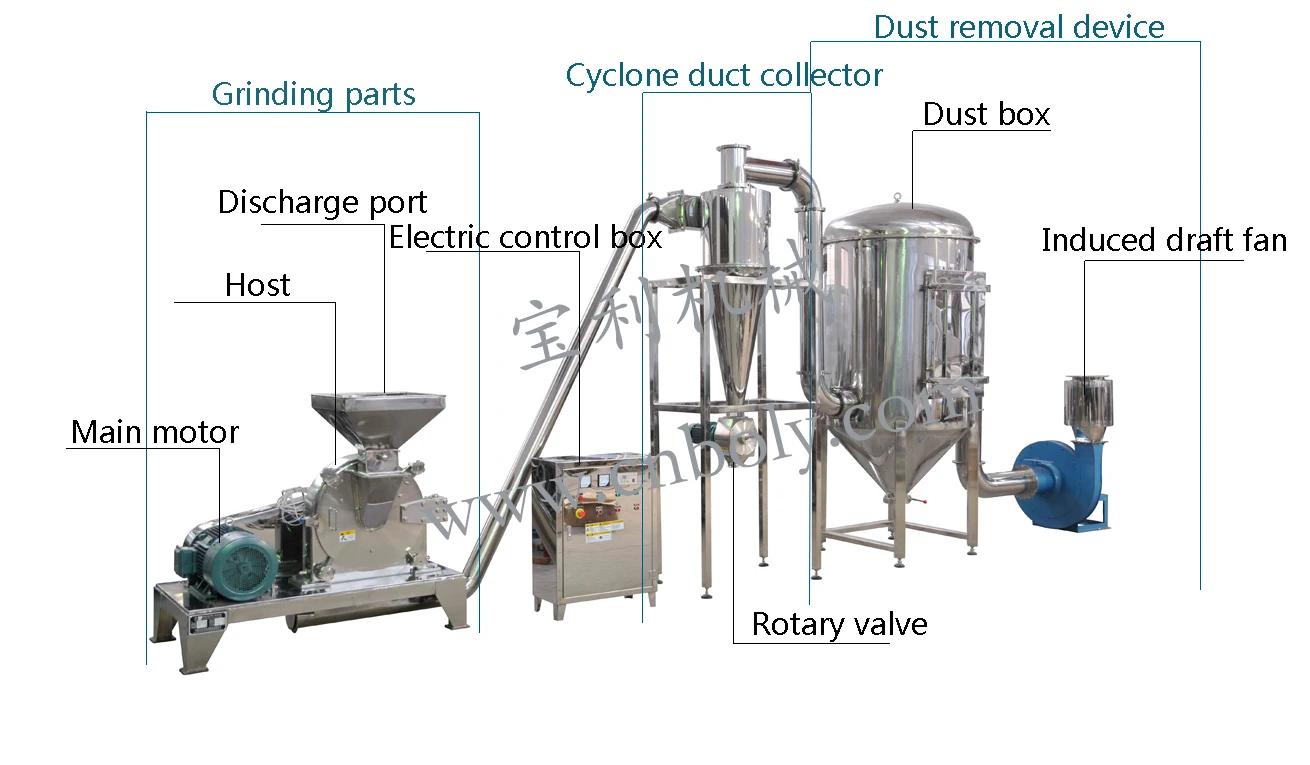

The machine is composed of crusher, cyclone separating device, pulse dust absorption box and blower, etc.
The machine is working by relative movement of rotation disc and fixed fluted disc, making the material be crushed. The crushed material is fed into cyclone separating device by rotating centrifugal effect and gravitation of blower and get out via discharger. The dust is fed into dust absorption box and recycled via filter, the fineness can be regulated by changing the sieve. The whole machine is designed according to GMP standard, made of stainless steel, without any dust suffusing.
Main Features
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 12 to 120 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
Technical Data
Detailed Images

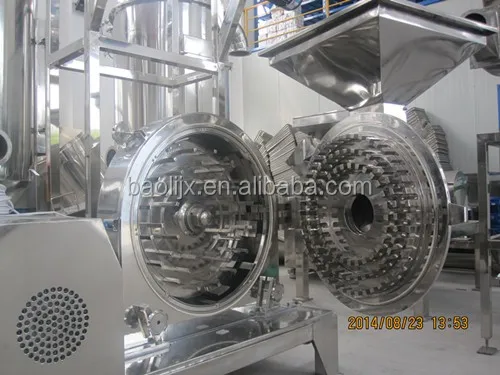

Grinding Parts
(1) The left motor is grinding motor;
(2) The circular one is grinding chamber

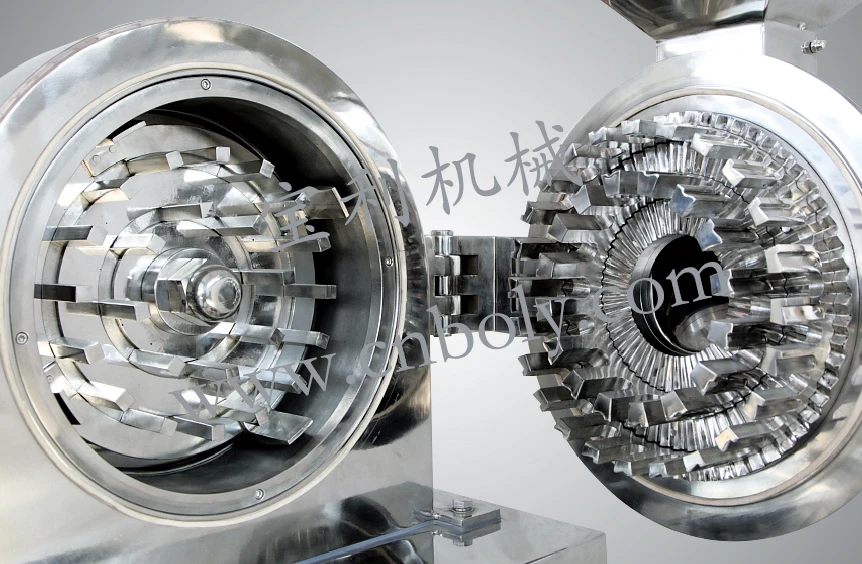

Inside mill chamber
This is toothed disc Type.
Also we could change turbo, hammer or any other type.

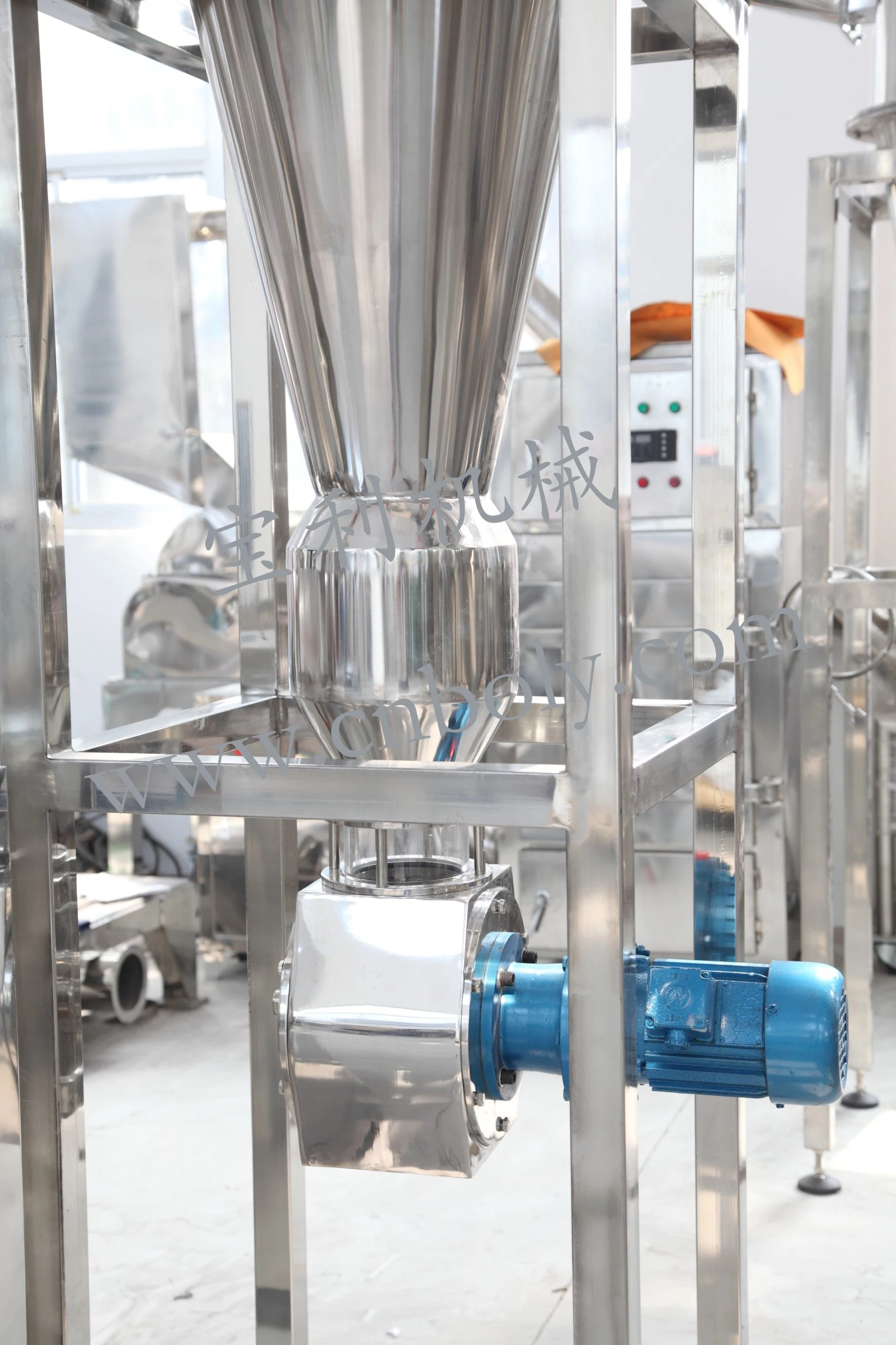

Cyclone part
(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel and to clean it and dismantle is convinient.
(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel and to clean it and dismantle is convinient.

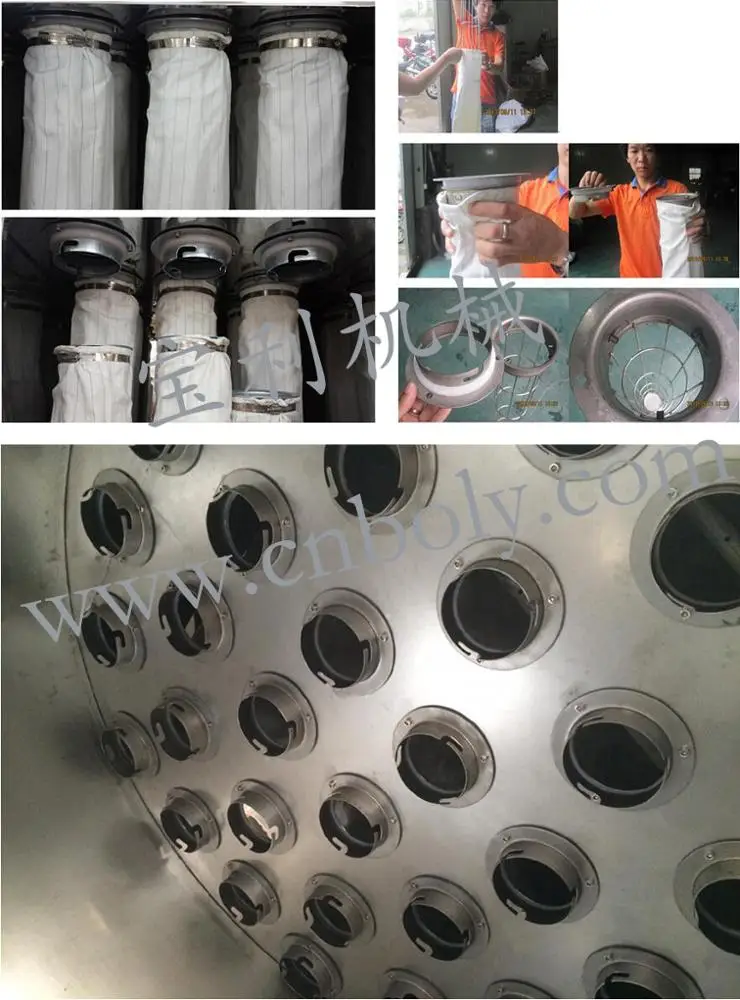

Pulse Dust Collecting box
The dust collecting bag can effectively collect the fine powder in the air current so as to meet the requirements for cleanness and environmental protection in waste gas discharge.
The dust collecting bag can effectively collect the fine powder in the air current so as to meet the requirements for cleanness and environmental protection in waste gas discharge.
Certifications
Related Products
If you want to send inquriy about our powder grinding machine , could you please tell me? 1) What material you want to grind, is it dry? what is the size of feed material 2) What capacity you expect ? (kg/h) 3) What mesh or mm or micron(size) of the powder you want? 4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V... (We only provide 3P, because our machines are all for industrial use,not for family.) 5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us. |
