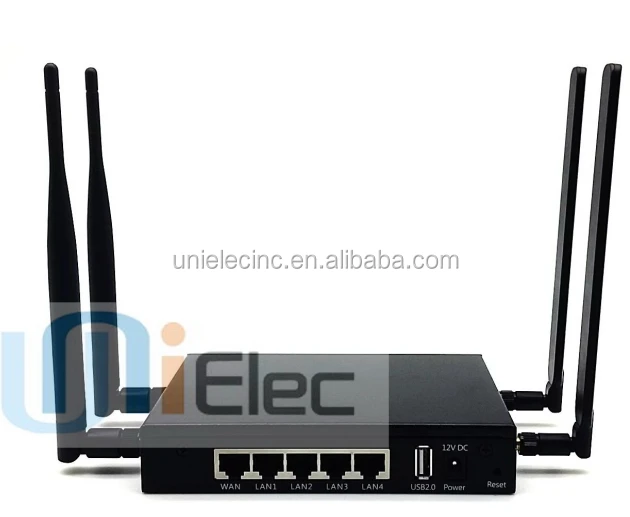

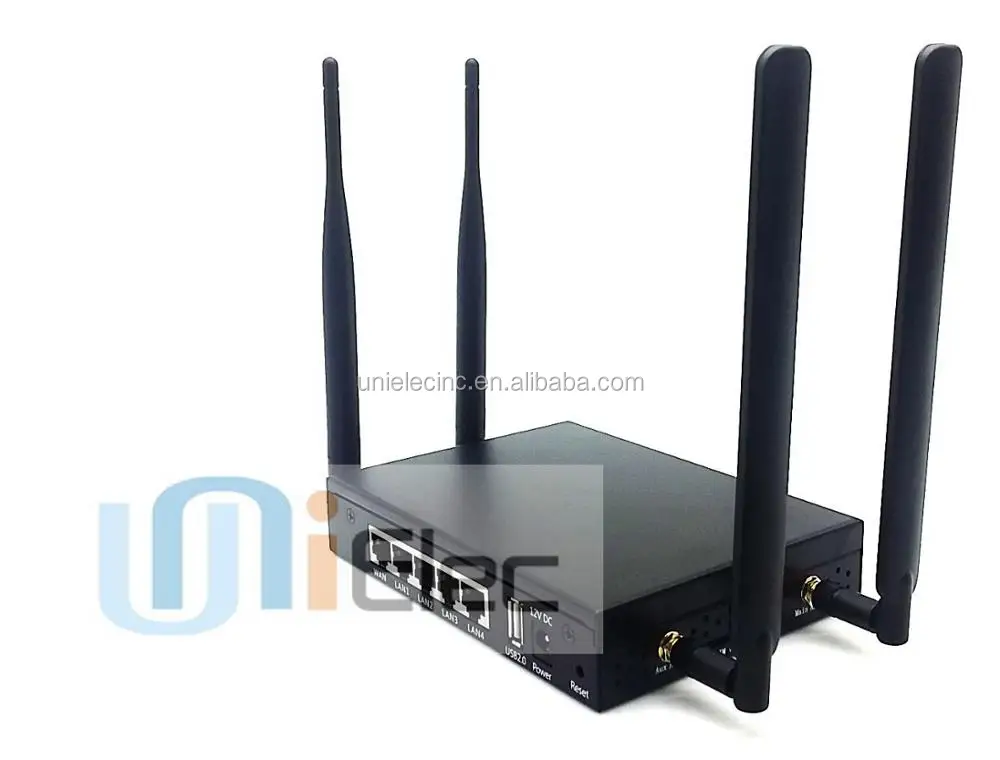

Устройство, док-станция Qualcomm QCA9531 2,4G маршрутизатор брандмауэра OpenWRT qsdk MT7612 чипсет, Wi-Fi, при создании PCBA ODM OEM изготовленный на заказ сим-карты доска

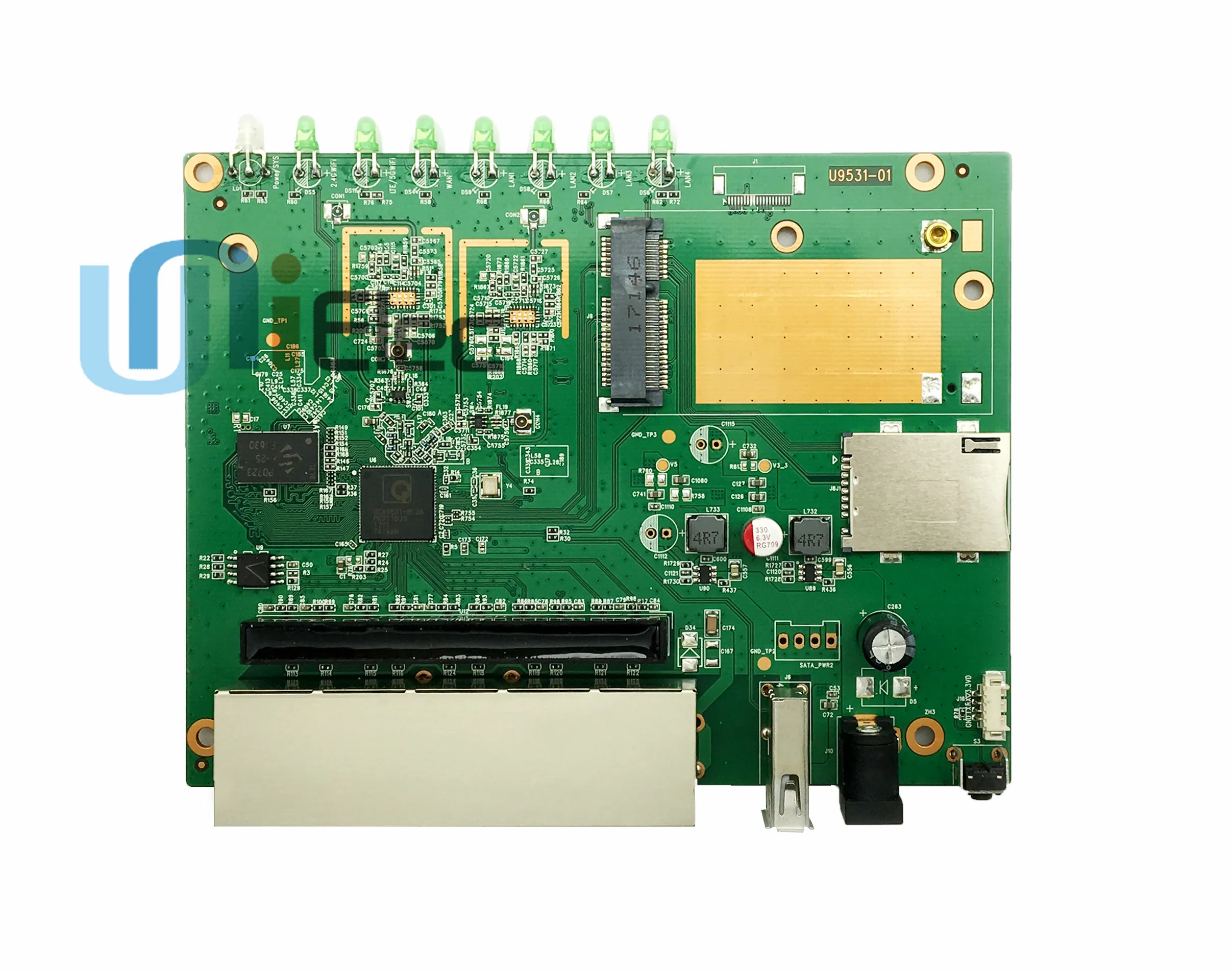

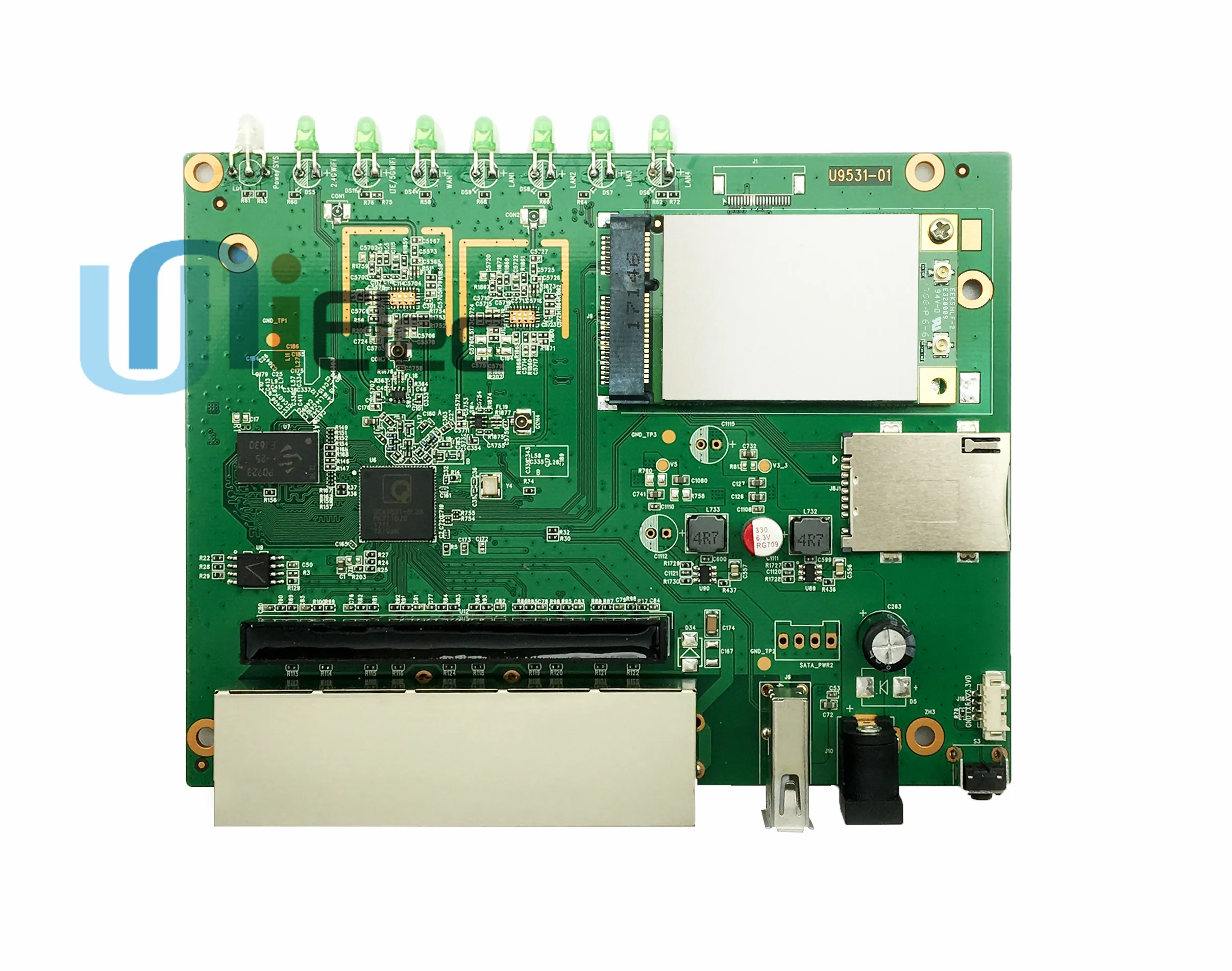

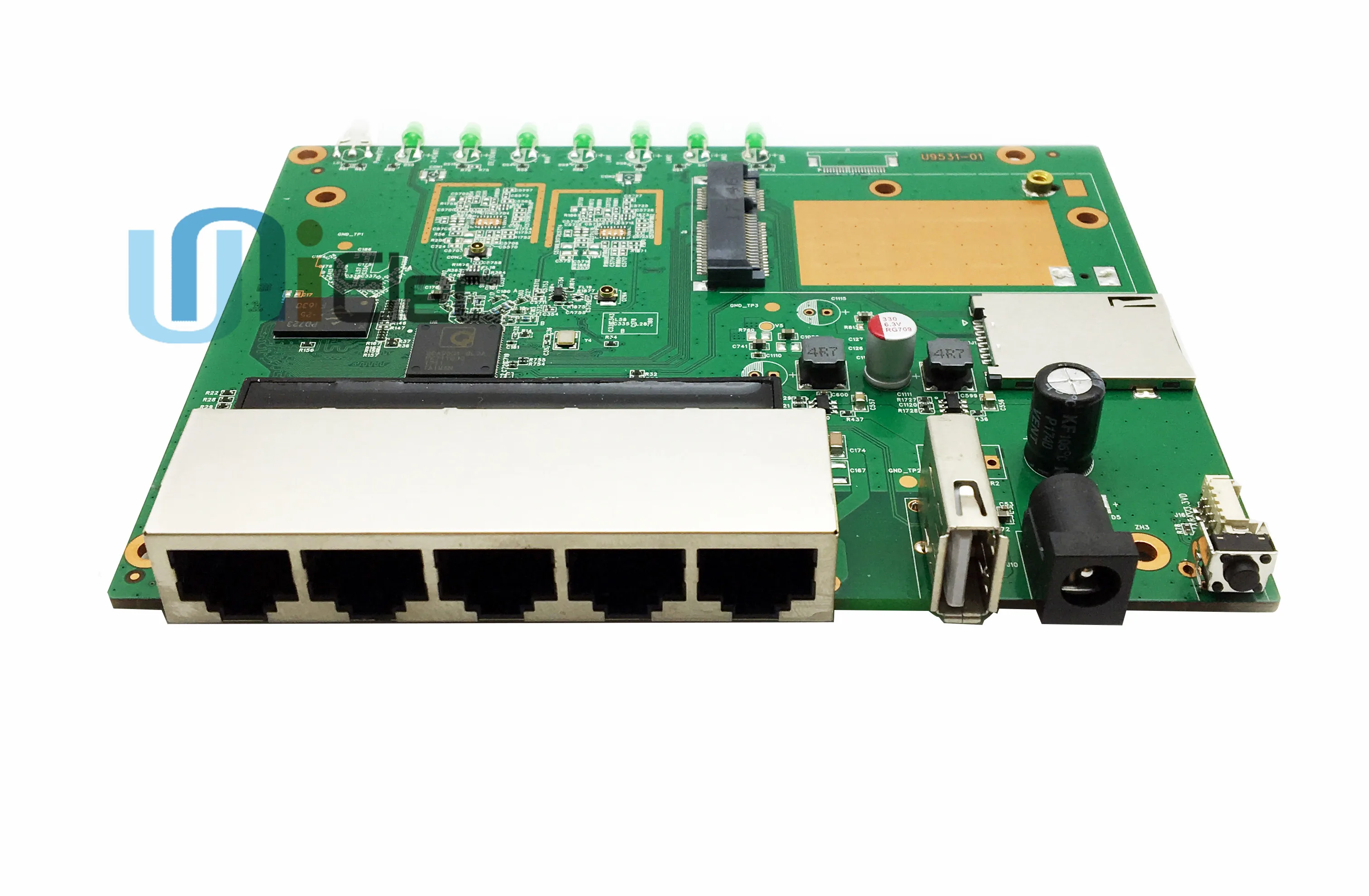

U9531-01 CPU Qualcomm® XSPANTM QCA9531 is a highly integrated and feature-rich IEEE 802.11n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. It includes a MIPS 24Kc processor, one PCI Express 1.1 Root Complex interface, five port IEEE 802.3 Fast Ethernet Switch with MAC/PHY, one USB 2.0 MAC/PHY, and external memory interface for serial Flash, DDR1 or DDR2, UART, and GPIOs that can be used for LED controls or other general purpose interface configurations. The QCA9531 PCIE root complex interface can be used to connect to an endpoint such as the Qualcomm Atheros single-chip MAC/BB/radio for dual concurrent WLAN applications. The QCA9531 supports 802.11n operations up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz, and 802.11b/g data rates. Additional features include Maximal Likelihood (ML) decoding, Low-Density Parity Check (LDPC) and Maximal Ratio Combining (MRC).
★ MIPS24KEc (650 MHz) , 64 KB I-Cache and 32 KB D-Cache

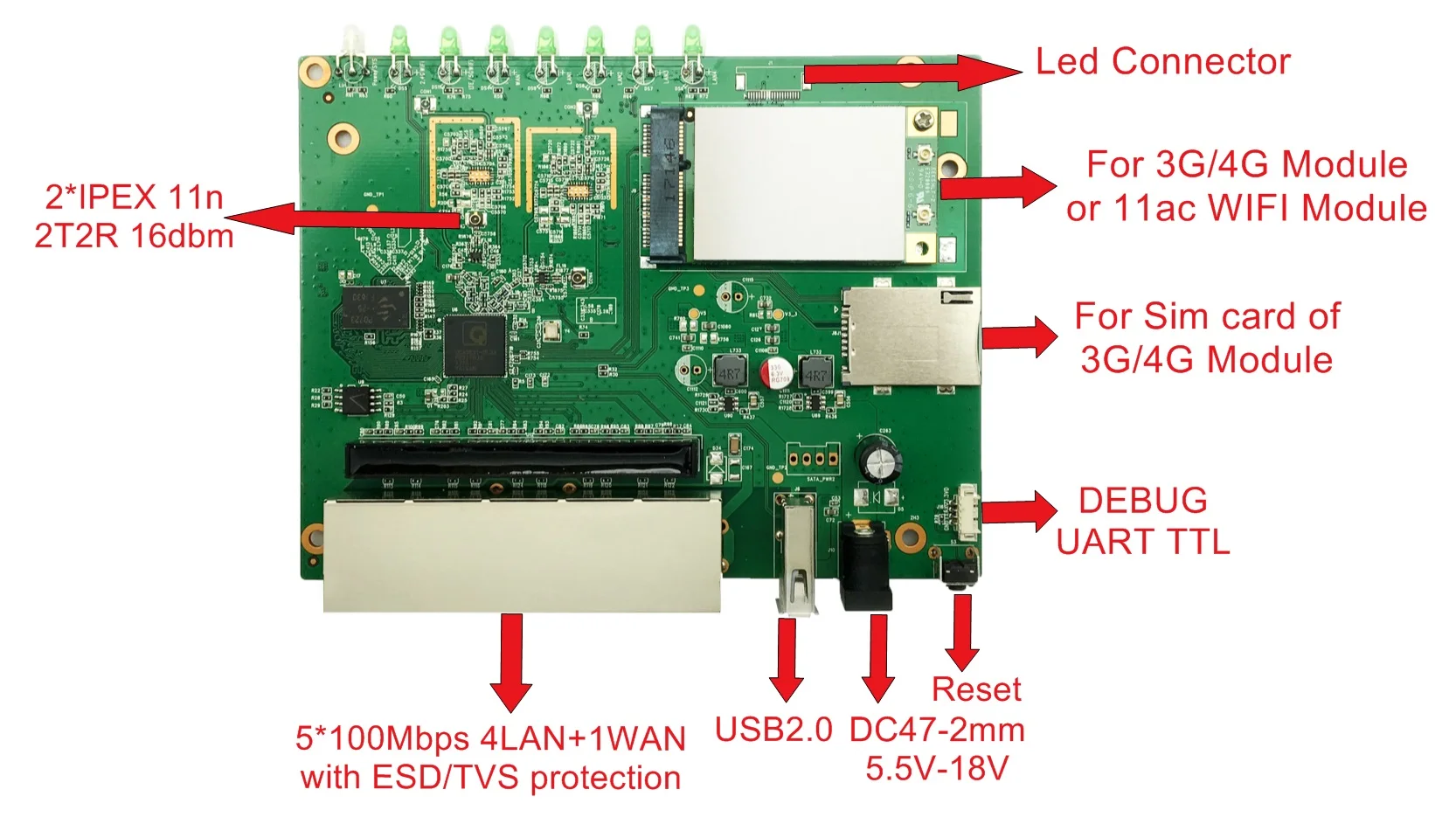

★ support both 3G/4G module and 11ac module.

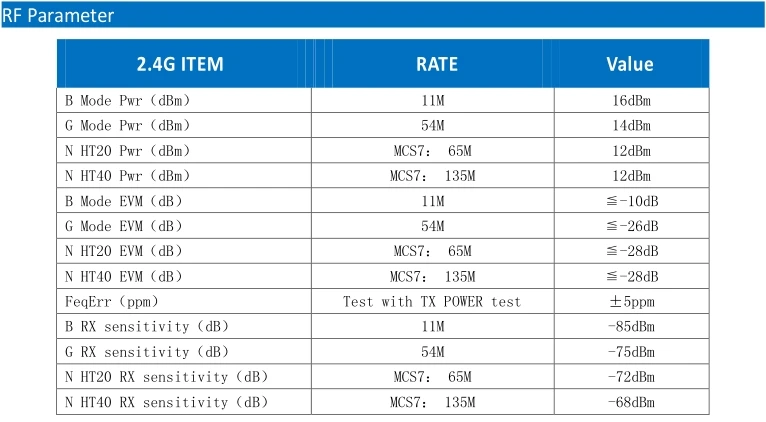

★ 2T2R 300Mbps 11n 2.4 GHz with gain (16dbm)
★ Low power dissipation and applicable for outdoor and indoor application.
★ Low BOM cost
