RGX наружные полноцветные СВЕТОДИОДНЫЕ панели SMD P3 P4 P5 P6 P8 P10
- Категория товара: Цифровые вывески и дисплеи >>>
- Поставщик (Оптовый магазин): Shenzhen,RGX,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Outdoor SMD full color LED display P3 P4 P5 P6 P8 P10 LED advertising screen wall
Welcome to RGX Led Display Factory Shop ,Direct Factory Supplier ,No Middle Man,Money Saving,Direc& Professional Aftersale Service.
PLS contact us directly for NEWEST info on Price ,Product & shipping details. Wendy Deng wechat/whatsapp:+86 13717008357
A LED advertising screen from RGX has many benefits:
· Deliver eye-catching messages
· Unrivalled clarity and vivid colours
· Extremely reliable and sustainable
· Design your own content with our user-friendly software
· Unlimited textual and graphical options
· Cost-effective medium with high return on your investment
Product Description
| Outdoor LED display Unit Module Specifications | ||||||
| Item | P3 | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| Pixel Configuration | 3in1 (1R1PG1B) | |||||
| Module Size(MM) | 192*192 | 256*128 | 320*160 | 192*192 | 256*128 | 320*160 |
| Module Resolution(Dots) | 64*64 | 64*32 | 64*32 | 32*32 | 32*16 | 32*16 |
| Module Weight(Kg) | 0.35 | 0.32 | 0.5 | 0.35 | 0.32 | 0.5 |
| Package LED Mode | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Max Power(Watt) | 42 | 40 | 38 | 25 | 12 | 12 |
| Pixel Density(Dots/SQM) | 111'111 | 625'000 | 40'000 | 27'777 | 15'635 | 10'000 |
| Driving Method | Constant Current Driving | |||||
| Scan Method(Scan) | 1/32 | 1/8 | 1/8 | 1/8 | 1/4 | 1/2 |
| Interface Way | HUB 75 | |||||
| Brightness(CD/SQM) | ≥ 4500 | ≥ 4500 | ≥ 6500 | ≥ 6500 | ≥ 6500 | ≥ 7000 |
| Unit Cabinet Specifications | ||||||
| Cabinet Size(MM) | 576*576 | 512*512 | 640*640 | 576*576 | 768*768 | 960*960 |
| Cabinet Composing(PCS) | 9 | 8 | 8 | 9 | 18 | 18 |
| Power Supply Mode(Per Cabinet) | 5V60A | 5V40A | 5V40A | 5V40A | 5V60A | 5V60A |
| Cabinet Resolution(Dots) | 192*192 | 128*128 | 128*128 | 96*96 | 96*96 | 96*96 |
| Optimal Viewing Distance(M) | 3-300 | 4-400 | 5-500 | 6-600 | 8-800 | 10-1000 |
| Optimal Viewing Angle | Horizontal angle: 160 degree; Vertical angle: 120 degree | |||||
| Environment Temperature | Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree | |||||
| Relative Humidity | 10% ~ 95% | |||||
| Power Supply Specifications | ||||||
| Operating Voltage | AC:100V~120V AC:220~240V | |||||
| Average Power(W/SQM) | 150-350 | 150-320 | 150-320 | 150-320 | 120-280 | 150-300 |
| Max Power Consumption(W/SQM) | ≤ 850 | ≤ 750 | ≤ 780 | ≤ 720 | ≤ 720 | ≤ 650 |
| Current | ≤ 20mA (single LED) | |||||

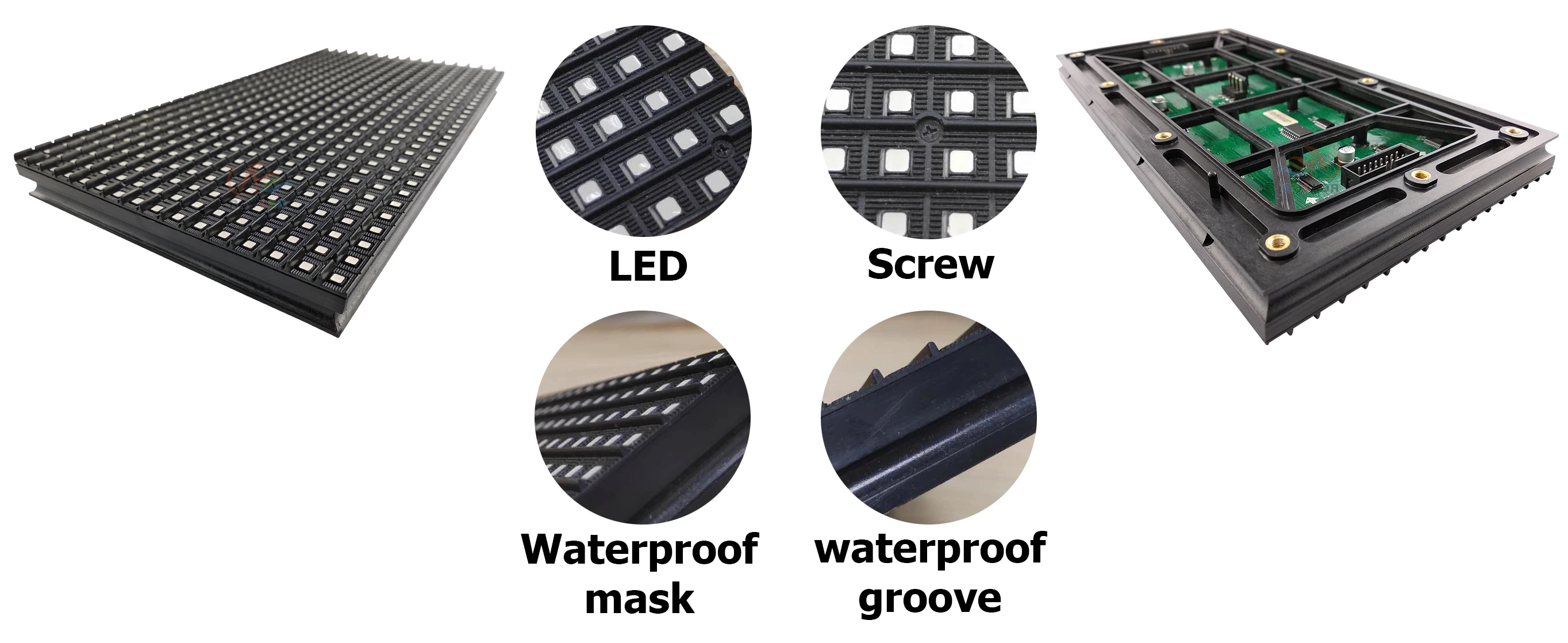

P8 outdoor LED display module 256*128mm

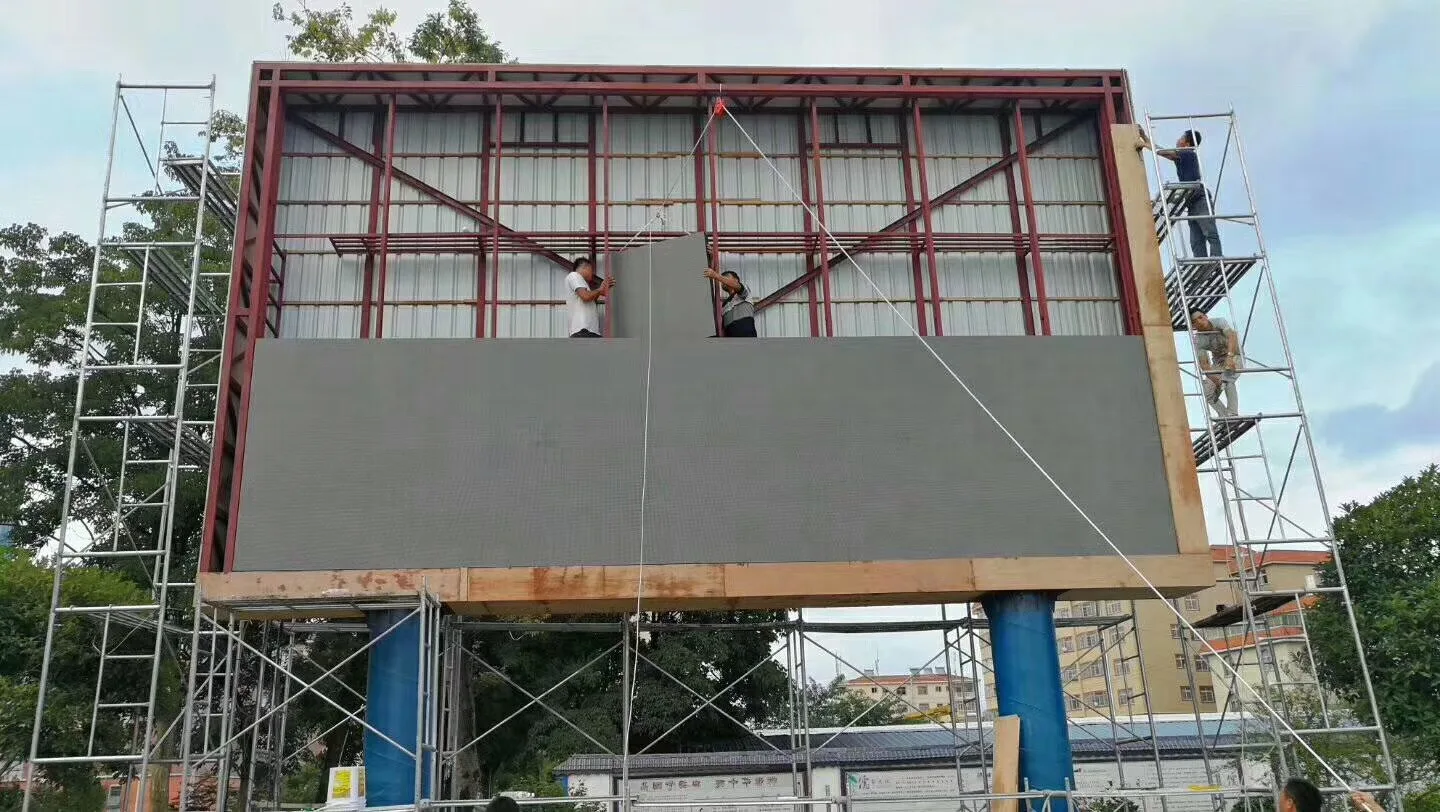

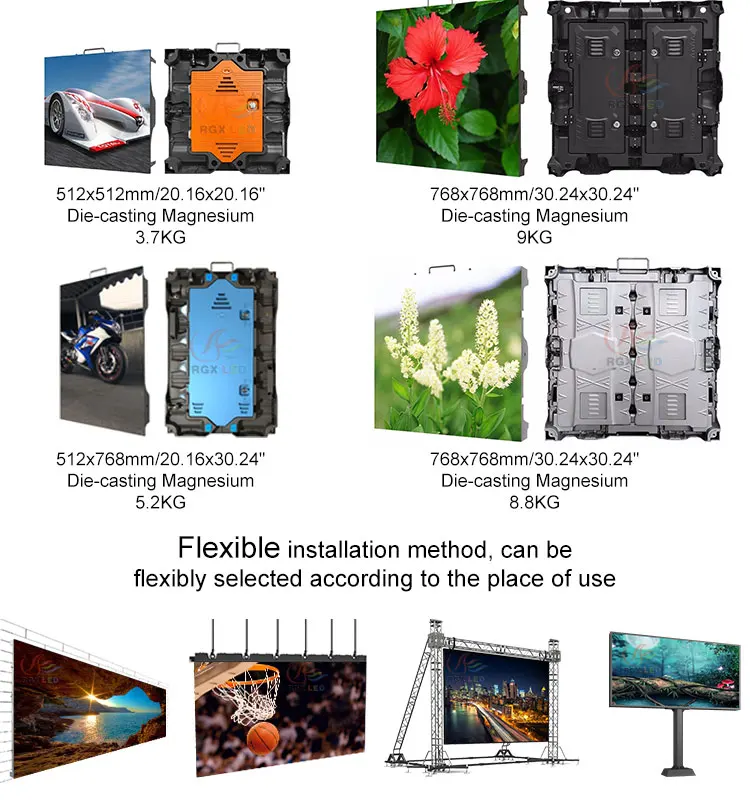

Outdoor LED video screen can be with iron cabinet and die casting aluminum cabinets

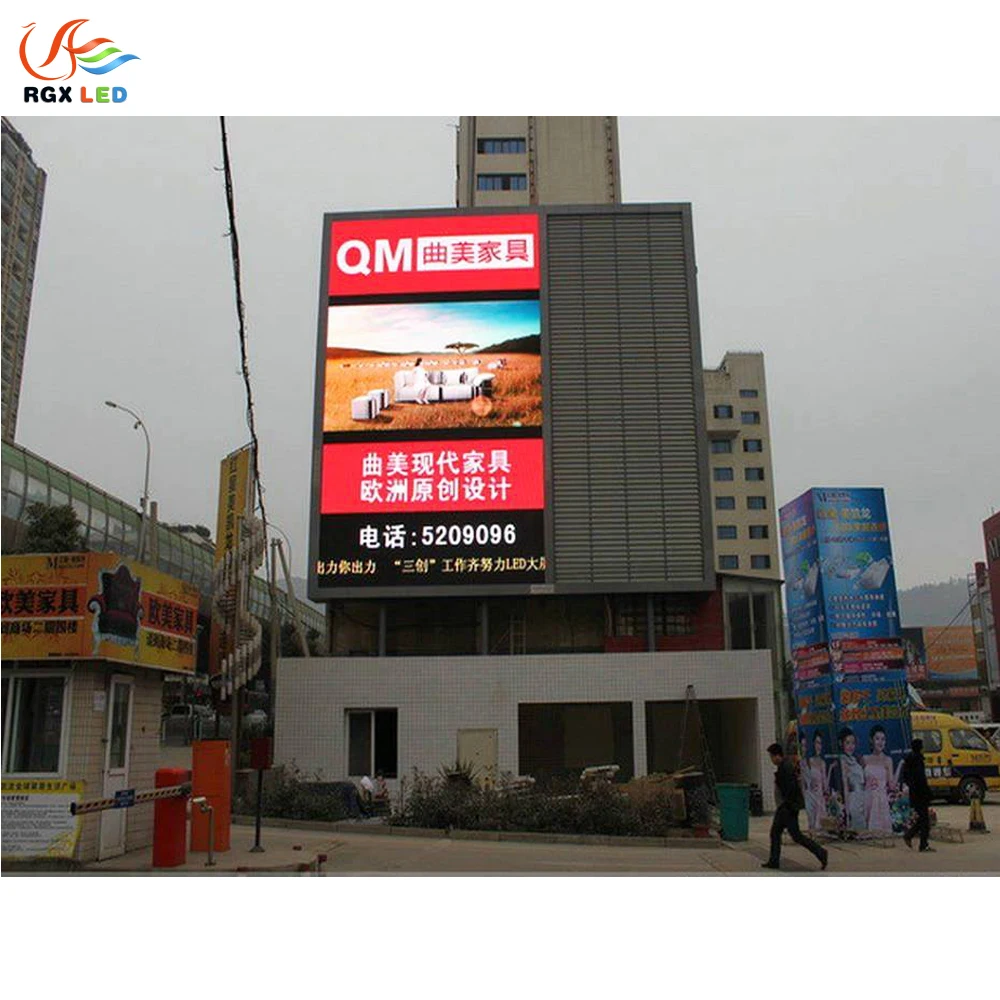

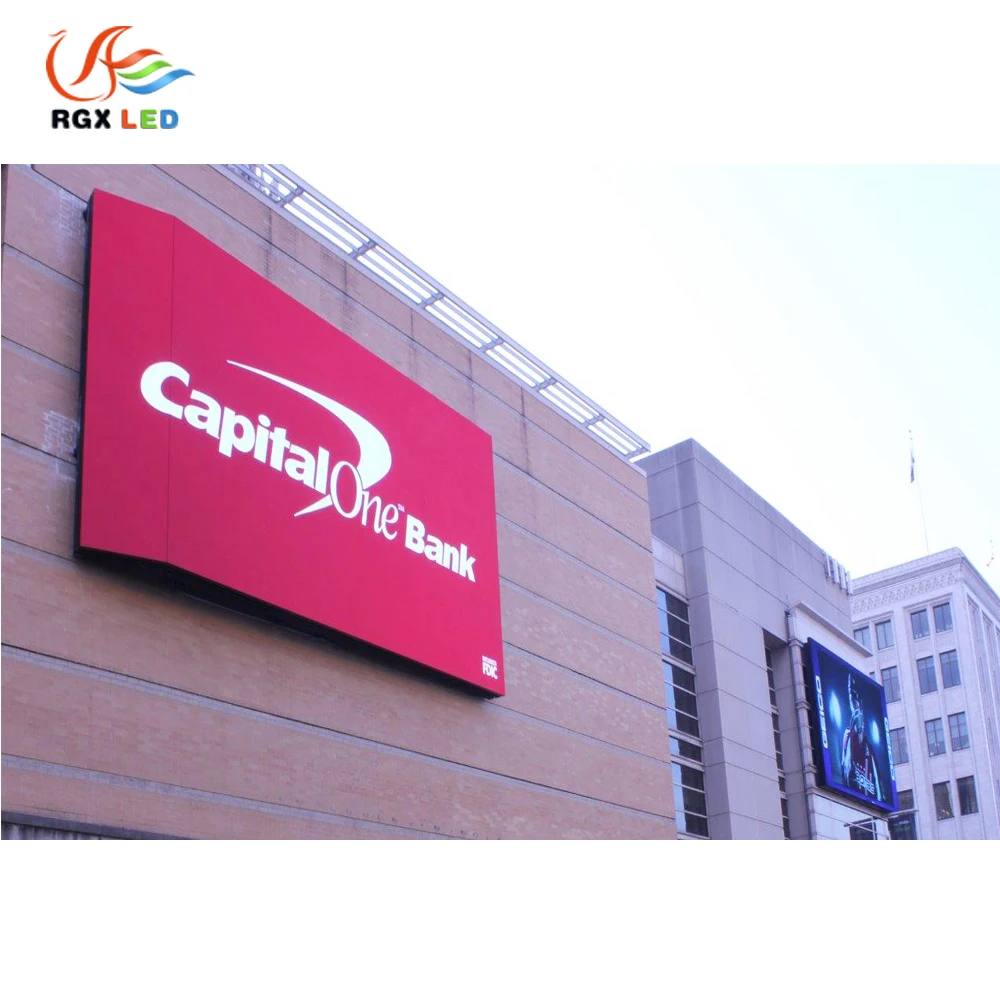

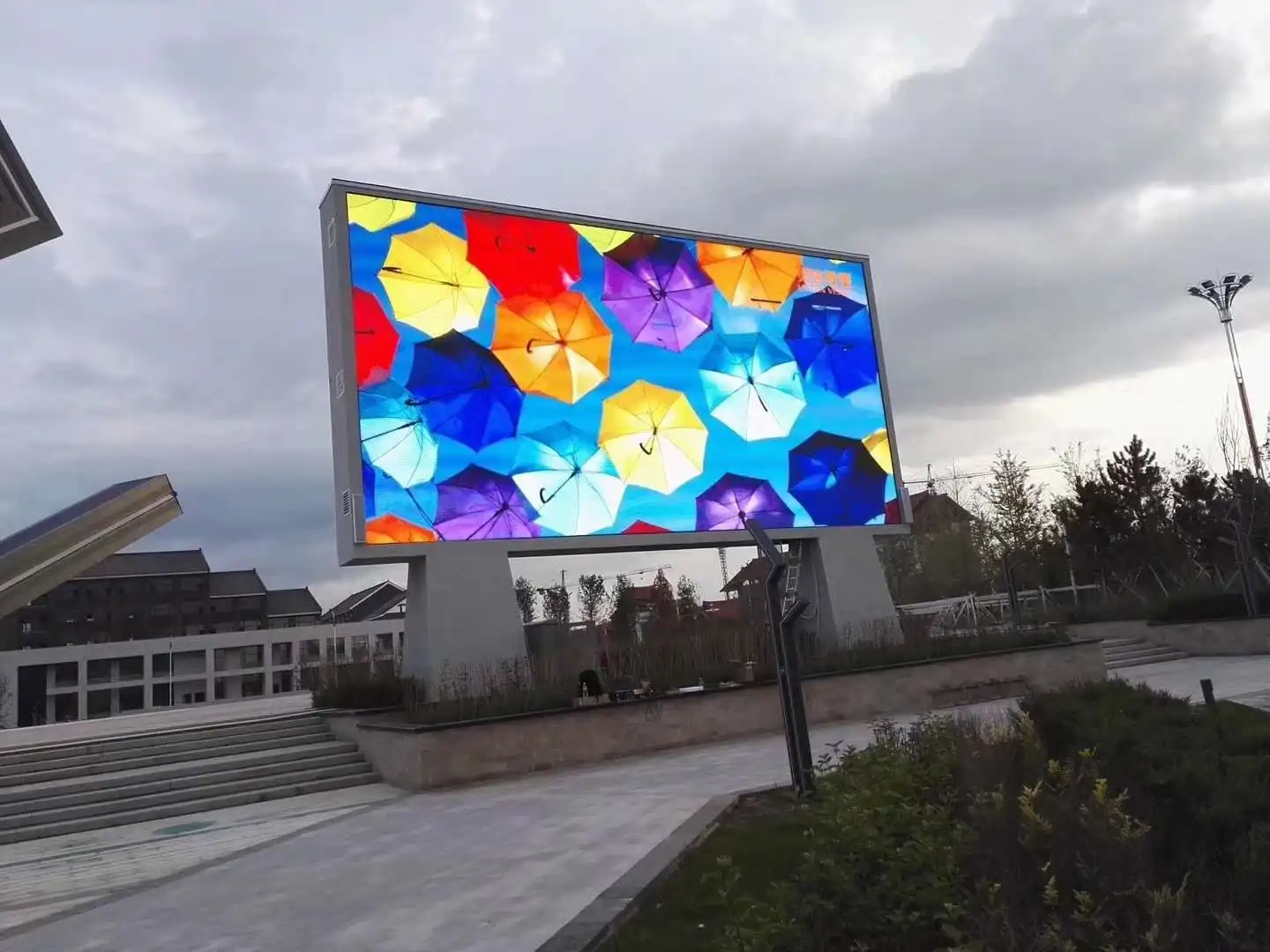

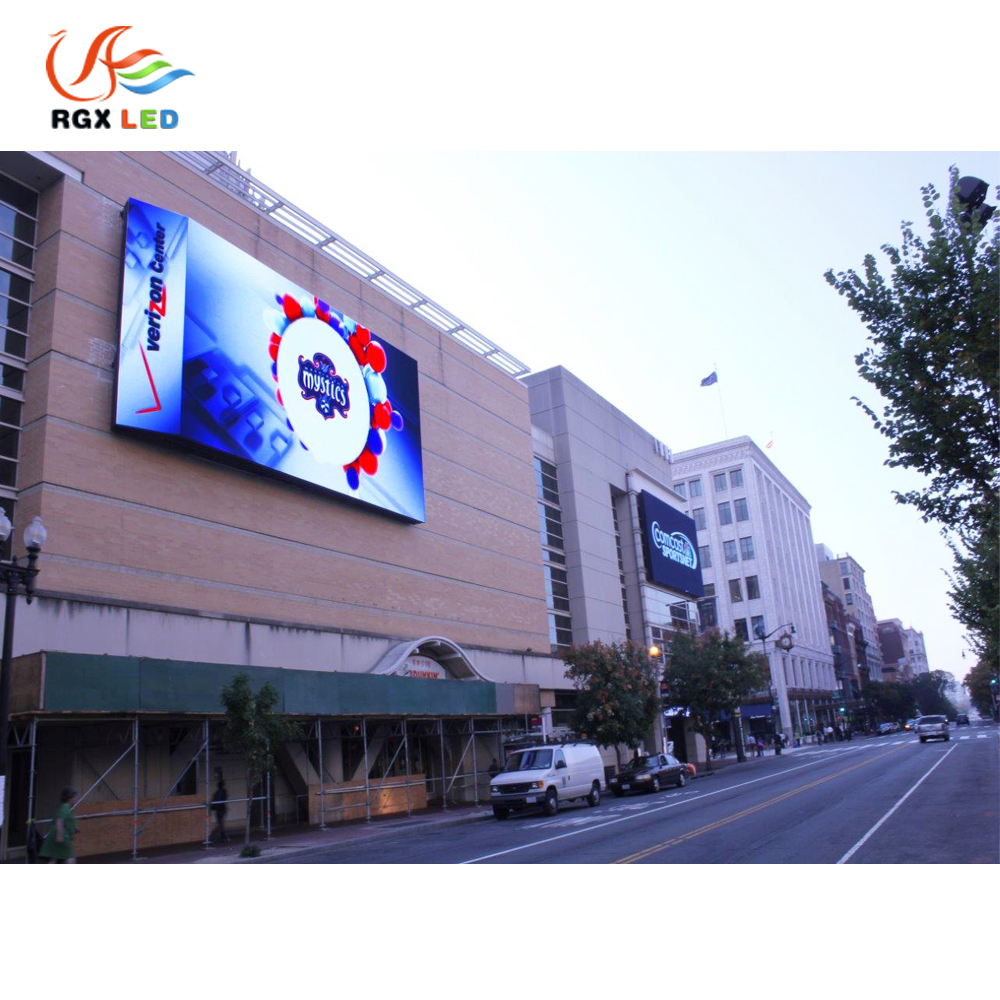

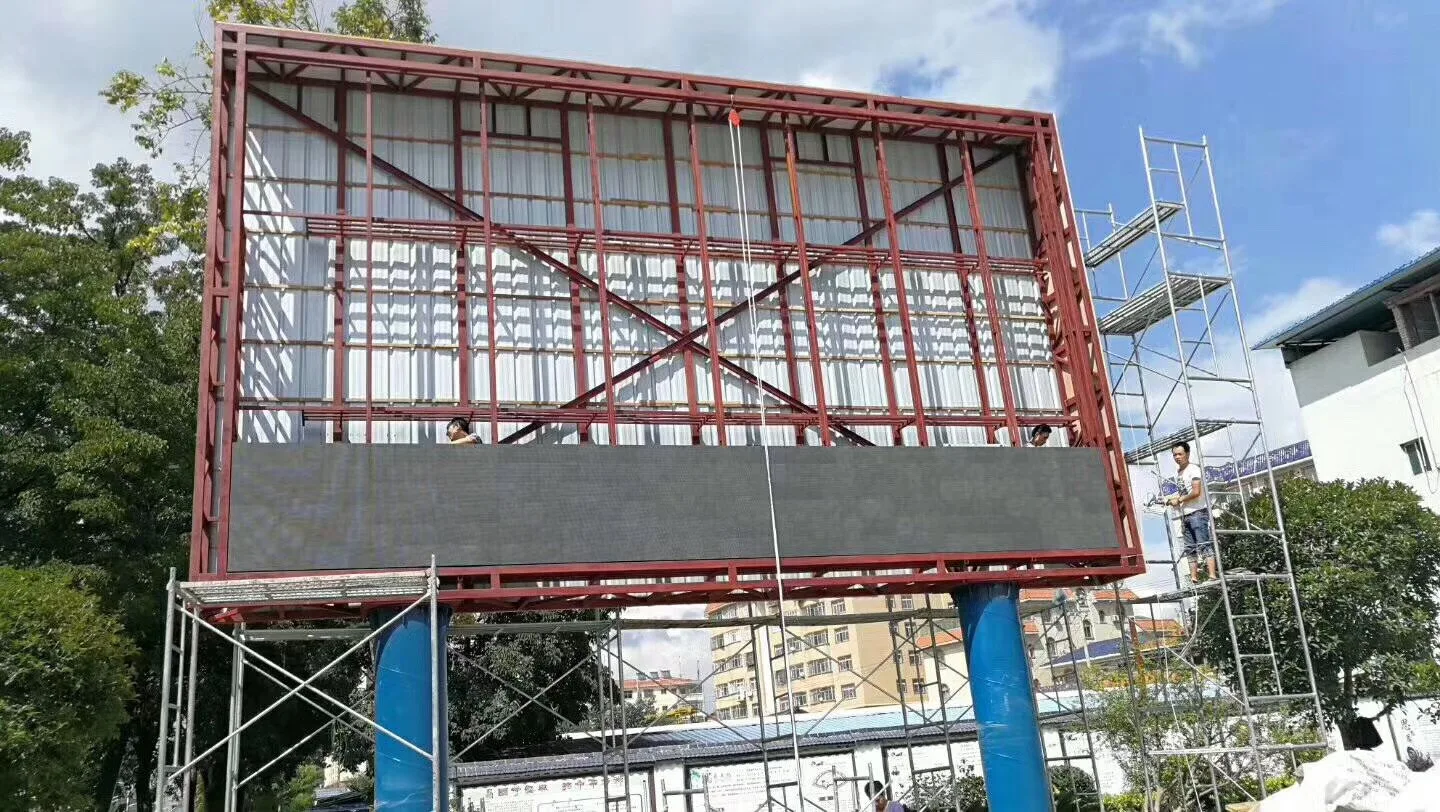

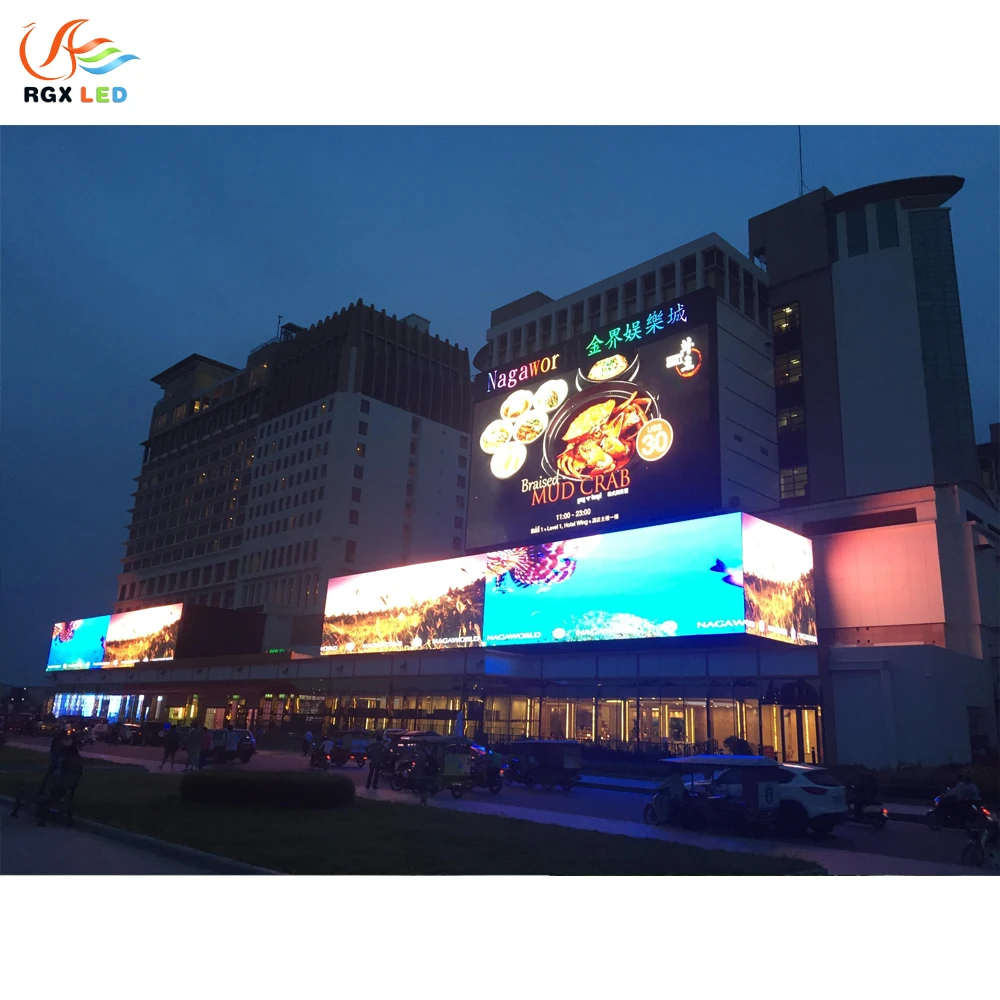

RGX Project of outdoor full color LED display for advertising screen panel
About Us
FAQ
Q1: How to choose the LED screen suitable for my needs?
A1: When you choose a led screen, you only need to consider three simple questions.
1. Will you use it indoors or outdoors?
2. Is it for rental purpose (need to move from one place to another often) or for fixed installation (to be installed in one place forever)?
3. What is the length and width of the LED screen you want to buy?
Q2: Which pixel pitch should I choose?
A2: There are many differences from 1.25--16mm pixel pitch, in principle it is so-usually indoor LED screens use smaller pixels (1.25mm-10mm), outdoor LED use larger pixels (2.5mm-16mm) screens ( For example, huge highway ads).
Q3: Which control system should I choose?
A3: There are synchronous and asynchronous control systems on the market. For large-size LED screens (usually more than 20 square meters), you need to use a synchronous control system; when it is less than 20 square meters, you can use synchronous or asynchronous. For asynchronous control systems, you can choose to use wifi, 3G, 4G and other wireless control.
Q4: How to order from your company?
A4: You can place an order with RGX through Alibaba online or offline transactions, please contact us to confirm before placing an order.
Q5: How to pay?
A5: We accept payment online via Alibaba, or offline to our company account via T / T, Paypal or Westerunion.
Q6: How to ship?
A6: This is optional, and we respect our customers choices. You can choose to ship by air, DHL (FedEx, UPS, TNT, EMS, etc.) international express company, or by sea according to the weight, volume and required delivery time of the goods.
Q7: How to install after receiving?
A7: We will provide you with drawings to guide you through the installation. We can also provide drawings of steel structures, software settings drawings or photos, or send our engineers to help you when needed.
