Прямая продажа с фабрики ac dc адаптер ce etl saa ukca kc pse 12v 1a guangdong адаптер питания
- Категория товара: Адаптеры питания >>>
- Поставщик (Оптовый магазин): Xing,Yuan,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
VR
Products Description

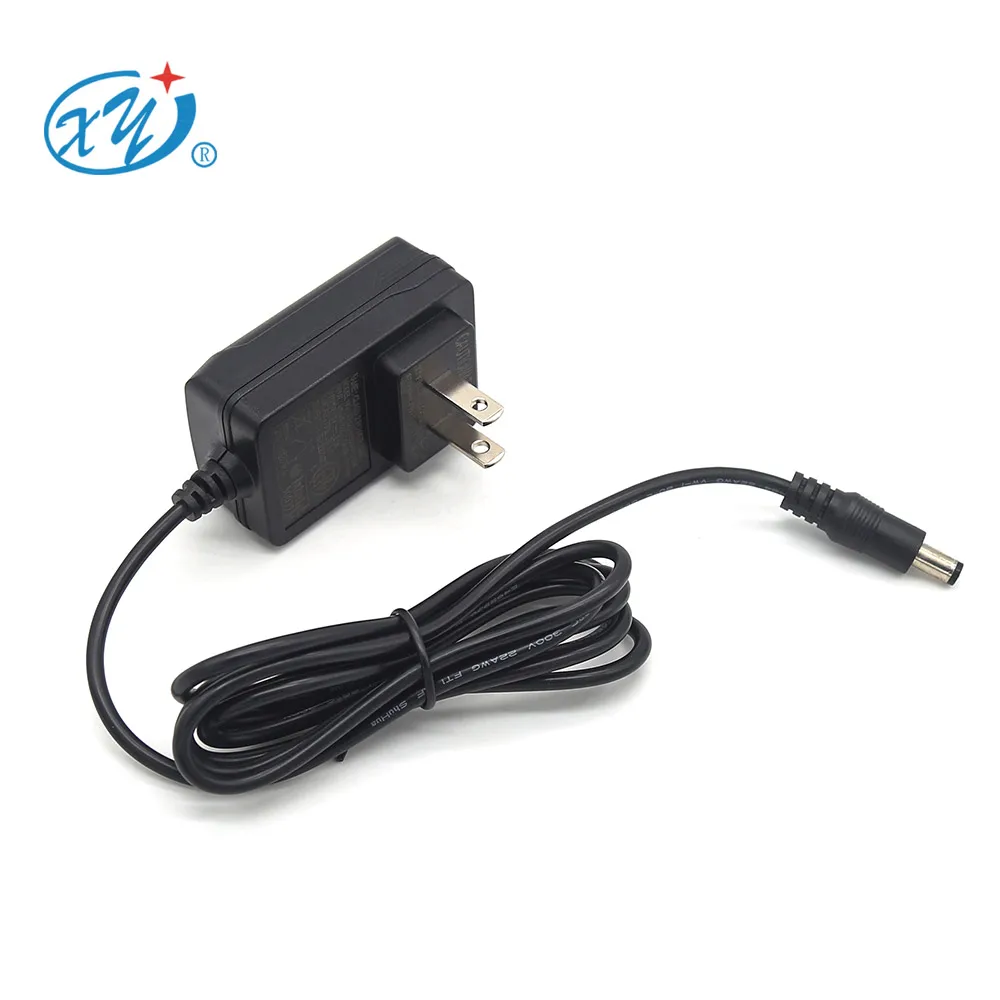

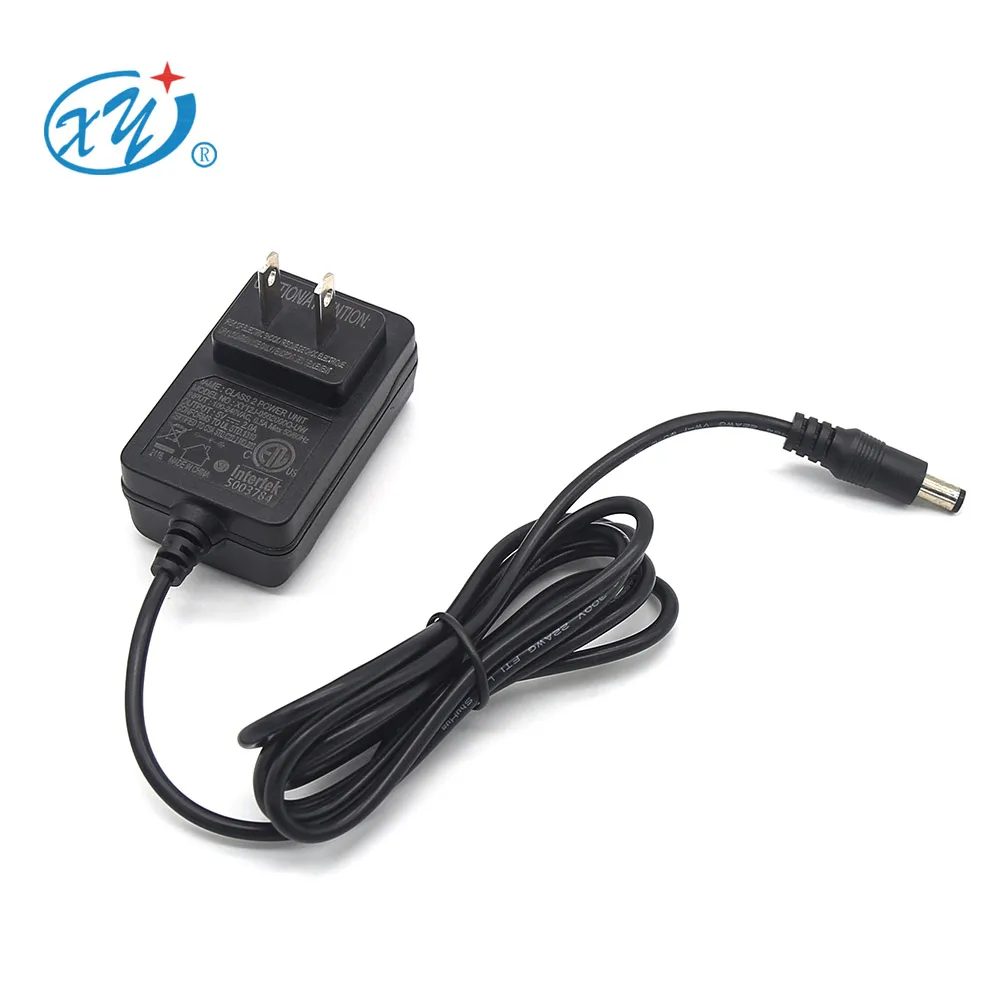

12VDC 1A / 12W AC Adapter
Features
■Model: XY12J-1201000Q-UW ■White or Black Color
■Constant Single Output ■Weight:75g
■Constant Single Output ■Weight:75g
■IP20 SELV Class 2 Indoor Use ■Dimension:L65.4 * W39.7 * H49.6 mm
■Efficiency VI
INPUT | Input Voltage | 100-240Vac (Variation Range 90-264Vac ) | |
Input Frequency | 50/60Hz (Variation Frequency:47-63Hz) | ||
AC Input Current | 0.5A max | ||
Inrush Current(Cold-Start) | 50A Max. Cold start at 115Vac input, with rated load and 25 ambient. | ||
No-load input power | 0.1W Max | ||
AC Plug | EU / US / UK / AU / KC / JP... plugs | ||
OUTPUT | DC Voltage (Range) | 4.5~36Vdc (Customized Available) | |
Voltage Range | ±5% | ||
Output Current(Range) | 100-2000mA (Customized Available) | ||
Output power | 12W max | ||
DC Cable | 1.2m/1.5m/1.8m (Customized Available) | ||
DC Connector | 5.5*2.5 or 5.5*2.1mm (Customized Available) | ||
Safety Approval | CE / TUV-GS / UKCA / CB / ETL / SAA / RCM / KC / PSE / BIS & RoHS | ||
***Please contact us to get more information / Certificate and sample***
LED Light/Christmas tree light/fountsin light/table lamp/Humidifier/Set-top Box/CCTV Camera/Toys/Motor and fan electronics ect.
Protection Safety Standard Reliability Requirement
■Short Circuit Protection □IEC/EN61347-2-13 ■Burn-in 100% Full load 2 hours at least
■Over Voltage Protection □IEC/EN61558 ■Hi-Pot 3000Vac 10mA 60s
■Over Current Protection □IEC/EN62368 ■MTBF 30000 hours
■ETL(UL1310) ■2 Year Warranty
■Storage Temperature & Relative Humidity: -40℃ to ﹢80℃ 5%RH to 100%RH
Application
Widely used for LED Light/Christmas tree light/fountsin light/table lamp/Humidifier/Set-top Box/CCTV Camera/
Toys/Motor and fan electronics ect.
Company Profile
XingYuan Electronics co.,ltd
Established in Aug 2008, it specializes in the reserch & development, manufacturing and marketing of various adapters, switching power supplys, led driver, transformers and chargers, our products are widely used by led lightings, digital products,toys & house-hold appliances security products, etc
Exhibition
Our Advantages
Global Certifications
Our products have got the certificates of, TUV-GS, CE, CB, ETL,PSE-JET, KC, FCC,RCM, SAA BIS, RoHS and Energy Star saving requirement and acquired a very good reputation in the world market.
and we have a powerfull R&D team including 30 engineers 10 senior engneers with 5 to 10 years experience
Packaging & Logistics
By Air
Your oder will be Delivered by DHL, FedEx, UPS,TNT, EMS, or Other international Express, it will take 3-7days to arrive at your destination.
By Sea
shipments will be arranged under FOB/CIF etc terms. it will takes 15-35 days to arrive at your destination. depends on the port you required.
FAQ
Q1: Free sample ?
A1: Yes, 1-3pcs free sample is available delivery cost collect
Q2: What is the sample time? Mass production lead time ?
A2: About 3-5days for sample and 21-28days for mass production
Q3: What is MOQ ?
A3: 500pcs for transformer and 1,000pcs for adapters/ led driver, for trial order we could discuss quantity
Q4: How about the packages ?
A4: Fox export usually white box +shipping carton.
Q5: What certificates do you have ?
A5: We have approved SGS ISO9001, RoHS, TUV-CE GS, ETL FCC, RCM, KC, PSE, BIS etc Certificates.
Q6: Can we print our logo ?
A6: We could print with customer authorization.
