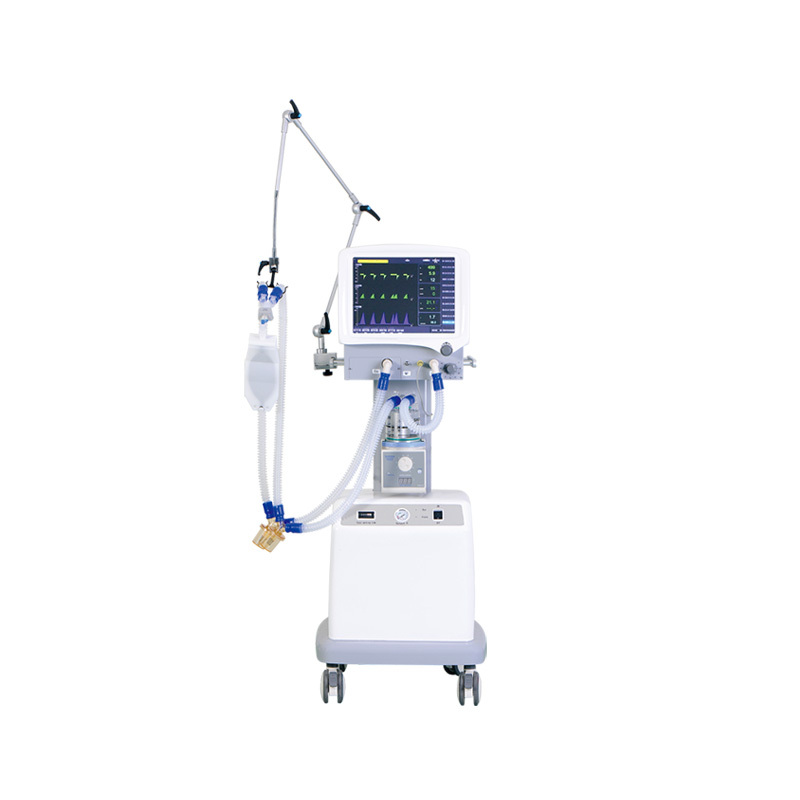

| Product name | - ISO Hospital small vaporizer ICU medical with ventilator machine
|
| Application | - The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Indra-operation, post-operation respiratory support, other respiratory treatment.
|
| Trust Points | SiChoice: adapt the equipment to your patients and procedures freely Patient Centered Ventilation: Precision in an anesthesia ventilator,fromconventional ventilation to advanced modes, including 8 modes: IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV Designed and manufactured by Superstar Medical with over 23 years experience in this area. International standard and advanced technology suitable for wide range use. Compact interface and big screen give you better operating experience. Over 2,000 units installed in the world.
|

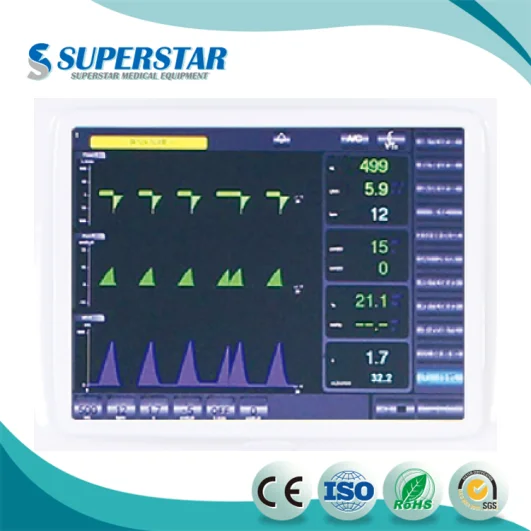

| Features | 15” TFT LCD touch screen displays the ventilation parameters, alarm information and waveforms. Air compressor runs stably with low noise, creates quietenvironment for doctors and patients. Multiple working modes such as volume control and pressure limit. Multiple parameters monitoring interface to show clear parameter to the operator, allow operator know the patient conditions in all aspects. Electrical PEEP control. - Breathing valve isdisassemblyand can be disinfected.
Real time pressure-time, flow-time loop graphics, pressure volume loop graphics and high precision ETCO2,O2 concentration detection function included.
|
| Safety | Three level alarming system, visual and sound alarm information. With multiple type of alarms, reminding and protection functions. Self-check before running, eliminate system mulfuction. - Advanced power management control technology.
With built-in backup power supply, when normal power supplyshut down, back-up power supplywill start work automatically. - Separate design of electric and gas, keep safety running of ventilator.
|
| Specifications | Ventilation modes: | IPPV, A/C, PCV, SIMV, SPONT/CPAP, PSV | Ventilator parameter ranges | | Tidal volume(Vt) | 0 mL ~ 2000 mL | Frequence(Freq) | 1bpm ~ 100 bpm | I/E | 4:1~1:8 | PEEP | 0cmH2O ~ 40 cmH2O | Pressure Limit | 20 cmH2O ~ 100 cmH2O | Monitored Parameters | | Frequence(Freq) | 0 /min ~ 100 /min | Tidal volume(Vt) MV Airway pressure Dynamic lung compliance testing ETCO2 Concentration | 0 mL ~ 2500 mL 0 L/min ~ 99 L/min 0 cmH2O ~ 100 cmH2O 1mL/cmH2O ~ 1000mL/cmH2O 0mmHg ~ 152mmHg (0%-20%) | Oxygen concentration | 15 % ~ 100 % | Graphical display: | Oxygen concentration | Size:Wooden case packing size:670*700*1160mm /80KG Alarm and protection | The AC power failure alarm | Power failure or no connection | High oxygen concentration alarm Low oxygen concentration alarm | 19%-100% 18%-99% | High Airway pressure alarm Low Airway pressure alarm High Minute Volume alarm Low Minute Volume alarm Continuous Pressure alarm | 20cmH2O-100cmH2O 0cmH2O-20cmH2O 5L/min-99L/min 1L/min-30L/min (PEEP+1.5kPa) over 16s | Suffocation warning | 5s-60s | The maximum limited pressure | <12.5 kPa | Fan error Oxygen deficit | Show on screen Show on screen | Working conditions | | Gas source | O2,AIR | Pressure | 280kPa-600kPa | Voltage | -220V±22V | Power frequency | 50Hz±1Hz | Input power | 900VA(with air compressor)
250VA(without air compressor) |
|
