Заводская литий-ионная печатная плата 12 В, 24 В, 36 В, 48 В, 60 в, 72 в, 20 А, 40 А с балансом lifepo4 bms
- Категория товара: >>>
- Поставщик (Оптовый магазин): Shenzhen,Li-Ion,Battery,Bodyguard,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Advantages
facory12v24v36v48v60v72v 20a lithium ion lifepo4 bms/pcb/pcm with balance
- Supply OEM/ODM and custom service
- High quality with smart balance function
- Wholesale price
- ISO9001/ISO14001/CE/ROHS certificates
- Fast delivery
About the battery BMS/PCB/PCM
Function: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit ,temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure design
will let it have more stable quality working performance , Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status ),full set of protection measures let it
works well without any infulence from external unexpected accidents.
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recommend the most suitable products for you.
Product Description
| Products | 12v24v36v48v60v72v84v96v 20a lithium ion lifepo4 bms | |||

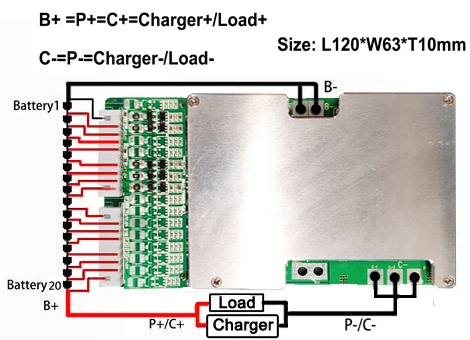

| Model | LWS-20S40A-375(20S) Size:L120*W63*T10mm | |||
| Test No. | Test item | Details | Criterion | |
| 1 | Voltage | Charging voltage | DC: 84V CC/CV | |
| Balance voltage for single cell | 4.20V | |||
| 2 | Current | Balance current for single cell Current consumption | 42mA Max:20μA | |
| Maximal continuous charging current | 40A | |||
| Maximal continuous Discharging current | 40A | |||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 4.25V±0.025V | |
| Over charge detection delay time | 0.5S—2S | |||
| Over charge release voltage for single cell | 4.15V±0.05V | |||
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.70V±0.08V | |
| Over discharge detection delay time | 0.5S—1.5S | |||
| Over discharge release voltage for single cell | 3.00±0.062V | |||
| 5 | Over current protection | Over current detection voltage | 150±25mv | |
| Over current detection current | 150±30A | |||
| Detection delay time | 7.2ms—11ms | |||
| Release condition | Cut load | |||
| 6 | Short protection | Detection condition | Exterior short circuit | |
| Detection delay time | 200-500us | |||
| Release condition | Cut load | |||
| Resistance | Protection circuitry(MOSFET) | ≤60mΩ | ||
| 7 | Temperature | Operating Temperature Range | -20~+60℃ | |
| Storage Temperature Range | -20~+85℃ | |||
