Product Description
2PT Steel Die Cutting Blade for Paper Cutting Machine
Specification
| Name | Thickness /Height/length(mm/mm) | Package(piece | Body Hardness | Edge angle |
| cutting rule | 0.45 23-23.8mm/1000 | 150 | 38HRC-54HRC | 42°-52° |
| 0.53 23-23.8mm/1000 | 125 | |||
| 0.71 23*23.8mm/1000 | 100 | |||
| 1.05 23*23.8mm/1000 | 70 | |||
| 1.42 23*23.8mm/1000 | 50 | |||
| creasing rule | 0.53 22-23.8mm/1000 | 125 | 38HRC-54HRC | |
| 0.71 22*23.8mm/1000 | 100 | |||
| 1.05 22*23.8mm/1000 | 70 | |||
| 1.42 22*23.8mm/1000 | 50 | |||

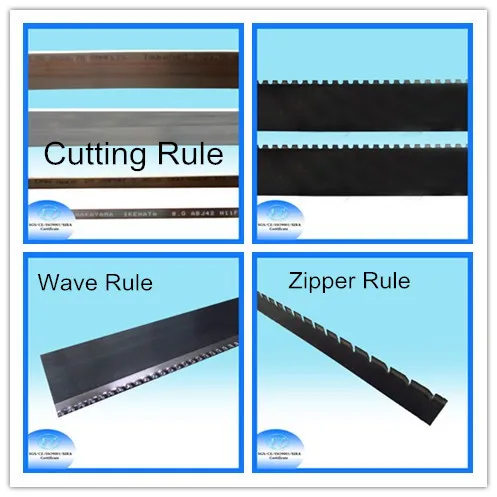

| Wave rule | 0.71 23-23.8mm/1000 | 100 | 38HRC-54HRC | 42°-52° |
| perforating rule | 23-23.8mm/1000 1*1-10*10 | 100 | 38HRC-54HRC |
|
| 23-23.8mm/1000 1*1-10*10 | 70
|
A. Quality test contents
Cutters hardness,wear-resistance,material extensibility,edge straightness,flatness,cleanness of blade.qccurate height.
We use the current most advanced LASER automatic measurement instruments to do these jobs.
B.Strength
1.Medium hard body and soft,ductile outer skin.
2.A perfectly shaved bevel as standard or precision ground edge on request
3.Extra hard cutting edge
4.Excellent bend ability
5.Uniform straightness
6.Uniform height and width
Application
cutting rule for die making
1. It is for flat wooden laser die making
2. It is easy to be processed by auto bender and manual bender.
