Product Description
jst sh 1mm pitch 2 pin connector terminal wire harness for battery holder
SCT1001 Series are replace of JST SHD connector. 1.0mm pitch, wire to board crimp terminal style with low contact resistance.
Compatible: JST SH / SHD Series Connector
Pitch: 1.0mm
Poles: 2-20P & 2*6P~2*25P
Current rating: 1A (AWG#28-#32)
Items | Specifications |
Part Number: | SCT1001 |
Compatible: | JST SH / SHD series connector |
Pitch - Mating Interface: | 1.0mm |
Circuits: | 2-20P & 2*6P~2*25P |
Applicable wire: | AWG#28-#32 (Max.OD:1.0mm) |
Current Rating: | 1A |
Voltage Rating: | 50V |
Temperature Range: | -20°C~+85°C |
Contact Resistance: | 20m Omega Max |
Insulation Resistance: | 500M Omega Min |
Withstanding Voltage: | 500V AC/minute |
Wire & Cable Assemblies: | Customized |

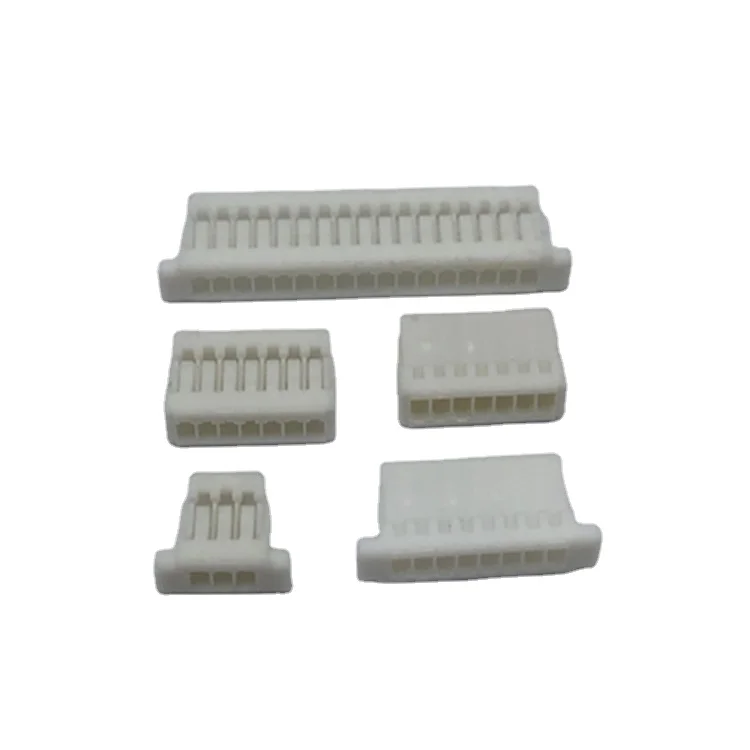

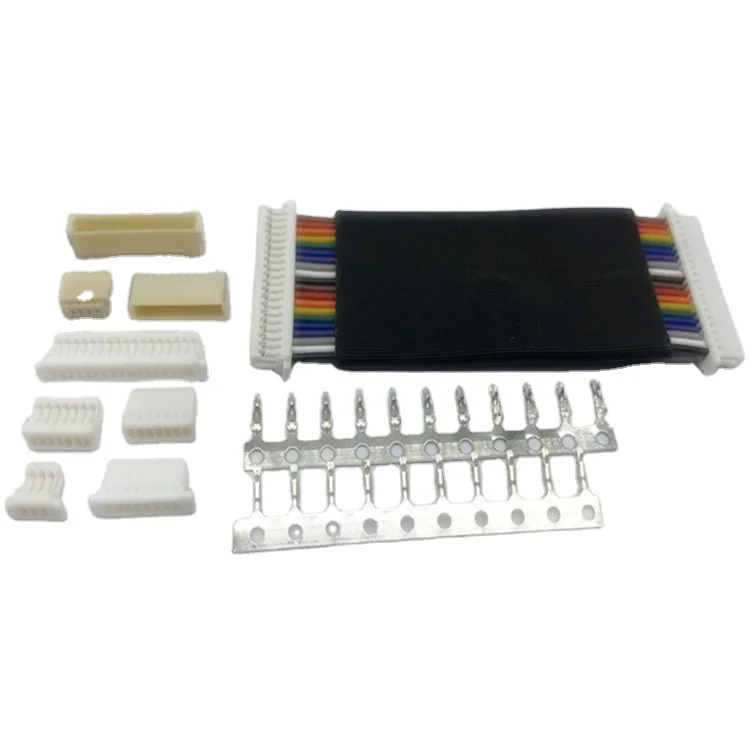

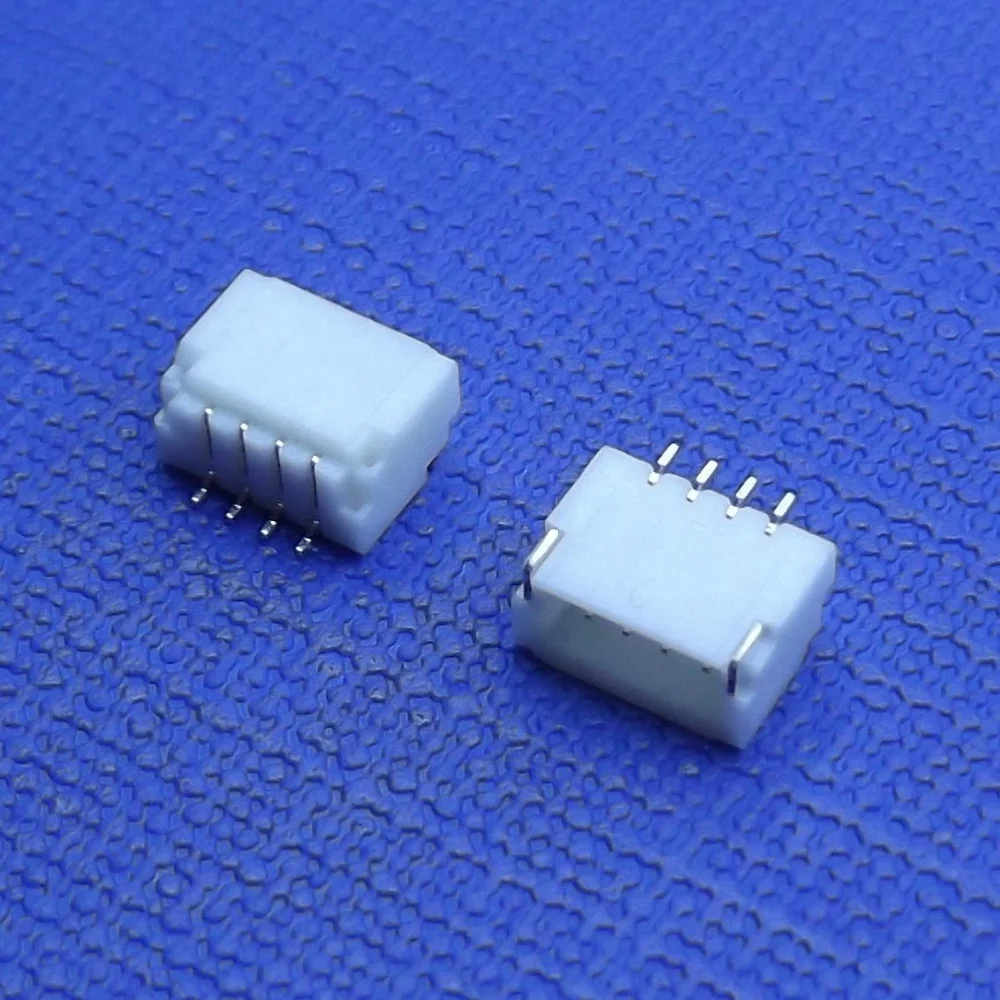

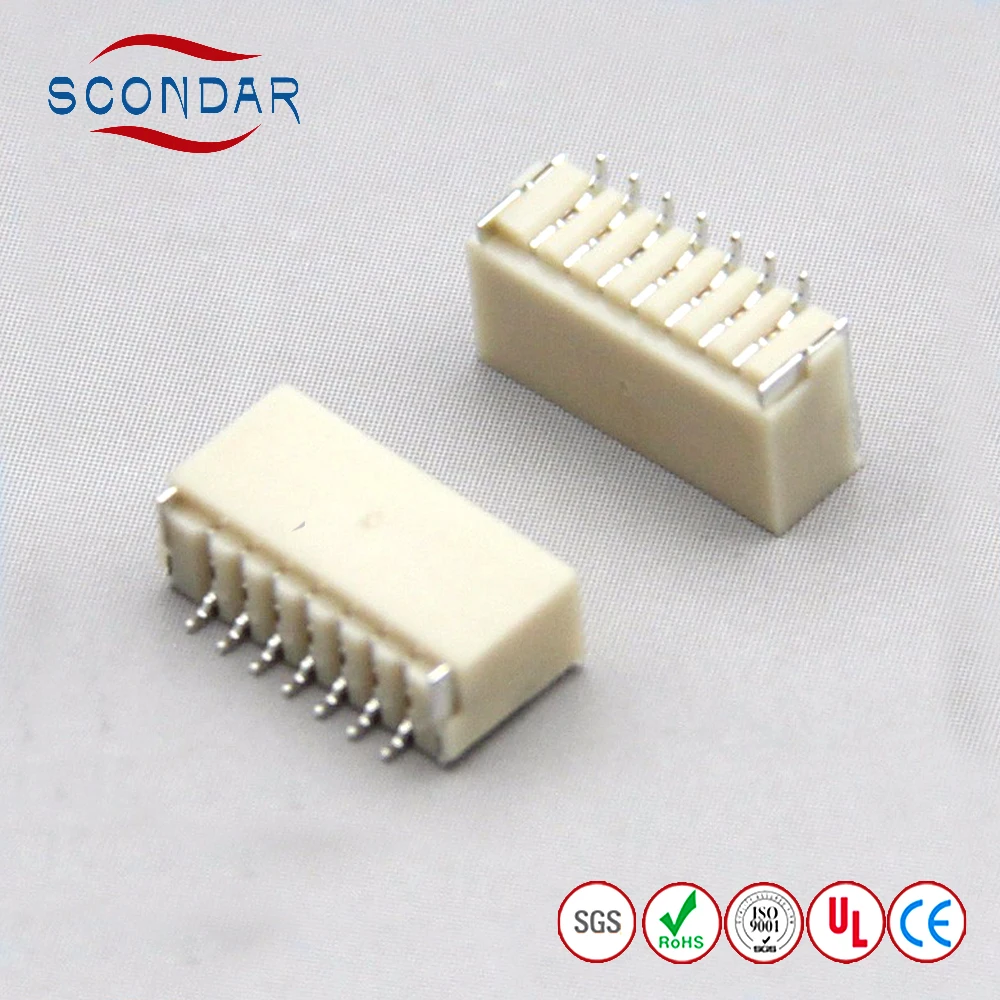

JST SHD 1.0 housing | JST SHD 1.0 terminal | JST SHD vertical SMT header | JST SHD side entry header |
Cross: JST SHD | Cross: JST SHD | Cross: JST SHD | Cross: JST SHD |
2-20P & 2*6P~2*25P | 2-20P & 2*6P~2*25P | 2-20P & 2*6P~2*25P | 2-20P & 2*6P~2*25P |
