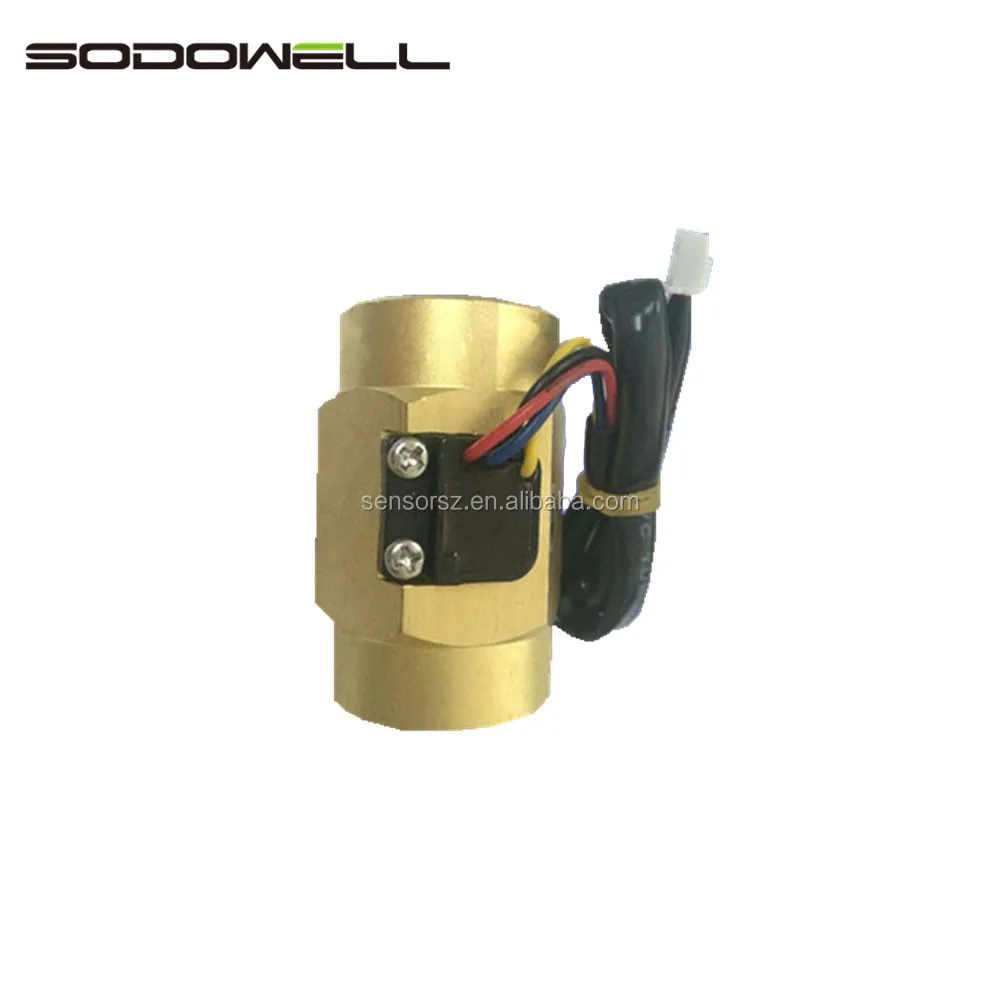

Лидер продаж, латунный датчик расхода воды/топлива

• All materials are in line with ROHS testing standards.


• Copper material, small size, easy to install.


• The water flow sensor is applied for water heater, and can be used as flow switch.


• Stable, high temperature, low water pressure start, safe.

1.Suffering Pressure: 1.5Mpa

2.Operate Temperature: -40~+100°C

3.Min insulation Resistance: 100M ohm

4.Flow rate Precision: 1.0~40L/min(Max)

5.Flow Pulse: F=11Q-3  Q=L/min

6.Mounting Position: Vertical or Horizontal

Technical Characteristic:

1.Output Pulse Duty Cycle: 50% ± 10%

2.Max Output Pulse Voltage: >DC4.7V (Input Votage:DC5V)

3.Min Output Pulse Voltage : <DC0.5V( Input Votage:DC5V)

4.Electrical Life: 1x107  (5Vdc, 10mA)

5.Body Material: Brass

6.Thread size : 1/4”   1/2”       3/4” 1” 1-1/4”       1-1/2” 2”

Water flow sensor by copper body and plastic forming, water flow rotor components, steady flow components and hall components. It into water dispenser, coffee machine and household appliances the water used for measuring the water flow.

When water flows through the rotor components, magnetic rotor rotating, and speed along with the flow of a linear change.Hall element output corresponding pulse signal feedback to the controller, the size of the flow of water by controller judgment,

adjust proportional valve control of electric current.

Water flow sensor fundamentally solve the differential water-gas valve flap type high pressure and start water valve easy misoperation appear dry and shortcomings.It has reflected sensitive, long service life, action quick, safe and reliable, joins convenient traffic advantages such as the start low, deeply the general user affection.

Shenzhen Xindaowei Technology Co., Ltd. is specialized in the development, production, sale and services of Automotive sensor,level sensor,proximity sensor ,photoelectric sensor ,infrared detector,flow sensor ,temperature sensor,hall sensor,plastic hardware mould, magnetic reed relays and reed switches. Our products are applied in medical machinery,smart home appliances, automation, ATM, household electrical appliances, communication equipment,temperature monitoring,large air-conditioning and other industries. We can meet the demands of users in different environment. Our products have many kinds of specifications. Customized orders are accepted.

     Imported high precision euqipment for mold department.Having 15 pieces different injection machines.The tonnage of injection machine can come to 22 tons.Having R & D team, it is only few days for new samples.Which can save a lot of time for customers.Our Factory has strict quality tracking and service management systems, fully implementing ISO9001 and ISO / TS 16949 quality management system standard.

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. But our carton can be customized according to your demands.

Q2. What is your terms of payment?

A: Order below 10000USD is T/T 100% in advance .
Order over 10000USD T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products
and packages before you pay the balance.
Sample order we can support : PAYPAL , WERTERN UNION and Alipay.

Q3. Which port is near ?

Yantian ,shenzhen ,china .

Q4. How about your delivery time?

A: Generally, it will take 1 to 3 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.
