Высококачественный ремень привода для скутера 27601-20E10 трансмиссионный Suzuki
- Категория товара: Motorcycle Parts & Accessories >>>
- Поставщик (Оптовый магазин): Taizhou,Greco,Rubber,Belt,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
\t\t\t\t\t\t\t\t\tProduct Discription \t\t\t\t\t\t\t

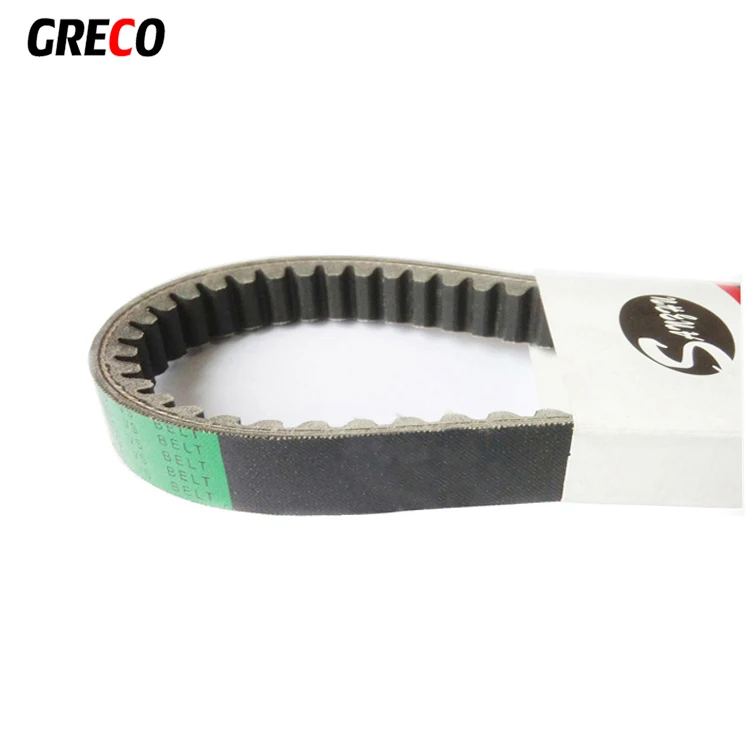

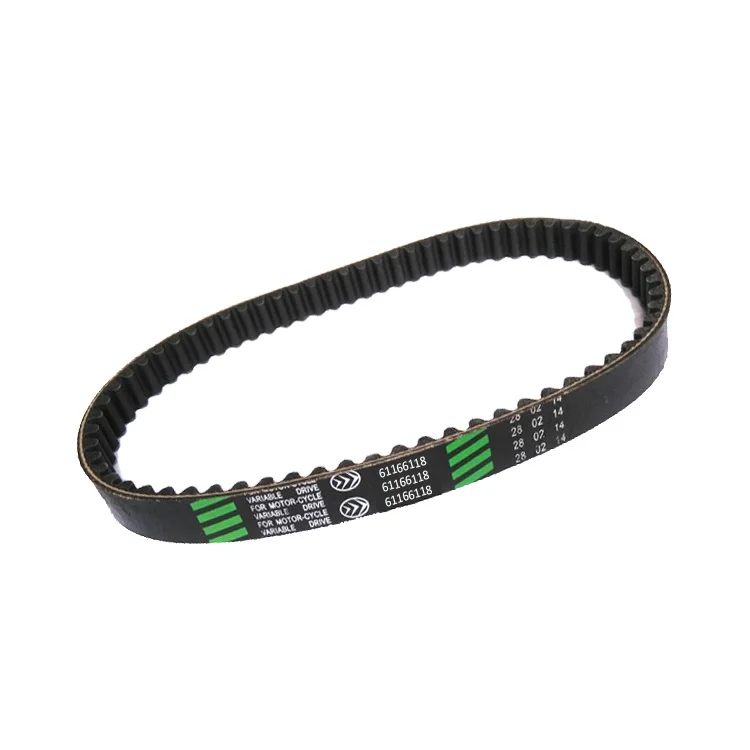

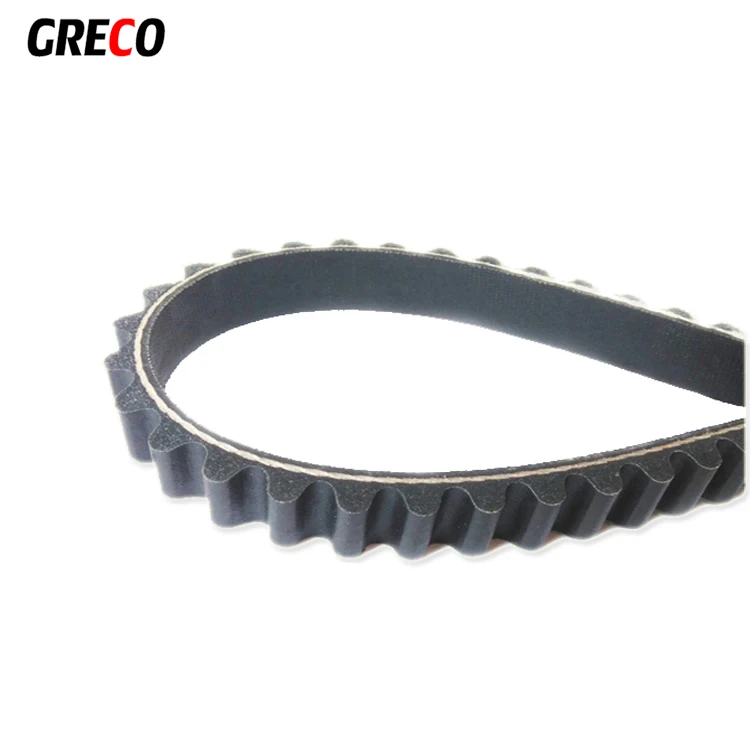

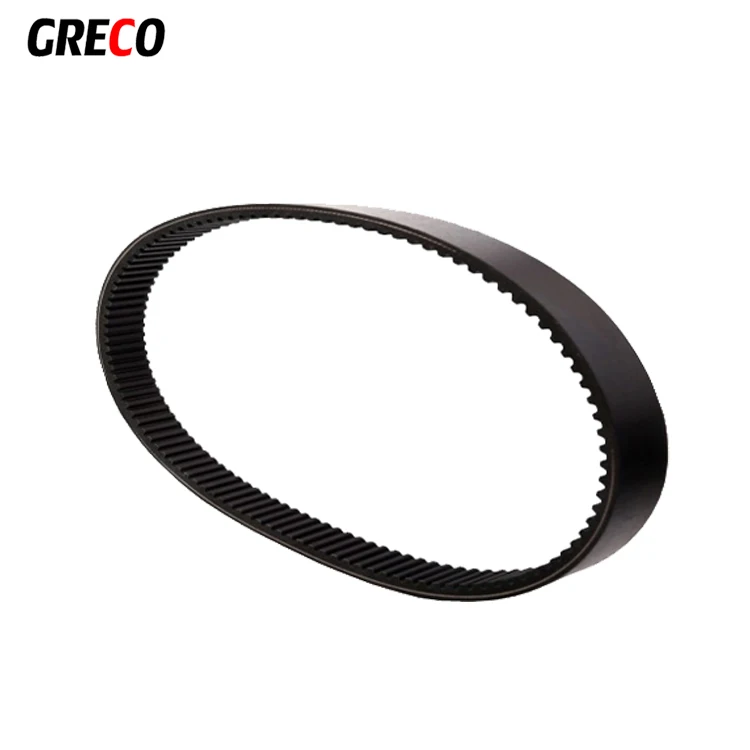

Name of products | 27601-20E10 high quality scooter drive belt transmissioin belt for Suzuki AN125 | ||||
Type | Drive belt, v belt | ||||
Material | Rubber | ||||
Reinforce | Kevlar aramid fiber, fabric | ||||
Part number | 27601-20E10 | ||||
Key words | transmission belt, suzuki AN125 | ||||
Suit for | Suzuki AN 125 / 150 cc | ||||
Suzuki Vecstar 125/ 150 cc | |||||
Advantage
1, High quality standard ATV/ CTV drive belt;
2, Quality with the requirements of standard ISO9001:2008;

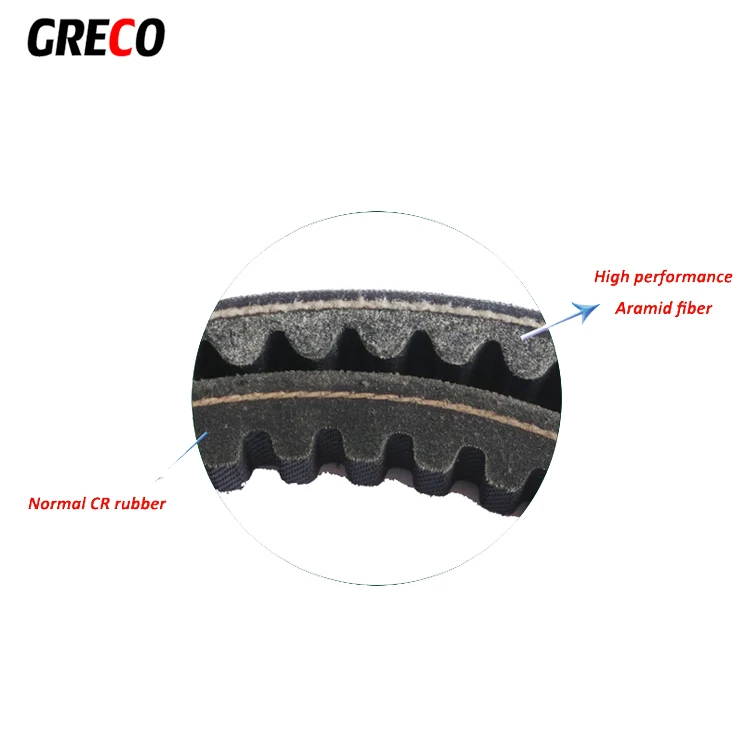

3, Material: Rubber CR + Kevlar Aramid fiber;
4, Oil & heat resistant, anti-aging, anti-ozone,chap-proof;
5, Each one taking force symmetrically;
6, With tooth on both side to have a stable transmission;
7, OEM replacement belt;
8, ODM accepted.
Type | Top Width, mm | Thickness, mm | Angle |
VS 17 | 17 | 8.0 +/- 0.5 | 30 |
VS 18 | 18 | 8.5 +/- 0.5 | 30 |
VS19 | 19 | 9.0 +/- 0.5 | 30 |
VS 20 | 20 | 9.5 +/- 0.5 | 30 |
VS 22 | 22 | 10.0 +/- 0.5 | 30 |

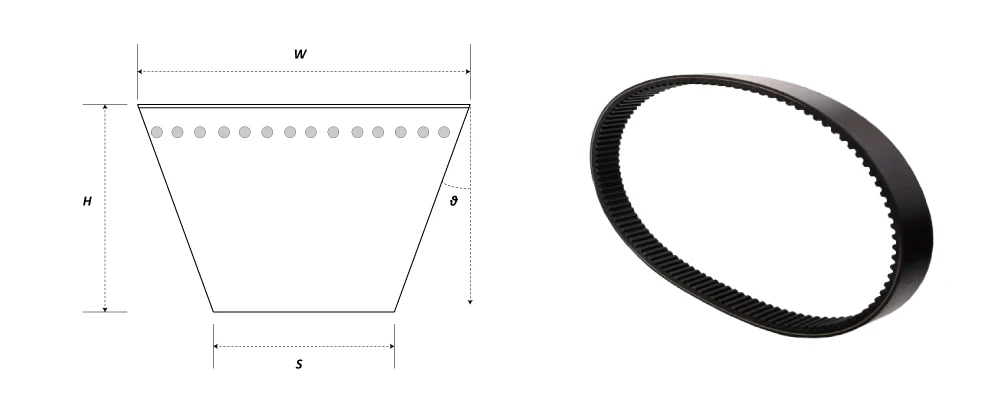

CVT belts are measured in 3 dimensions. For example, here is what the numbers of a 669-18-30 belt actually mean,
Drive belt 669 18 30
Type Length Width Angle
* 669 = The Pitch Length of the belt in millimeters Lw
* 18 = The Width of the belt in millimeters H
* 30 = The Angle of the teeth on the interior of the belt θ
Here do not indicate the thickness of 669-18-30, because this is one common seen size, the thickness is 8 mm, thickness ( limit deviation +/- 0.5 mm ) and needn't marked on belts
Recommend drive belt
669x18x30 ( 23100-GAK-9010 )
728x18x30 ( 23100-KEB7-9000 )
743x20x30 ( 23100-GY6-901 )
816x22x30 ( 23100-KWN-901 )
828x22.5x30 ( 23100-KM1-671 )
835x20x30 ( PL20705 )
842x20x30 ( PL20708 )
906x22.5x30 ( 23100-KGG-9110 )
Fit for
Fit for Suzuki
Suzuki AN 125 cc
Suzuki AN 150 cc
Suzuki Vecstar 125 cc
Suzuki Vecstar 150 cc
Part number:
27601-20E01
27601-20E10
27601-20E10
Product packaging
Packing
There're different packages for your reference
1, Nylon bags, each belt with a nylon bag, nylon bag specification different from belt to belt, and charged, Package MOQ: 1000 pcs
2, Paper sleeve, each belt with a individual paper sleeve. Your own designed individual paper sleeve will be charged, Package MOQ:
5000 pcs
3, Individual color box, each belt with a box. Your own designed color box will be charged, Package MOQ: 1000 pcs
Delivery
There're diiferent deliver ways for your reference:
1, By sea [ The most cheappest way for delivery ]
2, By railway + truck [ " one belt, one road " country, save time and money ]
3, By air [ Quick ]
4, By Express [ We have cooperated with many international express, and can deliver goods to most area in the world ]
There're different packages for your reference
1, Nylon bags, each belt with a nylon bag, nylon bag specification different from belt to belt, and charged, Package MOQ: 1000 pcs
2, Paper sleeve, each belt with a individual paper sleeve. Your own designed individual paper sleeve will be charged, Package MOQ:
5000 pcs
3, Individual color box, each belt with a box. Your own designed color box will be charged, Package MOQ: 1000 pcs
Delivery
There're diiferent deliver ways for your reference:
1, By sea [ The most cheappest way for delivery ]
2, By railway + truck [ " one belt, one road " country, save time and money ]
3, By air [ Quick ]
4, By Express [ We have cooperated with many international express, and can deliver goods to most area in the world ]
About Customized
CUSTOMIZED LOGO OR BRAND IS ACCEPTED, HOWEVER AUTHORIZATION MUST BE PROVIDED TO AVOID ILLEGAL COPY-RIGHT
Here we requires the following rules:
Here we requires the following rules:
Rules
1, Logo must be clear;2, Authorization letter must be provided;
3, Legal paper of logo must be provided if without authorization;
4, Words and color design;
5, A drawing will be better if you can provided;
6, MOQ: 1000 pcs of each item;
3, Legal paper of logo must be provided if without authorization;
4, Words and color design;
5, A drawing will be better if you can provided;
6, MOQ: 1000 pcs of each item;
MOQ: 5000 pcs
Here's the sample drawing for your reference
Company Profile
Taizhou Greco Rubber Belt Co.,Ltd is founded in 2007, has a high degree of automation production equipment, supported by matched
advanced testing facilities, as well as excellent technical talents, for the production of high-quality products to provide a
strong protection. Our company is strictly in accordance with ISO90001: 2000 international quality system standard to organize
production. Since the market has been well received by customers.
We are a professional drive belt manufacturer for cars and other machines, main products are: Automotive v belt, Classical wrapped
v belt, V-ribbed belt, Auto timing belt, Motorcycle v belt, Variable speed belt, ATV drive belt, Industrial timing belt,
Agricultural belt, Banded V belt ... We will be more energetic to meet new challenges, and constantly improve ourselves, welcome
new old customer presence, dedicated to serve you for a better future!
advanced testing facilities, as well as excellent technical talents, for the production of high-quality products to provide a
strong protection. Our company is strictly in accordance with ISO90001: 2000 international quality system standard to organize
production. Since the market has been well received by customers.
We are a professional drive belt manufacturer for cars and other machines, main products are: Automotive v belt, Classical wrapped
v belt, V-ribbed belt, Auto timing belt, Motorcycle v belt, Variable speed belt, ATV drive belt, Industrial timing belt,
Agricultural belt, Banded V belt ... We will be more energetic to meet new challenges, and constantly improve ourselves, welcome
new old customer presence, dedicated to serve you for a better future!
FAQ
Q: Are you a trading company or manufacturer ?
A: We are a manufacturer and have our owned two factories.
Q: What's your main products?
A: Our main products are drive belts for cars, trucks, scooter, ATV, industrial machine, such as:
(1). Automotive v belt, automotive fan belt / ribbed belt, auto timing belt
(2). Scooter drive belt, cvt drive belt
(3). ATV / UTV / Snowmobile drive belt
(4). Industrial timing belt
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.
or it is 15-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but the cost of freight is not included.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance.
Payment>=3000USD, 30% T/T in advance ,balance before shippment.
Q: Can you print our own logo or brand on my ordered belts?
A: Your own logo and brand is acceptable to be printed on your belts, but with the following advanced requirements:
(1) Your order is over 200 pcs ( for ATV drive belt only )
(2) Please send us an authorization to print your logo or brand on your belts;
(3) Please provide the design of your logo or brand
If you have other question, please feel free to contact us.
