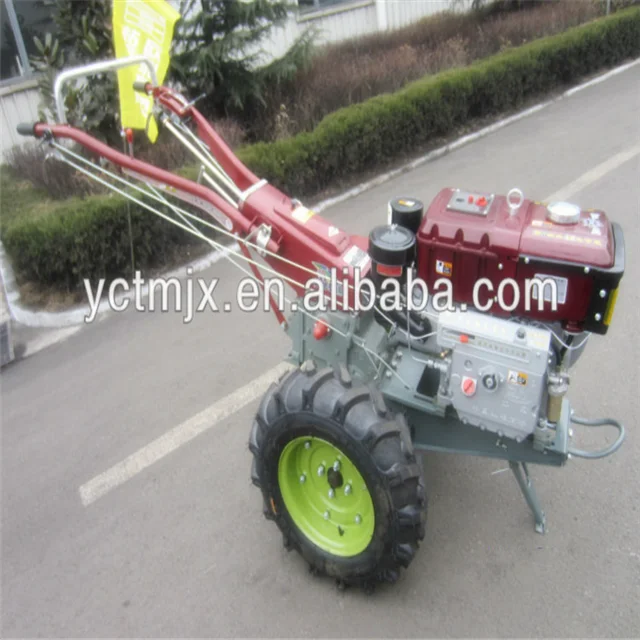

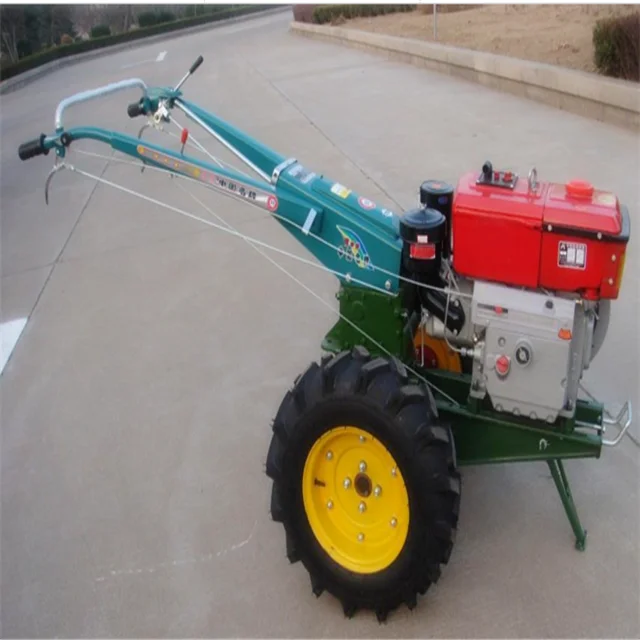

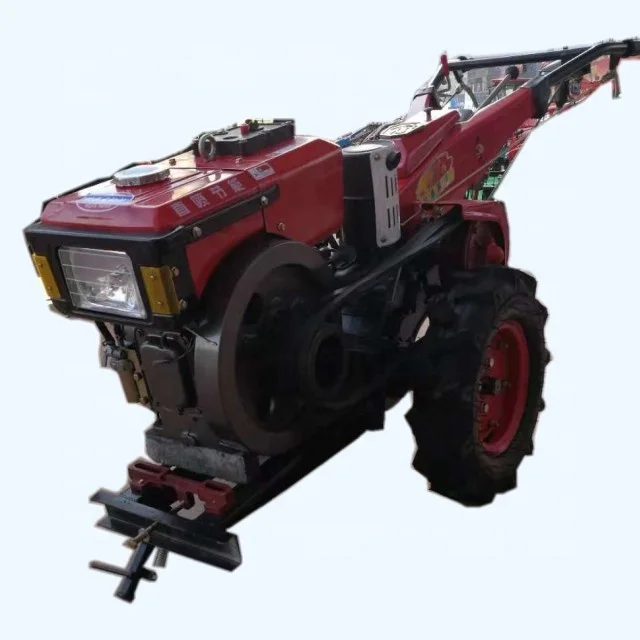

Сельскохозяйственные шаговые тракторы, сельскохозяйственное оборудование для продажи/сельскохозяйственный шаговый трактор

Model of Power Tiller

SH-101A

SH-121

SH-151

Structure weight KG

Without rotavator

258

353

363

With rotavator

350

458

468

Working weight (with rotavator) KG

395

493

508

Overall dimensions (LxWxH)  mm

2700x 960 x 1220

2680 x 960 x 1250

Number of blades PCS

16

18

Rototilling width mm

700

600

Type of tractor

Single axle, dual-purpose for both traction & drive

Travelling speed Km/h Forwrd

2.19, 3.62, 5.79, 7.37, 12.20, 19.48

1.4,2.5,4.1,5.3,9.4,15.3

Travelling speed Km/h  Reverse

3.58, 12.03

1.1, 3.8

Type size

6.00-12

Wheel track mm

650~790(normally use 790)

800, 740, 640, 580(normally use 800)

Min. ground clearance mm

214

185

Min. turning radius m

0.9 with no rotavato

Model of engine

R190N

S195N

S1100N

Type of engine

Horizontal 4-stroke

Bore x stroke mm

90×90

95×115

100×115

Total displacement L

0.598

0.815

0.903

Compression ratio

18:1

20:1

19.5:1

Turing speed of crankshaft rpm

2400

2000

1-hour rated output KW/hphp

8/10.88

9.3/12.65

10.5/14.3

12-hour rated output KW/hp

7.35/10

8.3/11.29

9.8/13.33

Specific fuel consumption g/kw.h

≤281.4

≤258

≤250

Specific lube oil consumption g/kw.h

≤2.04

≤2.04

≤2.00

Cooling mode

Condenser (Radiator)
