gsm modem with rs232 serial port sierra wireless airlink FXT009 fastrack xtend FXT009 modem with rs232
Product Description
Fastrack Xtend wireless FXT009 series GSM GPRS modem
The Fastrack Xtend battery accessory consists of a slow charging circuit and a NiMH battery cell. It is designed for use with the Fastrack Xtend to suit M2M system requirements. The operating temperature fulfills the high power transmission condition required in GPRS class 12.
With the ADC (Analog to Digital Converter) feature of the Fastrack Xtend, the battery accessory status
can be easily monitored by AT commands.

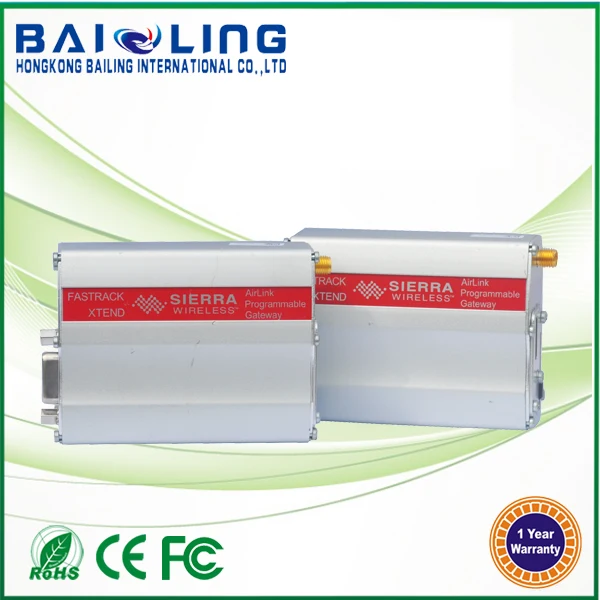

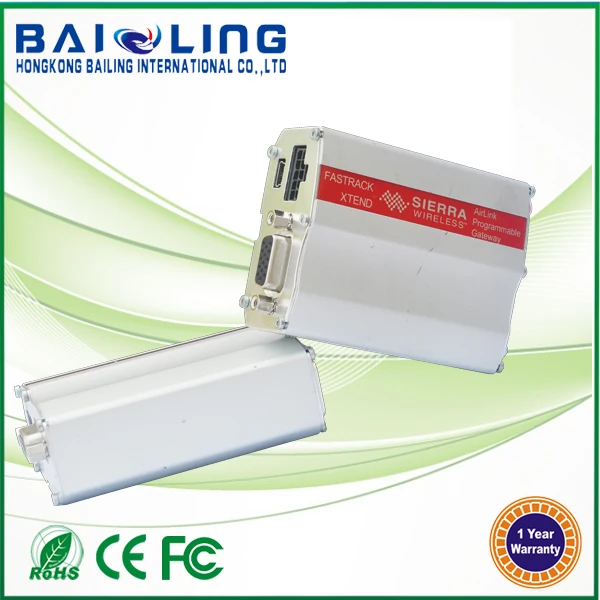

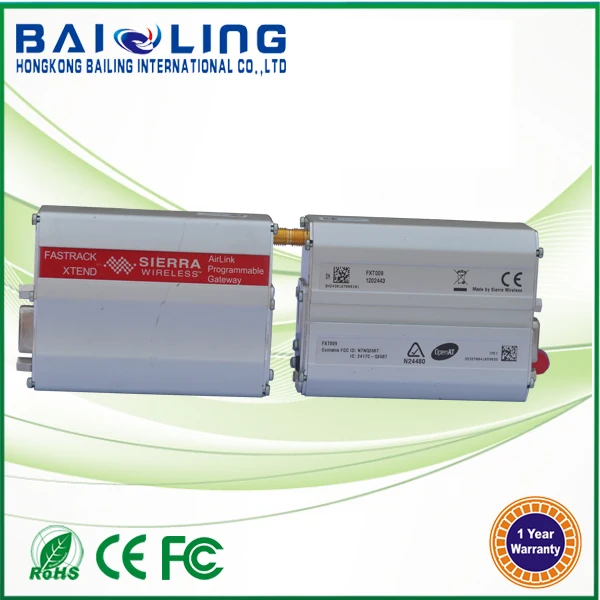

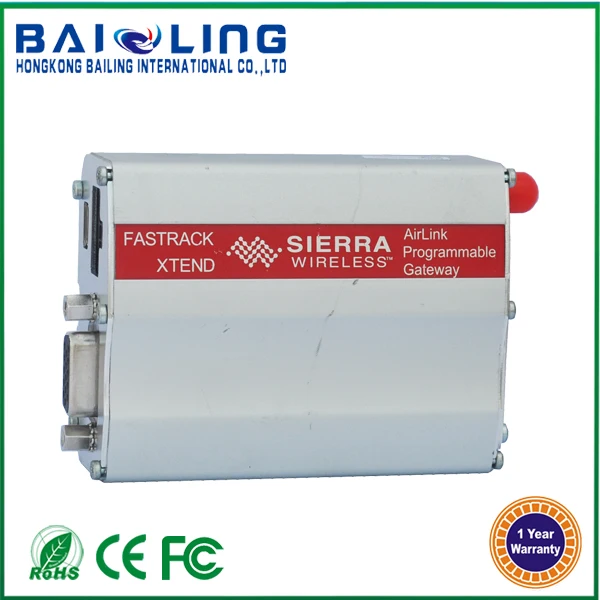

Product Show
Buying Guides
How to place an order?
1. Send an inquiry to me (Ann Chen) through Alibaba.
2. Online inquiry on Trademanager.
3. Add my skype , whatsapp , wechat to chat.
Skype hkbailingjia
Whatsapp +8613631630091
Wechat/QQ 2228318399
modemsales@bailing88 .com
Please contact me ,I will reply within 12 hours
Specifications
1.Based on Wavecom module Q2687(with EDGE)
2.850/900/1800/1900MHz
3.RS232 +Min USB
4.Embedded TCP/IP protocol station.GSM/GPRS
Based on 850/900/1800/1900 Mhz: GSM, SMS, CSD, GPRS, EDGE FR/HR/EFR/AMR
Supplied with Internet plug-in software key. Internet plug-in software key is comprised of TCP/UDP/FTP/HTTP/email components.
Key features
· Quad-band GSM/GPRS/EDGE communications on the 800, 900, 1800 and 1900MHz bands
· Programmable ARM9 32-bit processor at 104MHz
· Advanced audio features
· GPIOs
· Compact size, just 40 x 32.2 x 4mm
· Automotive-grade
· Footprint compatibility with entire Q Series of intelligent embedded modules
Operating System
· LINUX, MAC IOS,VISTA,XP,WIN7,WIN8,WIN9,WIN10 ,WINDOWS
Product Detail
| Interfaces |
This section describes the different interfaces that connect with the FX Series. The FX Series comes |
| Power Supply Connector | The power supply connector is a 10-pin Micro-Fit connector that is used for: ♦ External DC Power Supply connection with voltage from +4.75V to +32V, at 3A on FXT009 and 3.7A on FX100 ♦ GPIOs connection and GPIO voltage reference ♦ ON/OFF pin to power OFF the FX Series ♦ Interrupt pin |
| Serial Interface | A SUB-D 15-pin connector is available as a serial interface to directly communicate with the FX Series. This serial interface is used for: ♦ RS232 serial link connection ♦ Audio lines connection (microphone and speaker) ♦ BOOT signal connection (not used in FX100) ♦ RESET signal connection |
| USB Interface | Aside from the serial interface, the Mini-B USB interface (USB slave) may also be used to directly communicate with the FX Series. |
Expansion Cards Detail
Ethernet Expansion Card Installation
How to insert sim cards ?
Packing List
Two Packing (Optional) - Different prices
| The first packing | (1) 1x FXT009 Modem |
| (2) 1x Supply adapter cable | |
| The second packing | (1) 1x FXT009 Modem |
| (2) 1x Supply adapter | |
| (3) 1x RS232 cable | |
| (4) 1x USB cable | |
| (5) 1x Antenna | |
| (6) 1x CD |
