Цена:186,00 $ - 200,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики


Product Description
\t
12V 24V 118L dc Fridge Description
\t
Item. No:
\t
BD/BC-118
\t
Net Capacity:
\t
(Fridge/Freezer) 78L/40L
\t
Temperature:
\t
0-10℃ fridge; -25℃ freezer
\t

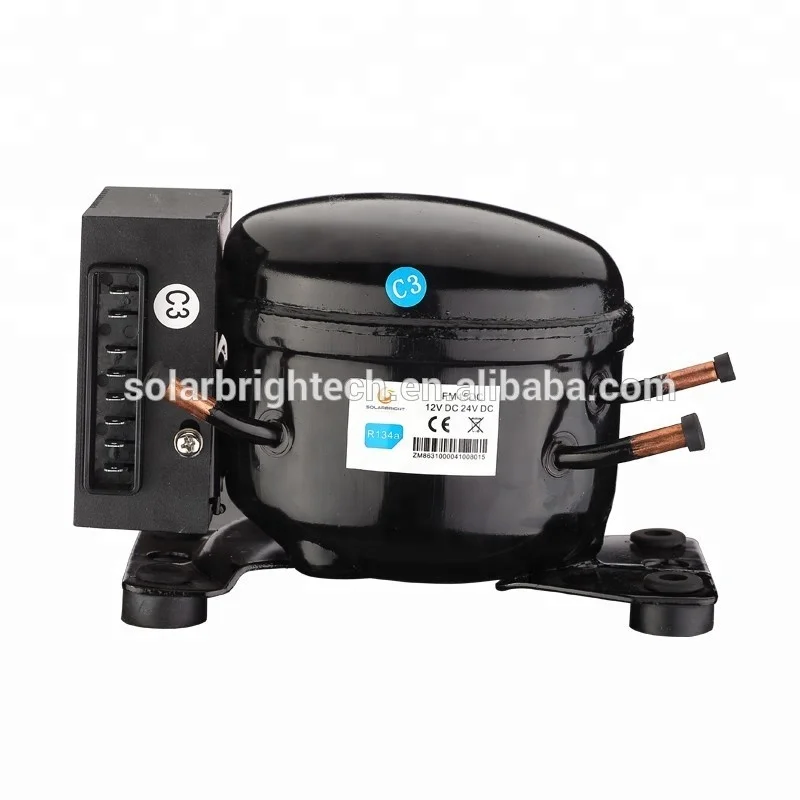

Compressor:
\t
dc exterior rotor structure
\t
Refrigerant:
\t
R134a
\t
Input voltage:
\t
DC 12V/24V
\t
Max current:
\t
5.4/2.7A
\t
Input power:
\t
58W
\t
Energy consumption:
\t
0.62kw.h/24h
\t
Start-up current:
\t
2.3A(12voltage)
\t
Foaming material:
\t
C-pentane,totally CFC free
\t
Condenser:
\t
Inside/outside
\t
Temperature controller:
\t
Mechanical
\t
Body Color optional:
\t
White, Silver, Red etc. Acceptable customized
\t
Product size :
\t
LxWxH:455×505×1188mm
\t
Accessories:
\t
With lock&key,inner glass door,metal basket ,Battery connecting cable
\t
Solar Power system for freezer recommend configuration (Optional)
\t
Solar panel:
\t
240W/18V poly-crystalline with cables.
\t
 Battery:
\t
160Ah/12V lead-acid/GEL maintenance free.
\t
Controller:
\t
12V/24V 20A controller with function of over charge,over discharge etc.
\t
 Charging time:
\t
 12 hours approx for effective sunlight.
\t
Freezer package
\t
Solar system for freezer package
\t
Quantity/carton:
\t
1pcs/carton
\t
Solar panel with carton/pallet package
\t
Carton Dimension LxWxH:
\t
467×540×1215mm
\t
Battery with carton/pallet package
\t
G.W.:
\t
38kg
\t
Controller with carton package
\t
N.W.:
\t
35kg
\t
\t
QTY/40HQ:
\t
218PCS
\t
\t\t\t\t\t\t\t\t\tDetailed Images \t\t\t\t\t\t\t
Our advantage
How to use


solar panel ,battery and controller could be sold with dc fridge

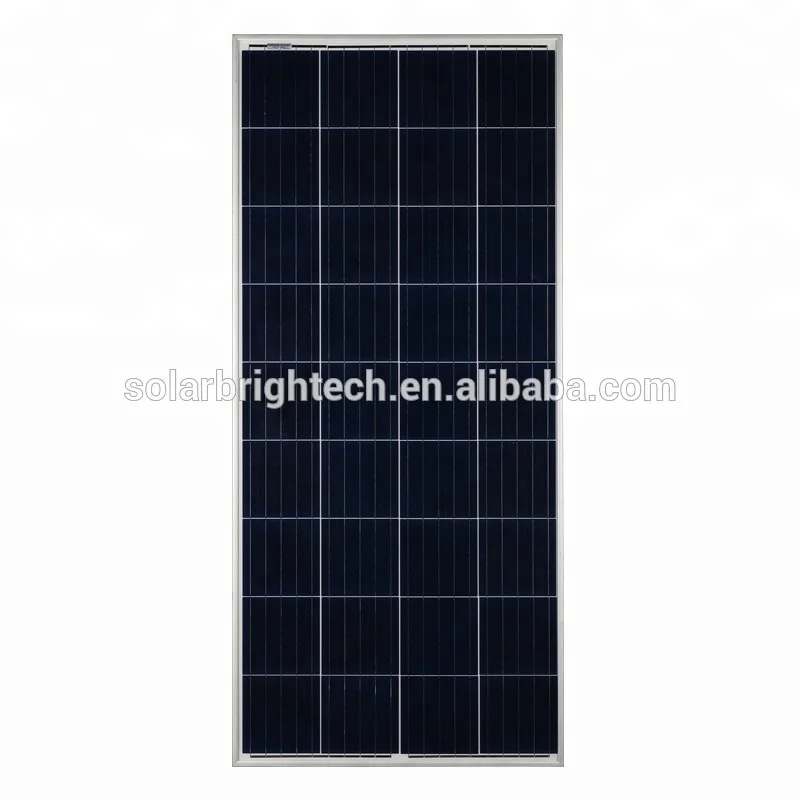

                    Solar panel

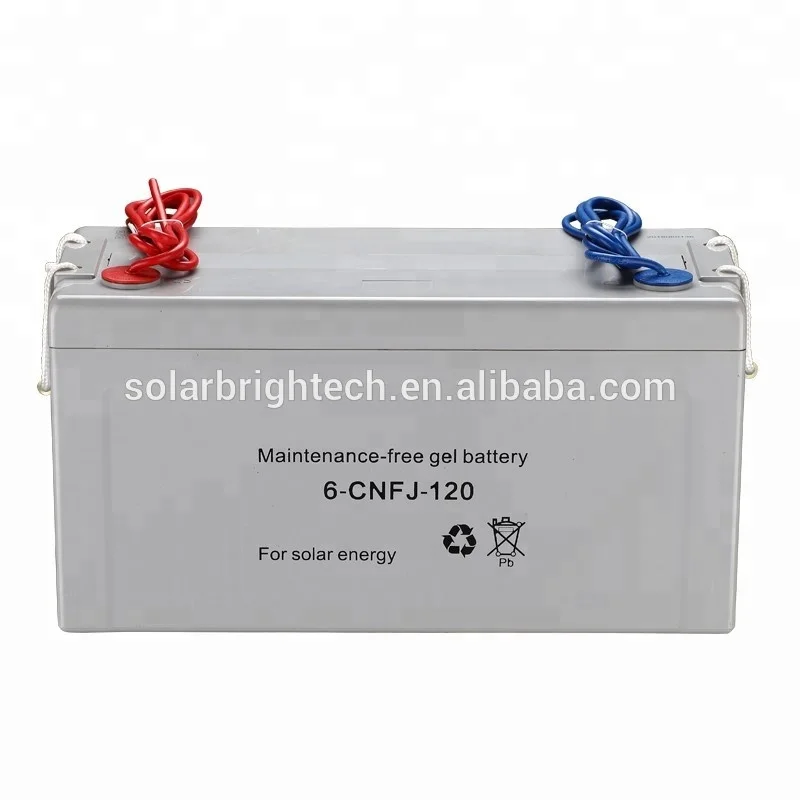

  Mainternance-free gel battery


          12V/24V 20A controller


Optional accessories:


Solar fridge configuration suggestion

\t
Model
\t
Solar panel
\t
Battery-12V
\t
Solar controller
\t
BCBD-50L
\t
150W
\t
100Ah
\t
12V/24V 15A
\t
BCBD-70L
\t
160W
\t
120Ah
\t
12V/24V 15A
\t
BCBD-105L
\t
200W
\t
130Ah
\t
12V/24V 20A
\t
BCBD-118L
\t
240W
\t
150Ah
\t
12V/24V 20A
\t
BCBD-128L
\t
250W
\t
150Ah
\t
12V/24V 20A
\t
BCBD-180L
\t
320W
\t
240Ah
\t
12V/24V 20A
\t
BCBD-215L
\t
360W
\t
240Ah
\t
12V/24V 20A
\t
BCBD-270L
\t
460W
\t
300Ah
\t
12V/24V 20A


There have two methods to connect the dc fridge:


ONE:
Installation method:
Remove the clamps and screw the cable at 12V output charge controller. The "red line " to connect the load indetifier positive, and the "black line" to connect the load indetifier negative.
As shown in the figure below:


TWO:
The cable supplied with lamps connect the battery directly, The " red line " to connect the battery positeive, and teh "black line" to connect the battery negative.
As shown in the figure below:
