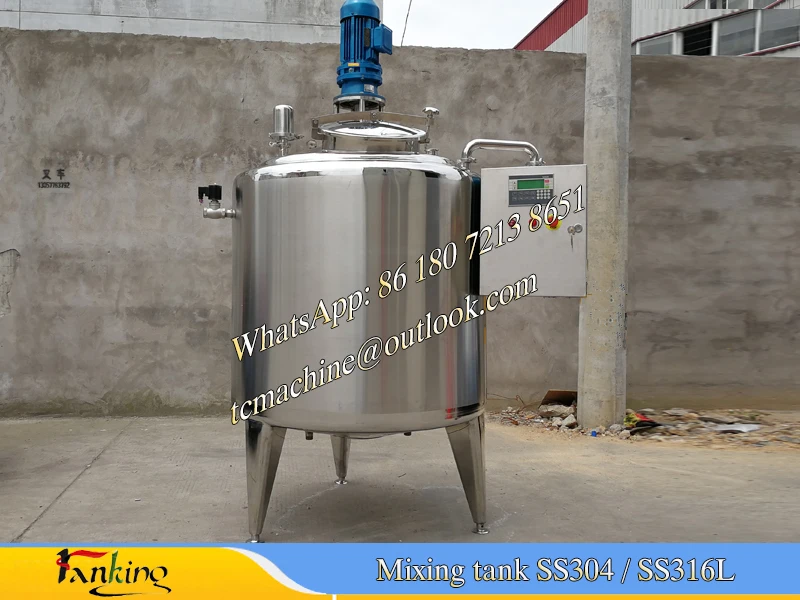

500L Электрический (пара) нагревательная партии резервуар для пастеризации молока
500L Электрический (пара) нагревательная партии резервуар для пастеризации молока
500L Электрический (пара) нагревательная партии резервуар для пастеризации молока
500L Электрический (пара) нагревательная партии резервуар для пастеризации молока
500L Электрический (пара) нагревательная партии резервуар для пастеризации молока
500L Электрический (пара) нагревательная партии резервуар для пастеризации молока
500L Электрический (пара) нагревательная партии резервуар для пастеризации молока

500L Электрический (пара) нагревательная партии резервуар для пастеризации молока

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики


Product Description

electric heating Batch Pasteurizer Description

1)\tMade of stainless steel, suitable for food and beverage production

2)\tElectric / LGP gas operated, high efficiency
3)\tWith temperature gauge <range 0~150degree>
4)\tCIP friendly
5)\tDigital temperature control and display
6)\t100L to 500L available
7)\tWith cooling device <use tap water, ice water or glycol for coolant>
8) milk pump and plate cooler available

Pasteurizer advantage

1. with adjustable leg pad
2. adopt electric heating elements as heating device.
3.\tHeating medium can be tap water.
4.\tCooling medium is also tap water
5. with CIP cleaning ball, easy to clean
6.\tWith CE certificate
Detailed Images


milk batch pasteurizer Main Parts

Name: control box support

Material: stainless steel



for small scale batch pasteurizer, we use a piece of stainless steel tube and some elbows and clamp / ferrule to make a support bas for the pasteurization control system

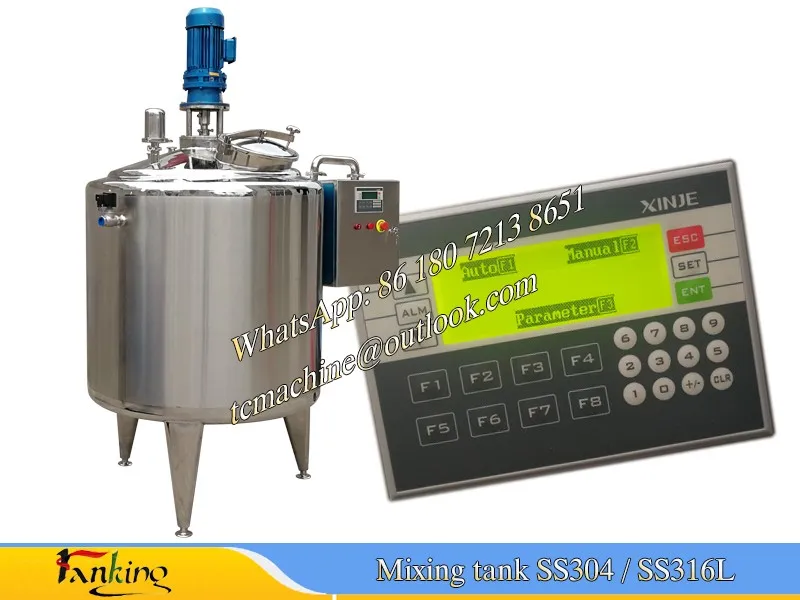

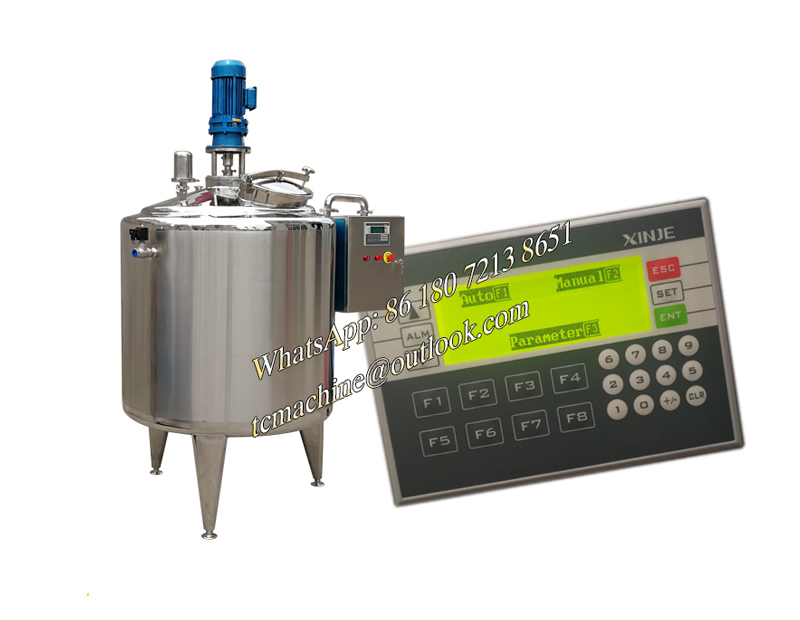

Control system for pasteurizer

Name: Electric Box / control box
Material: stainless steel

control box for our batch pasteurizer (electric heating batch pasteurizer) is made of stainless steel.

batch oasteurizer main parts

Name: heating elements
Material: stainless steel
Heating power: 9~32kw
for small scale pasteurizer, the default heatimg method is electric heating. heating elemets are fixed at the bottom of the jacket wall. users can use heating transfer oil or water as heating medium.

Cooling device for batch pasteurizer (optional)

Name: plate heat exchanger / plate cooker
Material: stainless steel
cooling area: 3~12 square meter
after pasteurization, a cooling phase may be necessary according to your production reqeust. when cooling is necessary, a plate heat exchanger or plate cooker will be a good choise. A plate cooler will help you get a lower temperature in short time.

Optional device for batch pasteurizer

Name: milk pump

Contact pat: SS304

usage:

pump milk and cream from batch pasteurizer inner drum to plate cooler for a faster cooling and help milk and cream get an even heating effect in short time.

Specification

hot sell milk batch pasteurizer specification (electric heating type batch pasteurizer)

100L electric heating milk batch pasteurizer and 200L, 300L ones usually comes with heating tubes, 6~18kw heating power. milk pump and plate cooker are optional.
500L batch pasteurizers can be electric heating type or steam heating type.
steam heating type batch pasteurizer need users have a steam generator in advance.
\t
Capacity
\t
100L
\t
200L
\t
300L
\t
500L
\t
Structure
\t
Three wall <inner drum , cooling/heating drum and insulation drum>
\t
Working pressure
\t
0.09 Mpa
\t
0.09 Mpa
\t
0.09 Mpa
\t
0.09 Mpa
\t
Test pressure
\t
0.15 Mpa
\t
0.15 Mpa
\t
0.15 Mpa
\t
0.15 Mpa
\t
Motor
\t
0.55KW / 36rpm
\t
0.75KW / 36rpm
\t
1.1kw / 36rpm
\t
1.5kw / 36rpm
\t
Heating area
\t
0.9 M2
\t
1.3 M2
\t
1.7 M2
\t
2.1 M2
\t
Material inlet / outlet
\t
DN25
\t
DN32
\t
DN32
\t
DN40
\t
Heating method
\t
3 phase Electric
\t
3 phase Electric
\t
3 phase Electric
\t
3 phase Electric
\t
Temperature gauge
\t
0~150degree
\t
0~150degree
\t
0~150degree
\t
0~150degree
\t
Working temperature
\t
0~100 degree
\t
0~100 degree
\t
0~100 degree
\t
0~100 degree
\t
Overall dimension
\t
Φ700×1200 mm
\t
Φ800×1350 mm
\t
Φ1000×1450 mm
\t
Φ1100×1650 mm
\t
Weight
\t
130kg
\t
180kg
\t
210kg
\t
260kg
\t
Cooling medium
\t
Cooling by external ice water / tap water
\t
Cooling by external ice water / tap water
\t
Cooling by external ice water / tap water
\t
Cooling by external ice water / tap water
\t
Milk pump
\t
1.5T/H
\t
1.5T/H
\t
3T/H
\t
3T/H
\t
Plate cooker
\t
3 square meter
\t
3 square meter
\t
6 square meter
\t
6 square meter
\t
\t
\t
\t
\t
Certifications

SS304 quality certificate

all our batch pasteurizer, tanks and reactors are made of high quality stainless steel 304 / 316L. and all the stainless steel sheet have their own quality certificate

SS316 inspection certificate

most of batch pasteurizer and stainless steel tanks are made of SS304. under special reqeust, SS316L stainless steel is also available.

batch pasteurizer with CE certificate

batch pasteurizer with CE certificate

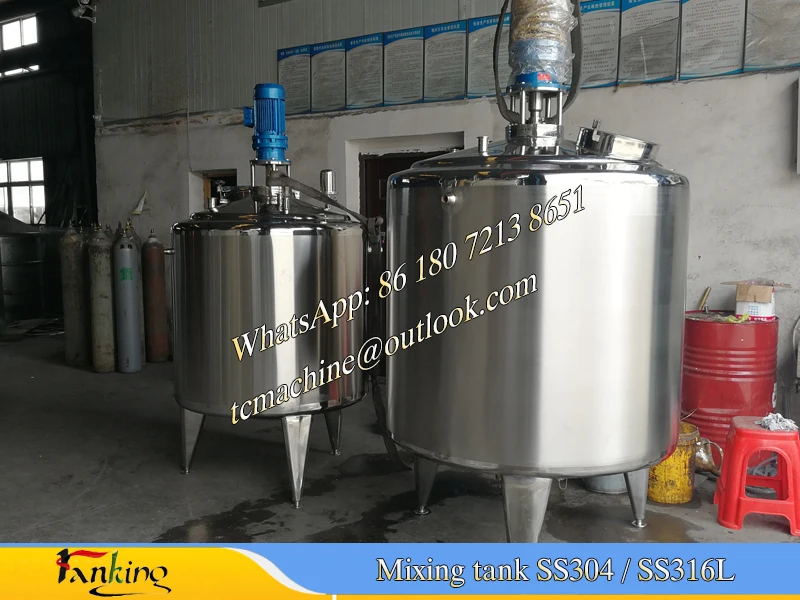

Workshop
Packing & Delivery

Batch pasteurizer packing and delivery

wooden case for 100L ~ 500L stainless steel batch pasteurizer

nylon packing for 1000L and 2000L batch pasteurizers

Visitors
Our pricec

500L electric heating batch pasteurizer prices

stainless steel batch pasteurizer price have up and down according to the raw material price. and the related accessories, such as milk pump, pleate cooler, automatic control system... will also have great influence on batch pasteurizer price. it i snot easy to list all the related prices out in this page. and the prices you see in this site may not correct. please contact our online service team and tell us your reqeust on the batch pasteurizer (capacity, heating medium, cooling method.. etc), we will offer you the latest price based on your reqeust.
