TUF-2000H ручной ультразвуковой расходомер, Бесконтактное измерение

Items

Performance and Parameter

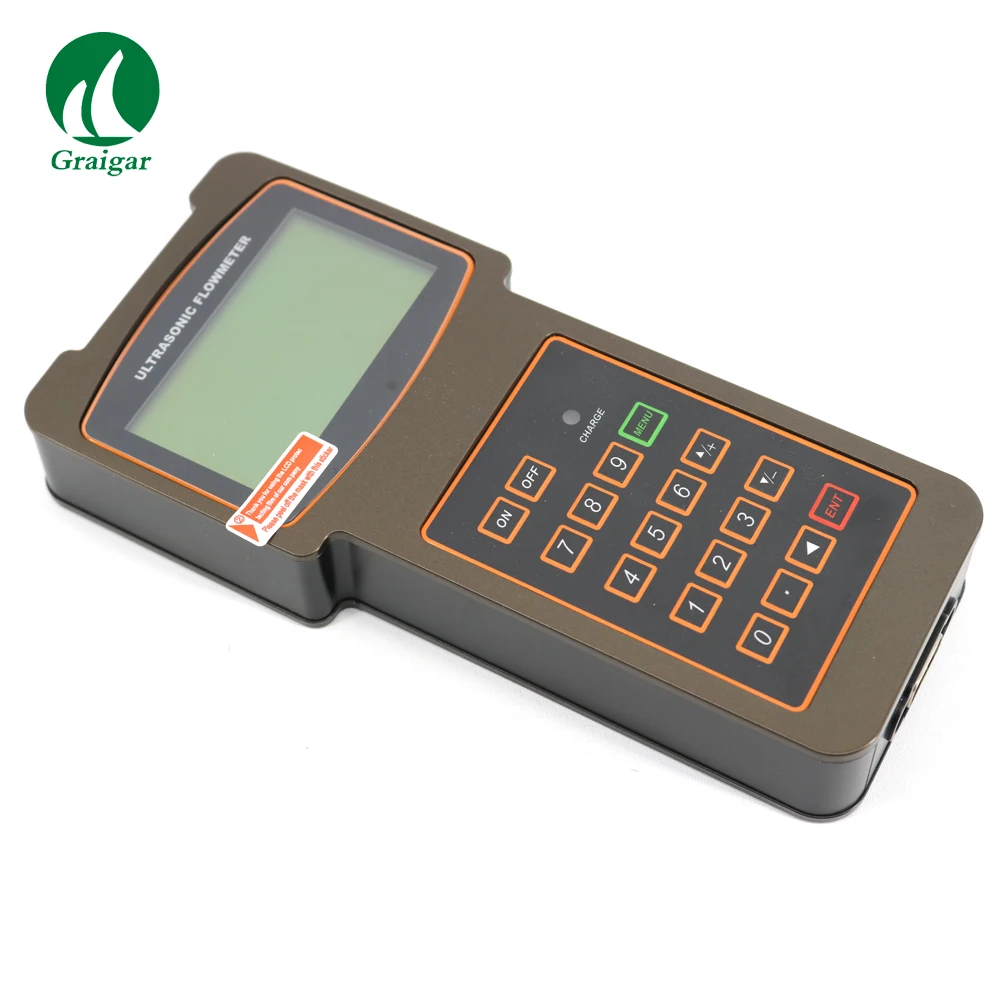

Main Unit

Principle

transit-time ultrasonic flowmeter

Accuracy

Accuracy :over 1%-2%; Repeatability: over 0.2%

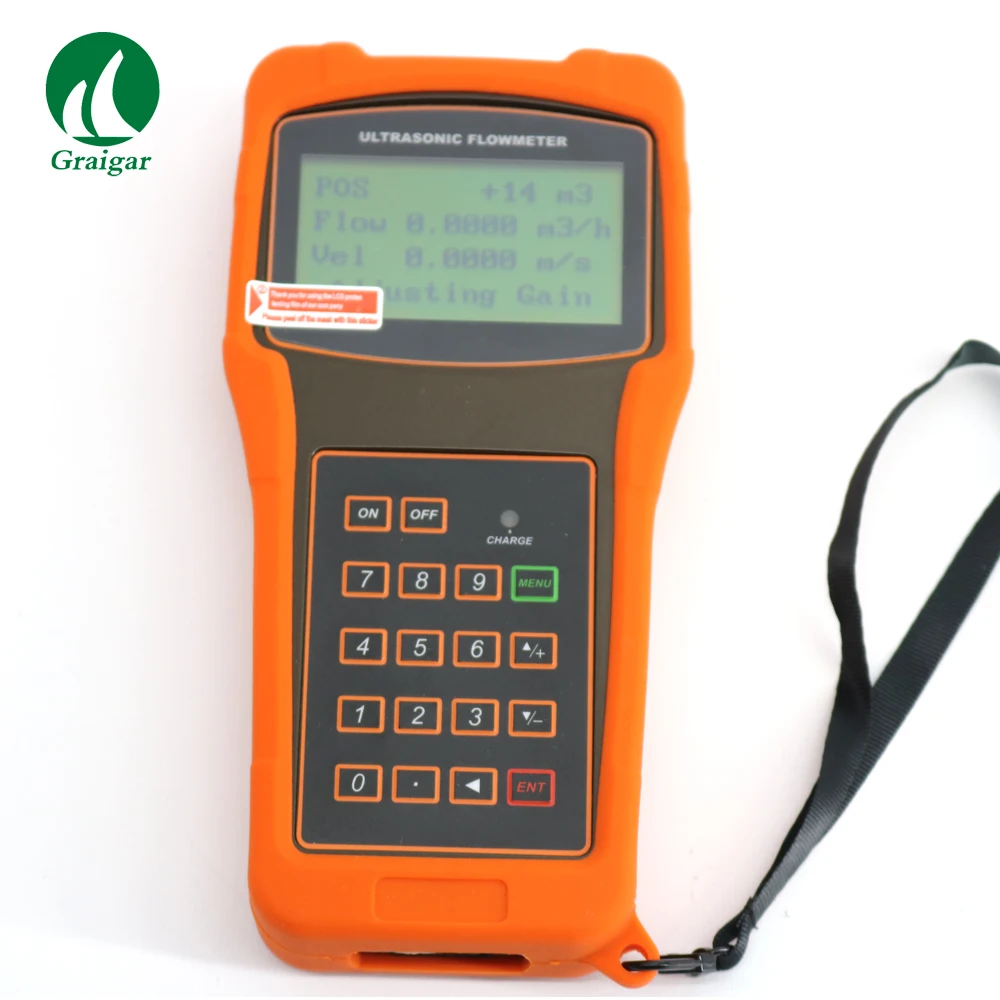

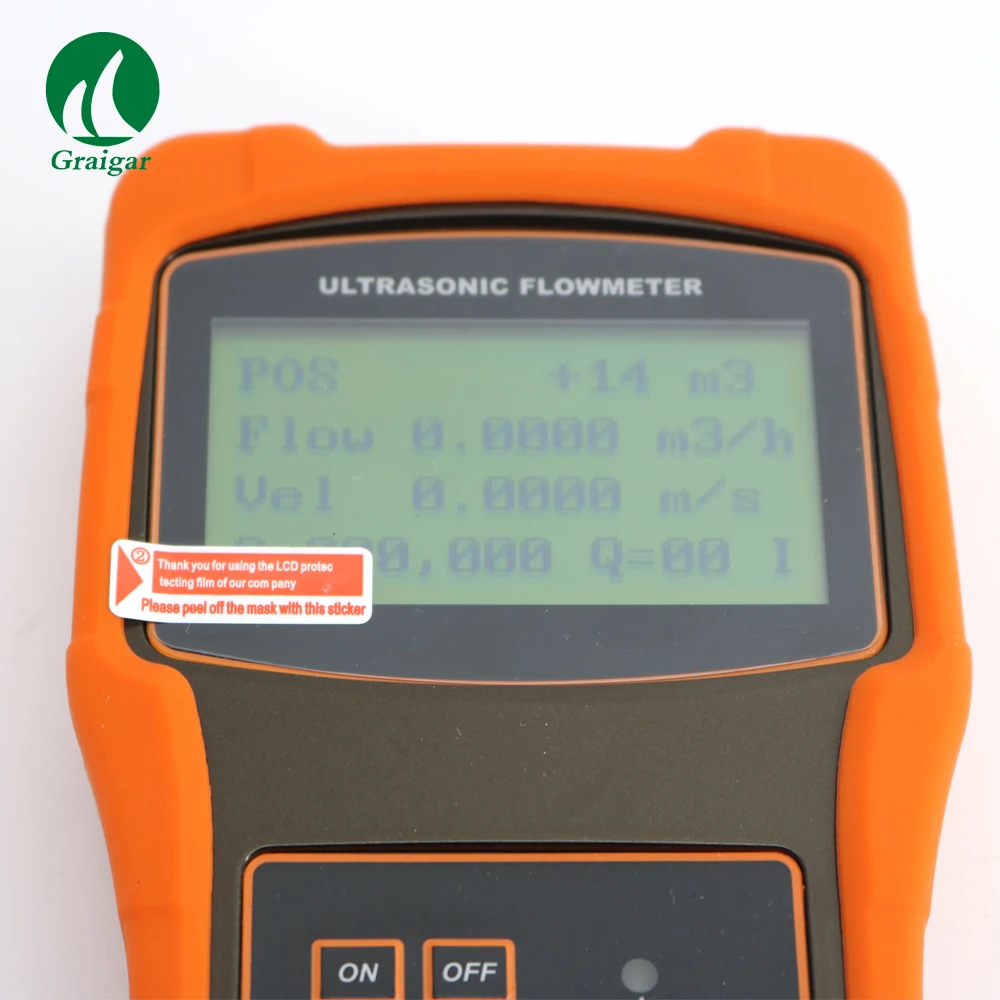

Display

4 line x 16 character LCD with backlight

Dimension

200*93*33cm: 390g

Operation

Support 16 key light touch keyboard and the Simulation keyboard software

Data interface

Insulate RS232 serial interface, upgrade the flew meter software by computer,

support the MODBUS, etc.

Signal Output

1 channel oct output

Special Cable

Twisted-pair cable, ;Select the RS232 communication.;

Generally, the standard is 5m*2, optional 10m*2

Pipe Condition

Pipe Material

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass

steel product, liner is allowed.

Pipe Diameter

DN 15---6000mm

Straight length pipe

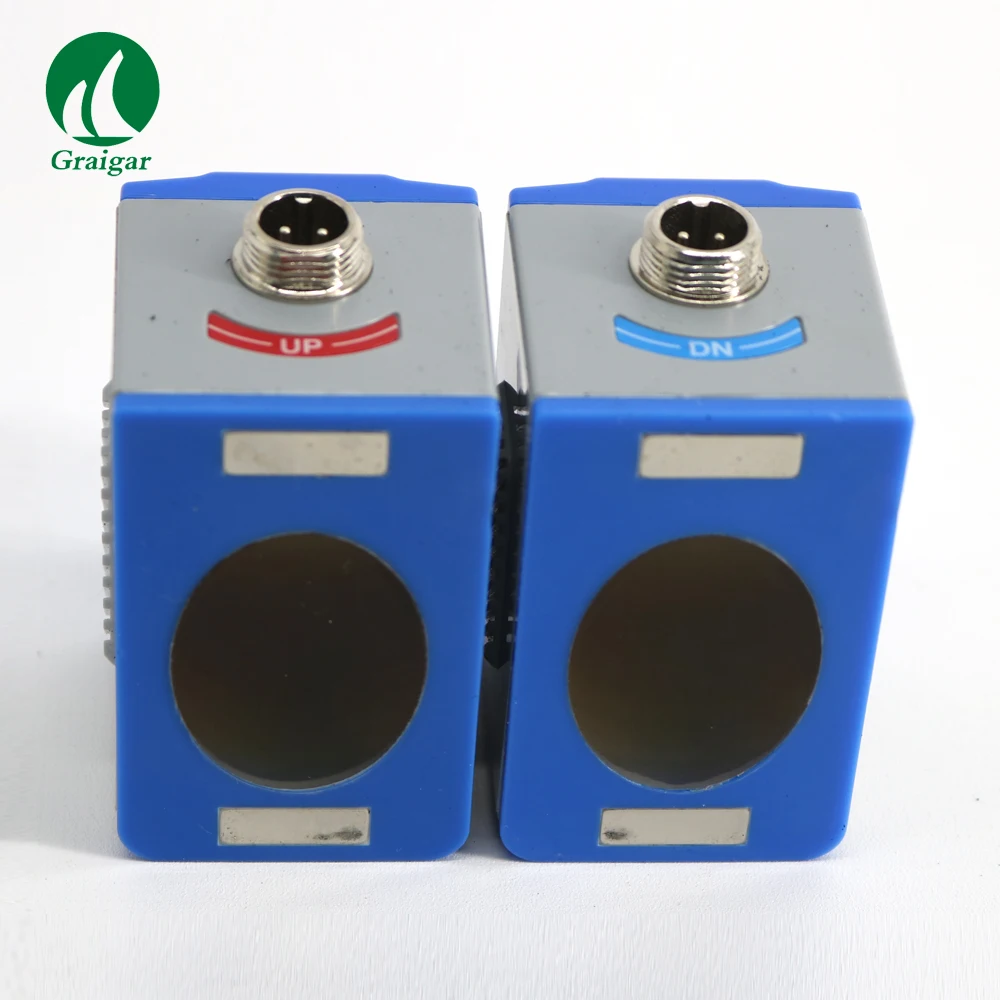

Transducer installation should be satisfied: upstream10D, downstream 5D,

30D from the pump.

Measuring Medium

Type of Liquid

Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage

with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);

Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, liquid food; Ultra-pure liquids; Solvents and other liquids

Temperature

Standard Transducer: -30--90°C; High-temperature transducer: -40--160°C

Turbidity

10000ppm and less than bubble

Flow rate

0--±30 m/s

Flow Direction

Measuring two (plus-minis) direction of flow rate

Working Environment

Temperature

Main Unit: -20--60°C

Flow transducer: -40--160°C;

Temperature transducer: according to the customer’s demands.

Humidity

Main Unit: 85% RH

Power Supply

AC 110V-240V
